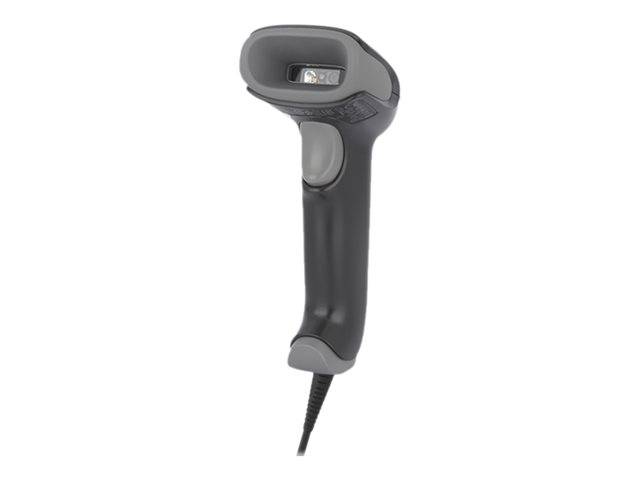

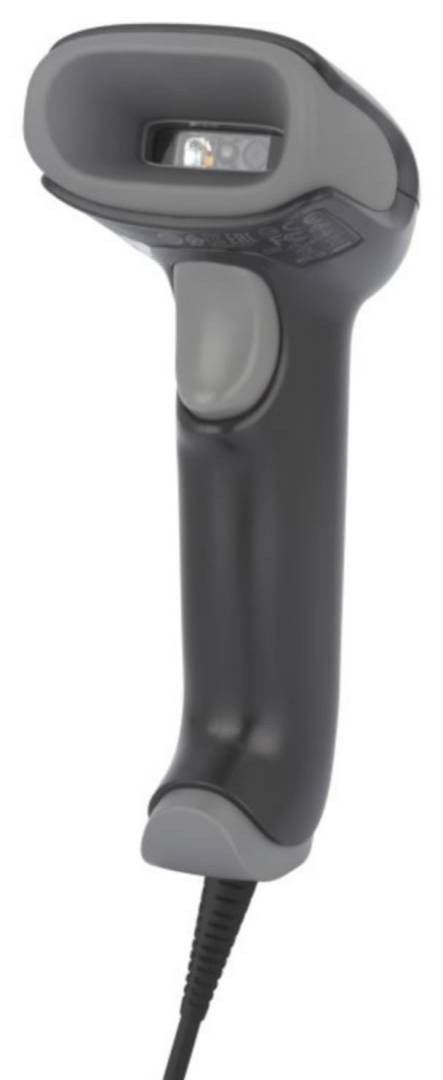

Honeywell Voyager XP 1470g 1D/2D Barcode Scanner USB Kit, 1.5m Cable, Without Stand, Black

Brand:
Honeywell
Honeywell Voyager XP 1470g Black 2D Barcode Scanner with 1.5m USB Cable
Honeywell Voyager XP 1470g 1D/2D Barcode Scanner USB Kit, 1.5m Cable, Without Stand, Black
€194.99 inc. VAT
Buy
1470G2D-2USB-R
€163.86
€194.99 inc. VAT
Ships from EU stock: 232 item(s)
+ −
Add to wish list Ask a question
Product Code
1T73085
EAN Code
7578531000002
Manufacturer
Honeywell

Quick Specs

Reading
1D / 2D · QR / Data Matrix
Supplied connection
USB-A · 1.5m cable
Supplied configuration
Reader + cable · no stand
Protection
IP52 · 130g
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

A wired 2D USB kit for handheld use, without a stand

1D + 2DUSB cable 1.5mNo standPaper + screens

1470G2D-2USB-R includes the black Voyager XP 1470g scanner and a 1.5m straight USB-A cable. Take the reader to the label, scan a printed barcode or supported phone-screen code, and send the decoded value to a compatible POS application. This version leaves the stand out of the package: choose it when handheld operation or a separately verified stand suits the counter.

Before you order:
The 1.5m USB cable is included; a stand is not. The 1470G2D-2USB-1-R stand kit and 1470G2D-2-R scanner-only version have different contents. This1470g is wired, with no Bluetooth or battery. Software determines how a scanned value is used; scanning a payment QR alone does not process payment.

What's in the Box

  • Black Voyager XP 1470g2D reader
  • CBL-500-150-S00 straight USB-A cable, 1.5m
  • Stand not included

What It Means in Practice

  • For example, scan a carton label and then a loyalty QR displayed on a phone. The cable connects the reader to the USB host, while the POS application handles product lookup or loyalty data. The 1040×720 sensor and 60fps describe imaging, not guaranteed transactions per second.

What Will Not Work

  • No wireless roaming or battery operation.
  • No stand in this kit.
  • OCR, Digimarc or other optional decoding features require verified configuration/licensing; not promised in this standard kit.

Key Features


Paper and screen capture
Area imaging supports traditional labels and supported 2D codes on digital displays.

Daily checkout durability
The manufacturer specifies repeated-drop and tumble testing for retail work.

Configuration tools
EZConfig, scanner management tools and SDKs support deployment. Confirm the application and keyboard layout for your POS.

Technical Specifications

Identification
Manufacturer SKU 1470G2D-2USB-R
EAN / GTIN 7578531000002
Reading
Sensor / frame rate Area imager · 1040 × 720 pixels · 60 fps
1D formats Code 39/128/93/11/32, EAN, UPC, Codabar, China Post, GS1 DataBar
2D formats Aztec, Data Matrix, QR / Micro QR, MaxiCode, Han Xin, postal codes, PDF417; configuration-dependent
Minimum resolution Code 39: 3 mil · PDF417: 4 mil · QR: 6 mil · Data Matrix: 5 mil
Motion tolerance 70 cm/s for 13 mil UPC at optimal focus
Contrast / field of view 15% · 39.2° H × 27.4° V
Angles Roll ±180° / pitch ±65° / skew ±70°
Illumination / aimer Warm white LED 2700 K · red dot LED 624 nm
Typical reading distances
Code 39 / UPC 5 mil: 20–205 mm · 13 mil: 18–400 mm
PDF417 / Data Matrix / QR 6.7 mil: 15–185 mm · 10 mil: 10–165 mm · 20 mil: 5–325 mm
Range conditions Barcode quality and environment affect performance
Host and power
Reader interfaces USB / Keyboard Wedge / RS-232; this kit includes USB cable
Supply / operating power 4–5.5 V DC · 2 W / 400 mA @ 5 V
Standby power 0.45 W / 90 mA @ 5 V
Keyboard / indicators 84 layouts · good-read LED / adjustable beeper
Physical / environment
Dimensions / weight 82 × 62 × 169 mm · 130 g
Colour / package Black USB kit; no stand
Sealing IP52, current manufacturer Rev F specification
Drop / tumble tests 30 × 1.8 m onto concrete · 1000 × 0.5 m tumbles
Operating / storage 0–50°C / −40–60°C
Humidity / light 0–95% RH non-condensing · 0–100000 lux
ESD / vibration ±8 kV indirect / ±15 kV air · 5 G peak, 5–300 Hz
Included cable CBL-500-150-S00 · USB-A straight ·1.5m
Manufacturer warranty 5 years subject to manufacturer terms

Frequently Asked Questions

How is this different from the stand kit?
This -2USB-R supplies the reader and 1.5m USB cable. The -2USB-1-R additionally supplies a stand; the -2-R is reader only. Compare the exact contents before ordering.
Does 400mm apply to every barcode?
No. 18–400mm is the typical 13mil UPC reference. Smaller codes have shorter listed ranges, and focus, quality and ambient conditions affect reading.
Does IP52 allow immersion cleaning?
No. IP52 is not an immersion rating, and standard black housing must not be treated as a specifically verified healthcare enclosure.
Singular Expert Insight
Choose this USB kit when you need the cable supplied but do not require a bundled stand. It reads both linear labels and supported 2D screen codes, unlike a 1D-only reader. Check actual label density, host input mode and cable reach; the sensor resolution alone does not determine checkout throughput. Compare barcode scanners

Buyer’s Guide

✓

Buy it if

 You want a wired 1D/2D handheld USB kit with its 1.5m cable and no bundled stand.
✕

Skip it if

 You need cordless movement or a stand included in the box.
→

Also consider

 The verified 1470g stand kit when you need a supported fixed presentation setup.
Tell us your POS model, application and barcode examples so we can check the connection requirements.

Features - Honeywell - 1470G2D-2USB-R

Colour
black
Interface
-
Length
1.5m
More Details
Product Code
1T73085
EAN Code
7578531000002
Manufacturer
Honeywell
