HP 4G LTE-A Pro Cat16 WWAN Module AM5R3AA M.2 3052 up to 1 Gbps eSIM GNSS for HP EliteBook ProBook ZBook G11 Notebooks

Brand:
Hewlett Packard
HP 4G LTE-A Pro Cat16 WWAN Module AM5R3AA
HP 4G LTE-A Pro Cat16 WWAN Module AM5R3AA M.2 3052 up to 1 Gbps eSIM GNSS for HP EliteBook ProBook ZBook G11 Notebooks
€317.11 inc. VAT
Buy
AM5R3AA
€266.48
€317.11 inc. VAT
Ships from EU stock: 1 item(s)
+ −
Add to wish list Ask a question
Product Code
CL79498
EAN Code
0198701332886
Manufacturer
Hewlett Packard

Quick Specs

Network
4G LTE-A Pro Cat 16 · 3G
Speed
Up to 1 Gbps / 150 Mbps
Fits
HP G11 business notebooks
Size
M.2 52 × 30 mm · 7 g
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

HP 4G LTE-A Pro Cat16 WWAN — Built-in Mobile Broadband for HP G11

LTE Cat 16Up to 1 GbpseSIM & GNSSHP G11 notebooks

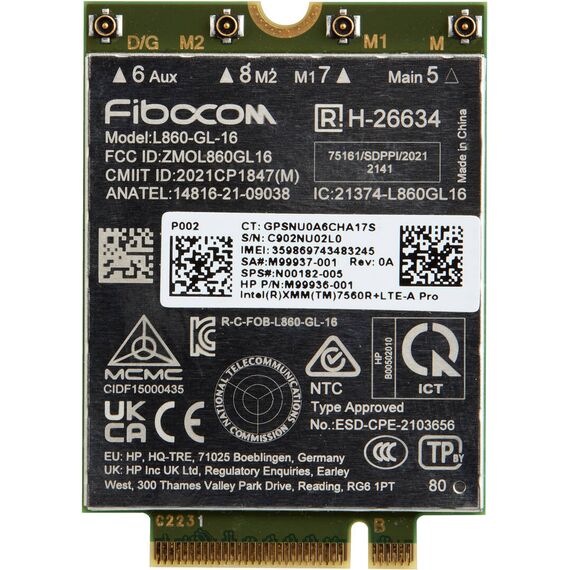

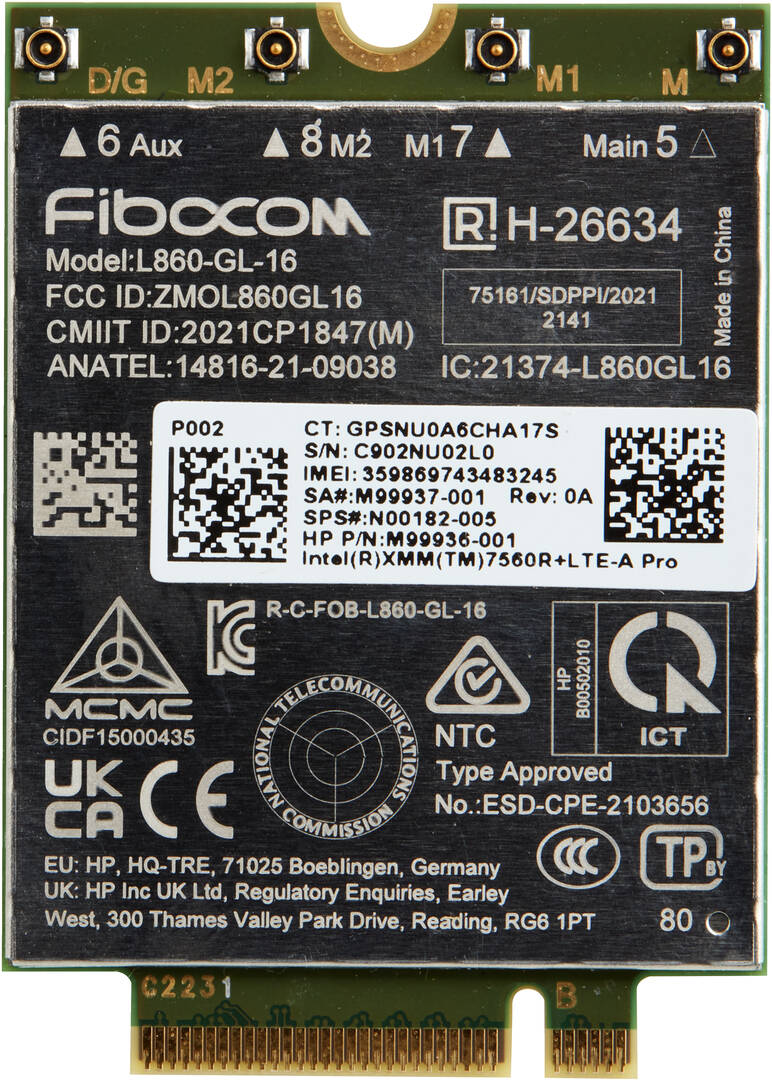

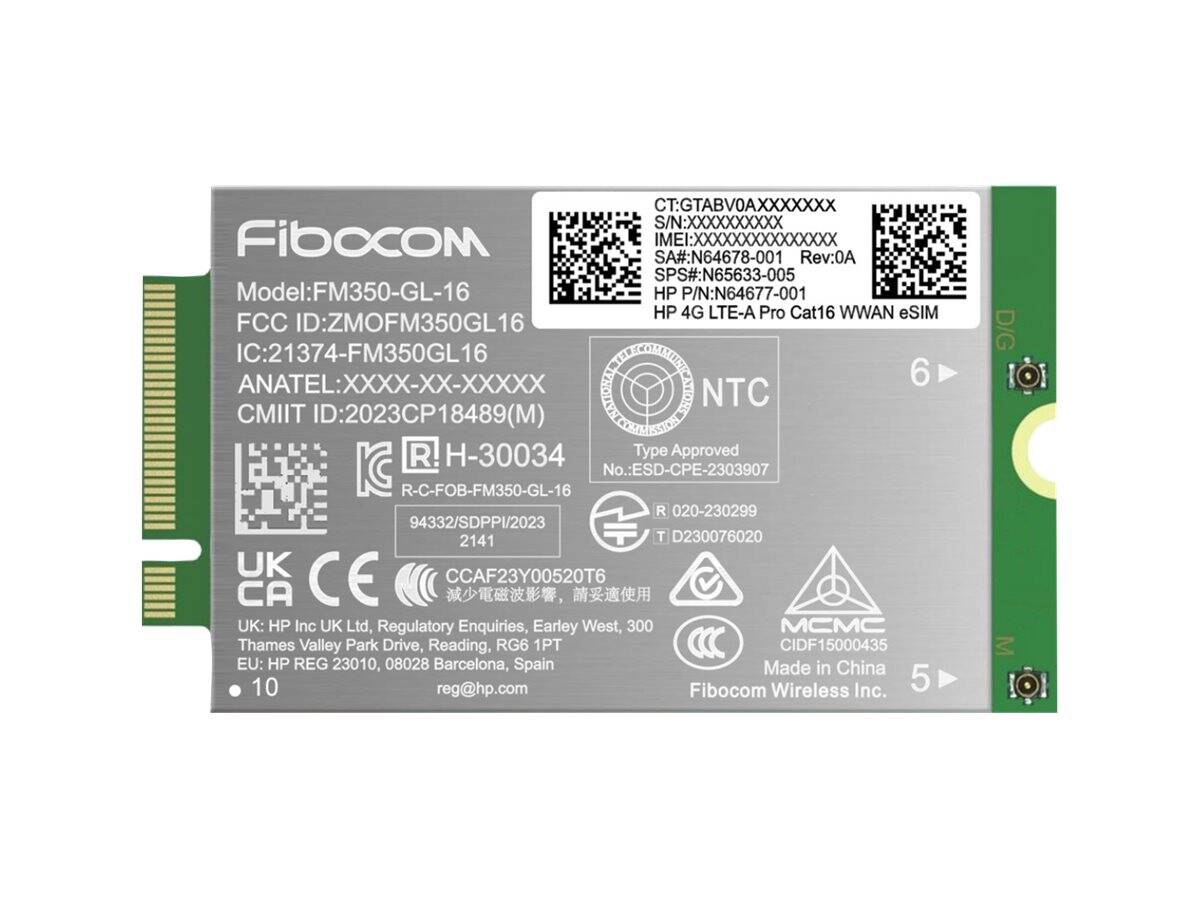

The HP 4G LTE-A Pro Cat16 WWAN (part number AM5R3AA) is an internal mobile broadband module for selected HP business notebooks of the G11 generation. It connects the laptop to 4G LTE-Advanced Pro networks at up to 1 Gbps down and 150 Mbps up with 5-carrier aggregation and 256QAM, falls back to 3G HSPA+, supports eSIM and adds GNSS positioning. It measures 52 × 30 × 2.3 mm and weighs 7 g. In practice it keeps an EliteBook, ProBook or ZBook online anywhere there is mobile coverage, without a hotspot or dongle.

Compatibility — check before buying:
Only for the HP G11 notebooks HP lists — it does not fit G10 or older, and G12 is not on the list. HP lists: ProBook 440, 445, 460, 465 G11; EliteBook 630, 640, 645, 660, 665, 830, 835, 840, 845, 860, 865, 1040 G11; Elite x360 830 G11 and 1040 G11; ZBook Power 16 G11 and G11 A; ZBook Fury G11; ZBook Firefly 14 G11, 16 G11 and 14 G11 A. HP does not state on the spec sheet whether the laptop must have been built with WWAN antennas, and no antenna is in the box. Speeds need an operator plan and network support. Send us the exact laptop model or product number and we check it.

Best For

✓ HP EliteBook and ProBook G11 fleets
✓ ZBook mobile workstations
✓ Sales and field teams
✓ Working away from Wi-Fi
✓ Secure company connectivity
✓ Adding WWAN to a listed G11

Key Features


LTE-A Pro Cat 16
Up to 1 Gbps down and 150 Mbps up with 5DL carrier aggregation and 256QAM.

eSIM and GNSS
eSIM support and positioning with GPS, GLONASS, Galileo, BeiDou and QZSS.

Made for HP G11
An HP option listed for ProBook, EliteBook, Elite x360 and ZBook G11 models.

Three-year limited warranty
HP publishes a three-year limited warranty on this option.

Technical Specifications

Identification
Brand HP
Product HP 4G LTE-A Pro Cat16 WWAN
Part Number AM5R3AA
EAN / GTIN 0198701332886
Network
Technology 4G LTE-Advanced Pro Cat 16 (FDD/TDD), UMTS/HSPA+
Peak Speed Up to 1 Gbps down / 150 Mbps up (network dependent)
Standard 3GPP Release 15, 5DL carrier aggregation, 256QAM
SIM eSIM support
Positioning GNSS: GPS, GLONASS, Galileo, BeiDou, QZSS
Physical & Environment
Dimensions 52 × 30 × 2.3 mm
Weight 7 g
Operating Temperature −20 to 65 °C
Operating Systems Windows 10, Windows 11
Compatibility
ProBook 440, 445, 460, 465 G11
EliteBook 630, 640, 645, 660, 665, 830, 835, 840, 845, 860, 865, 1040 G11
Elite x360 830 G11, 1040 G11
ZBook Power 16 G11 / G11 A, Fury G11, Firefly 14 G11, 16 G11, 14 G11 A
In the Box
Included WWAN module, screw, spacer, quick setup poster, warranty card, product notices
Not Included Antennas, SIM card or data plan, installation
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term HP publishes a three-year limited warranty on this option. Singular’s direct warranty is 1 year; beyond that we assist you with the manufacturer’s warranty process for its full duration.

Frequently Asked Questions

Which laptops does it fit?
Only the HP G11 notebooks HP lists: ProBook 440/445/460/465 G11, EliteBook 630 to 1040 G11, Elite x360 830/1040 G11 and the ZBook Power, Fury and Firefly G11 models. Send us your product number and we confirm.
How fast is it?
HP states up to 1 Gbps down and 150 Mbps up. Real speeds depend on your operator, plan and coverage.
Do I need a SIM?
Yes, a data SIM or an eSIM profile from your mobile operator, with a data plan.
Will it work in a G10 laptop?
No. HP lists it for G11 models only.
Singular Expert Insight
We suggest the AM5R3AA for HP G11 fleets that need always-on connectivity without phones as hotspots. Check the exact product number before ordering, since WWAN support varies within a model line. For laptops outside the list, one of our 4G and 5G routers is the simpler route. See also our docking stations.

Buyer’s Guide

Buy it if

You have a listed HP G11 business notebook and want built-in 4G.

Skip it if

Your HP notebook is G10 or older, or not on HP’s list.

Also consider

HP 5G WWAN modules for the same G11 notebooks.
