HPE X240 10G SFP+ to SFP+ 5m Direct Attach Copper Cable (DAC) for HPE Comware FlexFabric and FlexNetwork Switches
Brand:
Hewlett Packard
HPE X240 10G SFP+ to SFP+ 5m Direct Attach Copper Cable (DAC) for HPE Comware FlexFabric and FlexNetwork Switches
€377.22 inc. VAT
JG081C
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply

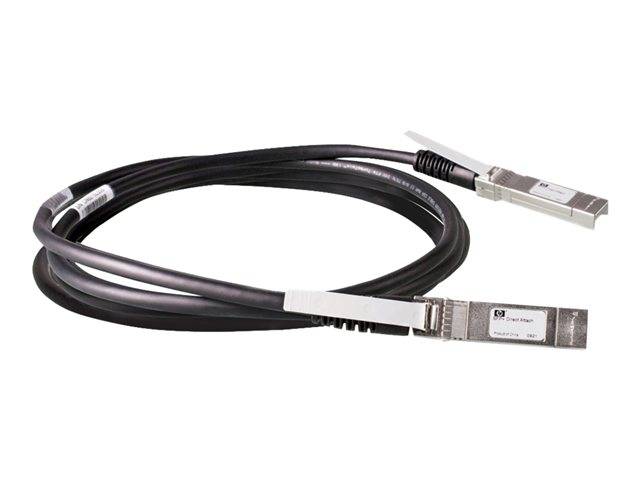

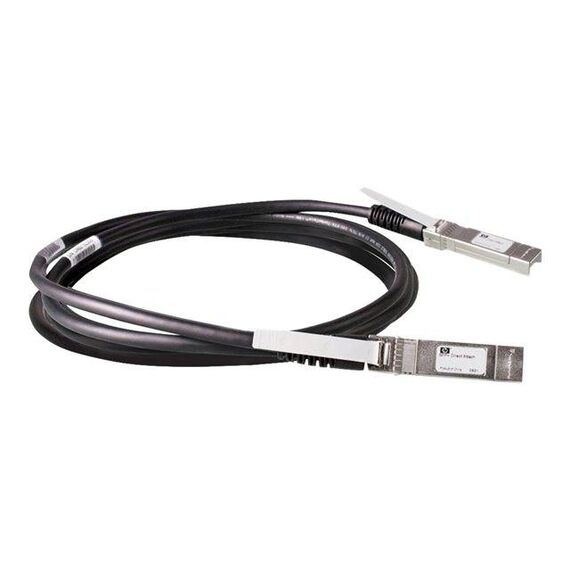

HPE X240 10G SFP+ to SFP+ 5m Direct Attach Copper Cable
10G SFP+5 m DACHPE ComwareJG081C
The HPE X240 10G SFP+ to SFP+ 5m Direct Attach Copper Cable (JG081C) is a ready-made 10 Gigabit link with SFP+ ends fixed to both sides of the cable, built for HPE Comware-based FlexFabric and FlexNetwork switches. It replaces a pair of SFP+ transceivers plus a fibre patch lead when the two ports are within 5 metres of each other.
Typical uses are switch-to-switch uplinks inside the same rack or the next rack, IRF stacking links between two HPE Comware switches, and short server-to-top-of-rack connections. HPE lists JG081C in the QuickSpecs of the FlexFabric 5800 and 5900 series, the 5130 EI series SFP+ ports and the FlexNetwork 7500X 48-port 10G SFP+ module.
Before you order: Check that JG081C appears on your switch’s own HPE QuickSpecs list. Aruba OS-CX/ArubaOS switches use their own DAC part numbers, so send us the switch model and we will confirm the right cable before you order.
What's in the Box
- 1 × HPE X240 10G SFP+ to SFP+ Direct Attach Copper Cable, 5 m, with the SFP+ connectors fixed to both ends
- No separate transceivers are needed — the connectors are part of the cable
- HPE does not publish a fuller package list
What It Means in Practice
- Two SFP+ ports up to 5 m apart are joined at 10 Gbps without buying two optics and a fibre lead
- Plug-in and go: the SFP+ ends seat directly in the switch cages, with nothing to clean or polarise as with fibre
- 5 m is the longest common DAC length — enough to cross to the neighbouring rack, but plan the cable route before ordering
- Server NICs on the other end must support RS-FEC for DAC cables longer than 3 m (HPE/Marvell adapter matrix note)
What Will Not Work
- Links longer than 5 m — use SFP+ optics and fibre instead
- Switches outside HPE’s Comware compatibility lists, or third-party switches that lock SFP+ ports to their own vendor codes
- 25G SFP28, 40G QSFP+ or 1G-only SFP ports — this is a 10G SFP+ cable
- Network cards that do not support RS-FEC for DAC lengths above 3 m
Key Features
Fixed SFP+ ends
Connectors are moulded to the copper cable, so there are no separate modules to buy, store or mismatch.
10.31 Gbps line rate
Carries a full 10 Gigabit Ethernet link (10.31 Gbps signalling per the HPE Comware transceiver guide).
Comware-validated
Listed by HPE for FlexFabric 5800/5900, 5130 EI SFP+ ports and the 7500X 10G SFP+ module.
5 m reach
The longest standard X240 length — for neighbouring racks or longer in-rack runs.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
JG081C is the sensible choice when two HPE Comware switches sit within 5 m: one cable replaces two optics and a fibre lead, and HPE lists it in the switch QuickSpecs. If the run might grow beyond 5 m, or if the far end is a server NIC, check that first. For switches and uplink planning see our network switches.
✓ Buy it if you are linking HPE FlexFabric/FlexNetwork Comware switches whose QuickSpecs list JG081C, up to 5 m apart.
✕ Skip it if the distance is over 5 m, the switch is Aruba CX or another brand, or the ports are 25G/40G.
→ Also consider the 1 m or 3 m HPE X240 DAC cables for in-rack links, or SFP+ optics with fibre for longer runs.
Not sure your switch accepts it? Send us the switch model and we will check HPE’s compatibility list before you order.
Features - Hewlett Packard - JG081C
More Details
Product Code
943655T
EAN Code
0886112818616
Manufacturer
Hewlett Packard
