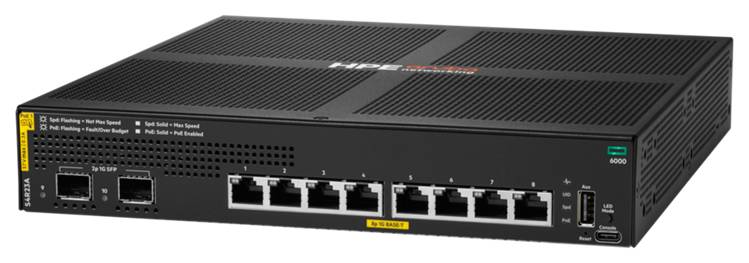

HPE Aruba CX 6000 S4R23A 8-Port PoE+ 67W Switch
Brand:
Hewlett Packard
S4R23A
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Managed Gigabit PoE+ in a compact fanless switch
8 × Gigabit PoE+67 W shared budget2 × 1G SFPFanless AOS-CX
The HPE Aruba Networking CX 6000 S4R23A provides eight Gigabit Class 4 PoE access ports and two dedicated 1G SFP uplinks. Its compact fanless enclosure and fixed internal power supply suit branch offices and small managed networks. AOS-CX provides local configuration through a web interface or CLI, with optional centralised management for suitable deployments.
Best For: Small offices and branch locations needing managed Gigabit connectivity and modest combined PoE power without fan noise.
Before you order: The PoE budget is 67 W shared across all eight copper ports. Up to 30 W on a supported individual port does not mean eight simultaneous 30 W loads. The two SFP uplinks are 1G, not 10G SFP+, and require compatible separately selected modules.
What's in the Box
- S4R23A switch with fixed internal AC power supply.
- Confirm the region-appropriate mains lead and mounting accessories for the actual supplied configuration.
- SFP transceivers, fibre cables and optional management subscriptions are separate unless explicitly quoted.
What It Means in Practice
- Connect up to eight 10/100/1000 Mbps copper devices and power compatible IEEE 802.3af/at endpoints within the shared 67 W budget.
- Use the two dedicated 1G SFP cages for suitable uplinks with supported modules.
- Configure VLANs, access control and QoS through AOS-CX web GUI or CLI for the actual network.
- Use the USB-C console and USB-A host connections for their management roles, not as extra network access ports.
What Will Not Work
- No 10G SFP+ uplinks or multi-gigabit copper ports.
- No 90 W PoE++ output or 139/370/740 W family-model budget.
- Eight 30 W PoE loads exceed the shared 67 W capacity.
- A supported Aruba Central management option does not establish an included Central subscription.
Key Features
Compact access
Eight Gigabit copper ports plus two dedicated 1G SFP uplinks.
Useful PoE+ power
IEEE 802.3af/at Class 4 with a shared 67 W allocation.
Fanless deployment

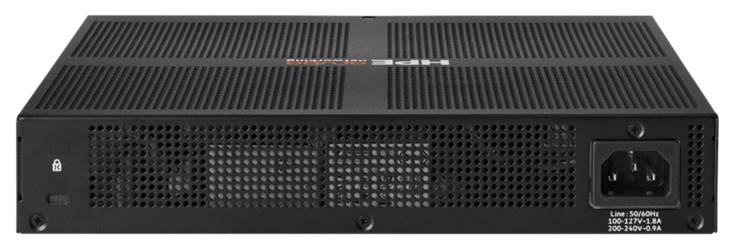

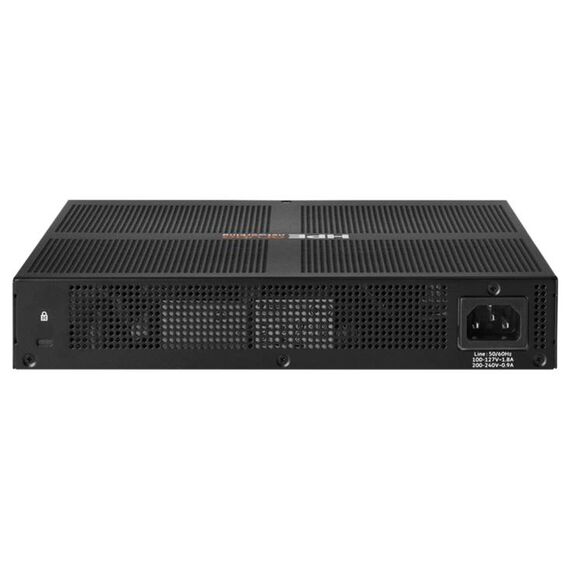

Quiet fanless design with a fixed internal AC supply.
AOS-CX management
Local Web GUI and CLI, with enterprise access configuration features.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
Treat the 67 W shared budget as the sizing limit. This compact fanless model is well matched to modest endpoint loads, but a few higher-power access points can consume the available budget. Keep uplink design at 1G and specify the correct transceivers, AC lead and mounting arrangement for the installation.
Buyer’s Guide
✓ Buy it if You need fanless managed Gigabit access with a modest combined PoE load and 1G uplinks.
✕ Skip it if You need 10G uplinks, PoE++ or high PoE power across every port.
→ Also consider Combined endpoint power, supported SFP optics, uplink bandwidth, regional mains connection and optional Central licensing.
Features - Hewlett Packard - S4R23A
Colour
black
Interface
- Ethernet
Standard
10-Port
Port Speed
- 1 Gbps
More Details
Product Code
04:595503
EAN Code
0190017750262
Manufacturer
Hewlett Packard
