HPE Aruba 6200F 12G Class4 PoE 2G/2SFP+ 139W Switch

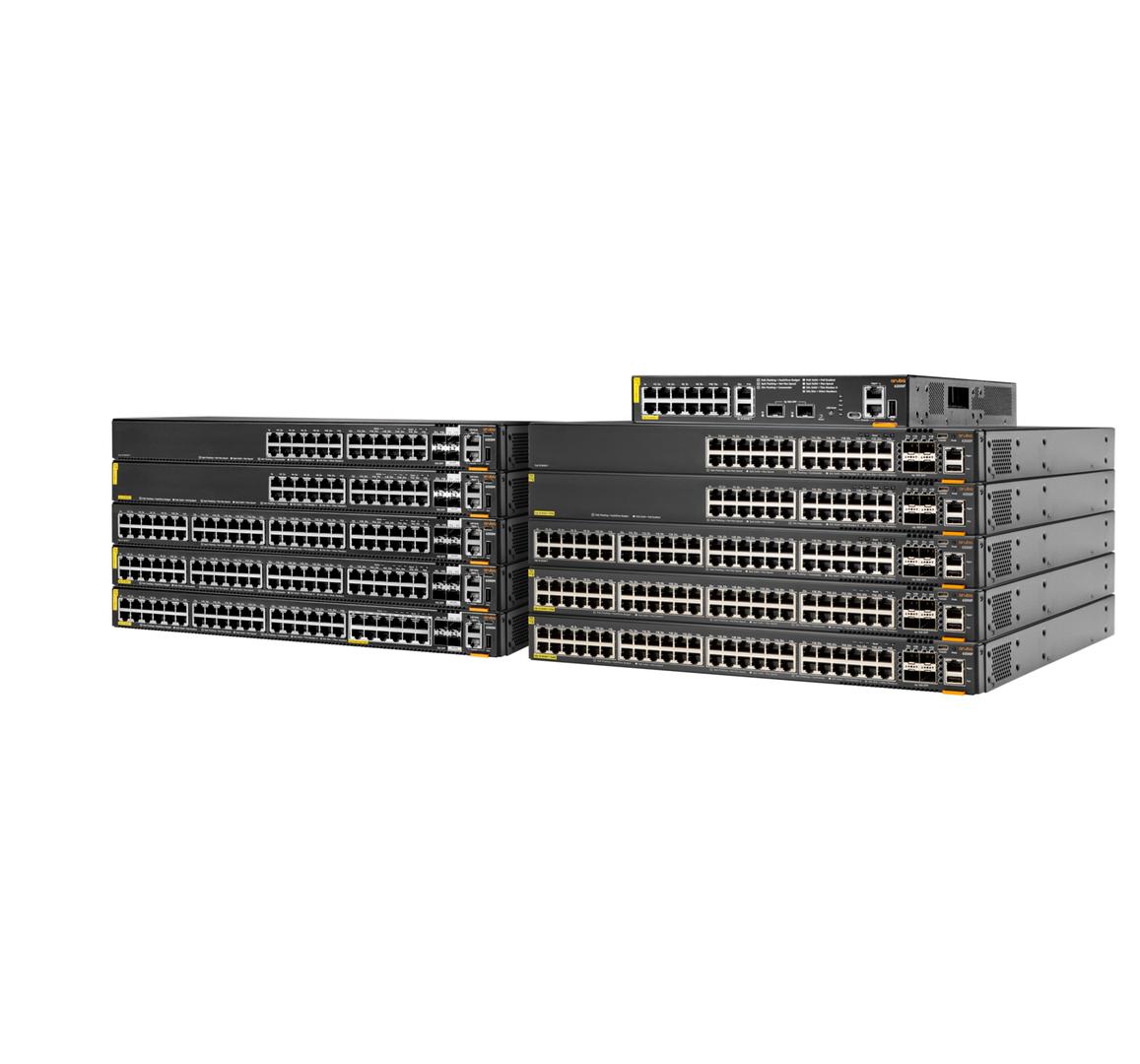

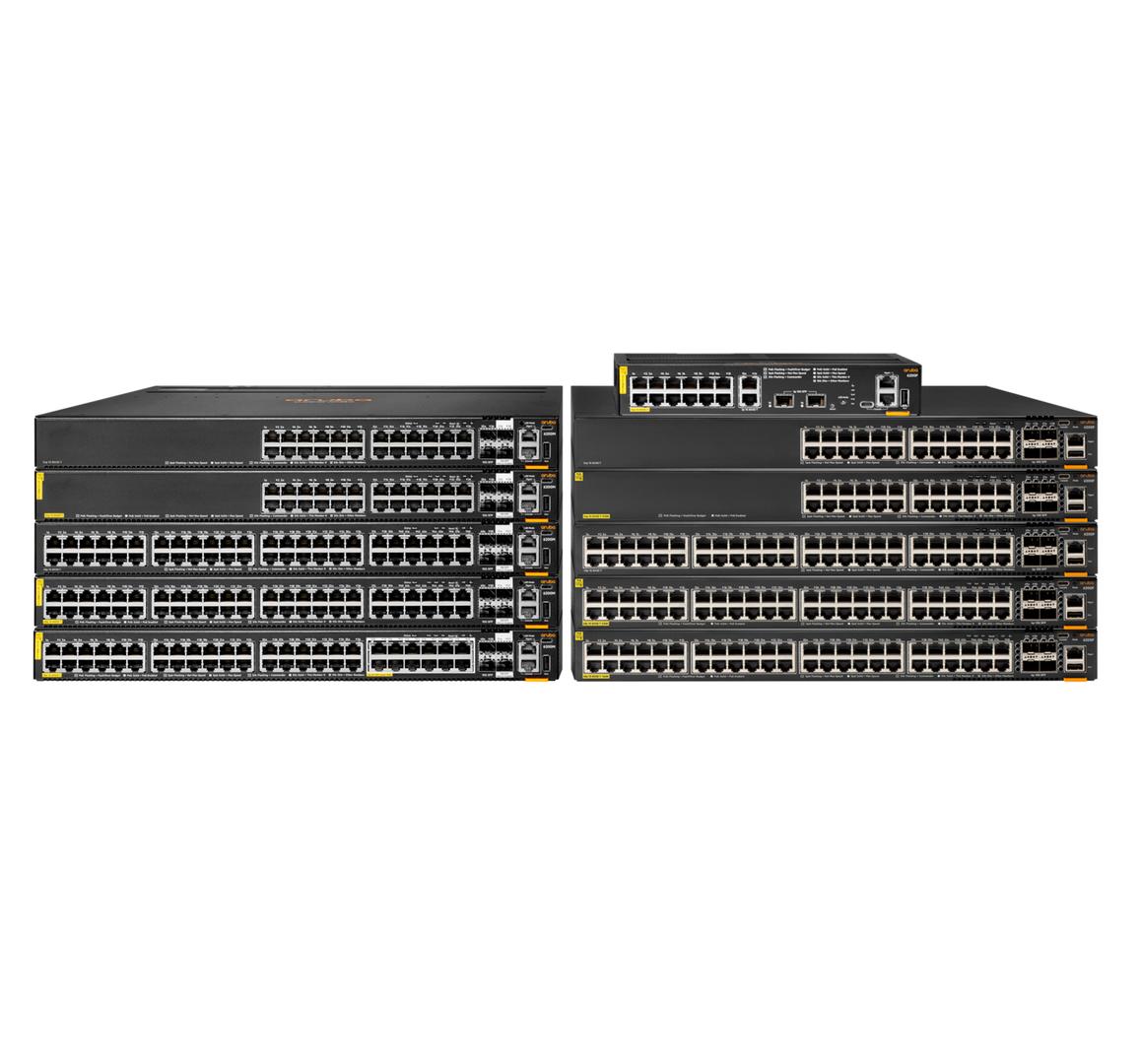

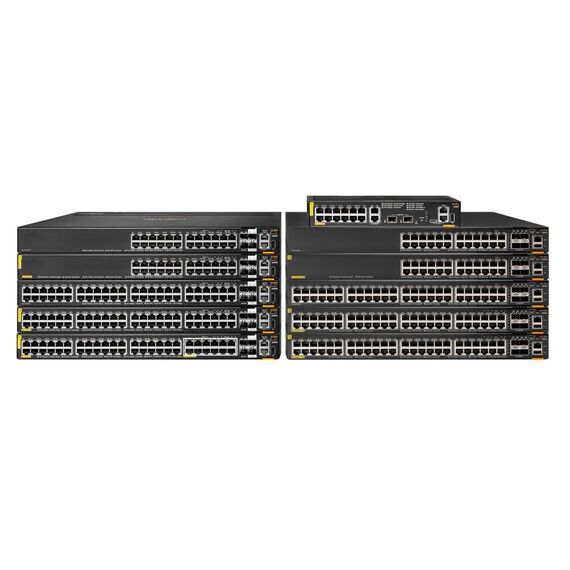

The HPE Aruba 6200F 12G Class4 PoE 2G/2SFP+ 139W Switch is a managed Layer 3 rack-mountable access switch for enterprise branch offices, campuses and SMB networks. It combines 12 Gigabit PoE+ ports with uplink and SFP+ connectivity, and is part of the Aruba CX 6200 Series stackable switch family.
Technical Specifications
| Specification | Detail |
|---|---|
| Device Type | Switch | 12 ports | L3 | Managed | Stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 12 x 10/100/1000 (PoE+) | 2 x 100/1000 (uplink) | 2 x 1 Gigabit / 10 Gigabit SFP+ |
| Power over Ethernet | PoE+ |
| PoE Budget | 139 W |
| Switching Capacity | 68 Gbps |
| Throughput | 50.5 Mpps |
| Latency (1 Gbps) | 3.8 µs |
| Latency (10 Gbps) | 2.9 µs |
| Packet Buffer Size | 12.38 MB |
| Stacking Bandwidth | 20 Gbps |
| SVIs | 128 |
| IPv4 Host Table Capacity | 8000 |
| IPv6 Host Table Capacity | 8000 |
| IPv4 Routes (Unicast) | 2000 |
| IPv6 Routes (Unicast) | 2000 |
| IGMP Groups | 1000 |
| MLD Groups | 1000 |
| IPv4 ACL Entries (Ingress) | 1000 |
| IPv6 ACL Entries (Ingress) | 1000 |
| MAC ACL Entries (Ingress) | 1000 |
| IPv4 ACL Entries (Egress) | 512 |
| IPv6 ACL Entries (Egress) | 256 |
| MAC ACL Entries (Egress) | 512 |
| MAC Address Table Size | 32000 entries |
| Jumbo Frame Support | 9198 bytes |
| Routing Protocols | OSPF | RIP-2 | OSPFv2 | OSPFv3 | ECMP |
| Remote Management Protocols | SNMP | SNMP 3 | SNMP 2c | CLI |
| Features | Layer 2 switching | ARP support | DiffServ support | VRRP support | QoS | TPM | ECMP | UDLD | fanless | DWRR | MIB | CoS | ToS | BPDU | SSM | NTP | security slot | RPVST+ | DNS support | IGMP support | Automatic MDIX | web GUI management portal | UTM | EQS |
| Compliant Standards | IEEE 802.3 | IEEE 802.1D | IEEE 802.1Q | IEEE 802.1p | IEEE 802.3ad (LACP) | IEEE 802.1w | IEEE 802.1s | IEEE 802.1ab (LLDP) | IEEE 802.3at |
| Processor | 1 x ARM 1.2 GHz |
| RAM | 8 GB DDR4 SDRAM |
| Flash Memory | 16 GB |
| Contract Type | Standard product |
| Warranty | Limited Lifetime Warranty |
| Stock Last Update | 2024-05-11T19:24:37+02:00 |
| Stock | 2 |
| Aggregated Stock | 9 |
| Status | In stock |
| SKU / EAN | R8Q72A | 0190017535050 |
SINGULAR RECOMMENDS
For who
Suitable for IT teams needing a managed Layer 3 access switch for branch, campus or SMB networks, with PoE+ and stackable uplink options.
Real reason to buy it
It brings PoE+ access ports, SFP+ uplinks, Layer 3 management and stackable design together in one rack-mountable Aruba CX switch.
Know before
This is a rack-mountable 1U switch with 12 PoE+ access ports, 2 uplink ports and 2 SFP+ ports. Warranty is listed as Limited Lifetime Warranty; stock and price details are date-sensitive.
