HPE Aruba CX 6200M 48G Class4 PoE 4SFP+ Switch | 48-Port 1U Managed L3 | 8GB DDR4 | 16GB Flash
Brand:
Hewlett Packard
HPE Aruba CX 6200M 48G Class4 PoE 4SFP+ Switch | 48-Port 1U Managed L3 | 8GB DDR4 | 16GB Flash
€7336.34 inc. VAT
R8Q70A
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
HPE Aruba CX 6200M 48G Class4 PoE 4SFP+ Switch

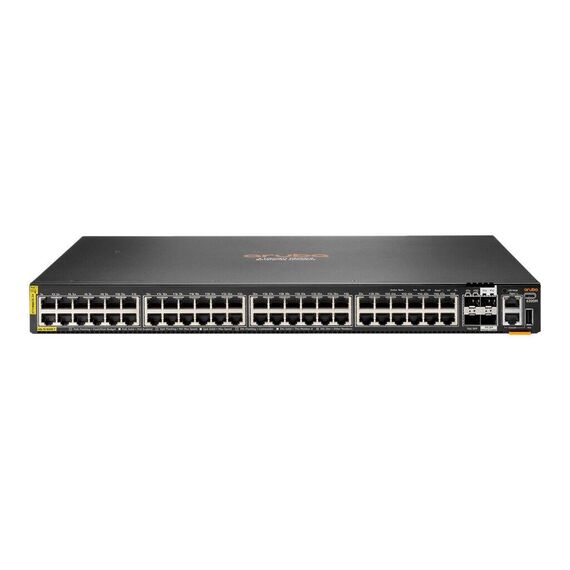

The HPE Aruba CX 6200M 48G Class4 PoE 4SFP+ is a managed Layer 3 Gigabit Ethernet switch for rack-mounted network deployments. It provides 48 PoE+ copper ports, 4 SFP+ uplink or stacking ports, and stackable operation in a 1U enclosure. The platform is built for Aruba CX environments and is supplied with an internal power supply not installed, plus a rack kit and hotswappable fan tray.
Technical Specifications
| Specification | Detail |
|---|---|
| Product Type | Switch - 48 ports - L3 - Managed - stackable |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink / stacking) |
| Interfaces | 48 x 10/100/1000 Base-T (PoE+) RJ-45 PoE Class 4 | 4 x 1/10Gbit LAN SFP+ 2x LRM | 2x LRM/MACSec 256 | 1 x console RJ-45 | 1 x management RJ-45 | 1 x console (USB) Type C | 1 x USB Type A host |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 1440 W |
| Switching Capacity | 176 Gbps |
| Throughput | 130.9 Mpps |
| Latency (1 Gbps) | 2.28 µs |
| Latency (10 Gbps) | 1.46 µs |
| Packet Buffer Size | 8 MB |
| Stacking Bandwidth | 40 Gbps |
| Switched Virtual Interfaces (SVIs) | 128 |
| IPv4 Host Table Capacity | 8000 |
| IPv6 Host Table Capacity | 8000 |
| IPv4 Routes (Unicast) | 2000 |
| IPv6 Routes (Unicast) | 2000 |
| IGMP Groups | 1000 |
| MLD Groups | 1000 |
| IPv4 ACL Entries (Ingress) | 1000 |
| IPv6 ACL Entries (Ingress) | 1000 |
| MAC ACL Entries (Ingress) | 1000 |
| IPv4 ACL Entries (Egress) | 512 |
| IPv6 ACL Entries (Egress) | 256 |
| MAC ACL Entries (Egress) | 512 |
| MAC Address Table Size | 16000 entries |
| Jumbo Frame Support | 9220 bytes |
| Max Units In A Stack | 8 |
| Routing Protocol | OSPF | RIP-2 | OSPFv2 | OSPFv3 | ECMP |
| Remote Management Protocol | SNMP | SNMP 3 | SNMP 2c | CLI |
| Encryption Algorithm | MD5 | SSL | FIPS 140-2 |
| Authentication Method | RADIUS | TACACS+ |
| Features | Layer 2 switching | ARP support | DiffServ support | VRRP support | QoS | TPM | ECMP | UDLD | DWRR | MIB | CoS | ToS | BPDU | SSM | NTP | Kensington security slot compatible | Rapid PVST+ | DNS support | IGMP support | Automatic MDIX | web GUI management portal | Unsupported Transceiver Mode (UTM) | EQS |
| Compliant Standards | IEEE 802.3 | IEEE 802.1D | IEEE 802.1Q | IEEE 802.1p | IEEE 802.3af | IEEE 802.3ad (LACP) | IEEE 802.1w | IEEE 802.1s | IEEE 802.1ab (LLDP) | IEEE 802.3at |
| Processor | 1 x ARM: 1.8 GHz |
| RAM | 8 GB DDR4 SDRAM |
| Flash Memory | 16 GB |
| Power Device | Internal power supply (not installed) |
| Max Supported Qty | 2 |
| Voltage Required | AC 100-120/200-240 V (50/60 Hz) |
| Power Consumption Operational | 74 Watt |
| Power Consumption Stand by | 59 Watt |
| Included Accessories | Rack kit (2 post) | fan tray (field replaceable, hotswappable) |
| OS Required | AOS-CX |
| Width | 44.2 cm |
| Depth | 38.5 cm |
| Height | 4.4 cm |
| Weight | 6.15 kg |
| Service & Support | Limited warranty - lifetime |
| Power | Internal power supply (not installed) |
| Package Contents | Rack kit (2 post), fan tray (field replaceable, hotswappable) |
| Security | MD5 | SSL | FIPS 140-2 |
| Management Protocol | SNMP, SNMP 3, SNMP 2c, CLI |
| SKU / EAN | R8Q70A | 0190017535036 |
SINGULAR RECOMMENDS
For who
For IT teams needing a managed 48-port PoE+ access switch with SFP+ uplinks, stacking support and Aruba CX operation.
Real reason to buy it
It combines 48 PoE+ Gigabit ports, 4 SFP+ uplink or stacking ports, and a 1440 W PoE budget in a 1U rack design.
Know before
The internal power supply is listed as not installed, and AOS-CX is required. Rack kit and fan tray are included.
Features - Hewlett Packard - R8Q70A
Standard
48-Port
Port Speed
- 1 Gbps,
- 10 Gbps
More Details
Product Code
CG40351
EAN Code
0190017535036
Manufacturer
Hewlett Packard
