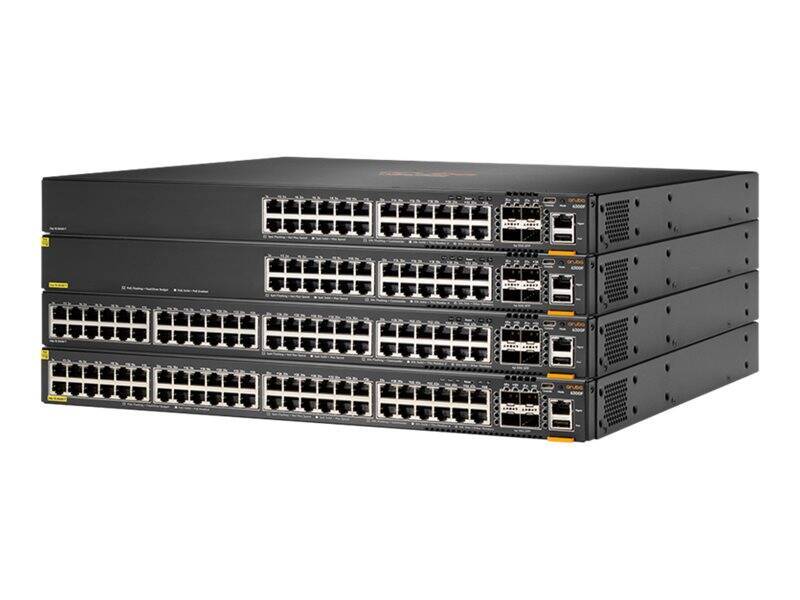

HPE Aruba Networking CX 6300F 48-Port Gigabit Class 4 PoE L3 Switch, 4x SFP56 Uplinks, 740 W PoE, Fixed PSU
Brand:
Hewlett Packard
HPE Aruba Networking CX 6300F 48-Port Gigabit Class 4 PoE L3 Switch, 4x SFP56 Uplinks, 740 W PoE, Fixed PSU
€16934.66 inc. VAT
JL665A
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
HPE Aruba Networking CX 6300F JL665A - 48G Class 4 PoE, 4x SFP56
48 x 1G PoE+4 x SFP56 (50G)740 W PoEVSF stacking
The HPE Aruba Networking CX 6300F JL665A is a 1U Layer 3 access switch with 48 x 10/100/1000 Class 4 PoE ports (30 W, 802.3at) and four SFP56 uplinks at 1/10/25/50G. It runs AOS-CX and stacks up to 10 switches with VSF, for campus access and branch cores.
The "F" model has a fixed, built-in power supply with a 740 W PoE budget - no separate PSU to order and no power-supply bays to fill.
Before you order: the power supply and fans are fixed and not field-replaceable. If you need hot-swap redundant power, choose the modular CX 6300M equivalent instead.
What's in the Box
- CX 6300F JL665A switch with built-in power supply
- Rack-mount brackets with screws, rubber feet and documentation (per HPE CX 6300 install guide)
- Country power cord depending on the ordered localisation
- No SFP56/SFP28/SFP+ transceivers
What It Means in Practice
- 740 W of Class 4 PoE powers about 24 devices at a full 30 W or all 48 ports at 15 W.
- SFP56 uplinks run at 1, 10, 25 or 50G, so you can uplink at 10G today and move to 25/50G later with new optics.
- VSF stacks up to 10 CX 6300 switches over the SFP56 uplinks into one managed unit.
- Airflow is front (ports) to back (power).
What Will Not Work
- Hot-swap or redundant power supplies - the 6300F PSU is fixed.
- 802.3bt (Class 5-8, above 30 W) devices.
- Multigigabit (2.5/5/10G) access ports - these are 1 Gbps.
- VSF stacking over the 1G access ports - it uses the SFP56 uplinks.
Key Features
48 x Class 4 PoE
802.3at 30 W per port, 740 W total budget.
4 x SFP56 uplinks
1/10/25/50G for flexible uplinks and VSF.
VSF stacking
Up to 10 switches managed as one.
AOS-CX
Layer 3 switching with the same OS as Aruba CX core switches.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
The 6300F is a solid AOS-CX access switch where a fixed power supply is acceptable - most office closets. You get 740 W of PoE, 50G-capable uplinks and VSF stacking. See our managed switch range for other port counts.
✓ Buy it if you need 48 PoE+ ports with 25/50G-ready uplinks on Aruba CX.
✕ Skip it if you need redundant hot-swap power (6300M) or 802.3bt PoE.
→ Also consider HPE Aruba CX 6300M (redundant PSU) · Aruba SFP28/SFP56 transceivers.
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
Features - Hewlett Packard - JL665A
Standard
48-Port
More Details
Product Code
2M2PVN0
EAN Code
0190017339528
Manufacturer
Hewlett Packard
