HPE Aruba Networking CX 6300M JL658A 24-Port 1/10G SFP+ + 4-Port SFP56 Layer 3 Managed Stackable Fiber Switch
Brand:
Hewlett Packard
HPE Aruba Networking CX 6300M JL658A 24-Port 1/10G SFP+ + 4-Port SFP56 Layer 3 Managed Stackable Fiber Switch
€18523.1 inc. VAT
JL658A
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply

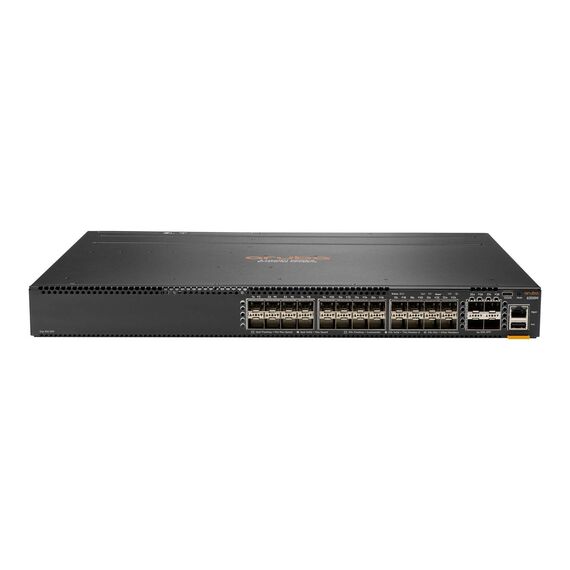

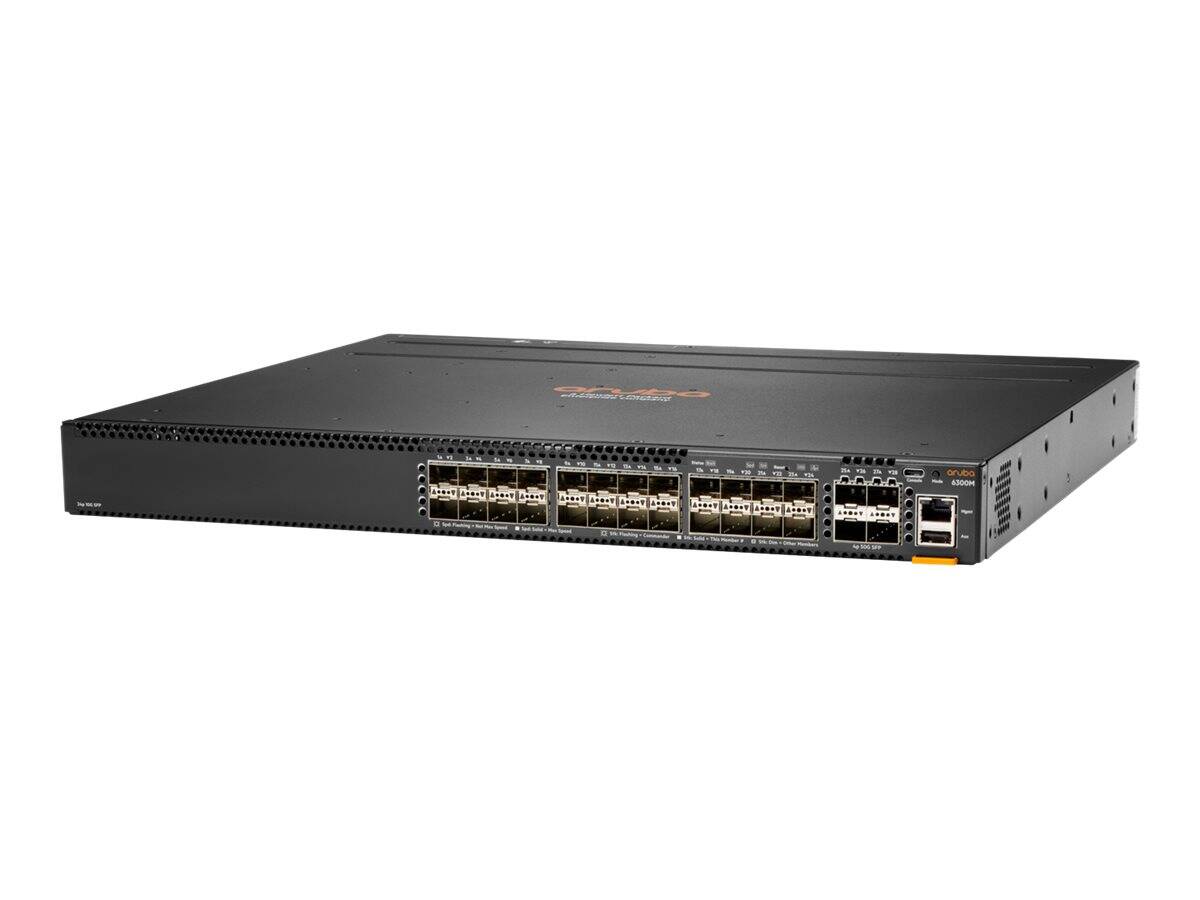

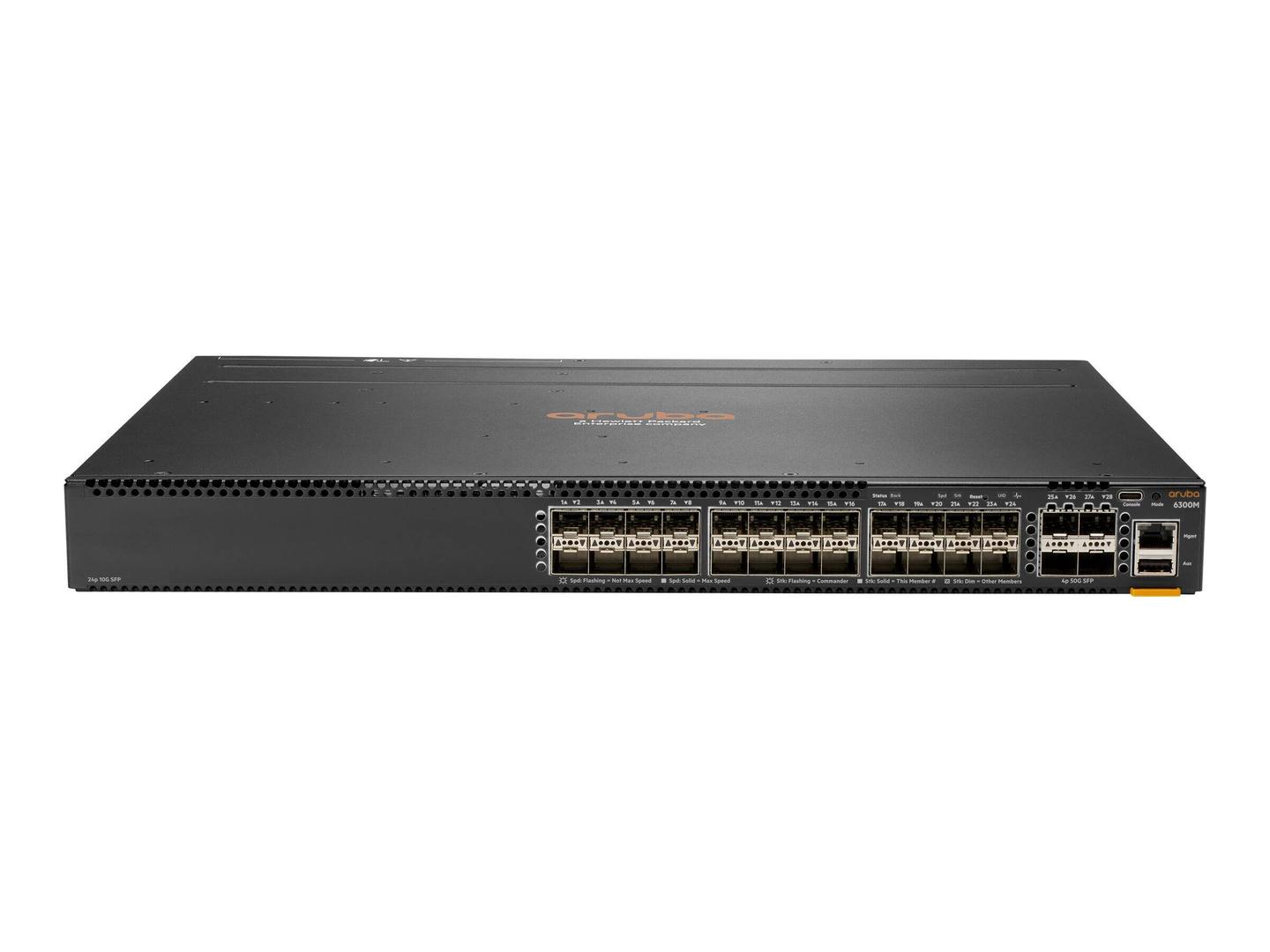

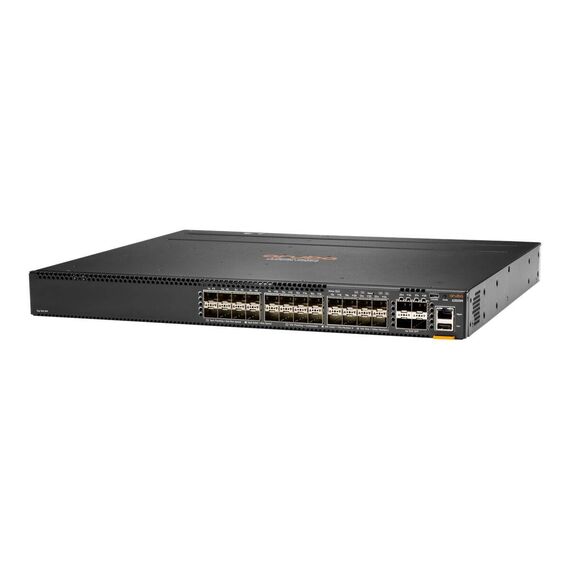

HPE Aruba CX 6300M JL658A — 24-Port 1/10G SFP+ + 4×SFP56 Layer 3 Switch
24 × 1/10G SFP+4 × SFP56 up to 50G880 Gbps · AOS-CXVSF Stacking · Layer 3
The HPE Aruba Networking CX 6300M JL658A is a 1U Layer 3 fiber switch with 24 × 1/10GbE SFP+ ports and 4 × SFP56 uplink/stacking ports (1/10/25/50GbE), delivering 880 Gbps of switching for aggregation and fiber-connected access. Running Aruba’s AOS-CX operating system with VSF stacking of up to 10 switches on an 8 GB platform, it suits data centers and campus aggregation that need high-speed optical connectivity without PoE. Typically in stock with fast delivery across Cyprus.
Compatibility — check before buying:

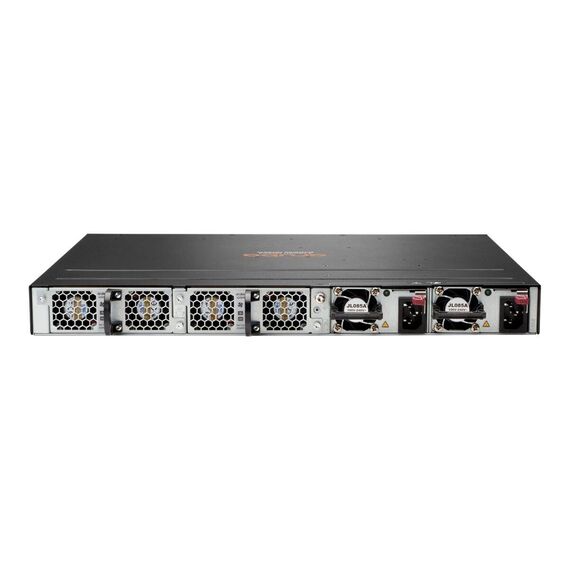

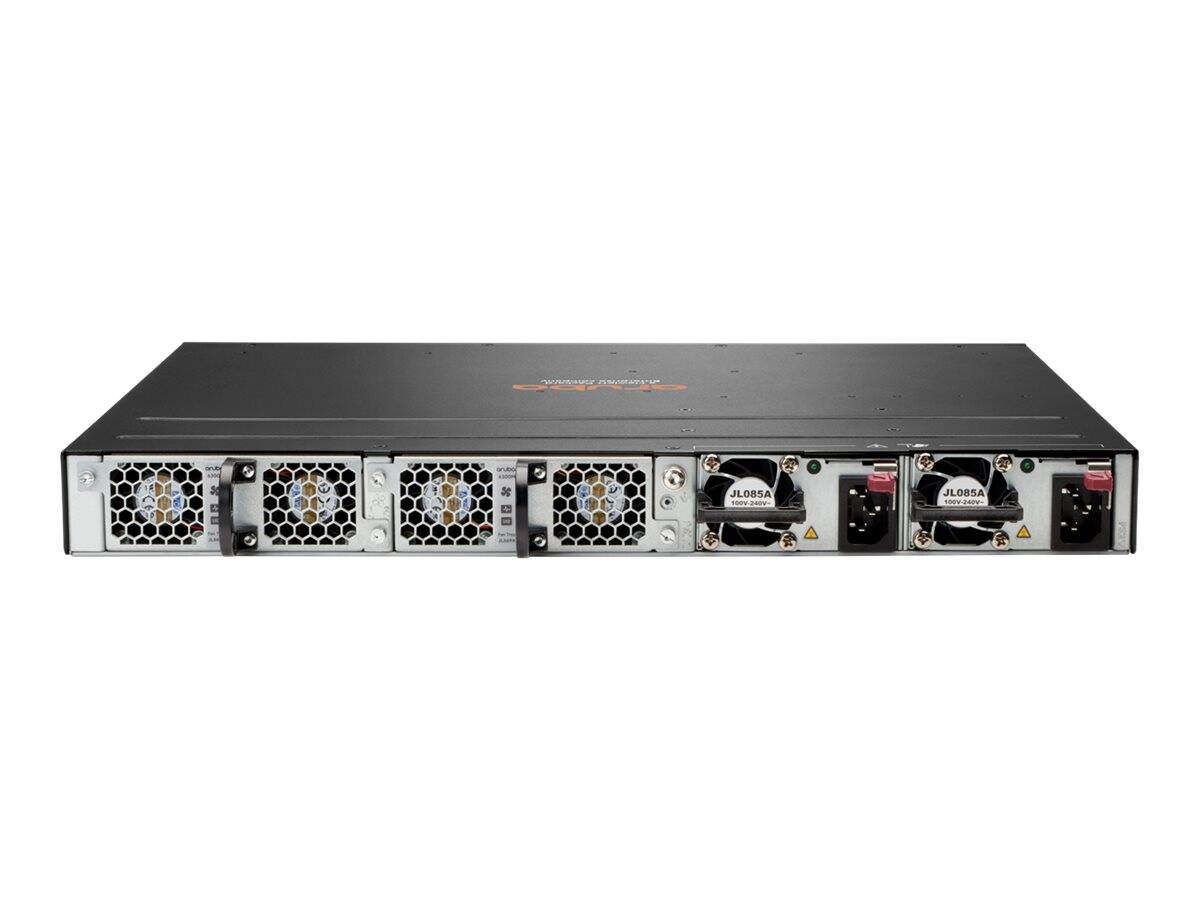

All ports are fiber / DAC — the 24 access ports are 1/10G SFP+ and the 4 uplink/stacking ports are SFP56 (1/10/25/50G), so transceivers and direct-attach cables are sold separately. This is a non-PoE switch. VSF stacking uses the SFP56 ports; plan cabling accordingly. Airflow is front-and-side-to-back — confirm it suits your rack.
Best For
✓ Campus and data-center aggregation
✓ Fiber-connected server and access uplinks
✓ VSF-stacked cores (up to 10 units)
✓ 10G SFP+ access with 25/50G uplinks
✓ AOS-CX and Aruba Central cloud-managed networks
✓ Layer 3 routing (OSPF, BGP, VRF)
Key Features
24 × 1/10G SFP+ + 4 × SFP56
Twenty-four SFP+ ports run at 1 or 10GbE for fiber access and aggregation, while four SFP56 ports reach 25/50GbE for high-speed uplinks or VSF stacking.
880 Gbps Switching
With 880 Gbps of switching capacity and 654 Mpps forwarding, the 6300M handles demanding aggregation and fiber-dense access at line rate.
VSF Stacking up to 10 Switches
Virtual Switching Framework combines up to 10 units with 200 Gbps of stacking bandwidth, managed as a single switch for simple, resilient operations.
Aruba AOS-CX with Layer 3
The modern AOS-CX NOS adds the Network Analytics Engine, REST API and cloud management via Aruba Central, plus wire-speed Layer 3 routing (OSPF, BGP, VRF).
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
Choose the JL658A when your access or aggregation layer is fiber-based and you want AOS-CX, VSF stacking and 25/50G uplink headroom without PoE. If your endpoints are copper, the 48-port 6300M JL663A (data) or JL661A (PoE) are the siblings; for higher performance, look at the CX 8325 series. Explore more in our managed switches category and complete the design with enterprise routers.
Buyer’s Guide
Buy it if
You need a 24 × 10G SFP+ fiber Layer 3 switch with 25/50G SFP56 uplinks and VSF stacking for aggregation or fiber access, with no PoE requirement.
Skip it if
Your endpoints are copper (choose the 6300M JL663A/JL661A) or you need PoE to power devices.
Also consider

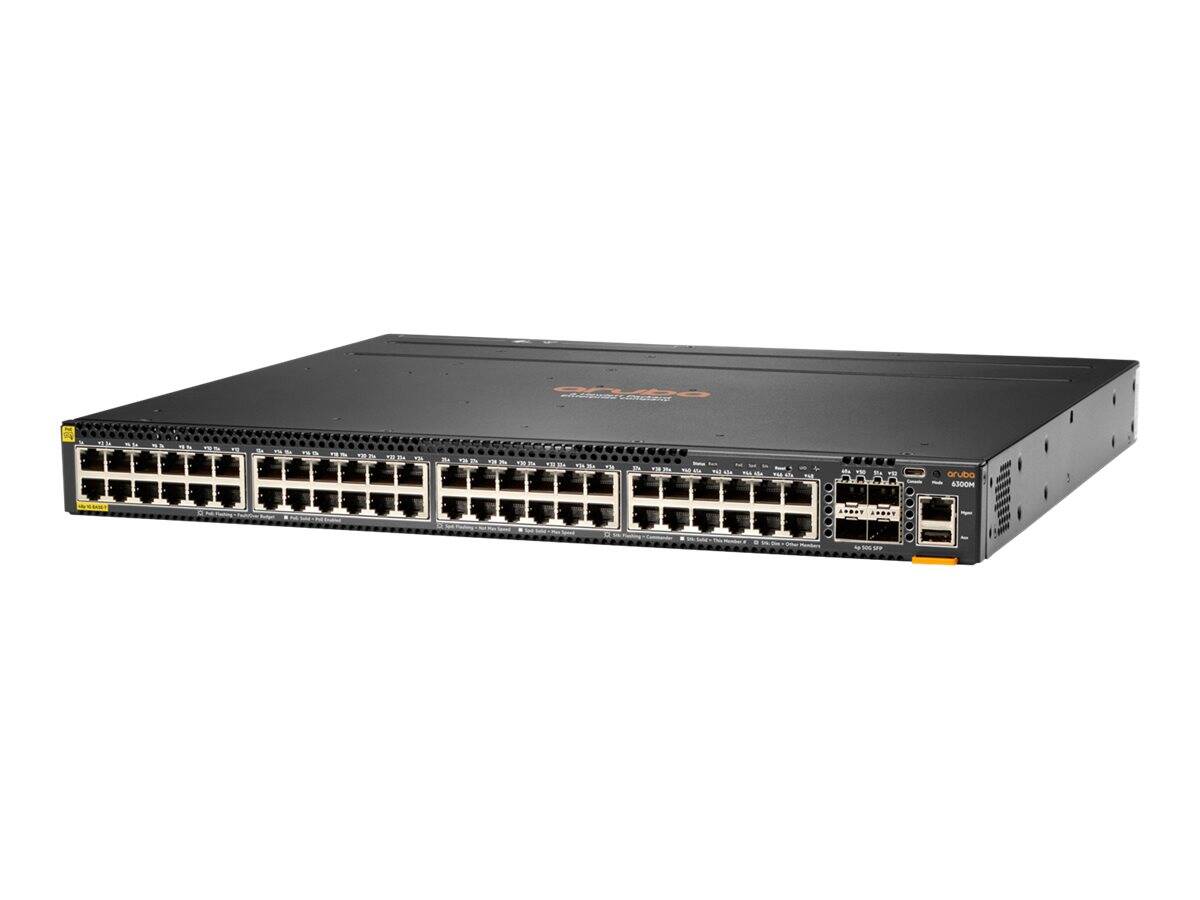

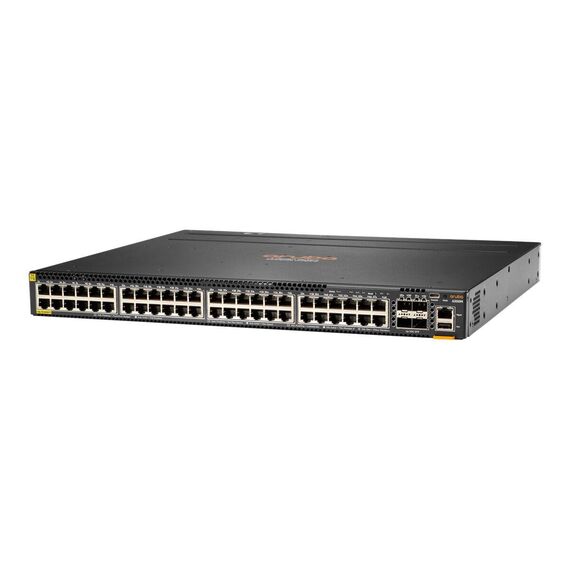

The HPE Aruba CX 6300M JL663A (48 × 1GbE copper, non-PoE) or JL661A (PoE), or the CX 8325 series for higher-performance data-center roles.
Features - Hewlett Packard - JL658A
Standard
24-Port
Port Speed
- 1 Gbps,
- 10 Gbps,
- 25 Gbps
More Details
Product Code
2M2PUC9
EAN Code
0190017339382
Manufacturer
Hewlett Packard
