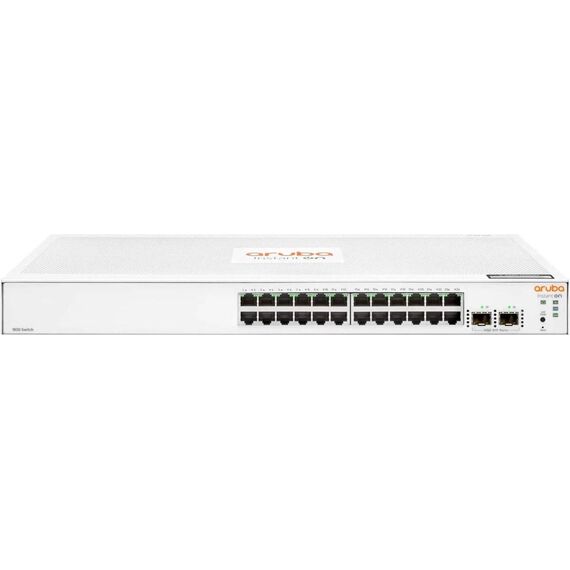

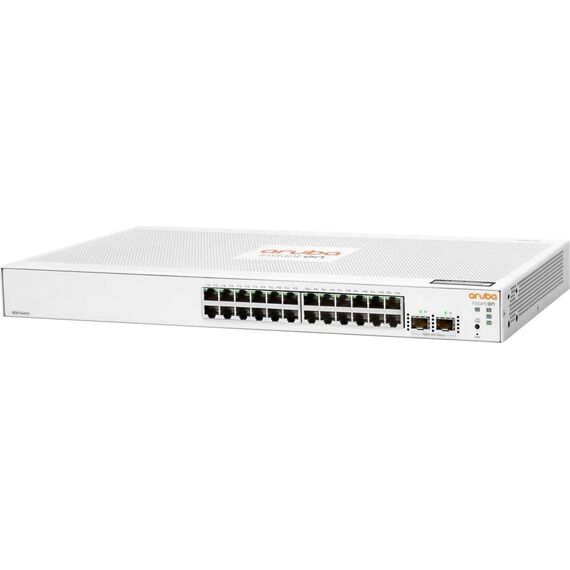

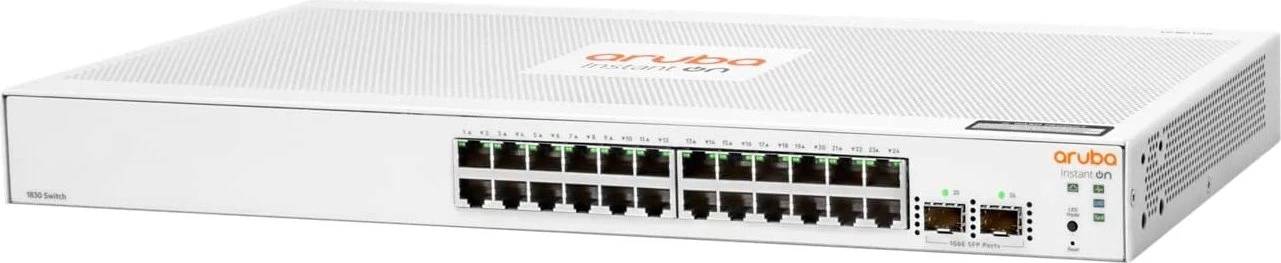

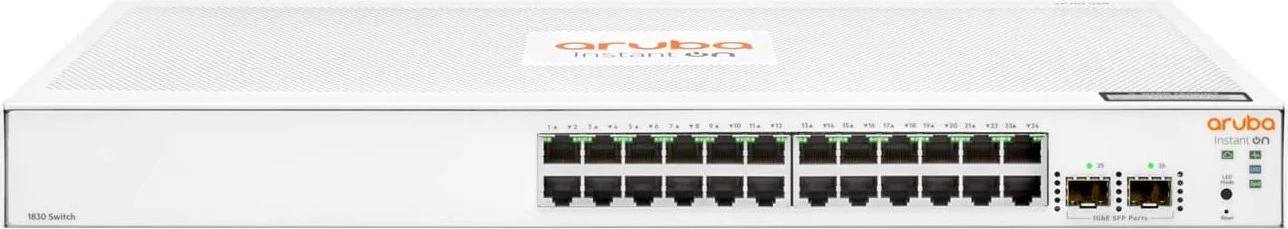

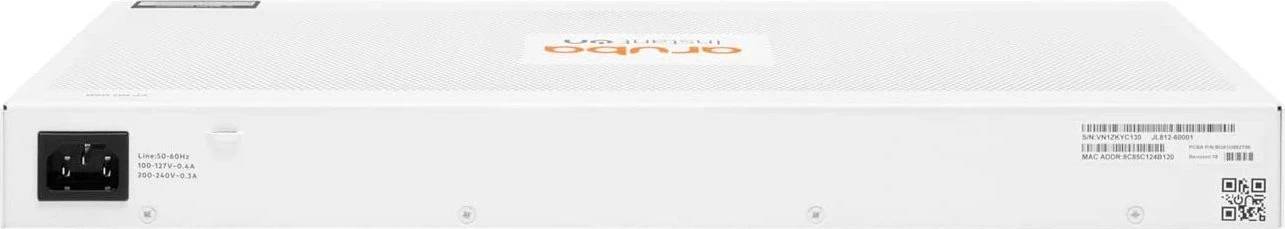

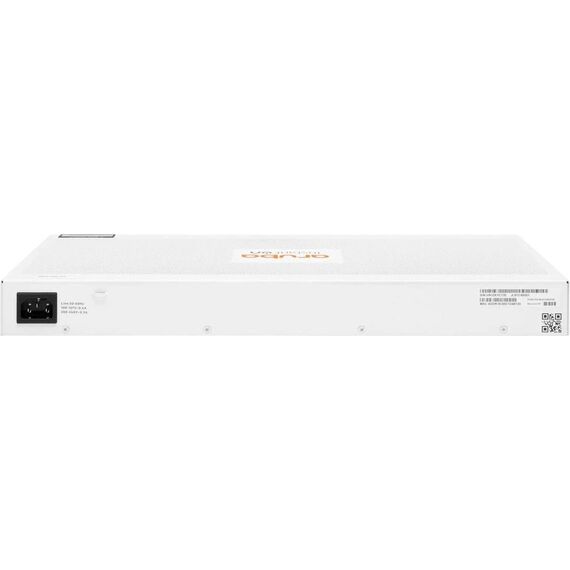

HPE Aruba Instant On 1830 24G 2SFP Switch / Switch / smart / 24 x 10/100/1000 + 2 x Gigabit SFP / desktop, rack-mountable | JL812A

JL812A#ABB
190.18
(226.31 inc. VAT)
Out of stock
Delivery
Payment options
Product Code07:125865 EAN Code0190017518862 ManufacturerHewlett Packard

HPE Aruba Instant On 1830 24G 2SFP Switch / Switch / smart / 24 x 10/100/1000 + 2 x Gigabit SFP / desktop, rack-mountable | JL812A

Description

Aruba Instant On 1830 Switch Series provides an easy to use and affordable wired solution for networks supporting IT, mobile, and cloud applications.This affordable and easy-to-deploy smart-managed switch series is ideal for small businesses looking for cost-effective wired infrastructure to keep up with evolving network demands. These entry-level, smart-managed switches offer Layer 2 switching capabilities, Gigabit connectivity, along with flexible management modes - all at an affordable price point. With a flexible management dashboard, Power over Ethernet (PoE) options, and energy-efficient features, these switches deliver a solid business network for SMBs with limited budgets.

HPE Aruba Instant On 1830 24G 2SFP Switch / Switch | JL812A

Special Features

  • Simplify network deployment and management
  • Keep your business protected with integrated security features
  • Better energy efficient features for reducing environmental footprint

Product features

  • Simplify network deployment and management
    The Aruba Instant On 1830 Switch Series features easy-to-use, out-of-the-box, plug-and-play deployment. The switches can be deployed using two management modes - Instant On cloud-management (access via mobile app and/or web portal) and the local web GUI. Class 4 PoE options allow power to devices like IP phones, surveillance cameras, and access points without the cost of additional cabling.
  • Keep your business protected with integrated security features
    The Aruba Instant On 1830 Switch Series is enhanced with security features such as IEEE 802.1x, Global Storm Control, TPM (Trusted Platform module) based security, and VLANs to guard your network from unwanted or unauthorized access. Leverage 802.1X with a RADIUS server to verify only known and authorized users can access your network. Supports Automatic denial-of-service (DOS) monitors and protects the network against malicious attacks.
  • Better energy efficient features for reducing environmental footprint
    The Aruba Instant On 1830 Switch Series has Energy Efficient Ethernet (EEE), and is compliant with 802.3az standard requirements to save energy during periods of low data activity. Energy-efficient cooling includes variable speed fans operating only at the speed necessary to maintain operating temperature to reduce excess noise and power consumption. PoE Scheduling allows users to configure a specific day/time of the week (e.g. business hours) for Instant On switches to supply power to connected devices (e.g. surveillance cameras, access points, etc.).


Product Specification

Device Type Switch - 24 ports - smart
Enclosure Type Desktop, rack-mountable 1U
Subtype Gigabit Ethernet
Ports 24 x 10/100/1000 + 2 x Gigabit SFP
Performance Latency (100 Mbps): 5.2 µs ¦ Latency (1 Gbps): 2.8 µs ¦ Throughput: 38.68 Mpps ¦ Switching capacity: 52 Gbps
MAC Address Table Size 16000 entries
Jumbo Frame Support 9216 bytes
Routing Protocol IGMPv2, IGMP
Remote Management Protocol SNMP 1, SNMP 2c, HTTP, HTTPS, TFTP, SCP, ICMP
Encryption Algorithm SSL
Features Flow control, auto-sensing per device, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, firmware upgradable, SNTP support, wall mountable, Spanning Tree Protocol (STP) support, event log, Quality of Service (QoS), Trusted Platform Module (TPM), Cable Diagnostics Function, fanless, LLDP support, DHCP client, Class of Service (CoS), cloud managed, 1.5MB packet buffer, Secure Copy (SCP), Link Aggregation, dual image support, Denial of Service (DoS) protection, Energy-Efficient Ethernet (EEE), BPDU Filter, loop protection, Global Storm Control, Port Scheduling
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ac, IEEE 802.1ab (LLDP), IEEE 802.3az
Processor 1 x ARM: 800 MHz
RAM 512 MB SDRAM
Flash Memory 256 MB
Status Indicators Port status, port duplex mode, link/activity, speed
Interfaces 24 x 1000Base-T RJ-45 ¦ 2 x Gigabit LAN SFP
Power Device Internal power supply
Voltage Required AC 100-240 V (50/60 Hz)
Power Consumption Operational 19.1 Watt
MTBF 203.6 years
Compliant Standards IEC 61000-3-2, IEC 61000-3-3, EN 61000-3-3, ICES-003 Class A, CNS 13438 Class A, KN35, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, AS/NZS CISPR 32 Class A, KN32 Class A, IEC/EN 61000-4-11, IEC/EN 61000-4-2, EN 55032:2015, UL 62368-1 Second Edition, IEC/EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013, IEC/EN 60825-1:2014 Class 1, CISPR 32 Class A, EN 55035, CISPR 35, IEC 62368-1 Second Edition, CAN/CSA-C22.2 No. 62368-1 Third Edition, UL 62368-1 Third Edition, IEC 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1 Second Edition, FCC CFR47 Part 15 B Class A 2018
Width 44.3 cm
Depth 21.59 cm
Height 4.39 cm
Weight 2.49 kg
Service & Support Limited warranty - lifetime ¦ Technical support - live chat - lifetime ¦ Technical support - phone consulting - 90 days from date of purchase
Min Operating Temperature 0 °C
Max Operating Temperature 40 °C
Humidity Range Operating 15 - 95% (non-condensing)
Min Storage Temperature -40 °C
Max Storage Temperature 70 °C
Humidity Range Storage 15 - 95% (non-condensing)

Features - Hewlett Packard - JL812A#ABB

General
24-Port
More Details
Product Code
07:125865
EAN Code
0190017518862
Manufacturer
Hewlett Packard
