HPE FlexFabric 5710 48XGT 6QSFP+ or 2QSFP28 Switch, 48x 10GBASE-T, 40/100G Uplinks, IRF, PSUs and Fans Not Included

Brand:
Hewlett Packard
HPE FlexFabric 5710 48XGT 6QS+/2QS28 - Switch - L3 - Man | JL586A
HPE FlexFabric 5710 48XGT 6QSFP+ or 2QSFP28 Switch, 48x 10GBASE-T, 40/100G Uplinks, IRF, PSUs and Fans Not Included
€24077.34 inc. VAT
Buy
JL586A
€20,233.06 €22,481.18
€24,077.34 inc. VAT
Ships from EU stock: 2 item(s)
+ −
Add to wish list Ask a question
Product Code
2M2FSS1
EAN Code
0190017284668
Manufacturer
Hewlett Packard

Quick Specs

Type
FlexFabric 5710 ToR switch
Connectors/Interface
48x 10GBASE-T · 6x QSFP+ / 2x QSFP28
Key spec
1.44 Tbps · PSU/fans sold separately
Compatibility
IRF up to 10 · Comware
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

HPE FlexFabric 5710 48XGT 6QS+/2QS28 (JL586A) - 10GBASE-T Data Centre Switch

48 x 10GBASE-T6 x 40G / 2 x 100G1.44 TbpsIRF

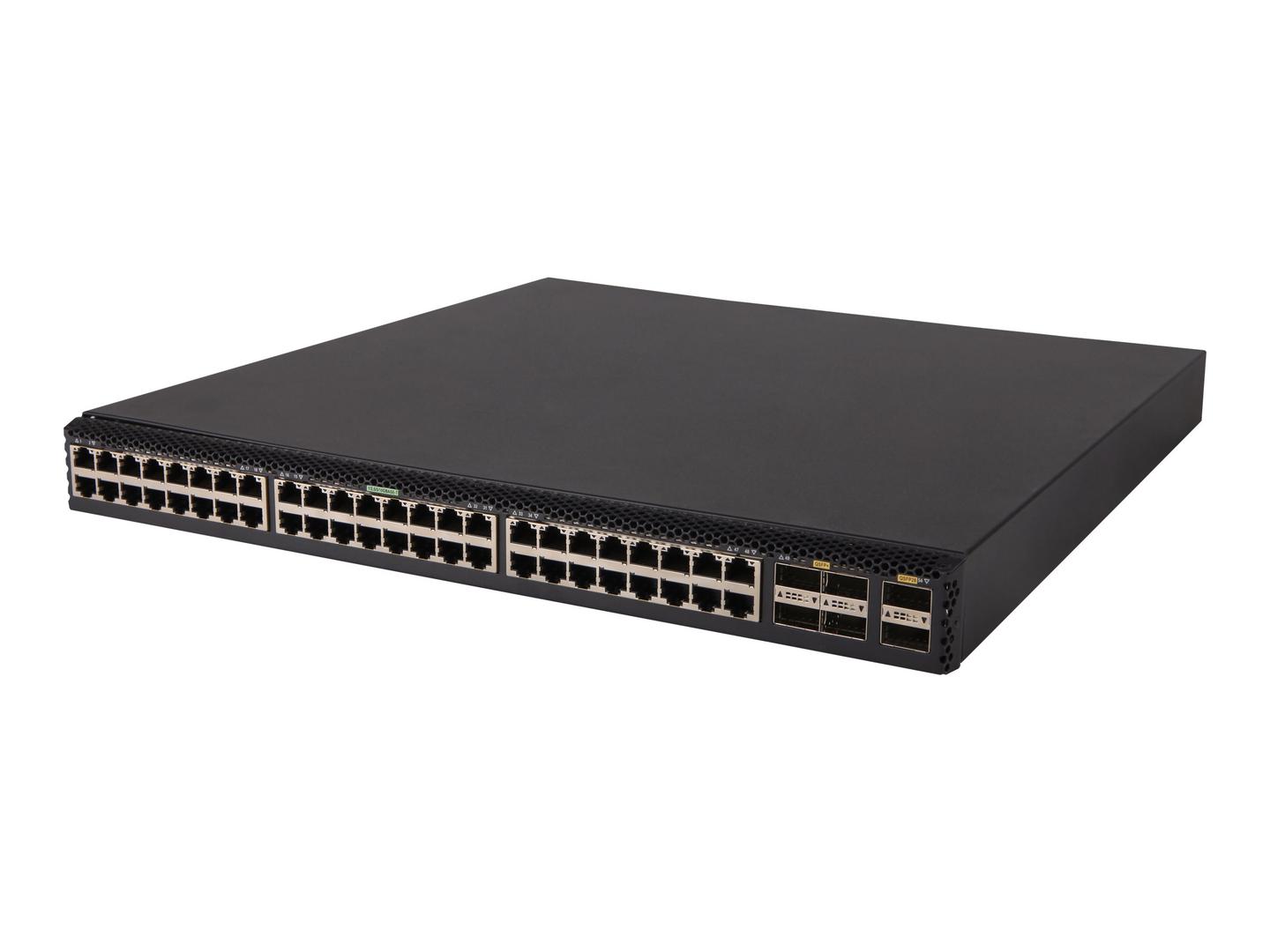

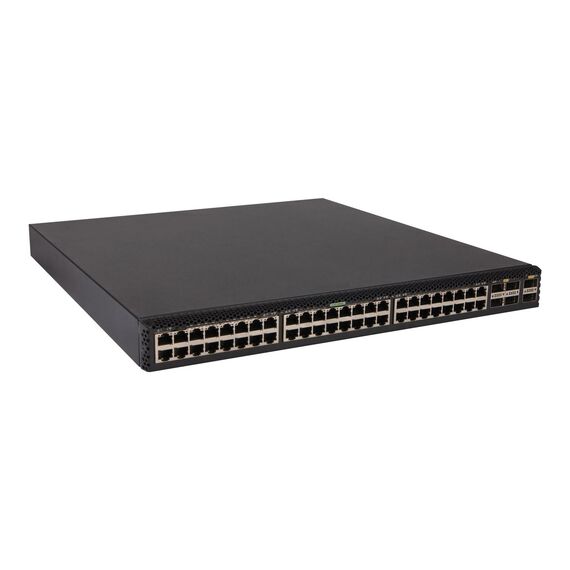

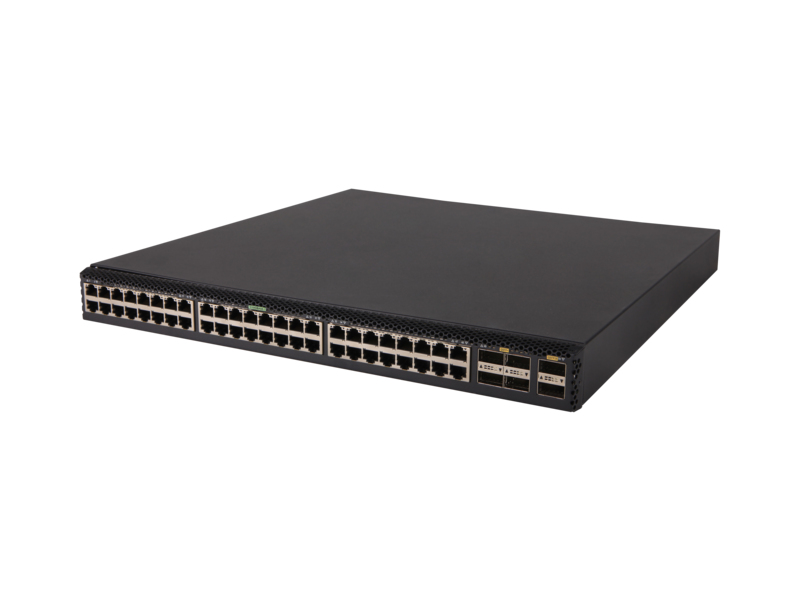

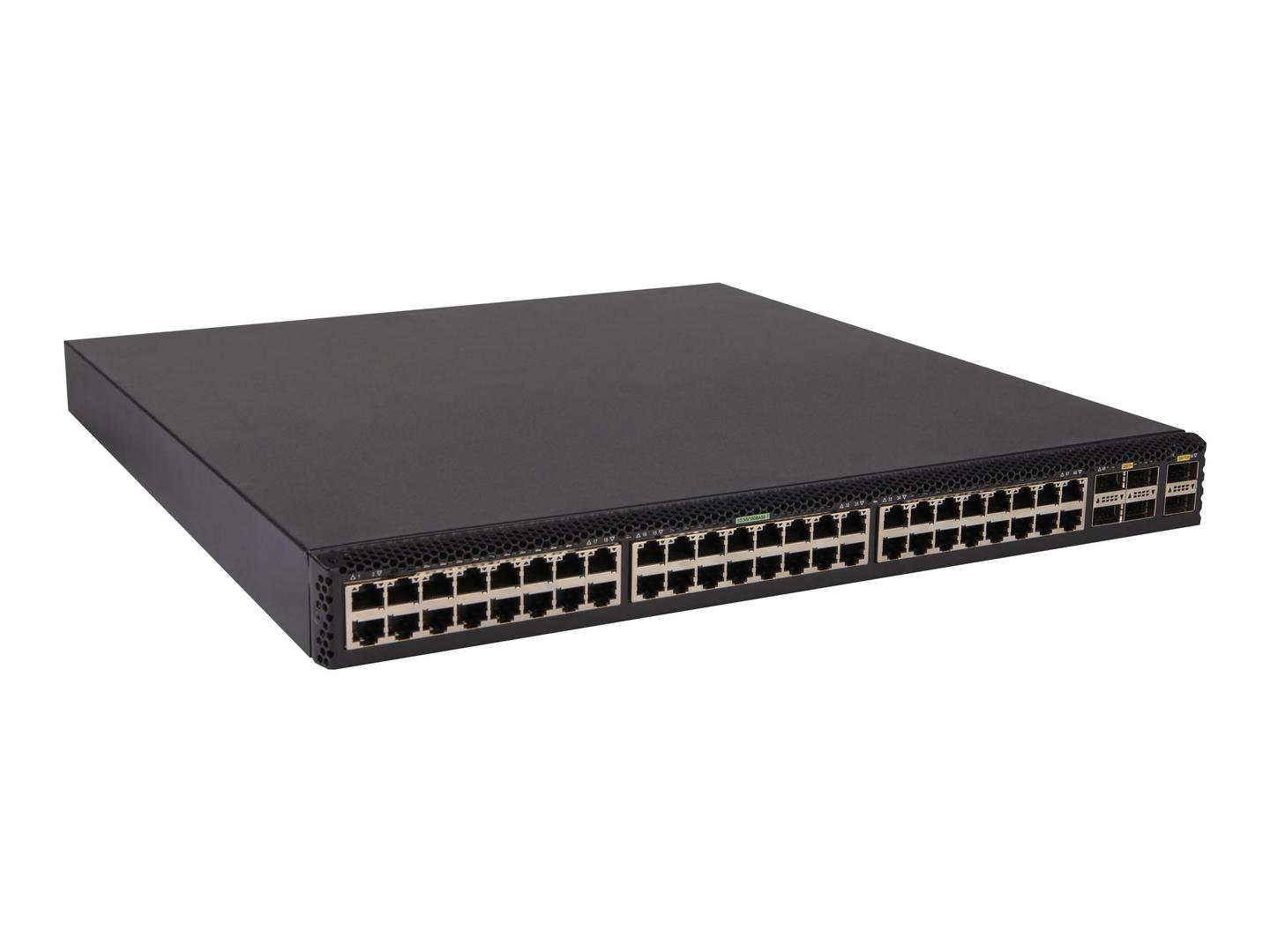

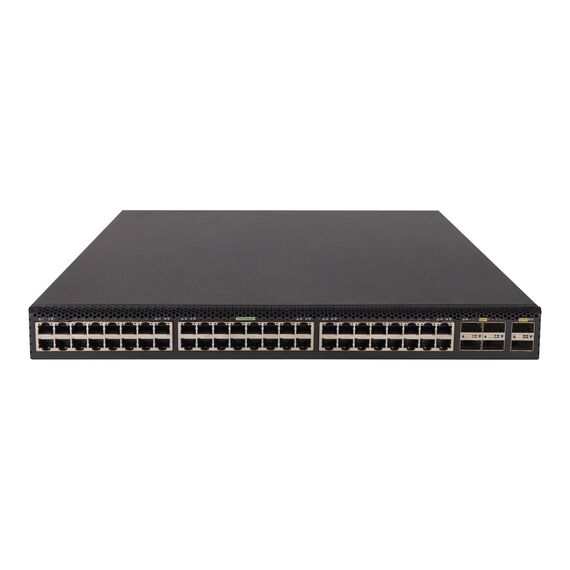

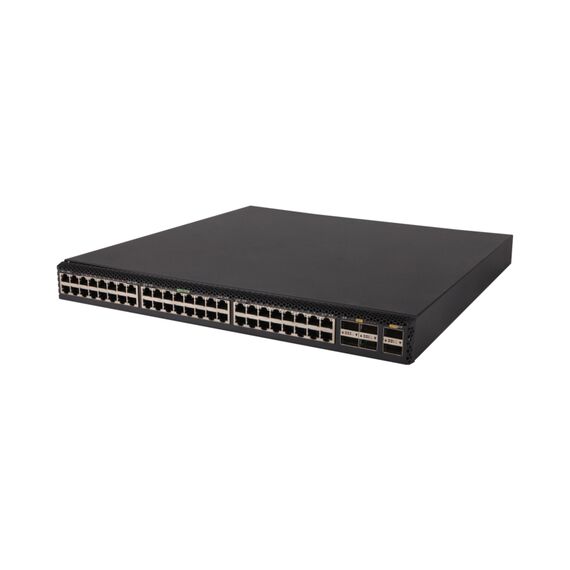

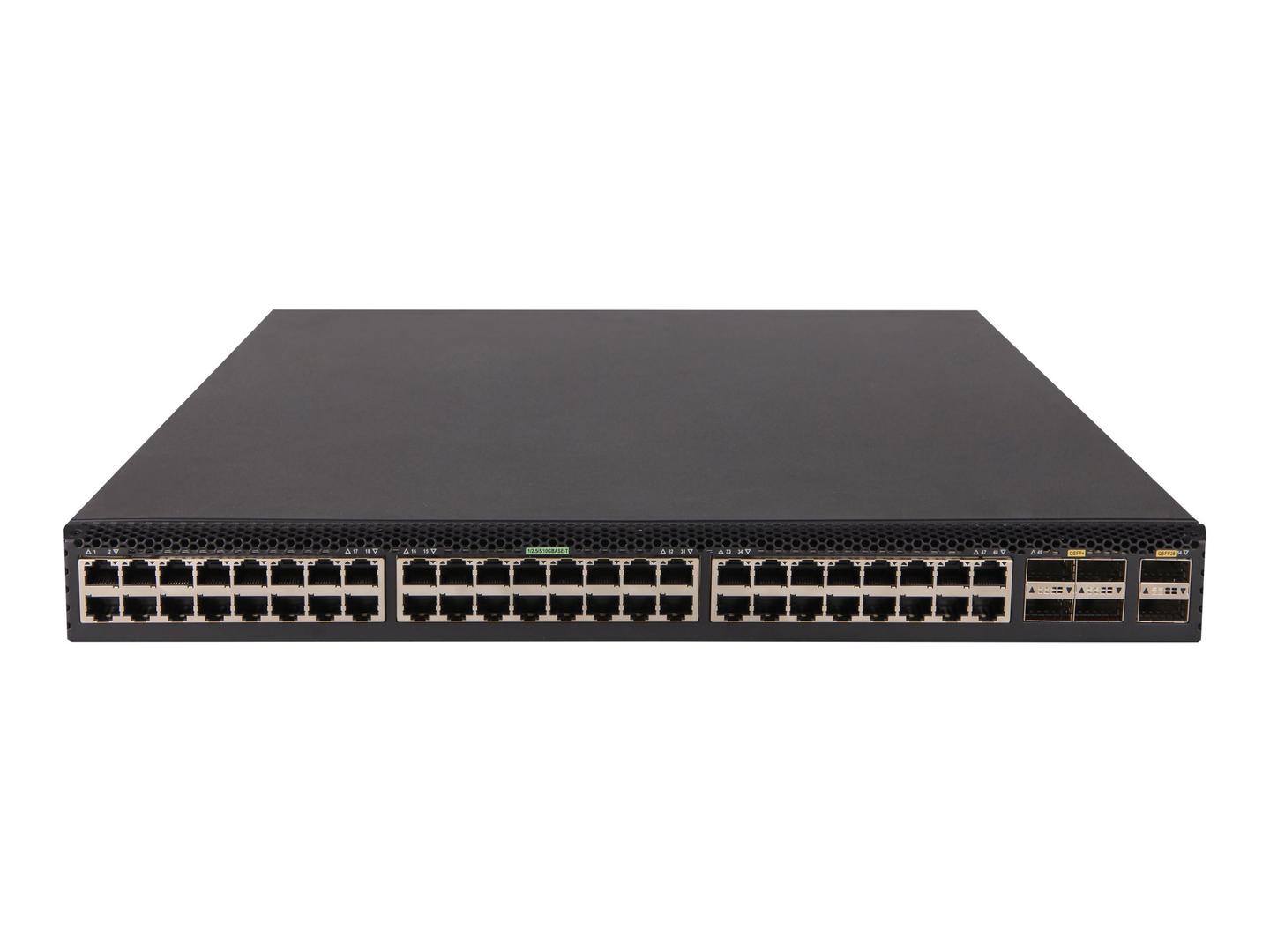

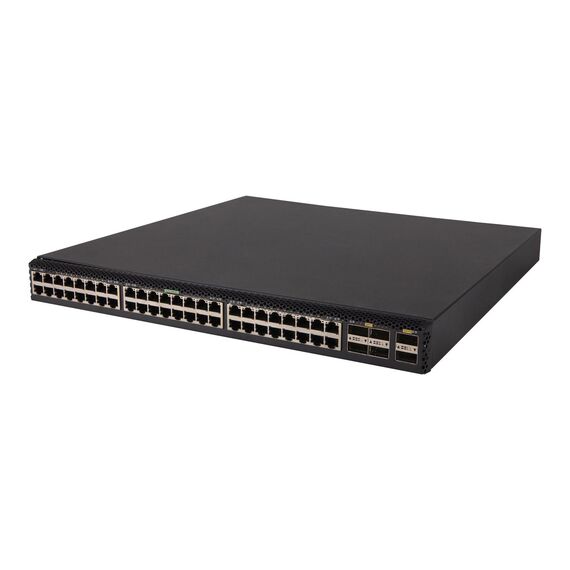

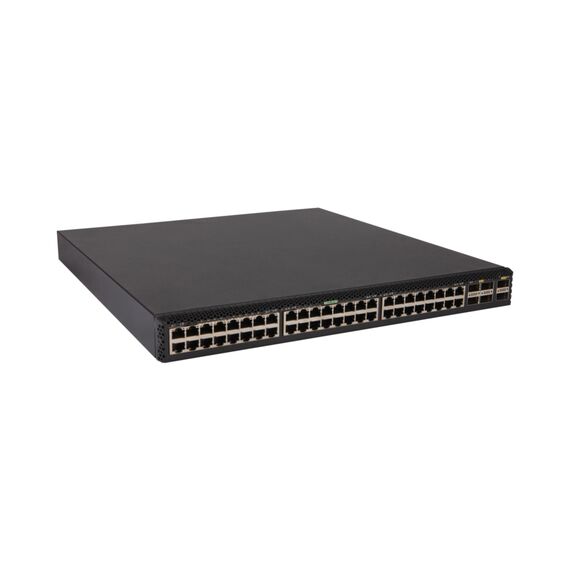

The HPE FlexFabric 5710 48XGT 6QS+/2QS28 (JL586A) is a 1U top-of-rack switch with 48 x 1/10GBASE-T copper ports and uplinks of 6 x 40G QSFP+ or 2 x 100G QSFP28 (or 3 x 40G + 1 x 100G). It runs HPE Comware and stacks up to 10 switches with IRF - built for servers and storage with 10G copper NICs.

The chassis ships without power supplies and without fan trays: at least one PSU and four fan trays of the same airflow direction must be ordered with it.

Before you order: order the power supply (e.g. JL592A 450 W front-to-back) and 4 fan trays (JL594A front-to-back or JL595A back-to-front) together with the switch. PSU and fan airflow must match each other and your rack cooling.

What's in the Box

  • FlexFabric 5710 JL586A switch chassis
  • No power supplies, no fan trays and no transceivers - all ordered separately
  • HPE does not publish a detailed packing list in the QuickSpecs - we confirm accessories before you order

What It Means in Practice

  • 10GBASE-T ports connect servers with RJ45 10G NICs over Cat6A copper, and also run at 1G for older hosts.
  • Uplinks reach a 40G or 100G spine/core; flexible 6x 40G, 3x 40G + 1x 100G or 2x 100G modes.
  • IRF joins up to 10 switches into one logical device for redundant server dual-homing.

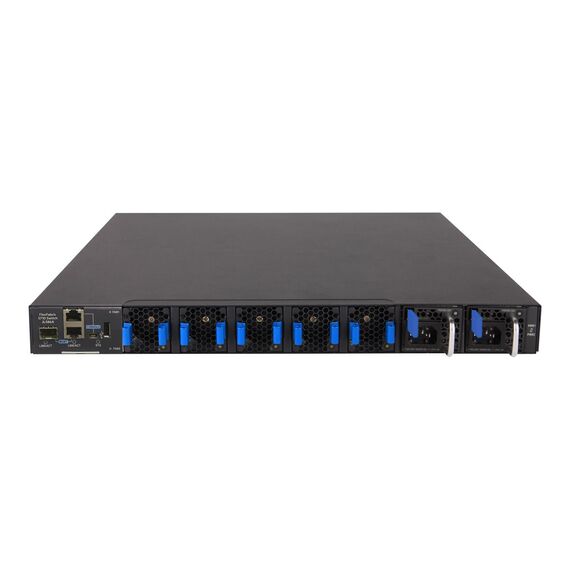

  • Two hot-swap PSU slots; choose 250 W or 450 W AC, or 450 W 48 VDC.

What Will Not Work

  • Powering on out of the box - no PSU or fans are included.
  • PoE - this is a data-centre switch without PoE.
  • Mixed airflow fan trays/PSUs - all must share one direction.
  • SFP/SFP+ fibre downlinks - the 48 access ports are RJ45 copper.

Key Features


48 x 10GBASE-T
1/10G RJ45 for server and storage access.

40/100G uplinks
6x QSFP+ or 2x QSFP28.

1.44 Tbps
1,071 Mpps forwarding, 12 MB buffer.

IRF
Up to 10 switches as one logical device.

Technical Specifications

Identification
Part Number JL586A
EAN / GTIN 0190017284668
Brand HPE
Ports
Access ports 48 x 1/10GBASE-T RJ45
Uplinks 6 x 40G QSFP+, or 3 x 40G + 1 x 100G, or 2 x 100G QSFP28
Management 1 x 10/100/1000 OOB, 1 x SFP management, mini-USB and serial console
Performance
Switching capacity 1,440 Gbps
Forwarding rate 1,071 Mpps
Buffer 12 MB
MAC table 208K
Routing table 16K IPv4 / 8K IPv6
Stacking IRF, up to 10 switches
Power & Cooling

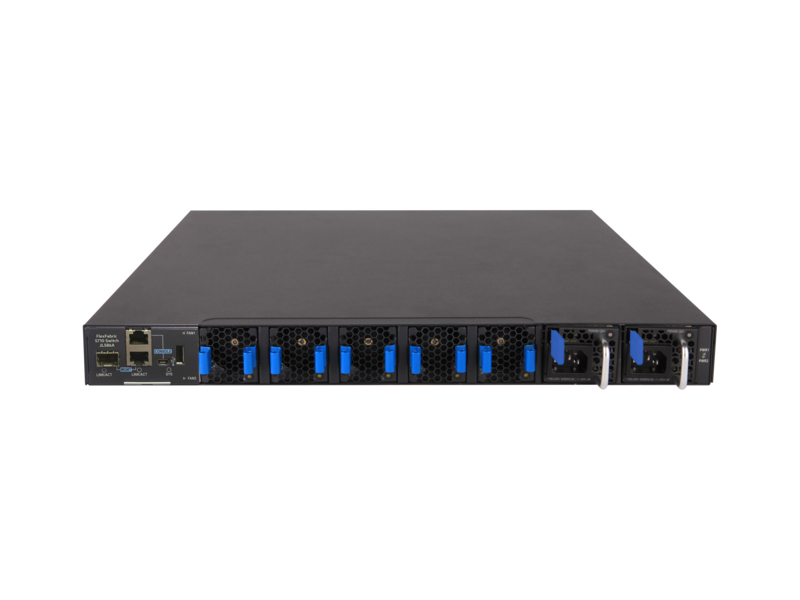

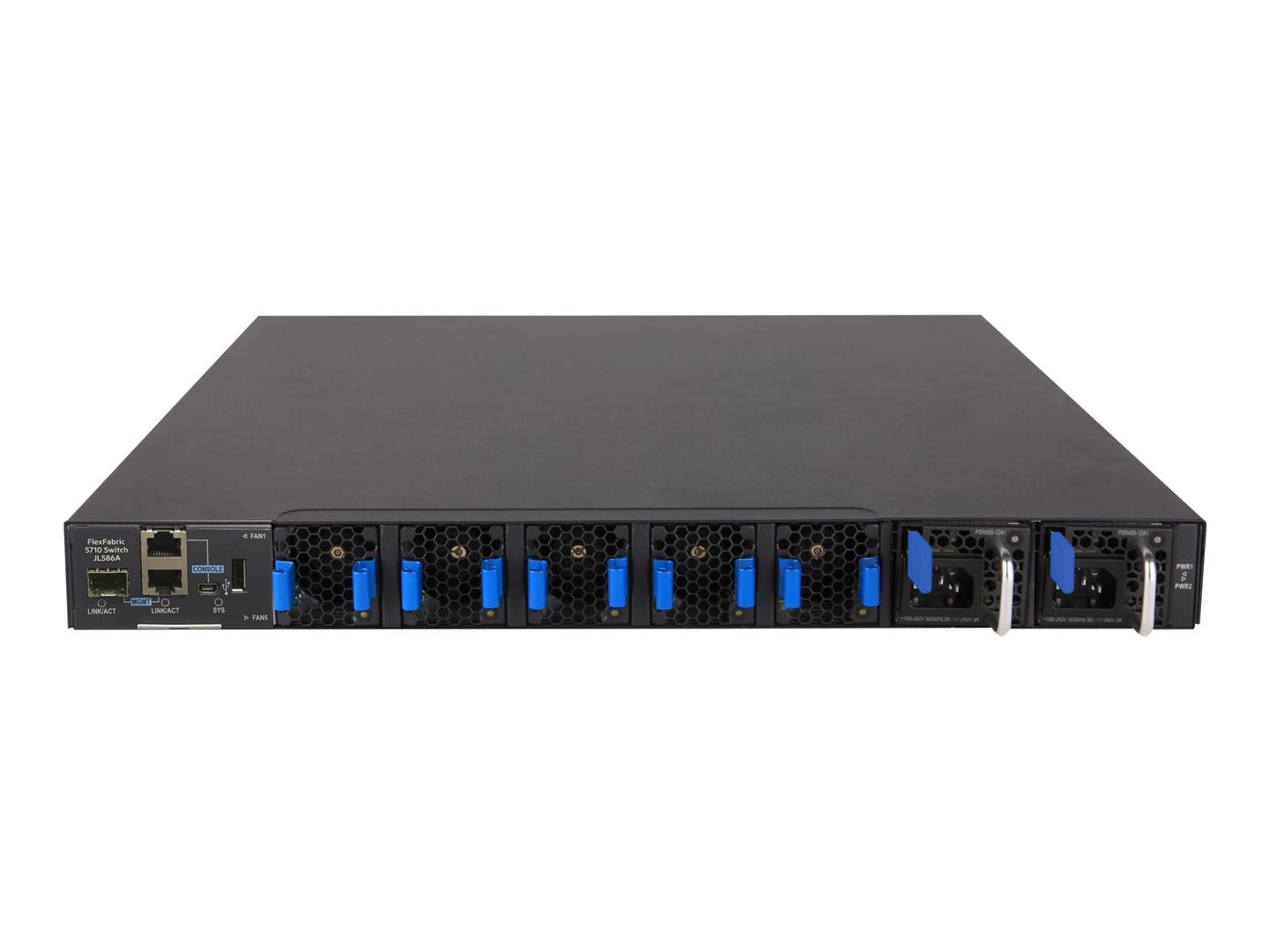

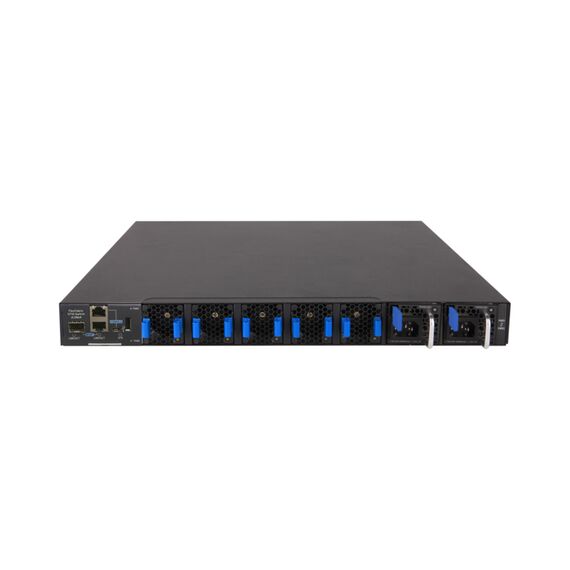

Power supplies Not included - 2 hot-swap slots (JL589A/JL590A 250 W, JL592A/JL593A 450 W, JL688A 450 W 48 VDC)
Fan trays Not included - 4 required (JL594A front-to-back or JL595A back-to-front)
Input 100-240 VAC
Idle power 108 W
Physical
Form factor 1U, 19-inch rack
Dimensions (H x W x D) 44 x 440 x 460 mm
Weight 10 kg
Operating temperature 0 to 45 C
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term HPE limited warranty - HPE documents state different terms for this model (QuickSpecs: one year; HPE Networking warranty summary: lifetime), we confirm the applicable term with your order - claims handled through Singular

Frequently Asked Questions

What else do I need to order?
At least one power supply (two for redundancy), four fan trays of one airflow direction, QSFP+/QSFP28 optics or DAC cables, and Cat6A cabling for 10G copper.
Which airflow should I choose?
Front-to-back (port side to power side) is usual when the ports face the cold aisle; back-to-front when the ports face the hot aisle. Tell us your rack layout.
Singular Expert Insight · Buyer's Guide
The 5710 48XGT is a cost-effective 10G copper top-of-rack switch for server rooms that standardised on RJ45 10G NICs. Treat it as a kit: chassis + PSU + 4 fan trays + uplink optics. Send us your rack layout and we put together the complete bill of materials. See our managed switch range.
✓ Buy it if you need 48 x 10G copper ports with 40/100G uplinks for servers in a rack.
✕ Skip it if you need PoE or SFP+ fibre access ports.
→ Also consider HPE JL592A 450 W PSU · JL594A fan tray.
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
