HPE JH186A FlexFabric 5930 4-Slot Front to Back Airflow Fan Tray Port Side to Power Side for JH179A Switch Chassis 2 Required

Brand:
Hewlett Packard

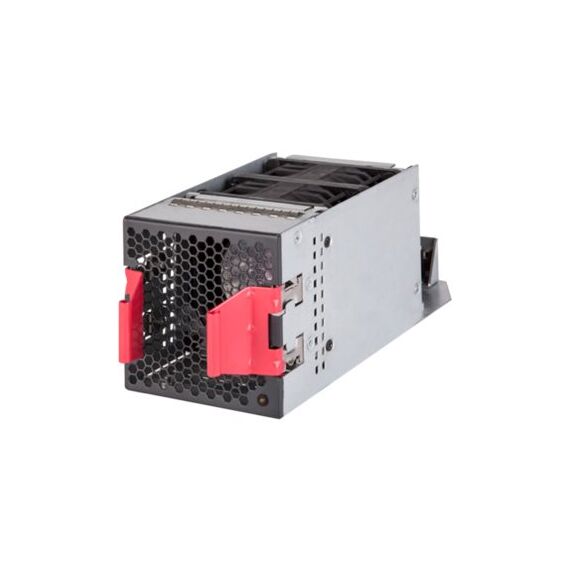

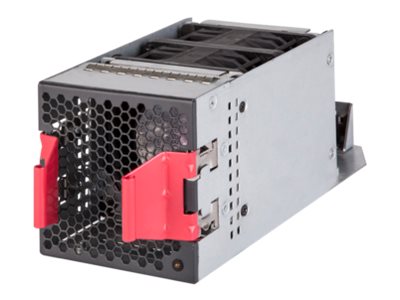

HPE JH186A 5930 4-Slot Front to Back Airflow Fan Tray
HPE JH186A FlexFabric 5930 4-Slot Front to Back Airflow Fan Tray Port Side to Power Side for JH179A Switch Chassis 2 Required
€528.69 inc. VAT
Buy
JH186A
€444.28
€528.69 inc. VAT
Ships from EU stock: 26 item(s)
+ −
Add to wish list Ask a question
Product Code
943EWJV
EAN Code
0888793884706
Manufacturer
Hewlett Packard

Quick Specs

For
HPE FlexFabric 5930 4-slot (JH179A)
Airflow
Port side to power side
Per chassis
2 fan trays required
Opposite airflow
JH185A
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

HPE JH186A — 5930 4-slot Front-to-Back Fan Tray

FlexFabric 5930Port → power2 per chassisField replaceable

The HPE JH186A is the front (port side) to back (power side) airflow fan tray for the HPE FlexFabric 5930 4-slot switch chassis (JH179A). HPE’s QuickSpecs state that fan trays are not included with the switch and must be ordered separately, and that the chassis needs two of them. This tray pulls air in at the port side and exhausts it at the power-supply side. HPE’s 5940 QuickSpecs also list JH186A as a high-volume tray for the 5940 4-slot chassis (JH398A). In practice it is the part you order twice for a new 5930 4-slot chassis installed with the ports facing the cold aisle, or once as a spare.

Compatibility — check before buying:
Airflow direction must match. HPE does not allow front-to-back and back-to-front trays in the same chassis, and the direction must suit your rack: this tray moves air from the port side to the power side. If your switch has its ports on the hot-aisle side, you need the JH185A (back-to-front) instead. HPE also warns not to run the switch on one tray for more than 24 hours, or without any tray for more than 2 minutes, so keep a spare. Not sure? Tell us your model and we check it for you.

Best For

✓ HPE FlexFabric 5930 4-slot (JH179A)
✓ HPE FlexFabric 5940 4-slot (JH398A)
✓ Ports facing the cold aisle
✓ Spare fan tray for data centres
✓ Replacing a failed tray
✓ New chassis builds (order two)

Key Features


Port-to-power airflow
Air enters at the ports, exits at the PSUs.

Two per chassis
HPE requires two trays in the 5930 4-slot.

Field replaceable
Swap a failed tray quickly.

Also for 5940 4-slot
Listed in HPE’s 5940 QuickSpecs.

Technical Specifications

Identification
Brand HPE
Product HPE 5930 4-slot Front (Port Side) to Back (Power Side) Airflow Fan Tray
Part Number JH186A
EAN / GTIN 0888793884706
Product Type Switch fan tray
Airflow Front (port side) to back (power side)
Current HPE name HPE Networking 5930 4-slot F(Prt) F(Pwr) Fan Tray
Fan Tray
Type Switch fan tray
Airflow Front (port side) to back (power side)
Trays per chassis 2
Compatibility
Chassis HPE FlexFabric 5930 4-slot (JH179A)
Also listed HPE FlexFabric 5940 4-slot (JH398A), as high-volume tray
Opposite airflow JH185A back-to-front fan tray
Operating Rules (HPE)
Mixing Front-to-back and back-to-front trays cannot be mixed
One tray only Max. 24 hours
No tray Max. 2 minutes
Before You Order
Rack layout Ports on the cold-aisle side = JH186A
Quantity Two for a new chassis
Fan count, weight, dimensions Not published by HPE
In the Box
Included Fan tray (HPE does not itemise the box contents)
Not Included Switch chassis; second fan tray
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term HPE states a 1-year warranty for the FlexFabric 5930 switch series in its QuickSpecs, with details on HPE’s networking warranty summary. Singular’s direct warranty is 1 year; beyond that we assist you with the manufacturer’s warranty process for its full duration.

Frequently Asked Questions

How many fan trays does the 5930 4-slot need?
Two. HPE does not include them with the chassis.
Which airflow is this?
Front (port side) to back (power side).
Can I mix it with a JH185A?
No, HPE does not allow mixed airflow in one chassis.
Does it fit the 5940 4-slot?
HPE’s 5940 QuickSpecs list it for the JH398A.
Singular Expert Insight
Before ordering, look at which side of the rack the switch ports face. Getting the airflow wrong means the switch breathes hot air. For switches and accessories, see our network switches.

Buyer’s Guide

Buy it if

You run an HPE 5930 4-slot with the ports on the cold-aisle side.

Skip it if

Your switch ports face the hot aisle.

Also consider

HPE JH185A back-to-front fan tray.
