HPE Premier Flex Fiber Patch Cable OM4 Multimode LC to LC Duplex 2m Bend-Insensitive Blue
Brand:
Hewlett Packard
HPE Premier Flex Fiber Patch Cable OM4 Multimode LC to LC Duplex 2m Bend-Insensitive Blue
€43.7 inc. VAT
QK733A
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
HPE Premier Flex OM4 Multimode Fiber Patch Cable, LC to LC, Duplex, 2 m
OM4 · 50/125 µmLC ↔ LCDuplex2 m
The HPE Premier Flex QK733A is a 2 m duplex OM4 multimode fibre patch cable with LC connectors on both ends, made for HPE Fibre Channel SAN and Ethernet switches.

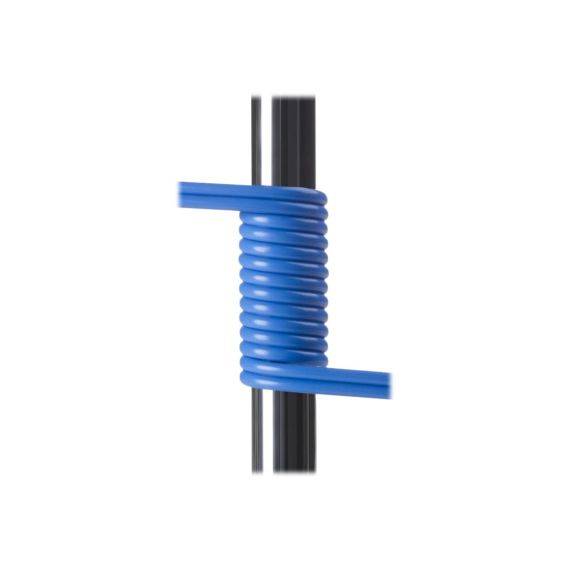

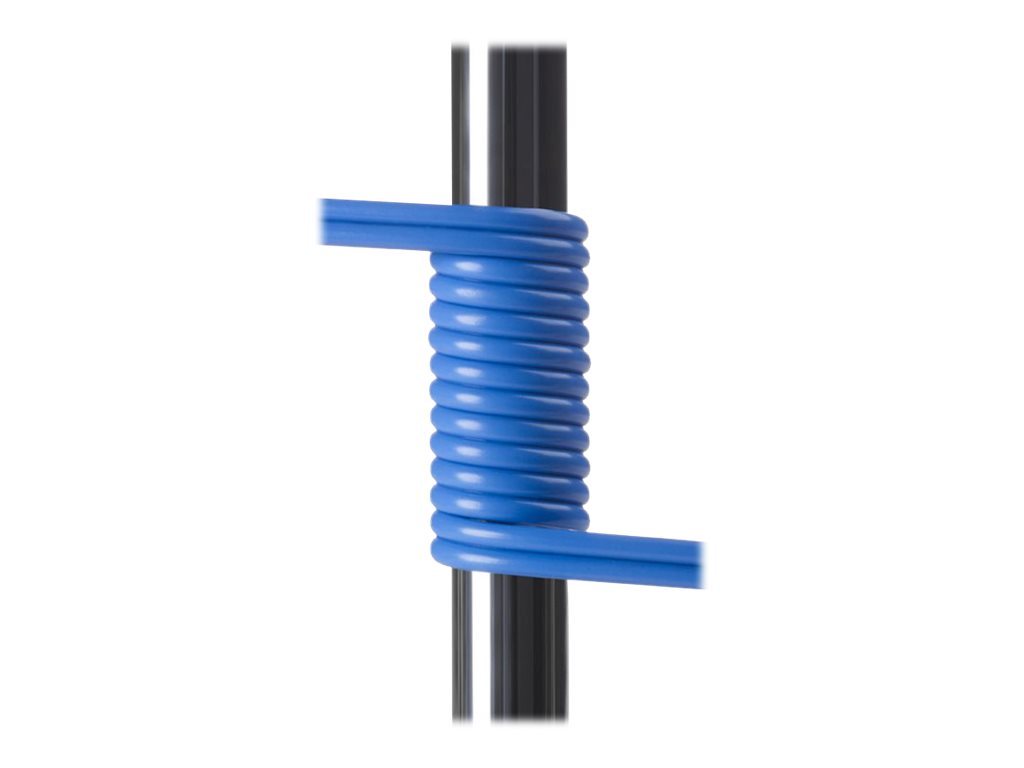

The cable uses an OFNR / LSZH jacket in blue, so it is easy to tell apart in a busy rack. HPE lists it as a bend-insensitive OM4 cable (minimum bend radius 7.5 mm) tested and qualified across its Fibre Channel and Ethernet product families.
Before you order: This is a multimode OM4 cable for 850 nm short-wave optics (SW SFP+/SFP28/SFP56 Fibre Channel and SR Ethernet). It will not work with long-wave (LW/LR) singlemode transceivers.
What's in the Box
- 1 × HPE Premier Flex OM4 duplex fibre patch cable, 2 m, LC – LC
- Transceivers, couplers and patch panels are not included
What It Means in Practice
- Two fibres in one cable: one transmits, one receives — the normal setup for SFP, SFP+, SFP28 and most media converters.
- At 2 m it is a rack or desk-side jumper: switch to patch panel, server to top-of-rack switch, or media converter to wall outlet.
- OM4 is laser-optimised 50/125 µm multimode for 850 nm SR optics (10GBASE-SR, 25GBASE-SR, 8/16/32G FC SW).
- Respect the minimum bend radius (7.5 mm (bend-insensitive)): route the cable in gentle loops and do not pinch it in rack doors or cable ties.
- Keep the connectors covered until the moment of connection and clean the end-faces if a link shows high loss — dirt is the most common cause.
What Will Not Work
- Singlemode LR/LX/ER transceivers (1310/1550 nm) — they need OS2 singlemode cable.
- Ports of another connector type (SC, ST, MPO/MTP, E2000) without the right hybrid cable or adapter.
- Permanent in-wall or outdoor installation — this is a patch cable for racks, desks and equipment rooms.
Key Features
OM4 50/125 µm
Laser-optimised multimode for 850 nm SR optics.
LC – LC
Same connector on both ends.
OFNR / LSZH jacket
Low-smoke, halogen-free jacket — suitable for offices and server rooms.
Published losses
Insertion loss 0.5 dB max @ 850 nm.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
OM4 is the current standard for multimode SR links in racks and server rooms. Match three things before ordering: fibre type (OM4), connector at each end (LC / LC) and polish. Typical partners are switches with SFP/SFP+ ports and the matching transceivers.
✓ Buy it if your ports are LC on both sides and the link is OM4, on an HPE SAN or Ethernet switch.
✕ Skip it if your transceivers are singlemode LR/LX — order OS2 instead.
→ Also consider the same cable in other lengths.
Not sure which fibre or connector you have? Send us the model of your switch, transceiver or patch panel and we will check it before you order.
Features - Hewlett Packard - QK733A
Colour
blue
Length
2m
More Details
Product Code
04:98446
EAN Code
0886111610600
Manufacturer
Hewlett Packard
