HPE X721 JL594A Front-to-Back Fan Tray for Compatible FlexFabric Switches, 12V, 20CFM

Brand:
Hewlett Packard

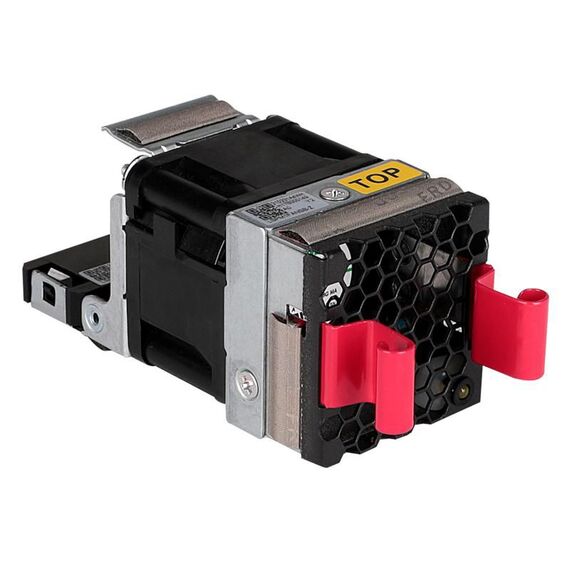

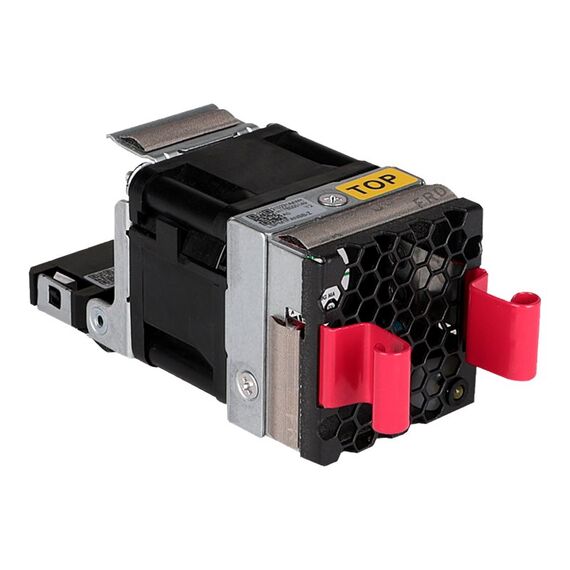

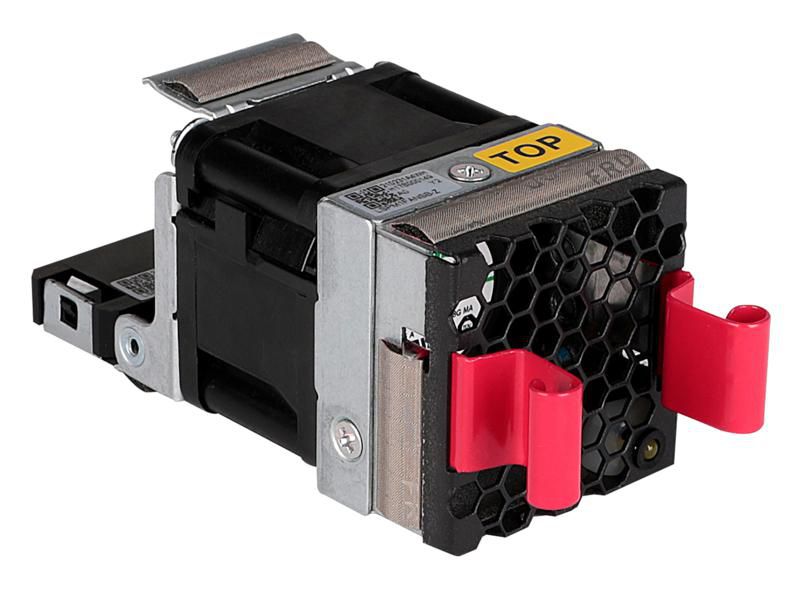

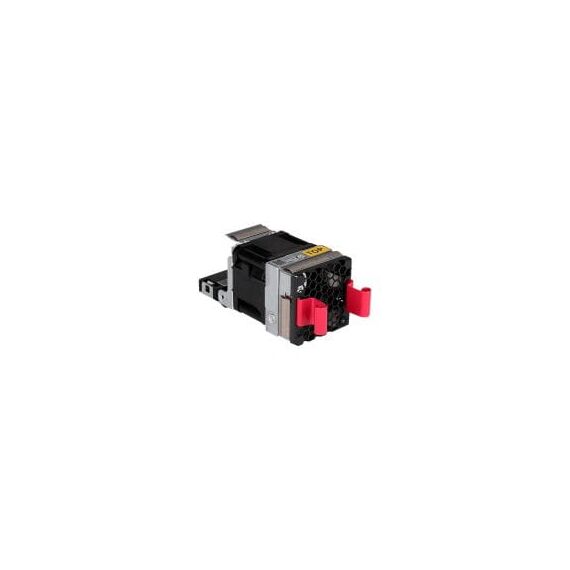

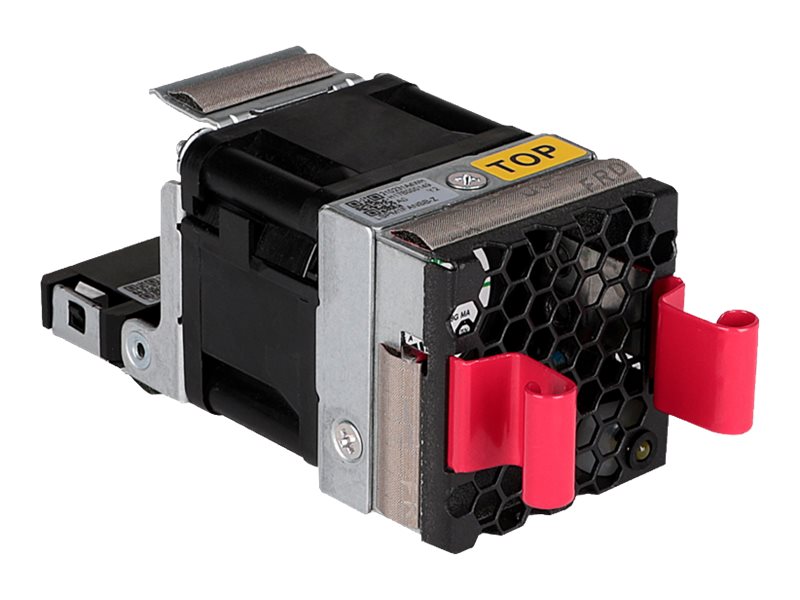

HPE X721 JL594A Front-to-Back Switch Fan Tray with Red Latches
HPE X721 JL594A Front-to-Back Fan Tray for Compatible FlexFabric Switches, 12V, 20CFM
€109.67 inc. VAT
Buy
JL594A
€92.16
€109.67 inc. VAT
Ships from EU stock: 5 item(s)
+ −
Add to wish list Ask a question
Product Code
2M2FWC0
EAN Code
0190017286150
Manufacturer
Hewlett Packard

Quick Specs

Airflow direction
Port side → power side
Maximum airflow
20CFM / 0.57m³/min
Electrical
12V, up to 9.8W
Module fan
1 × 40 × 40 × 28mm
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

HPE X721 JL594A — Front-to-Back Fan Tray

Port → power airflow20CFM maximum12VFlexFabric accessory

Choose this X721 module for a supported switch configured for front-to-back airflow. Its air path runs from the port side toward the power-supply side, so check the switch configuration and rack airflow before selecting a replacement.

Compatibility — check before buying:
Verify the exact switch part number and required airflow direction. X721 JL594A and X722 JL595A have opposite airflow directions; do not select one solely because its housing looks similar.

Key Features


Port-to-power cooling path
The X721 direction matches front-to-back switch installations; compare it with your required rack airflow.

One fan per tray
HPE specifies a 40×40×28mm fan at 20,000RPM and a maximum airflow reference of 20CFM.

Switch-specific status
Interpret the fan tray status LED using the installation guide for the host switch, as HPE directs.

Technical Specifications

Identification and compatibility
Brand / model HPE X721
MPN / EAN JL594A / 0190017286150
Product type Switch fan tray
Verified 5710 examples FlexFabric 5710 JL585A, JL586A, JL587A, JL689A; verify chassis airflow configuration
Cooling and power
Airflow direction Front-to-back: port side to power-supply side
Fan count / size 1 × 40 × 40 × 28mm
Fan speed 20,000RPM manufacturer specification
Maximum airflow 20CFM / 0.57m³/min, manufacturer reference
Input voltage 12V
Maximum power consumption 9.8W
Status LED Meaning depends on host switch model; consult its installation guide
Physical and operating limits
Dimensions 3.8 × 3.8 × 10.2cm, as listed by HPE
Weight 136.1g
Operating temperature 0°C to 45°C
Storage temperature −40°C to +75°C
Operating / storage humidity 5%–95% RH, non-condensing
Manufacturer term 1-year HPE manufacturer warranty; subject to product warranty/support terms

Frequently Asked Questions

Is X721 the same airflow version as X722?
No. X721 JL594A moves air from ports toward power supplies. X722 JL595A reverses that path.
Does one tray complete the switch cooling configuration?
The listing is for one fan tray. The host switch’s installation guide determines required tray quantity and operating configuration.
Singular Expert Insight
Read the existing tray model and switch part number before ordering. Match the airflow scheme of the complete chassis, then follow the switch guide for installation and status checks. Browse networking accessories

Buyer’s Guide

Buy it if

Your exact supported switch requires an X721 front-to-back fan tray.

Skip it if

Your chassis requires back-to-front airflow or another fan tray model.

Also consider

X722 JL595A only when the switch configuration requires the opposite airflow direction.
