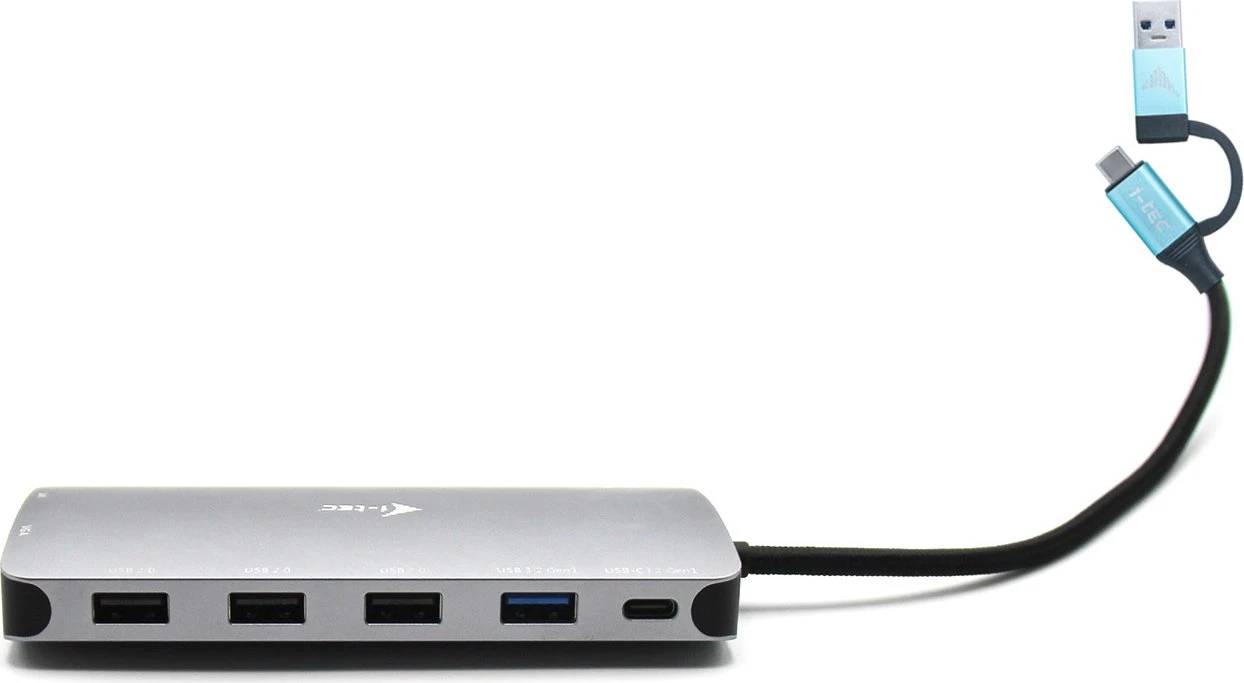

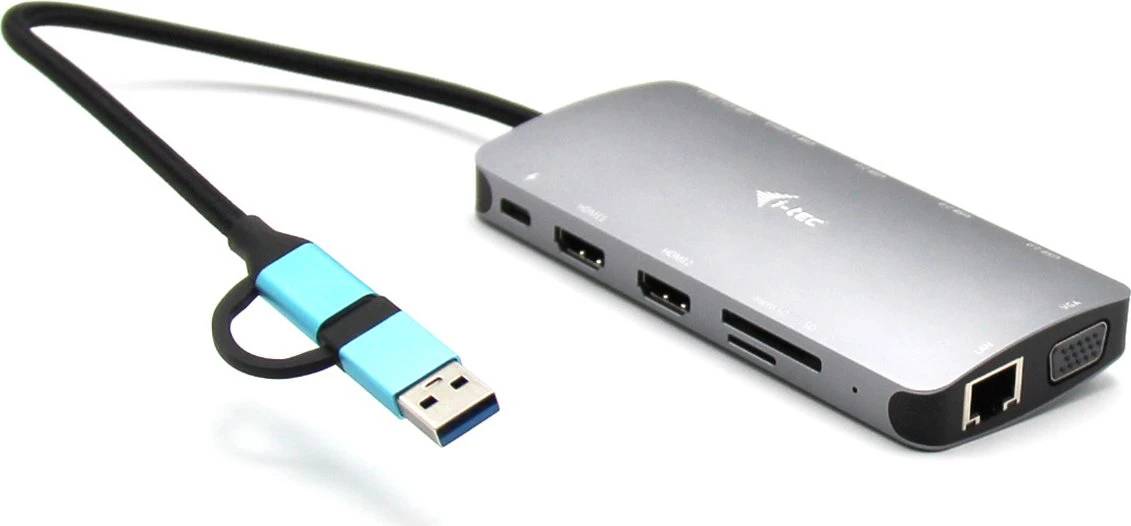

i-Tec Nano Dock / Docking station / USB 3.0 / USB4 / Thunderbolt 4 / VGA, 2 x HDMI / GigE / Europe | CANANOTDOCKPD
Please sign in so that we can notify you about a reply
Product Specification
| Product Type | Docking station |
| Width | 12.7 cm |
| Depth | 6 cm |
| Height | 1.8 cm |
| Weight | 122 g |
| Enclosure Colour | Grey |
| Localisation | Europe |
| Video | Video |
| Max Resolution Details | 4K - 30 Hz (HDMI1 only) ¦ 1920 x 1080 - 60 Hz (Single Display (VGA)) ¦ 1920 x 1080 - 60 Hz (HDMI2 only) ¦ 1920 x 1080@60Hz, 4K@30Hz (HDMI1 and HDMI2 simultaneously) ¦ 1920 x 1080, 4K - 60 Hz (HDMI1 and VGA simultaneously) ¦ 1920 x 1080 - 60 Hz (HDMI2 and VGA simultaneously) ¦ 1920 x 1080@60Hz, 4K@30Hz (Triple Display (2 x HDMI + VGA)) |
| Networking | Networking |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 (total) / 1 (free) x SD Memory Card ¦ 1 (total) / 1 (free) x microSD |

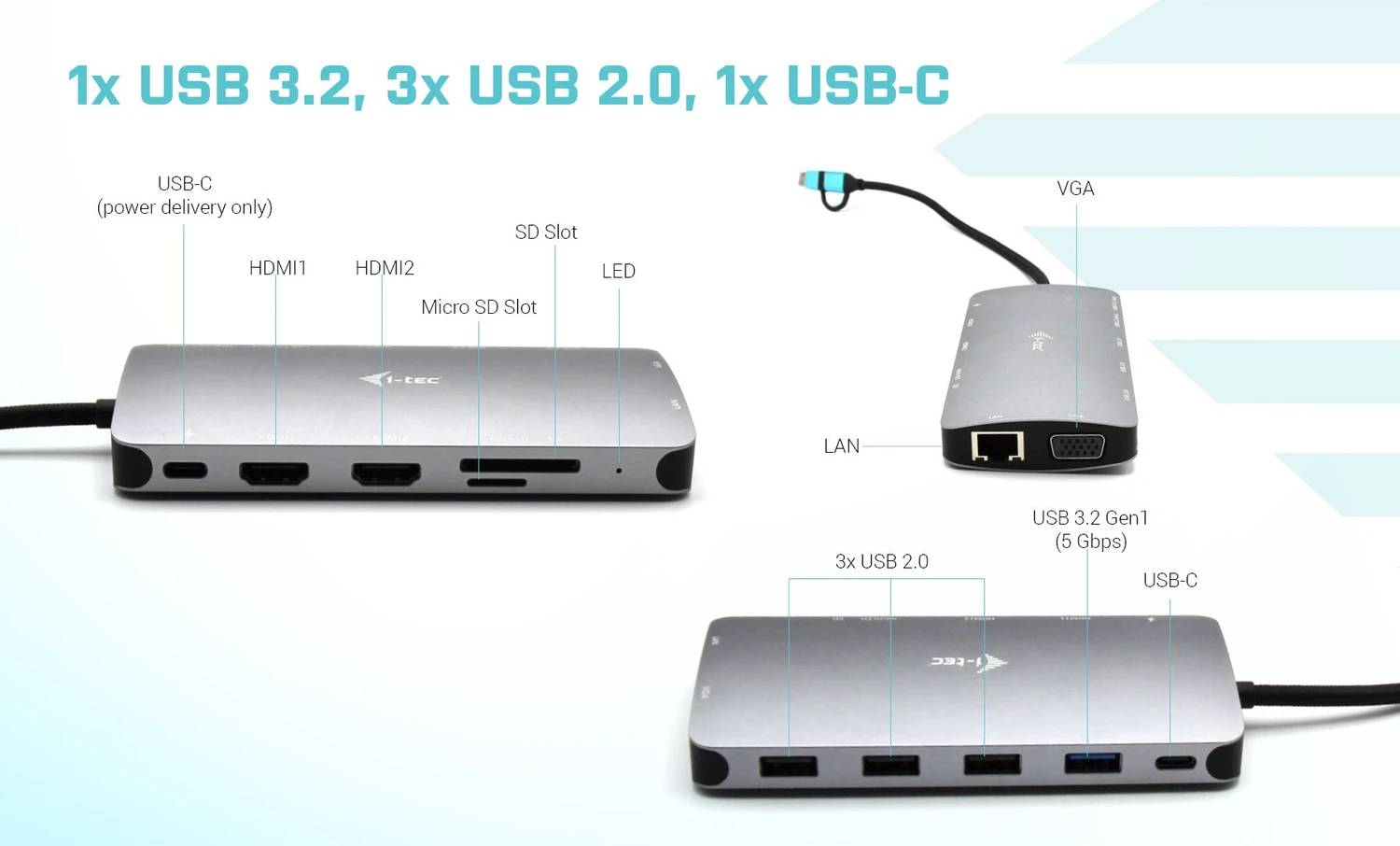

| Interfaces | 2 x audio / video - HDMI - 19 pin HDMI Type A ¦ 1 x display / video - VGA - 15 pin HD D-Sub (HD-15) ¦ 1 x USB-C 3.2 Gen 1 (data only) - 24 pin USB-C ¦ 1 x USB-C with Power Delivery (power only) - 24 pin USB-C ¦ 1 x USB 3.2 Gen 1 - 9 pin USB Type A ¦ 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x headphone/microphone combo jack - mini-phone stereo 3.5 mm ¦ 3 x USB 2.0 - 4 pin USB Type A |
| Miscellaneous | Miscellaneous |
| Cables Included | 1 x USB-C cable with USB-C to USB-A dongle - integrated - 30 cm |
| Features | LED indicator, 100W power delivery, USB-C Alt Mode, aluminium housing |
| System Requirements | System Requirements |
| OS Required | Apple MacOS, Linux, Android, Google Chrome OS, Windows 10, Windows 11 |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 2 years ¦ Technical support - lifetime |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 19 cm |
| Shipping Depth | 9.8 cm |
| Shipping Height | 2.3 cm |
| Shipping Weight | 140 g |
Features - i-tec - CANANOTDOCKPD
More Details
Product Code
CF51451
EAN Code
8595611705762
Manufacturer
i-tec
