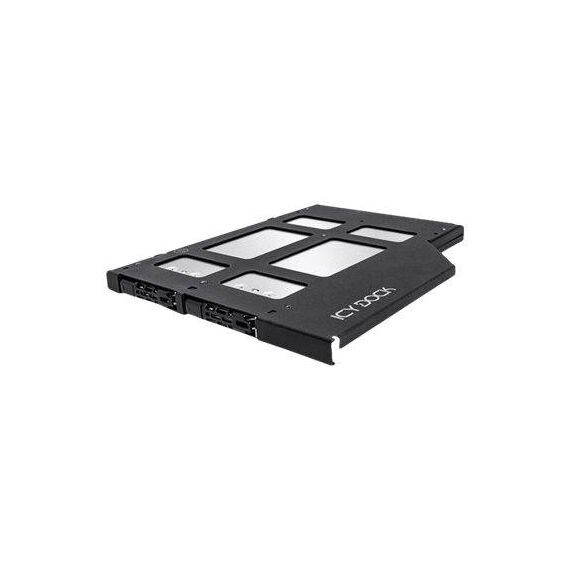

ICY Dock ToughArmor MB852M2PO-B / Storage mobile rack / M.2 / 2 Channel / M.2 NVMe Card / PCIe / black | MB852M2PO-B

Product Features

• Removable M.2 NVMe SSD enclosure

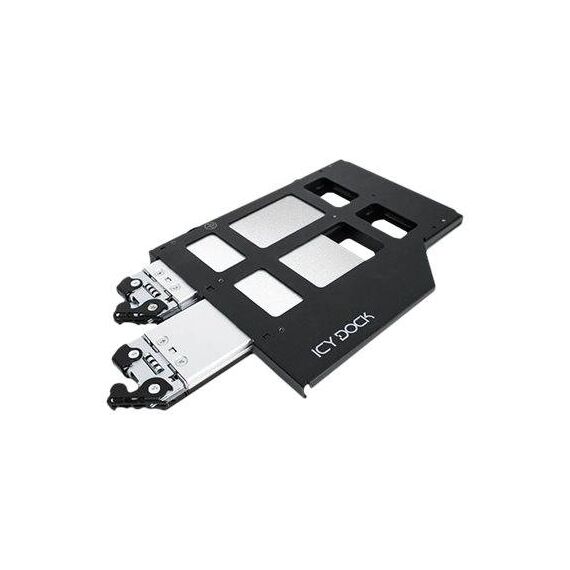

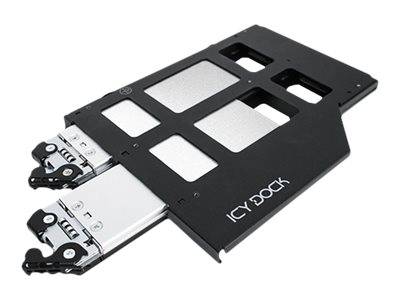

  The M.2 drive is typically installed on a motherboard or PCIe card and secured by tiny screws. It can be a time-consuming process when installing or removing the drive and makes M.2 SSD not the ideal choice for enterprise applications where easy maintenance with minimum downtime is essential. ToughArmor MB852M2PO-B's swappable M.2 drive trays allow you conveniently access the drives from the frontal Ultra-Slim optical drive bay of your system without opening the computer case.
• Effortless tool-less M.2 drive installation
  The ToughArmor MB852M2PO-B is designed with a patent-pending M.2 adjustable locker for tool-less drive installation/removal. Simply insert the M.2 SSD, move the adjustable M.2 locker until it firmly secures the M.2 SSD and closes the lid. The whole process only takes less than 10 seconds to complete, saving your valuable time and resources.
• Superior PCIe 4.0 performance
  To fully utilize the speeds of M.2 NVMe SSD, each drive bay of the MB852M2PO-B uses its own PCIe Gen 4 OCuLink (SFF-8612) connection and support up to 64Gbps data transfer speed, which is up to 2 times faster than PCIe 3.0 and 10 times faster than SATA interface.
• Optimal cooling efficiency
  The specialized slimline tray is made with thick aluminum and acts as heatsink to dissipate heat generated by the M.2 NVMe SSD through large ventilation opening on both the top and bottom of the device.
• EMI Grounding Technology
  Grounding your M.2 SSD is very important through many swaps. Swapping drive without grounding properly may lead to hardware damages due to static shocks. With the innovative EMI Grounding Technology, once the M.2 locker clips into the SSD screw hole, the SSD will be in a grounded state throughout the tray and housing of the enclosure. Once the enclosure installed in the system with four screws on its' side, it will then ground itself throughout your computer system.
• Tough protection for the harshest environment
  With the ToughArmor Series, it is equipped with a ruggedized full-metal chassis and tray to ensure a long product lifespan. An anti-vibration mechanism is built right into the chassis to reduce noise and shield the drive from environmental damage.
• LED indication
  The MB852M2PO-B is equipped with drive activity LED indicator on the drive tray to show drive power and activity. The LED will be automatically powered off when no drive installed to indicate an empty bay.

Special Features

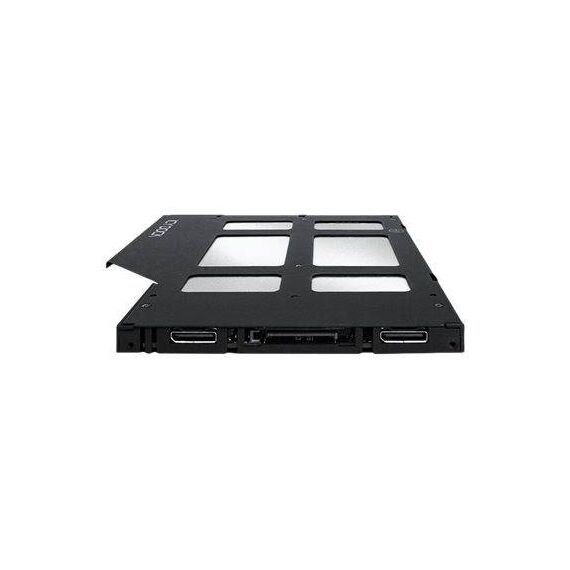

• Uses 2x PCIe Gen 4 OCuLink connector and support up to 64Gbps transfer speed
• OCuLink connector pinout supports SFF-9402 specification
• Installs into 9.5mm Ultra-Slim optical disk drive (ODD) bay
• Designed for customized Industrial-PC, server rackmount, and embedded systems

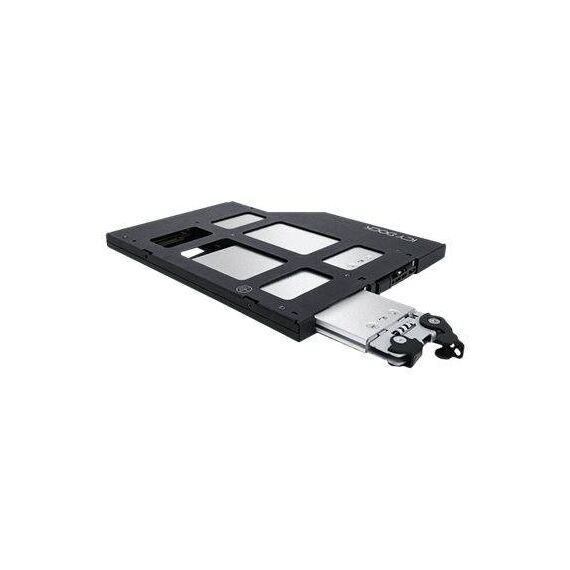

• Removable drive tray with tool-less drive installation design for easy drive maintenance
• Eagle-hook lock system keeps the drive secure in the enclosure
• EMI-Grounding - protects drives from electrical damage
• Anti-Vibration Technology (AVT) reduces noise and protects against environmental damage
• Active Power Technology (APT) saves power by shutting the device down when no drive installed
• Built-in thermal pad conducts the heat from the drive to the metal tray
• Complimentary support from professionally trained technical support agents
• Designed for backplane-less Slim ODD bay with minimum 160mm clearance
