iiyama ProLite T1732MSC-B2S 17-inch PCAP Touch Monitor
Brand:
Iiyama
T1732MSC-B2S
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Compact17-inch multi-touch for the desktop
17-inch TN /1280×102410-point PCAP /USBFront-only IP5490°up /5°down tilt

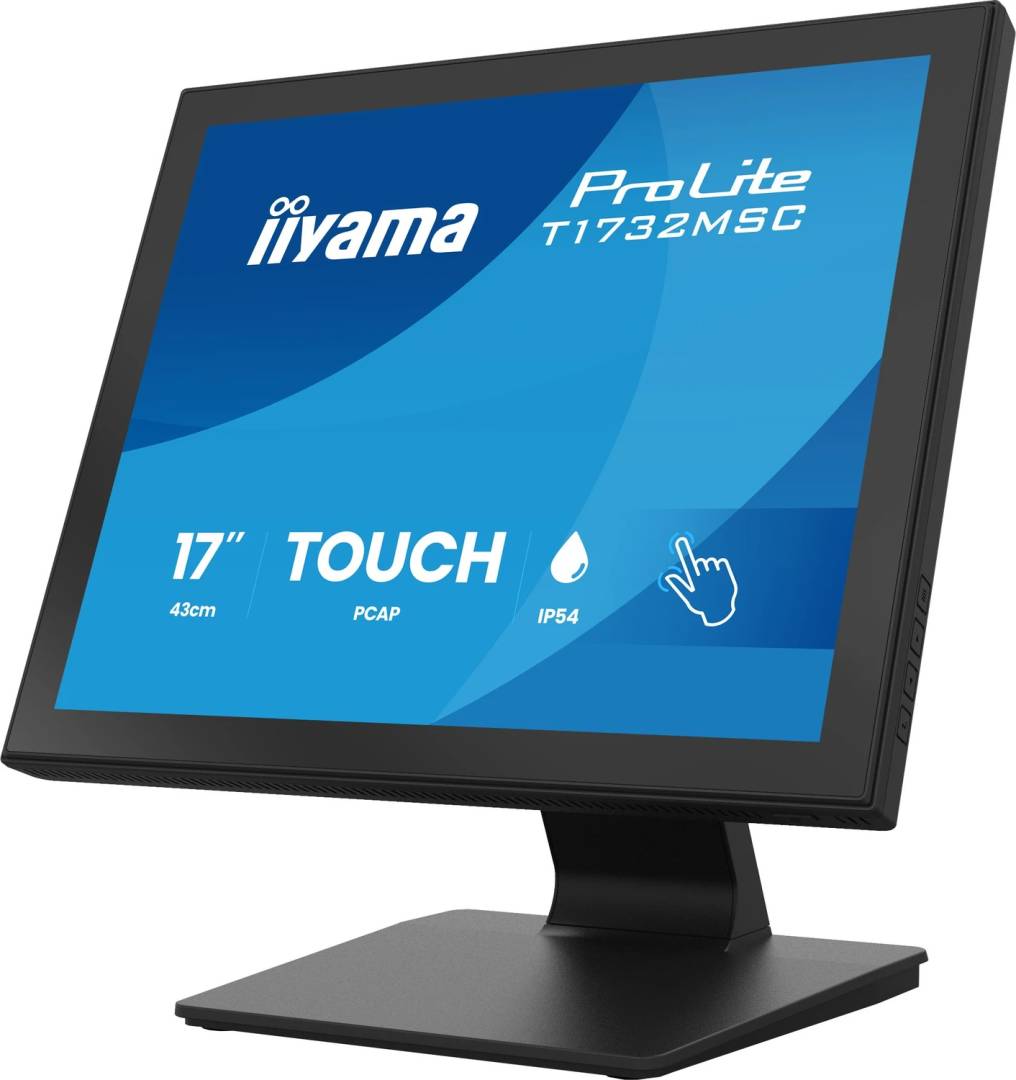

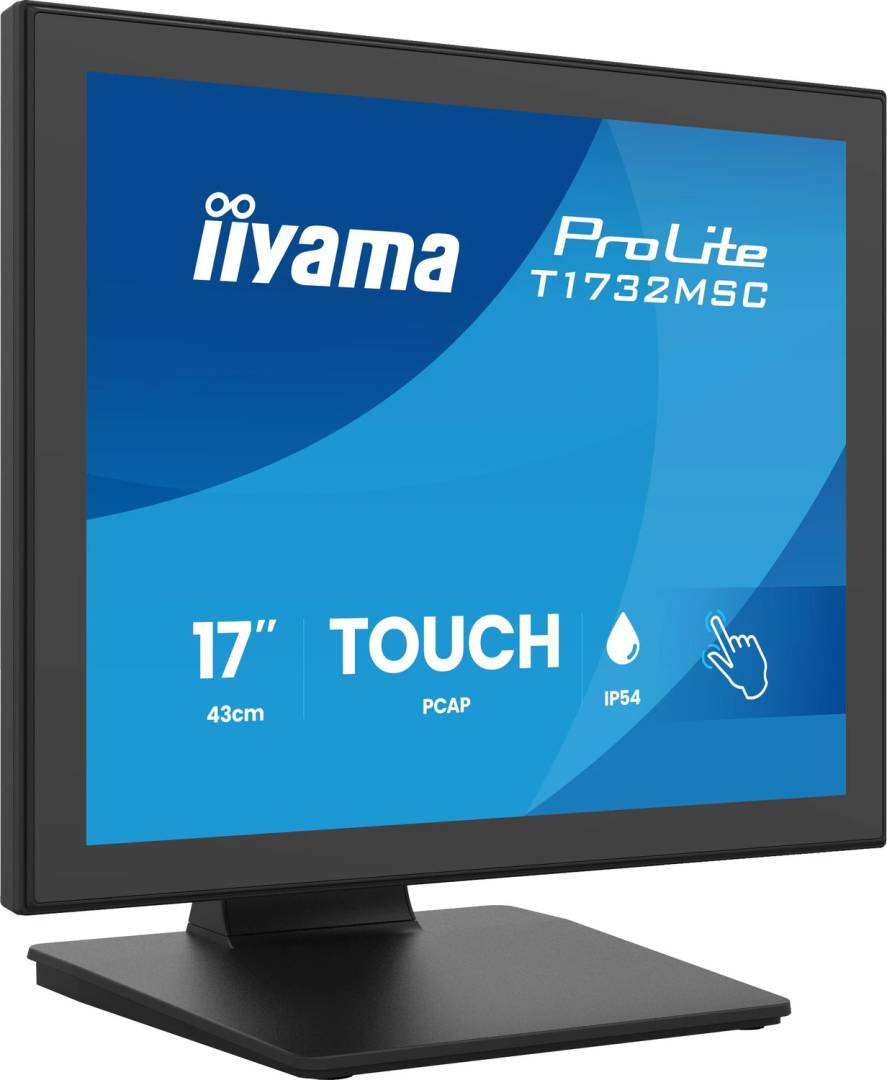

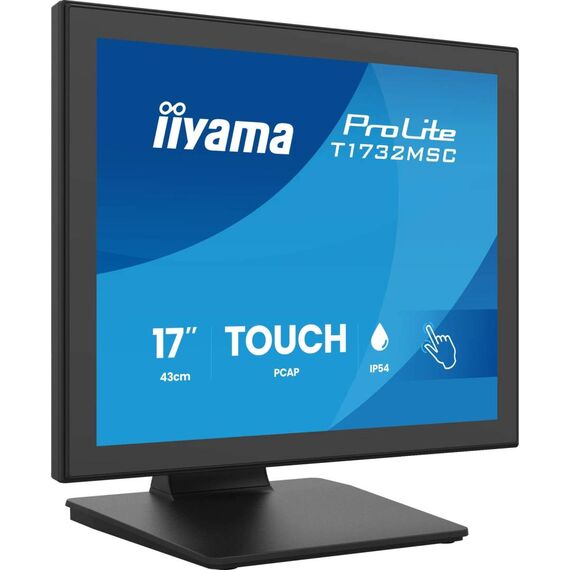

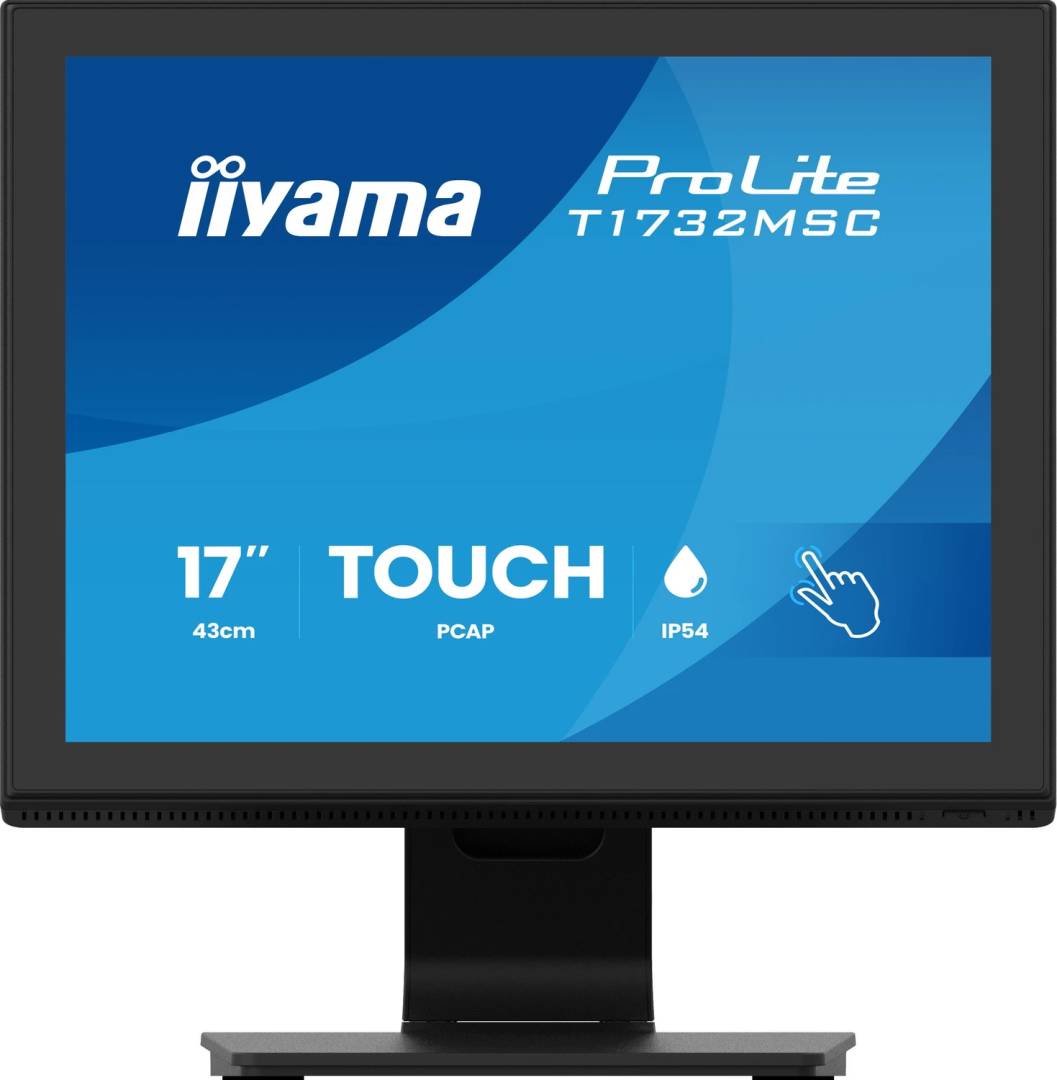

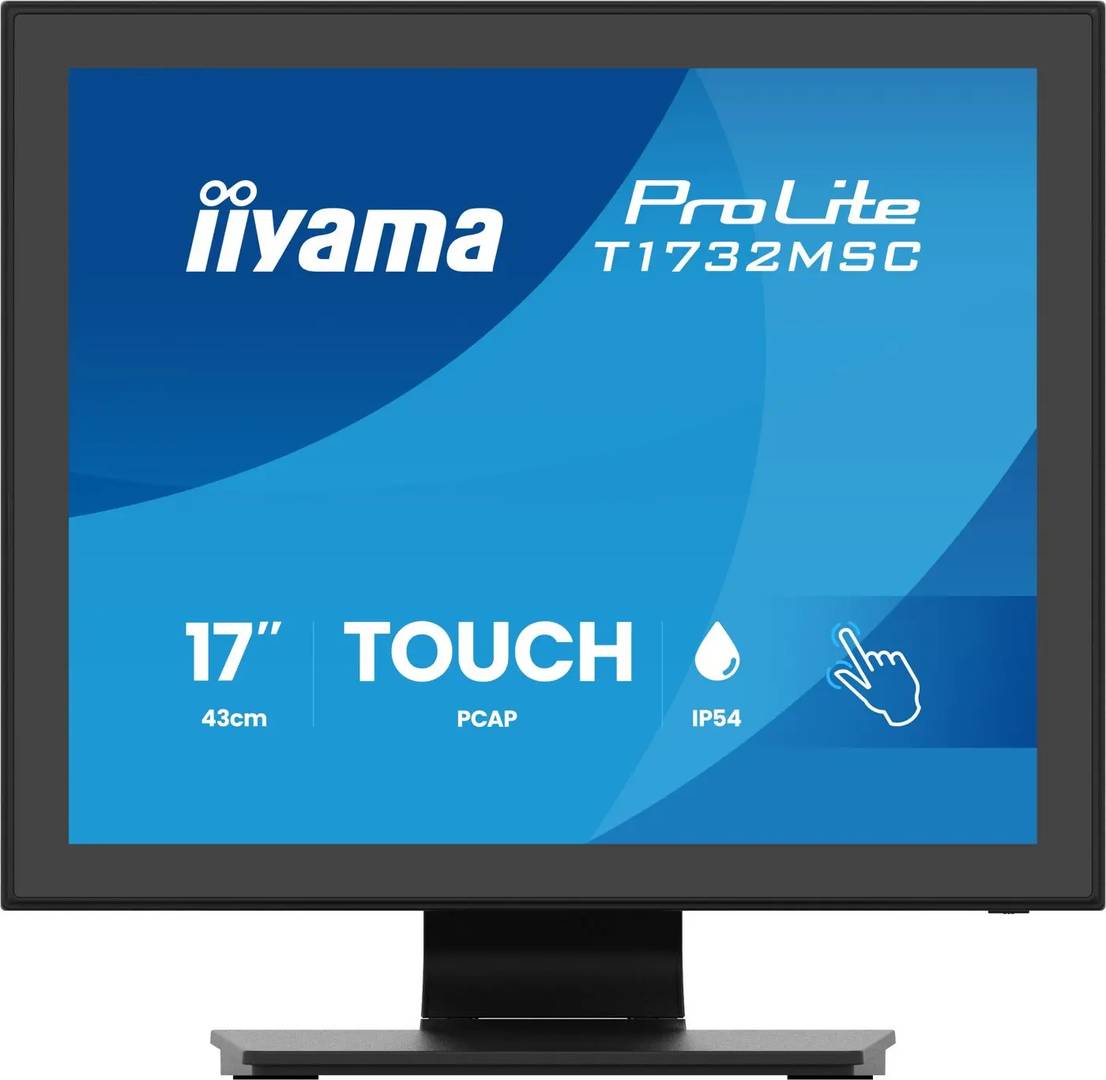

The black iiyama ProLite T1732MSC-B2S is a17-inch desktop touch monitor with a compact5:4 format. Projected-capacitive touch supports up to10 points on compatible hosts,while edge-to-edge glass and a tilting stand suit counters and interactive workstations. HDMI,DisplayPort and VGA provide video choices,and two1W speakers handle basic audio.
Best For: Retail counters,reception and compact desktop applications designed for a5:4 interface and supported multi-touch input.
Before you order: This is the standard T1732MSC-B2S,not the separate anti-glare B2SAG variant. A separate computer and a USB connection in addition to video are required for touch. Check OS,driver and application support. IP54 protects only the front face;the manual specifies landscape installation.
What's in the Box
- T1732MSC-B2S monitor,stand neck/base with screws,screwdriver and cable-cover parts.
- Power,USB,HDMI,DisplayPort and audio cables,quick start and safety guides per current manual.
- Computer,stylus,VGA cable and a separate VESA arm are not listed as supplied.
What It Means in Practice
- Connect HDMI or DisplayPort for digital video,or VGA for a compatible older host. Connect USB separately for touch.
- Select native1280×1024 for a sharp5:4 interface;the manual supports up to75Hz with suitable host timing.

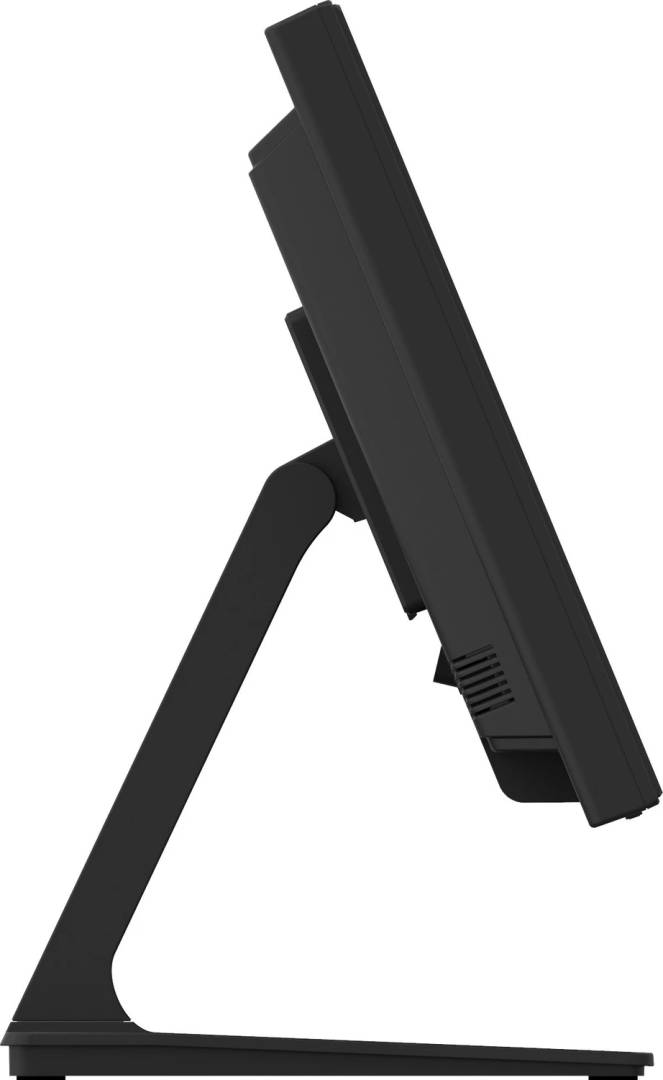

- Adjust the single-hinge stand through90°up/5°down tilt while keeping the base stable and cables clear.
- Use a finger,suitable latex glove or appropriate plastic stylus. Avoid sharp or metal tools;the manual recommends a tip radius of at least0.8mm.
- Use landscape orientation and preserve ventilation,including when fitting a separate VESA100×100mm mount. Follow the manual for cleaning.
What Will Not Work
- TN5:4 rather than IPS or Full HD widescreen. The standard B2S is not the anti-glare B2SAG version.
- Up to10 touch points depend on host OS,drivers and application support.
- Front-only IP54 does not seal rear connectors or permit liquid immersion.
- No integrated computer,USB-C docking or unrestricted24/7 operation is specified.
Key Features
Multi-touch interface
PCAP supports up to10 touch points via USB with supported software.
Compact5:4 panel
17-inch TN with1280×1024 native resolution,1000:1 contrast and225cd/m² typical brightness through touch glass.
Desk positioning

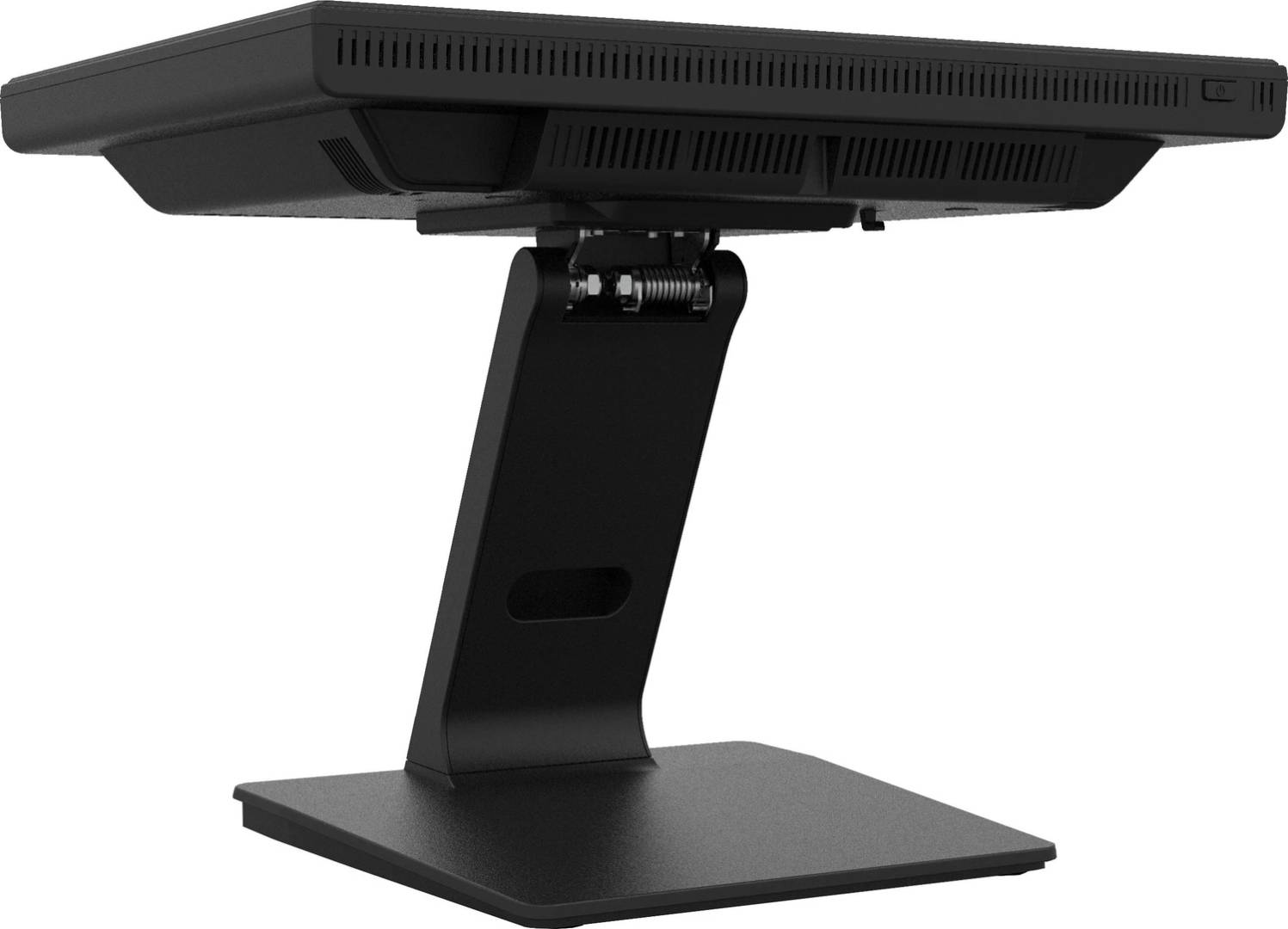

The single-hinge stand tilts90°up and5°down;integrated cable management keeps connections organised.
Video and audio choices
HDMI,DisplayPort,VGA,3.5mm audio input and2×1W stereo speakers support compatible hosts.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
A compact touch station works best when the interface fits the5:4 screen and the host has both video and USB connections. Test gestures in the business application before deployment,then position the stand for comfortable input. Front protection and a glass surface do not replace dry cabling and the specified cleaning method.
Buyer’s Guide
✓ Buy it if You need a compact17-inch desktop PCAP display with a tilting stand and modern or legacy video inputs.
✕ Skip it if You need IPS widescreen,anti-glare B2SAG,an integrated computer or a sealed waterproof enclosure.
→ Also consider OS/application touch support,5:4 layout,video plus USB cabling,stand angle and front-only protection.
Features - Iiyama - T1732MSC-B2S
More Details
Product Code
04:599190
EAN Code
4948570127726
Manufacturer
Iiyama
