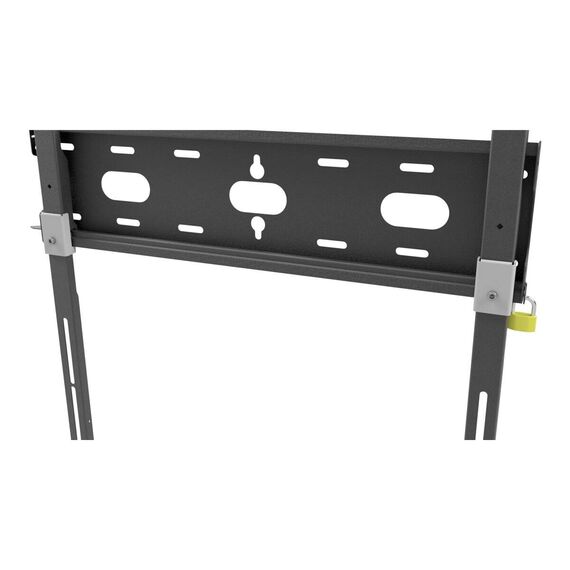

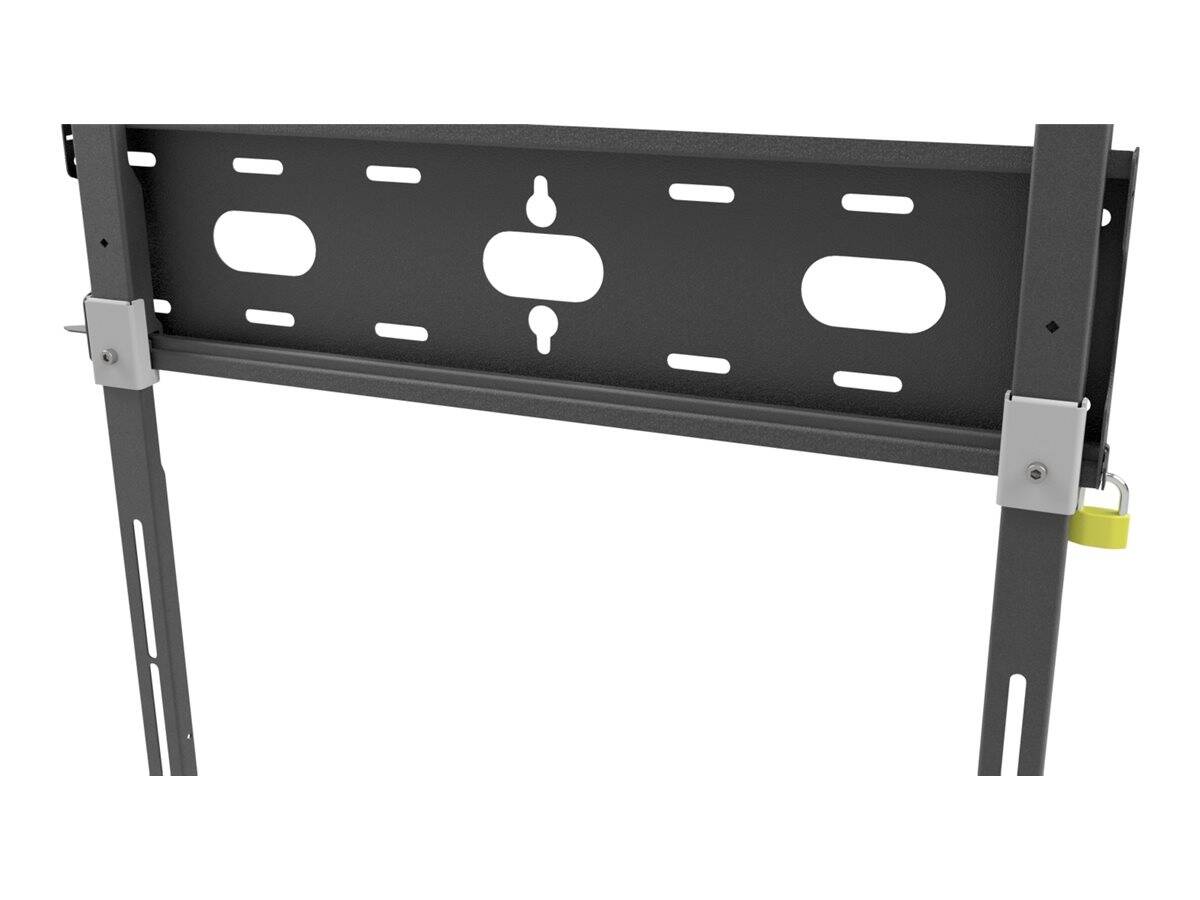

iiyama MD-WM60150 — Universal Wall Mount for Large-Format Displays
Displays up to 105 in portrait125 kg loadVESA up to 600 x 1500Fixed, 37.5 mm from the wall
The number that identifies this mount is the 1500 mm vertical VESA. That is not a television pattern — it belongs to very tall portrait and panoramic large-format signage displays, the kind that ordinary brackets physically cannot bolt to. The iiyama MD-WM60150 is a fixed wall plate with two hooking arms, rated to 125 kg, holding the panel just 37.5 mm off the wall, with a padlock provision that secures the display against removal. iiyama describes it for displays up to 105 in in portrait orientation.
Compatibility — check before buying:
Read the VESA figures carefully, because our earlier catalogue entry had one of them reversed. iiyama publishes three patterns: 400 x 400, 600 x 400 and 600 x 1500. The “400 x 600” that appeared in our data is iiyama’s 600 x 400 with the axes swapped. This is a fixed mount — no tilt, no swivel, no rotation — so it belongs at a viewing height where no angle correction is needed. At 125 kg the wall must carry the panel plus the mount with a real margin; iiyama’s manual shows drilling and fixing but does not publish a permitted wall type, an anchor specification or a parts list, so the fixings are your installer’s calculation. A padlock can be fitted through the lock plate; the padlock itself is not supplied.
Best For
✓ Tall portrait signage displays
✓ Panoramic and ultra-wide large-format panels
✓ Schools and public buildings
✓ Wayfinding and directory displays
✓ Installations needing a flush, low-profile fit
✓ Screens that must be locked to the wall
Key Features
VESA up to 600 x 1500
The tall pattern is the whole point. Panoramic and portrait large-format displays use vertical VESA spacings that standard wall mounts simply do not reach, and this mount is built around that geometry rather than adapted to it.
125 kg on a fixed plate
A fixed mount keeps a very heavy panel close to the structure, which is why the rating can be this high. The display hangs 37.5 mm off the wall — effectively flush for a screen of this size.
Hook-on arms for a controlled install
Two arms fix to the display and hook onto the wall plate, so a large panel is lifted once and located rather than held in position while it is bolted. iiyama describes it as an easy and quick fixation system.
Padlock provision
A lock plate with a T-shaped hole lets a padlock hasp pass through the plate and both arms, securing the display against uncontrolled removal. The padlock itself is not included.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
This mount exists for one reason and it is worth being blunt about it: the 600 x 1500 VESA pattern. If your display uses it, your options are very few and this is one of them. If it does not, a conventional heavy-duty wall mount will be cheaper, better documented and give you tilt as well. The gaps in iiyama’s published data — no wall type, no parts list, no warranty term for the mount — are worth knowing before you specify it, and they are why the Singular year is the firm cover. Heavy-duty tilting and fixed alternatives, including 160 kg models with a published specification, are in our monitor arms and stands range, and display weights and VESA patterns per model are listed under PC monitors.
Buyer’s Guide
Buy it if
Your large-format display uses a 400 x 400, 600 x 400 or 600 x 1500 VESA pattern, weighs up to 125 kg, and is to be fixed flush at a set viewing height.
Skip it if
Your display uses a conventional pattern — a better-documented heavy-duty mount will cost less — or you need tilt, or you need the wall fixings specified for you.
Also consider
A heavy-duty fixed wall mount with a published 160 kg rating, a tilting large-format mount where angle correction is needed, or a floor stand where the wall cannot take the load.
Features - Iiyama - MD-WM60150
Monitor mount capacity
Single monitor mount
More Details
Product Code
CI70242
EAN Code
5902841101258
Manufacturer
Iiyama
