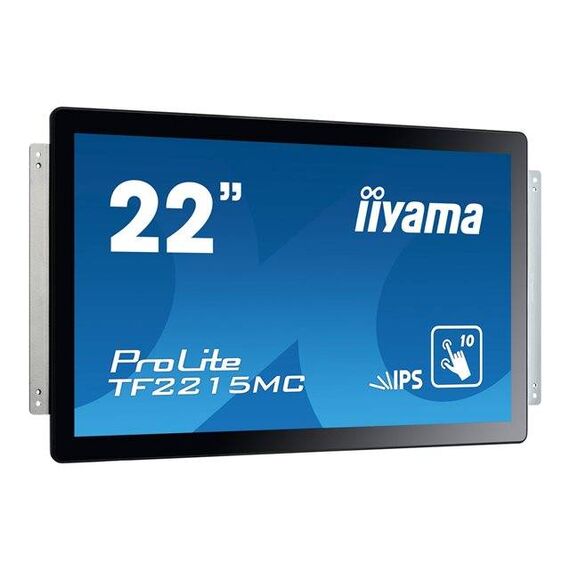

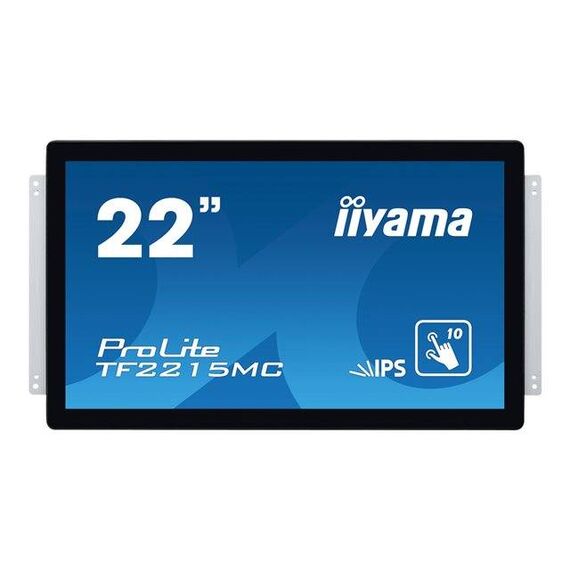

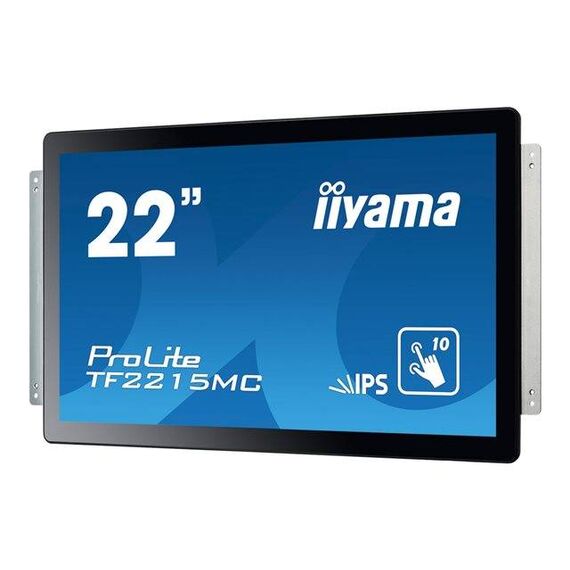

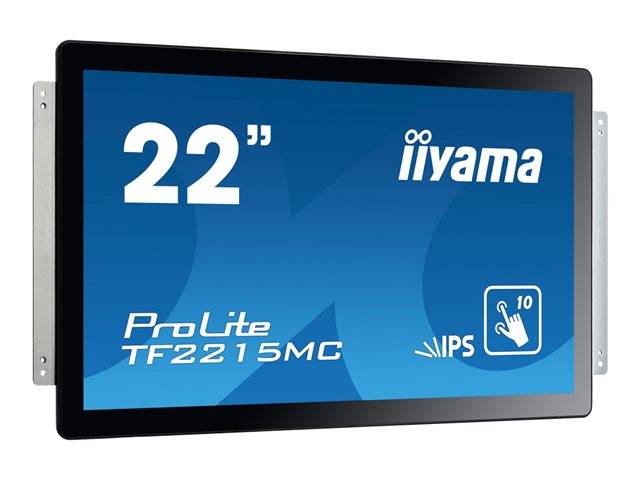

iiyama ProLite TF2215MC-B2 / LED monitor / 22" (21.5" viewable) / open frame / touchscreen / 1920 x 1080 Full HD (1080p) / IPS / 350 cd/m / 1000:1 / 14 ms / HDMI, VGA, DisplayPort / black | TF2215MC-B2

iiyama ProLite TF2215MC-B2 / LED monitor / 22" (21.5" viewable) / open frame / touchscreen / 1920 x 1080 Full HD (1080p) / IPS / 350 cd/m / 1000:1 / 14 ms / HDMI, VGA, DisplayPort / black | TF2215MC-B2
Description
The ProLite TF2215MC-B2 uses PCAP touch technology and is built into an eye-catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the TF2215MC-B2 comes equipped with external mounting brackets making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.
iiyama ProLite TF2215MC-B2 / LED monitor | TF2215MC-B2
Special Features
- Touch through glass
- Touch technology - capacitive
- Open frame brackets
- Anti-fingerprint coating
Product features
- Touch through glass
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants. - Touch technology - capacitive
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen. - Open frame brackets

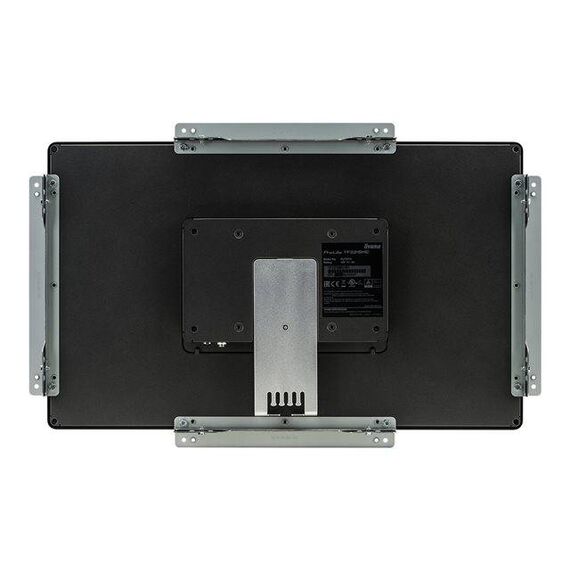

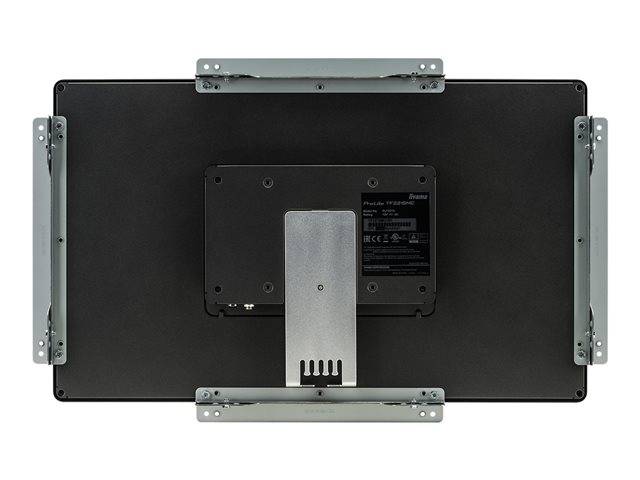

This open frame monitor comes equipped with external mounting brackets. It guarantees easy installation and makes it an ideal solution for kiosk integrators and Instore Retail. - Anti-fingerprint coating
This special Nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust, fingerprints and it improves the clarity of the content displayed on the screen.
Product Specification
Display Type | LED-backlit LCD monitor / TFT active matrix |
Energy Class | Class A |
Energy Consumption per Year | 30 kWh |
Power Consumption (On mode) | 21 W |
Diagonal Size | 22" |
Viewable Size | 21.5" |
Panel Type | IPS |
Aspect Ratio | 16:9 |
Native Resolution | Full HD (1080p) 1920 x 1080 |
Pixel Pitch | 0.24795 mm |
Brightness | 350 cd/m² |
Brightness w/touchscreen | 315 cd/m² |
Contrast Ratio | 1000:1 |
Response Time | 14 ms |
Vertical Refresh Rate | 56 - 75 Hz |
Horizontal Refresh Rate | 31.4 - 82 kHz |
Horizontal Viewing Angle | +89 / -89 |
Vertical Viewing Angle | +89 / -89 |
Backlight Technology | LED backlight |
OSD Languages | English, German, French, Italian, Spanish, Japanese, Chinese |
Features | HDCP, OSD lock, anti-fingerprint, glove touch mode, landscape mode, portrait mode, Face Up mode |
Colour | Black |
Dimensions (WxDxH) | 52 cm x 4.25 cm x 31.5 cm |
Weight | 4.4 kg |
Type | Touch-screen - touchscreen |
Movement Detection Technology | Projected capacitive |
Interfaces | VGA ¦ HDMI ¦ DisplayPort ¦ USB ¦ Audio line-out |
VESA Mounting Interface | 100 x 100 mm |
Features | 90% light transmittance |
Included Accessories | Remote control |
Cables Included | 1 x USB cable ¦ 1 x HDMI cable ¦ 1 x DisplayPort cable |
Mounting Kit | Included |
Compliant Standards | Plug and Play, DDC-2B, CB, cULus, TUV Bauart, IP65, CU, REACH SvHC |
Voltage Required | AC 120/230 V (50/60 Hz) |
Power Consumption Operational | 19 Watt |
Power Consumption Stand by | 1.2 Watt |
Power Consumption (Off Mode) | 1.2 Watt |
Included Software | Drivers & Utilities |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 40 °C |
