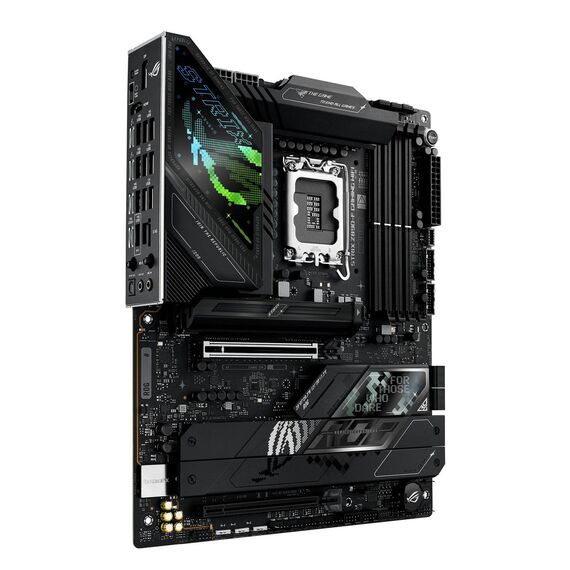

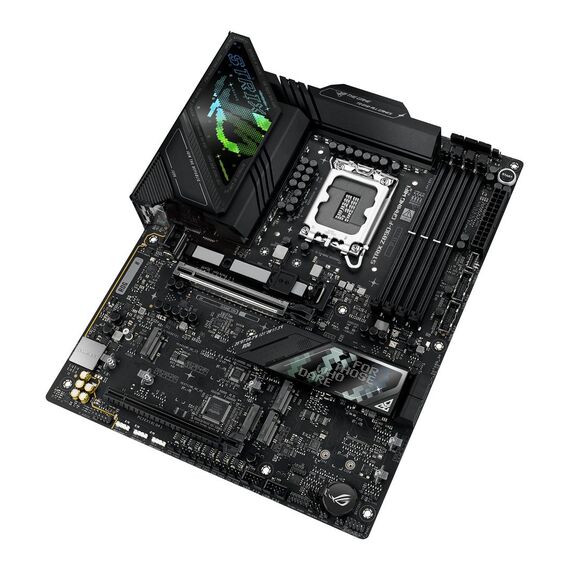

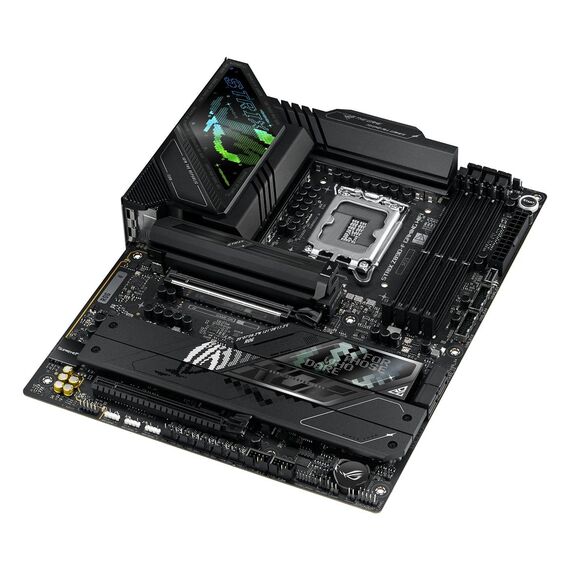

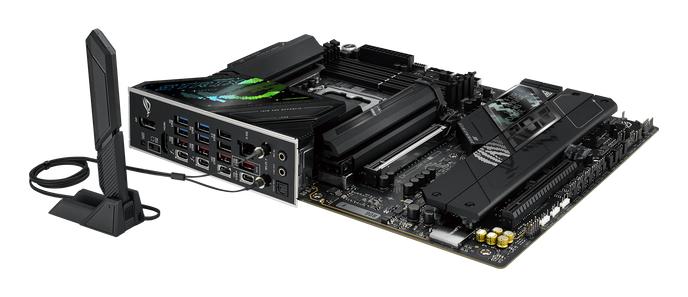

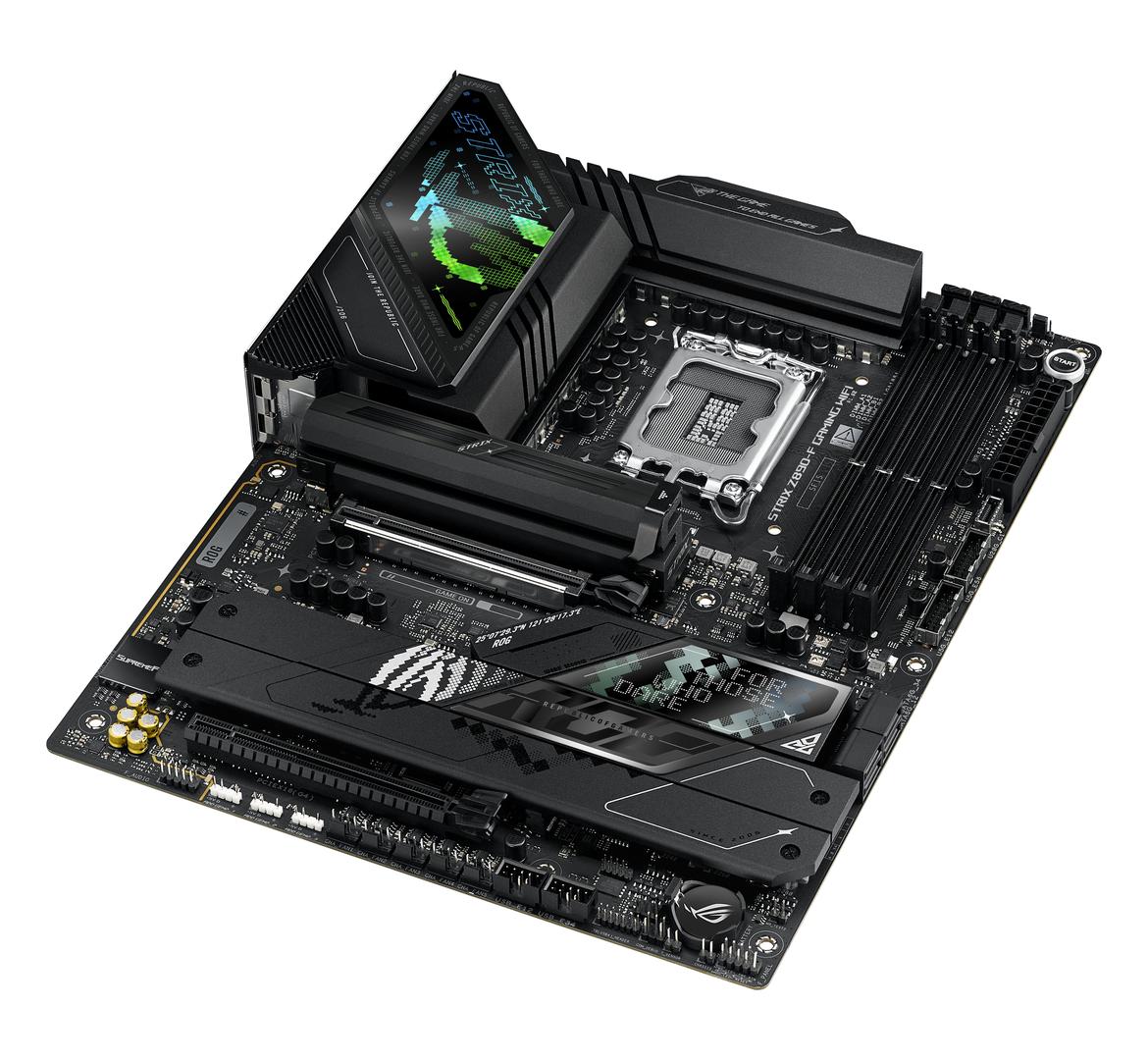

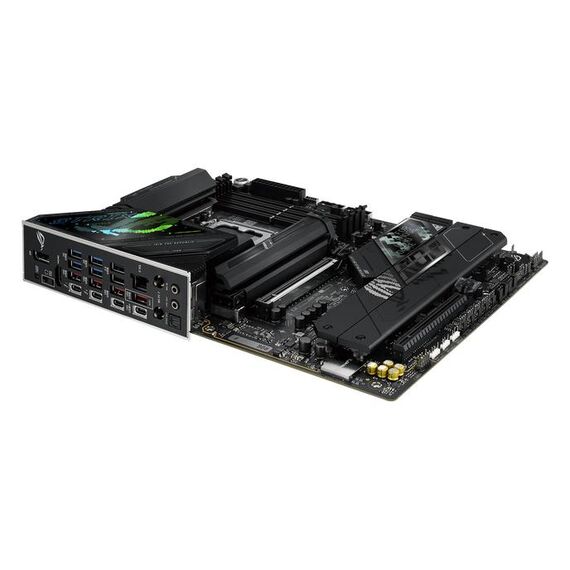

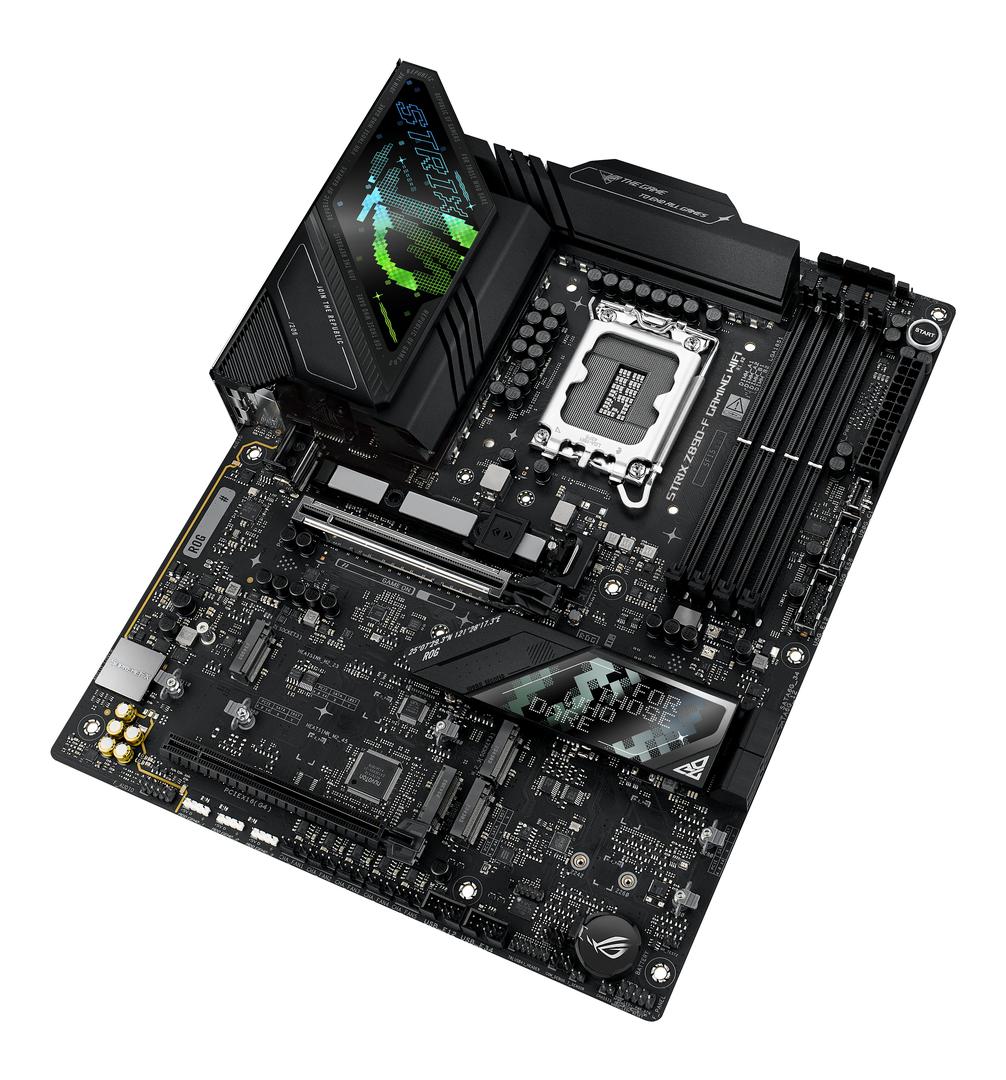

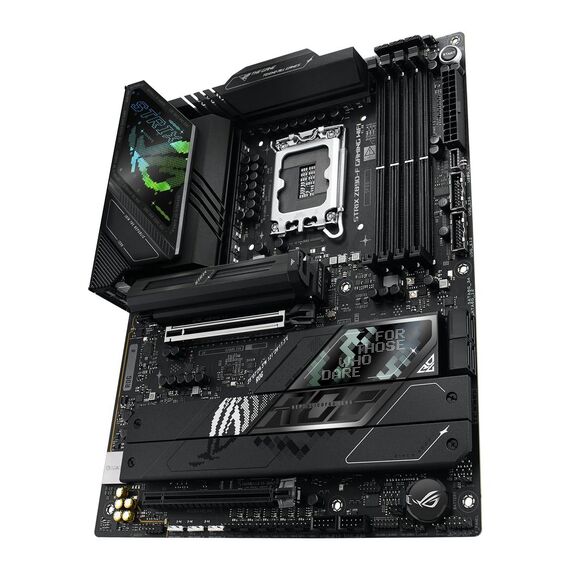

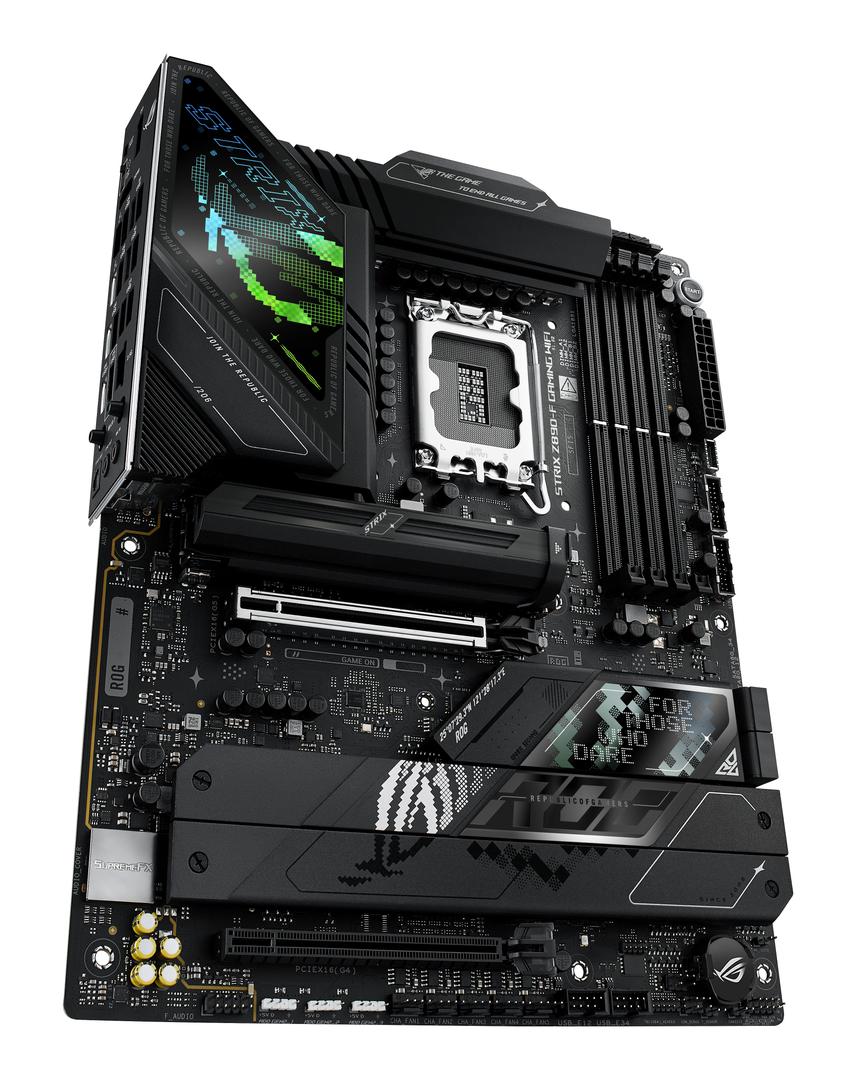

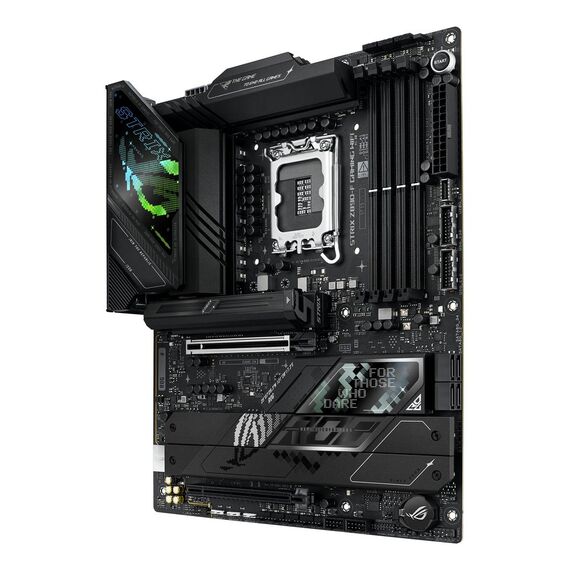

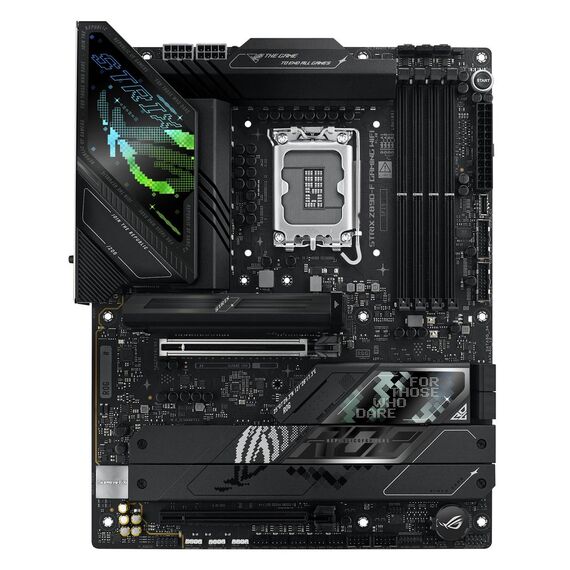

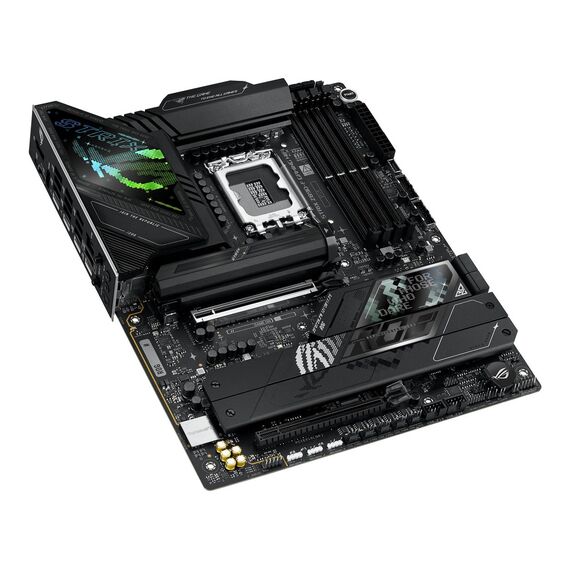

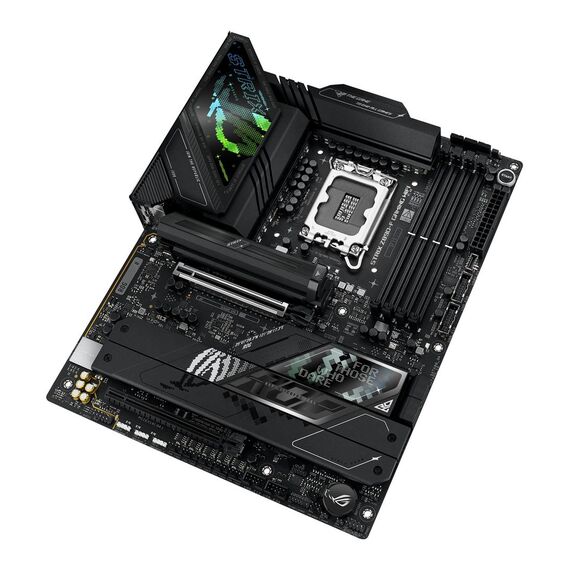

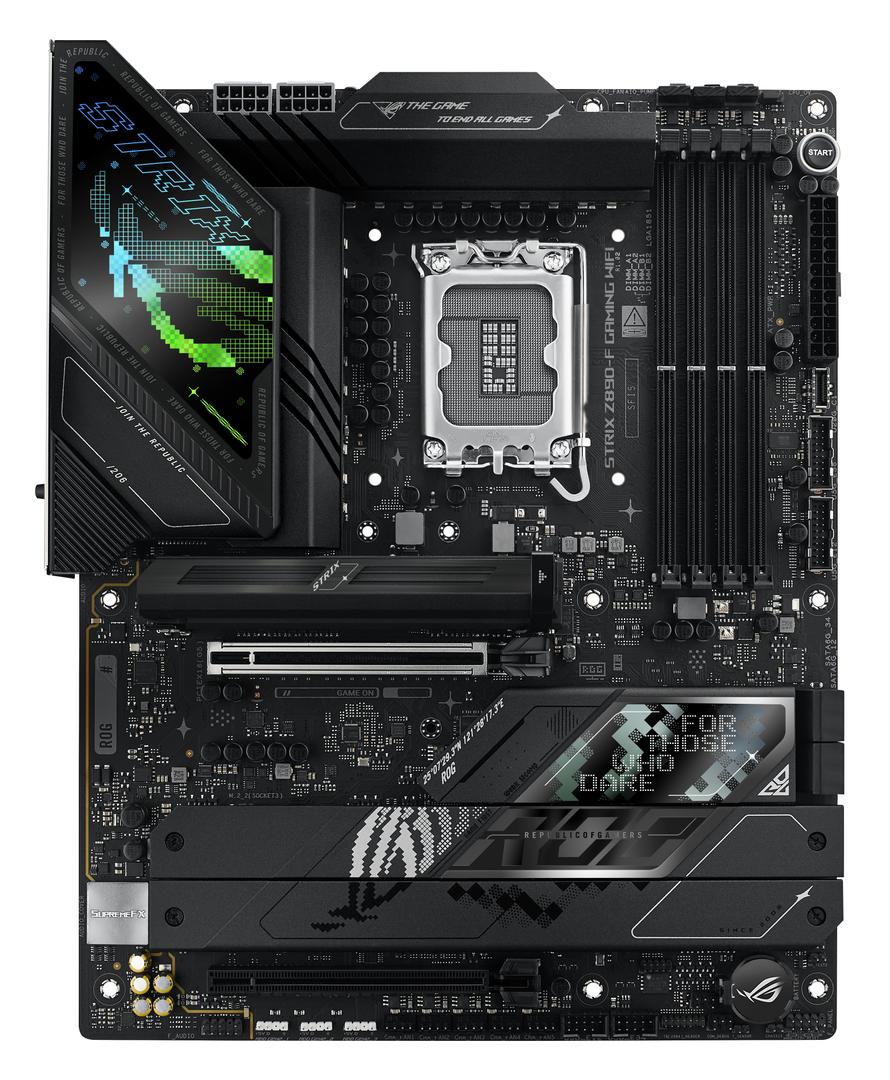

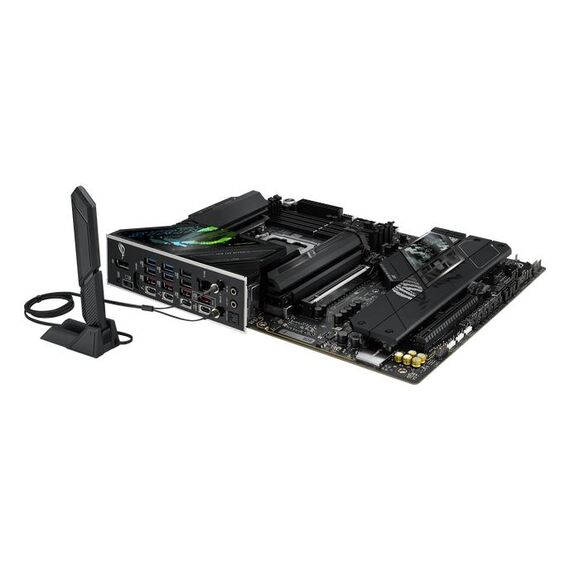

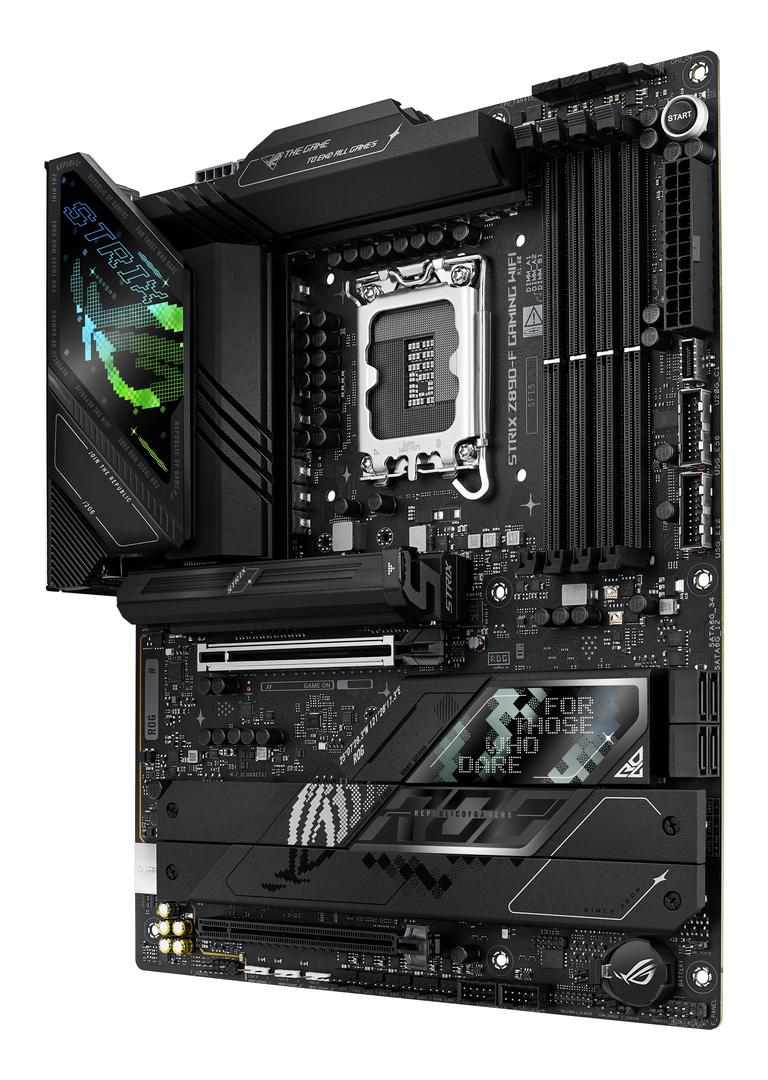

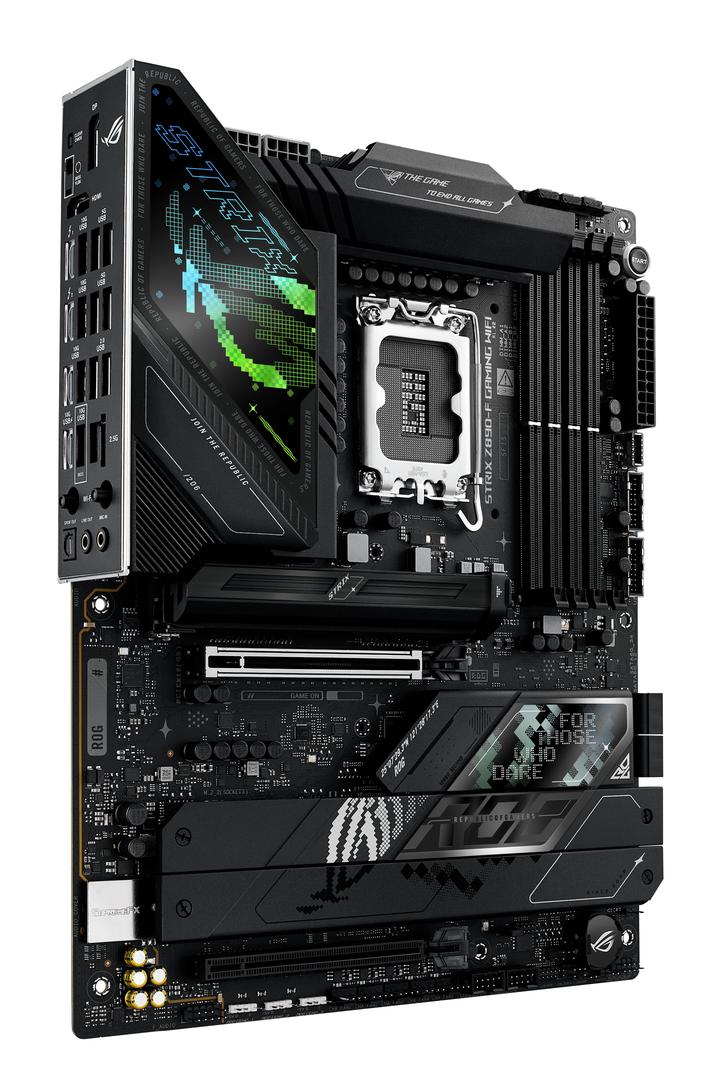

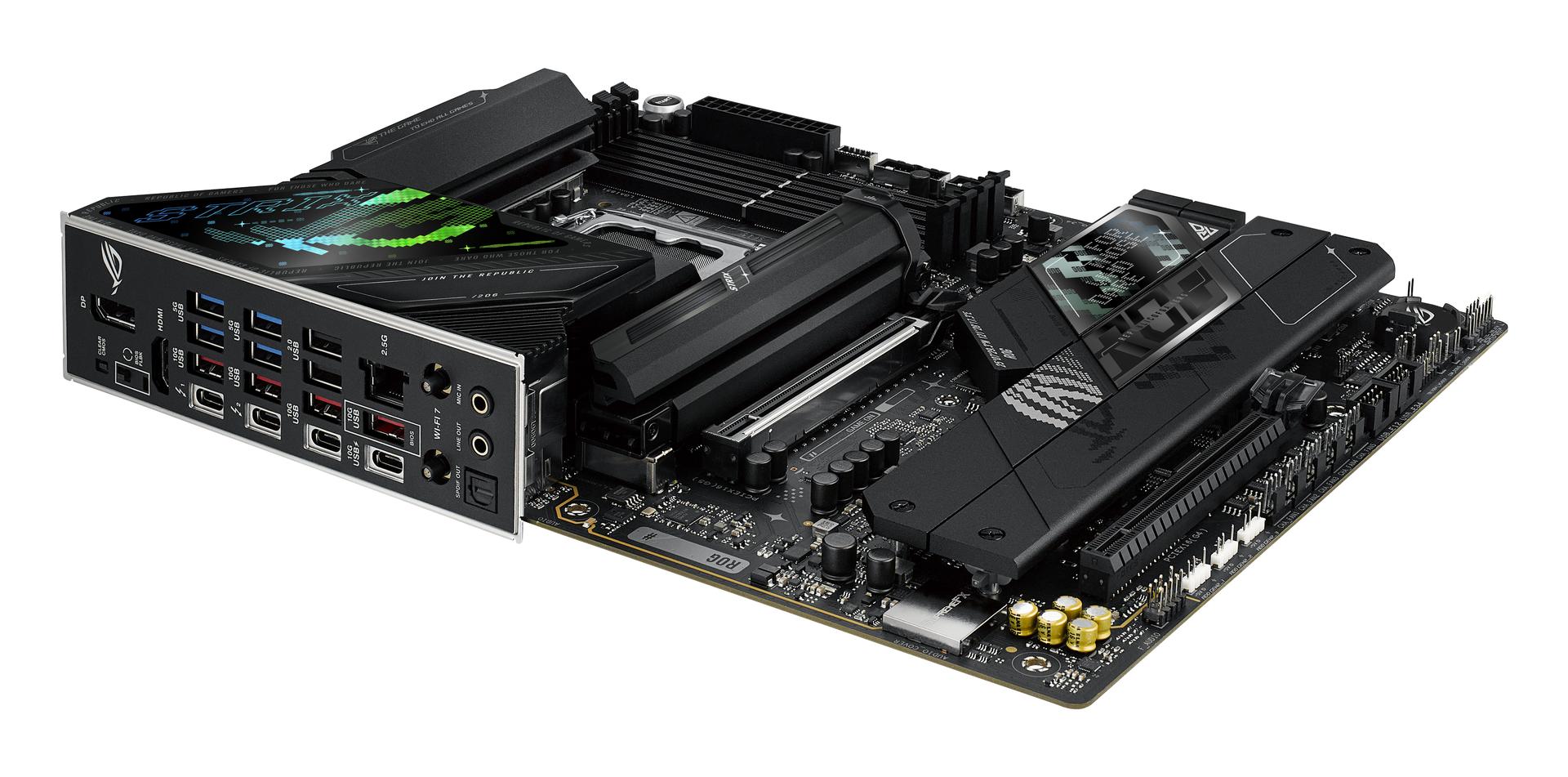

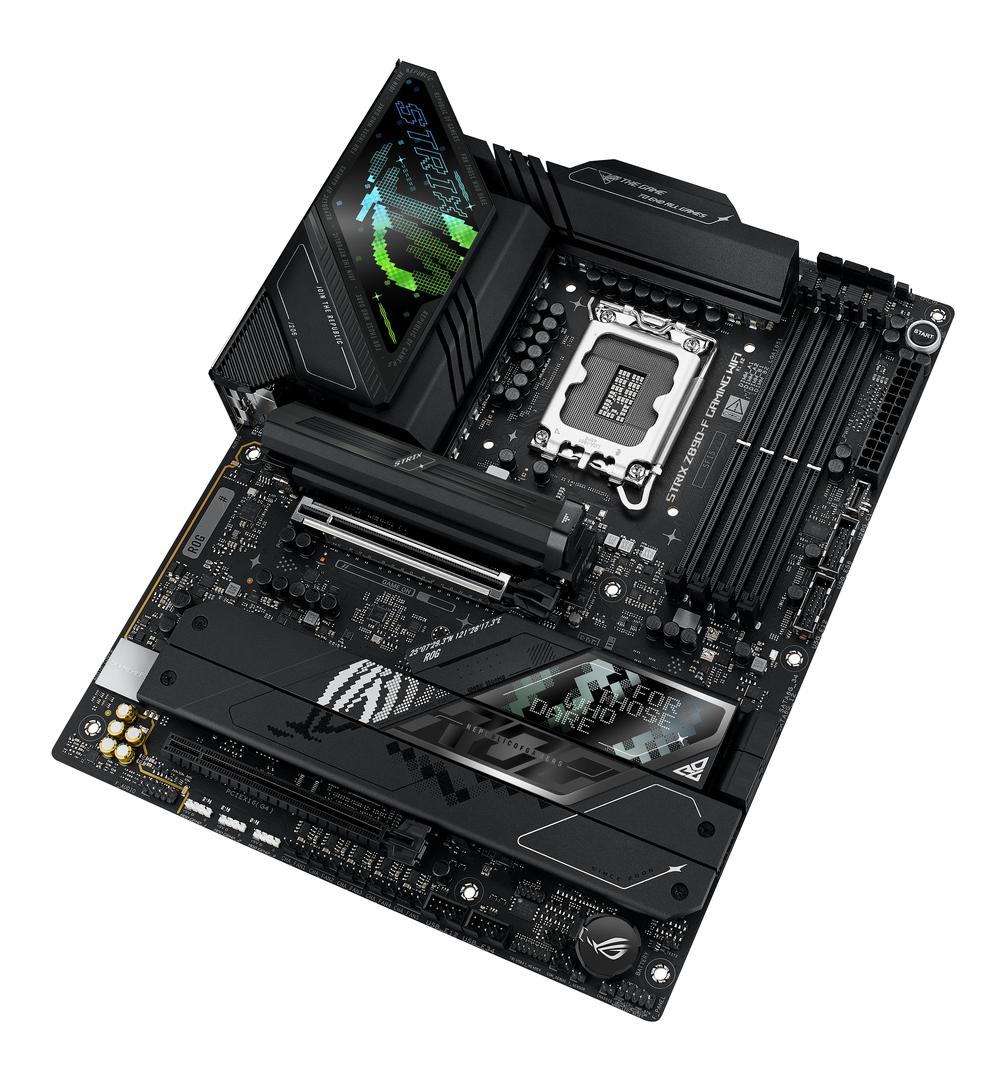

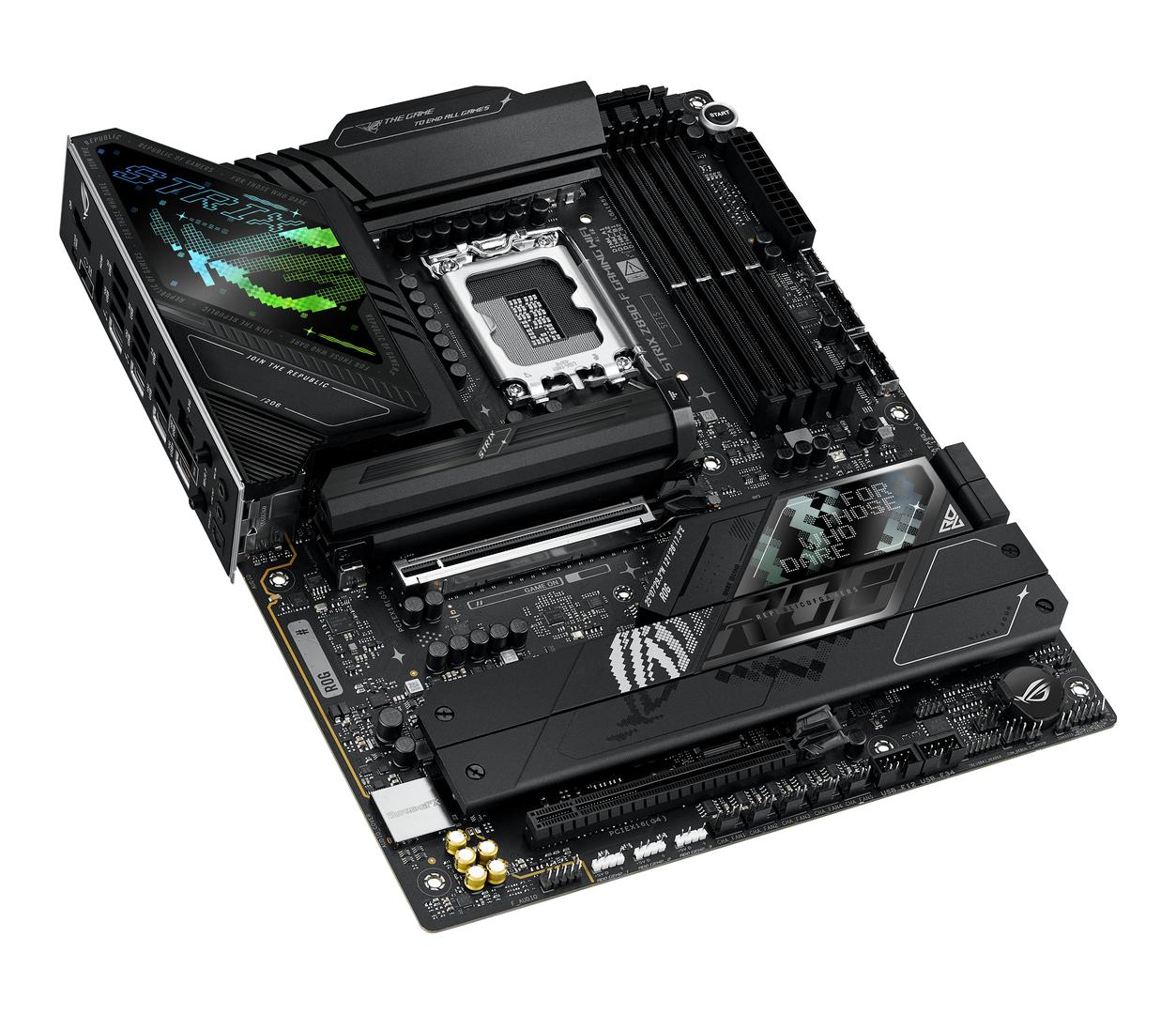

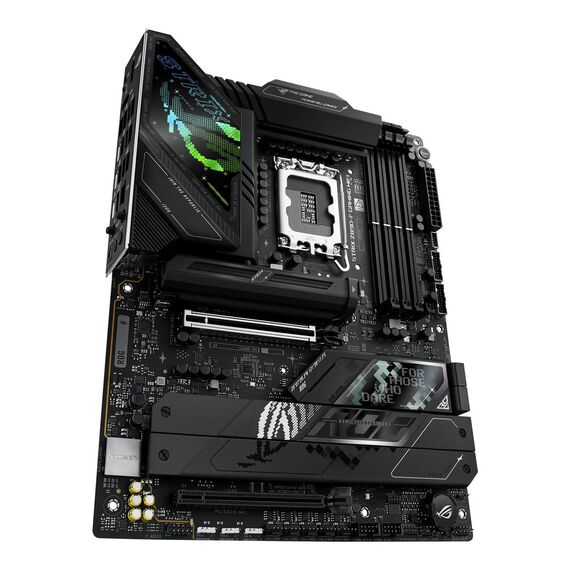

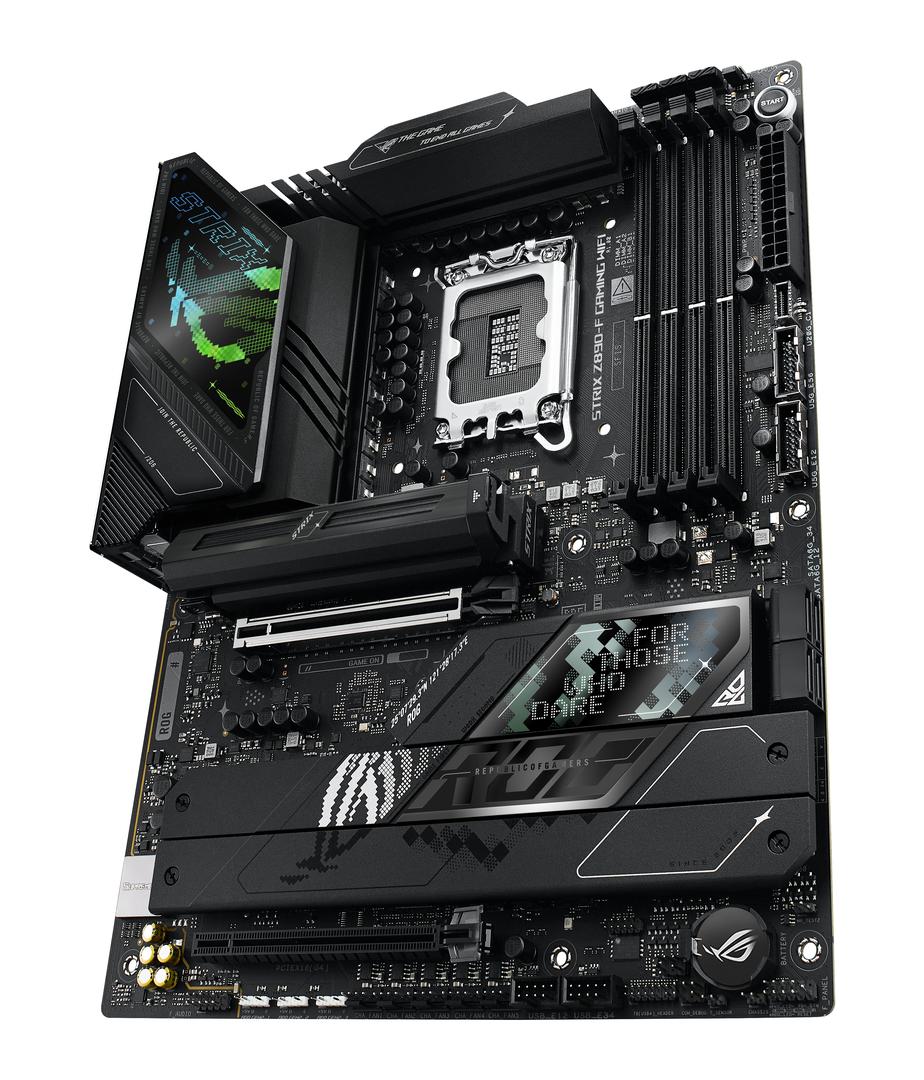

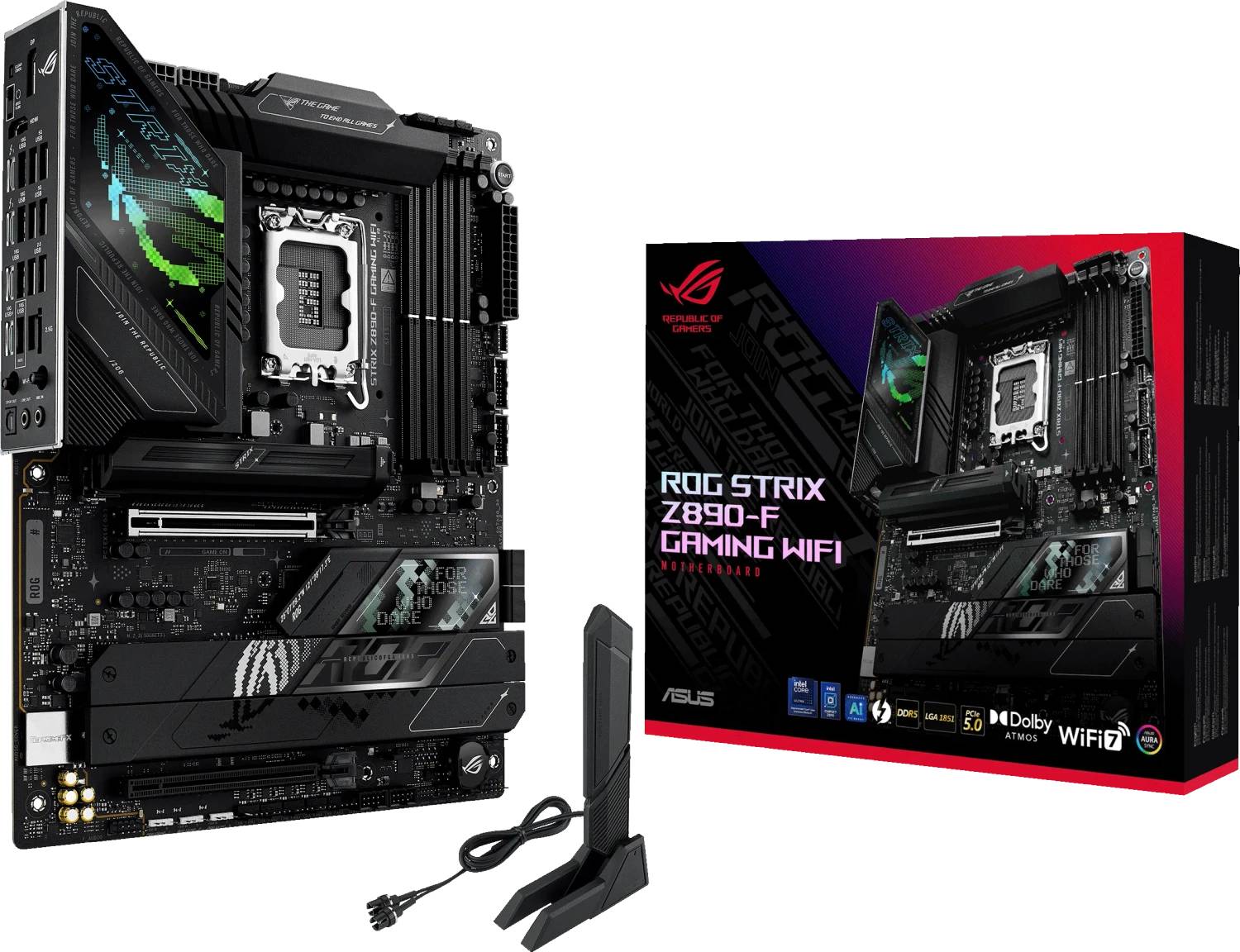

ASUS ROG STRIX Z890-F GAMING WIFI / Motherboard / ATX / LGA1851 Socket / Z890 Chipset / USB-C 3.2 Gen 2x2, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen2, USB4 / 2.5 Gigabit LAN, Wi-Fi 7, Bluetooth / onboard graphics (CPU required) / HD A | 90MB1I40-M0EAY0
ASUS ROG STRIX Z890-F GAMING WIFI / Motherboard / ATX / LGA1851 Socket / Z890 Chipset / USB-C 3.2 Gen 2x2, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen2, USB4 / 2.5 Gigabit LAN, Wi-Fi 7, Bluetooth / onboard graphics (CPU required) / HD A | 90MB1I40-M0EAY0
€669.2 inc. VAT
90MB1I40-M0EAY0
Sales 8%
Promotion details
Sales at Singular store
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Advanced audio capabilities
The motherboard employs high definition audio technology with an 8-channel output, ensuring exceptional sound quality for an immersive gaming experience. - Multiple expansion options
Several slots are available including PCIe 5.0 and PCIe 4.0 for graphics cards, along with multiple M.2 slots for lightning-fast storage solutions. - Robust connectivity
A wide array of ports including USB 3.2 Gen 2, USB-C 3.2 Gen 2, and LAN capabilities of 2.5 Gigabit Ethernet provide comprehensive connectivity options for various peripherals. - Efficient thermal management
The design incorporates effective heatsinks and innovative features like AI Cooling II, which automatically adjusts fan speeds for optimized airflow and thermal efficacy. - User-friendly design
With features like ASUS Q-Design and a well-organized layout, the motherboard promotes a simplified installation process, catering to both new builders and seasoned professionals.
Special Features
- Supports Intel Core Ultra processors for enhanced performance
- Features customizable ASUS Aura Sync RGB lighting
- High definition audio with SupremeFX for immersive sound
- Multiple M.2 slots and SATA Express for versatile storage solutions
- User-friendly BIOS options for easy updates and management
Product Specification
| Product Type | Motherboard - ATX |
| Chipset Type | Intel Z890 |
| Processor Socket | LGA1851 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports Intel Core Ultra processors (Series 2)) |
| Supported RAM | Supported RAM |
| Max Size | 192 GB |
| Technology | DDR5 |
| Bus Clock | 4300 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC, on-die ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), NitroPath technology |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Audio Codec | SupremeFX (ALC4080) |
| Compliant Standards | High Definition Audio, Dolby Atmos |
| LAN | LAN |
| Network Interfaces | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4 |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (x4 mode) 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot) 1 x M.2 socket (2242/2260/2280 M.2 Key M slot) 3 x M.2 socket (2280 M.2 slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5 SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |

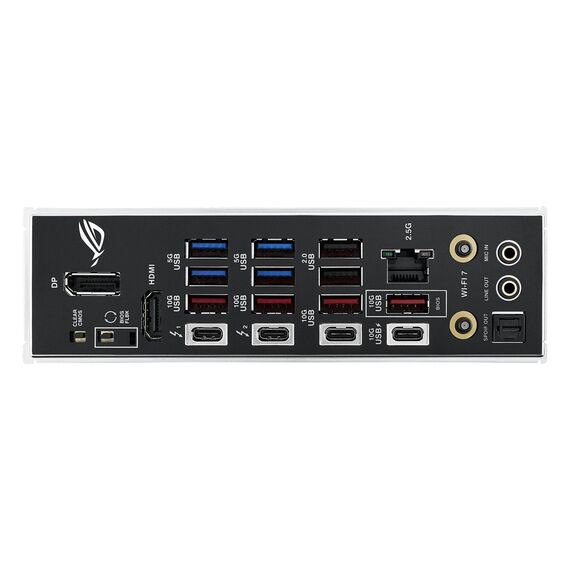

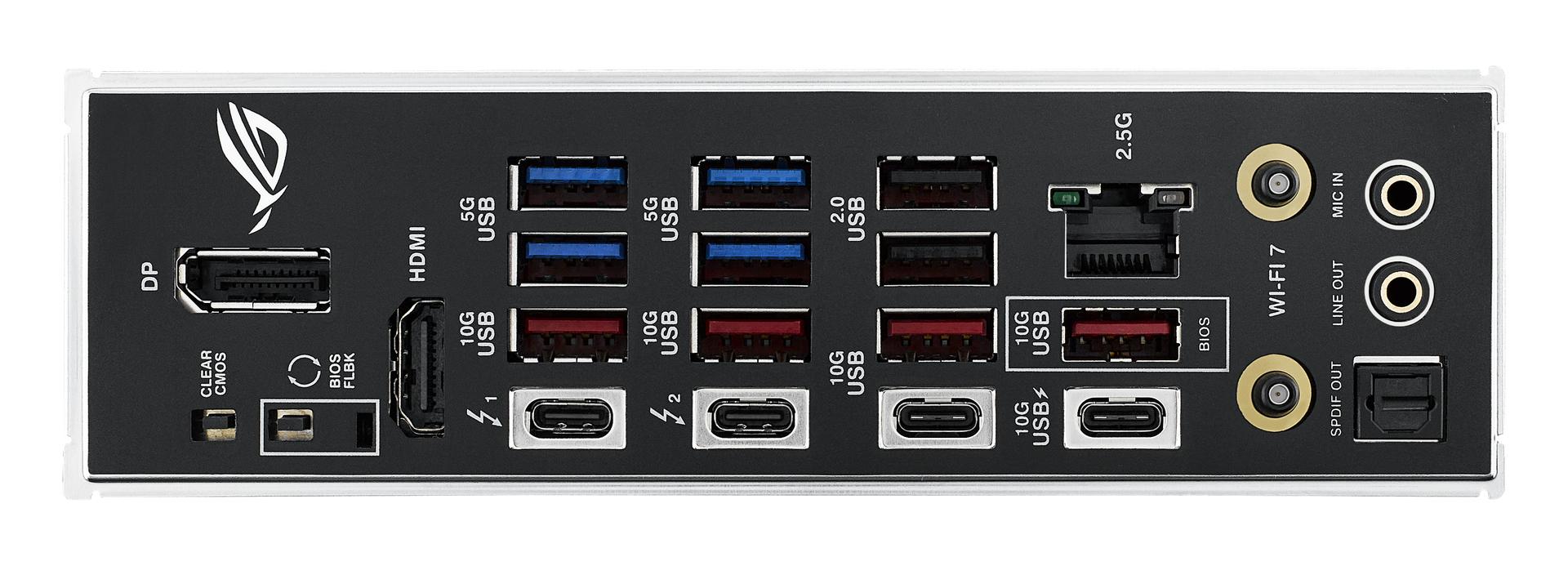

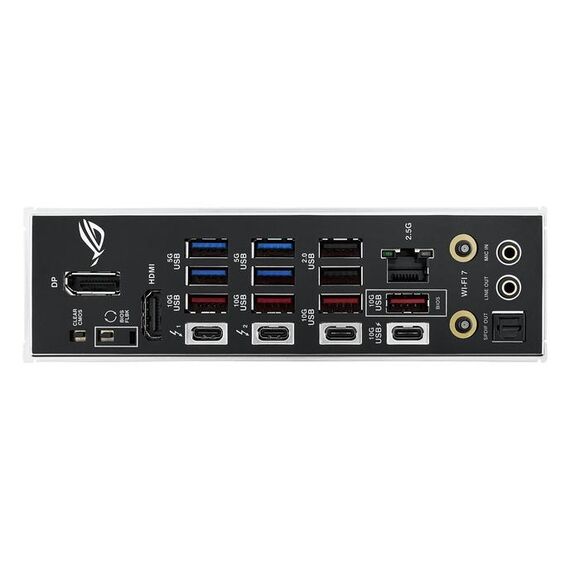

| Interfaces | 2 x Thunderbolt 4/DisplayPort/USB4 4 x USB 3.2 Gen 2 2 x USB-C 3.2 Gen 2 4 x USB 3.2 Gen 1 1 x HDMI 1 x LAN (2.5Gigabit Ethernet) 1 x audio line-out - mini-jack 1 x microphone - mini-jack 2 x aerial 1 x DisplayPort 1 x SPDIF out |
| Internal Interfaces | 1 x USB-C 3.2 Gen 2x2 - header 4 x USB 3.2 Gen 1 - header 4 x USB 2.0 - header 1 x audio - header 1 x Thunderbolt 4 - header |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, ASUS EZ Flash, ASUS UEFI BIOS EZ Mode |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| Hardware Features | Intel Turbo Boost Technology 2.0, Intel Turbo Boost Max Technology 3.0, CUDIMM support, DIY Friendly Design, AI Cooling II, VRM heatsink design, M.2 heatsink, M.2 heatsink backplate, LANGuard, BIOS FlashBack button, Clear CMOS Button, ASUS Extreme Engine Digi+, 5K Black Metallic Capacitors, ASUS Q-Design, ASUS SafeSlot, M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, ASUS Aura Sync, ASUS EZ DIY, ASUS ProCool II, ASUS SafeDIMM, BIOS FlashBack LED, PCIe Slot Q-Release, pre-mounted I/O shield, Q-Antenna, Q-Code, Q-Dashboard, Q-LED, Q-Slot, CrashFree BIOS 3, Preboot eXecution Environment (PXE), AI Overclocking, AI Networking II, NPU Boost, 18+1+2+2 Phase Power Design, ASUS Enhanced Memory Profile (AEMP) III, Polymo Lighting, 8 Layer PCB |
| Miscellaneous | Miscellaneous |

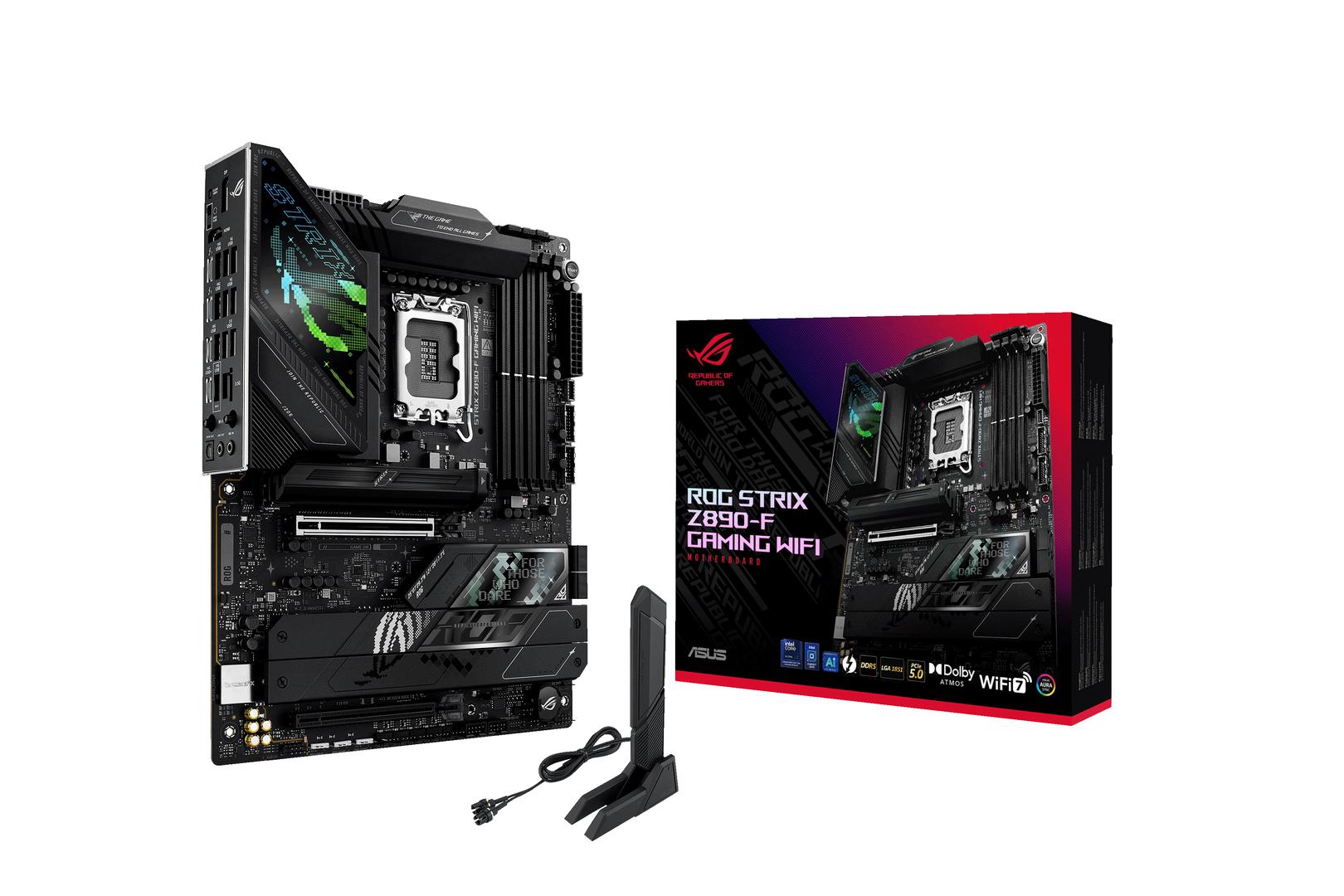

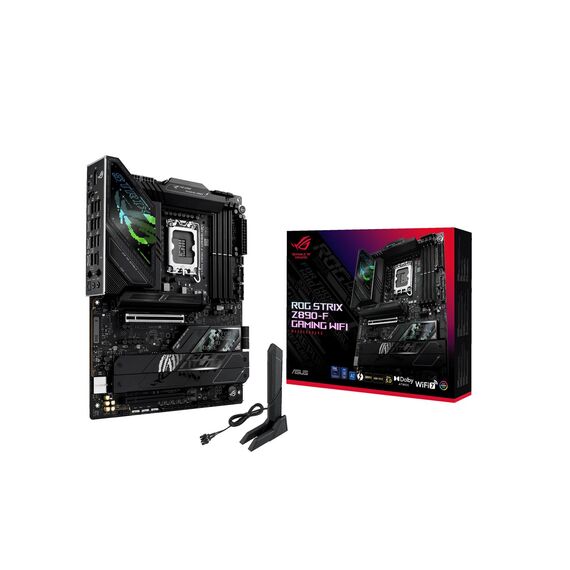

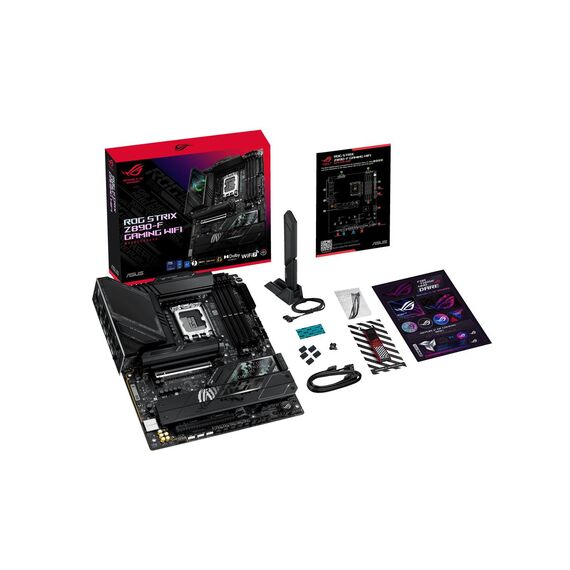

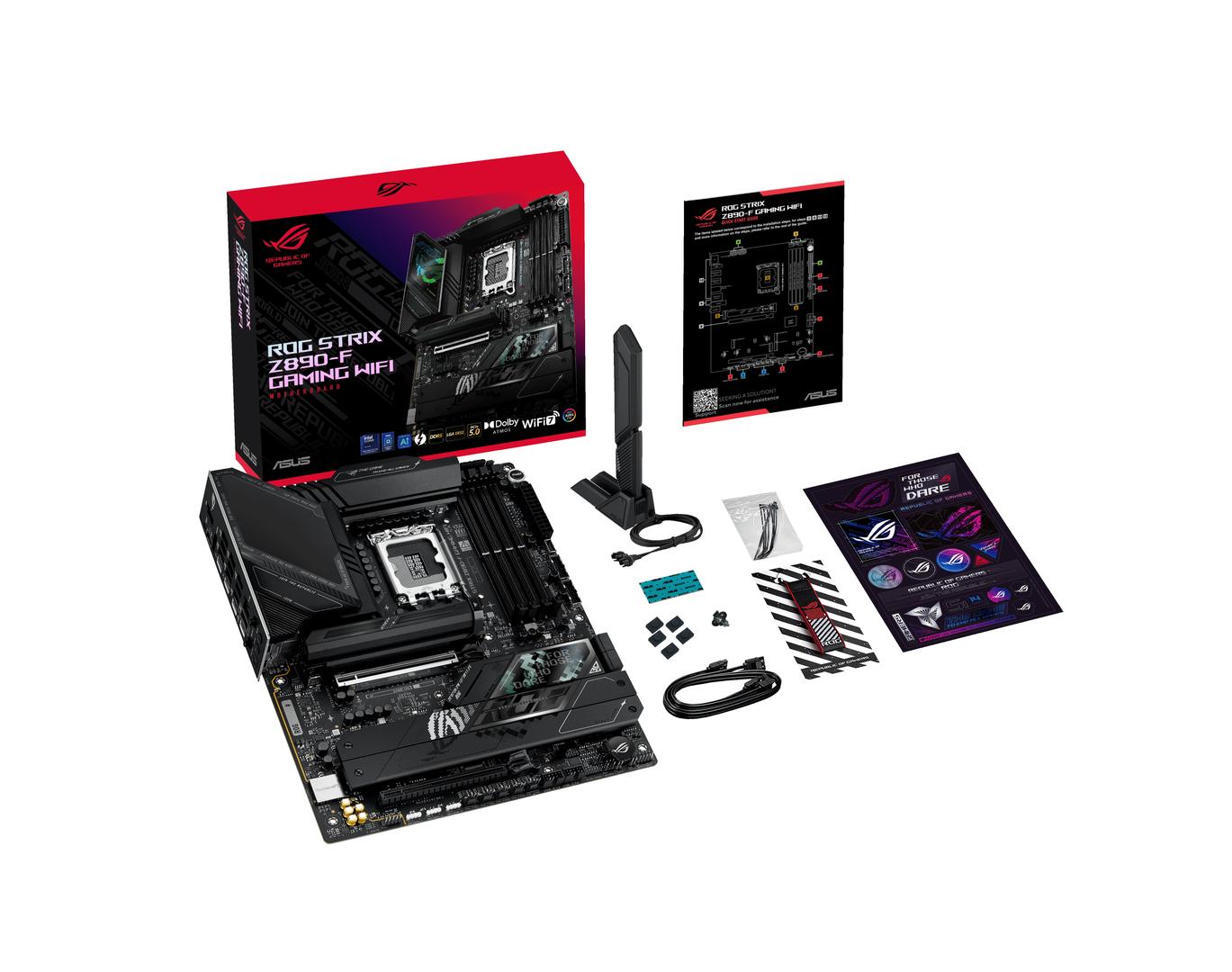

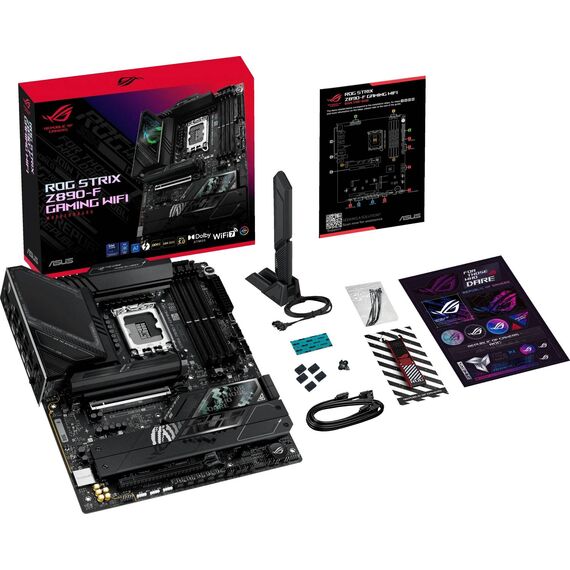

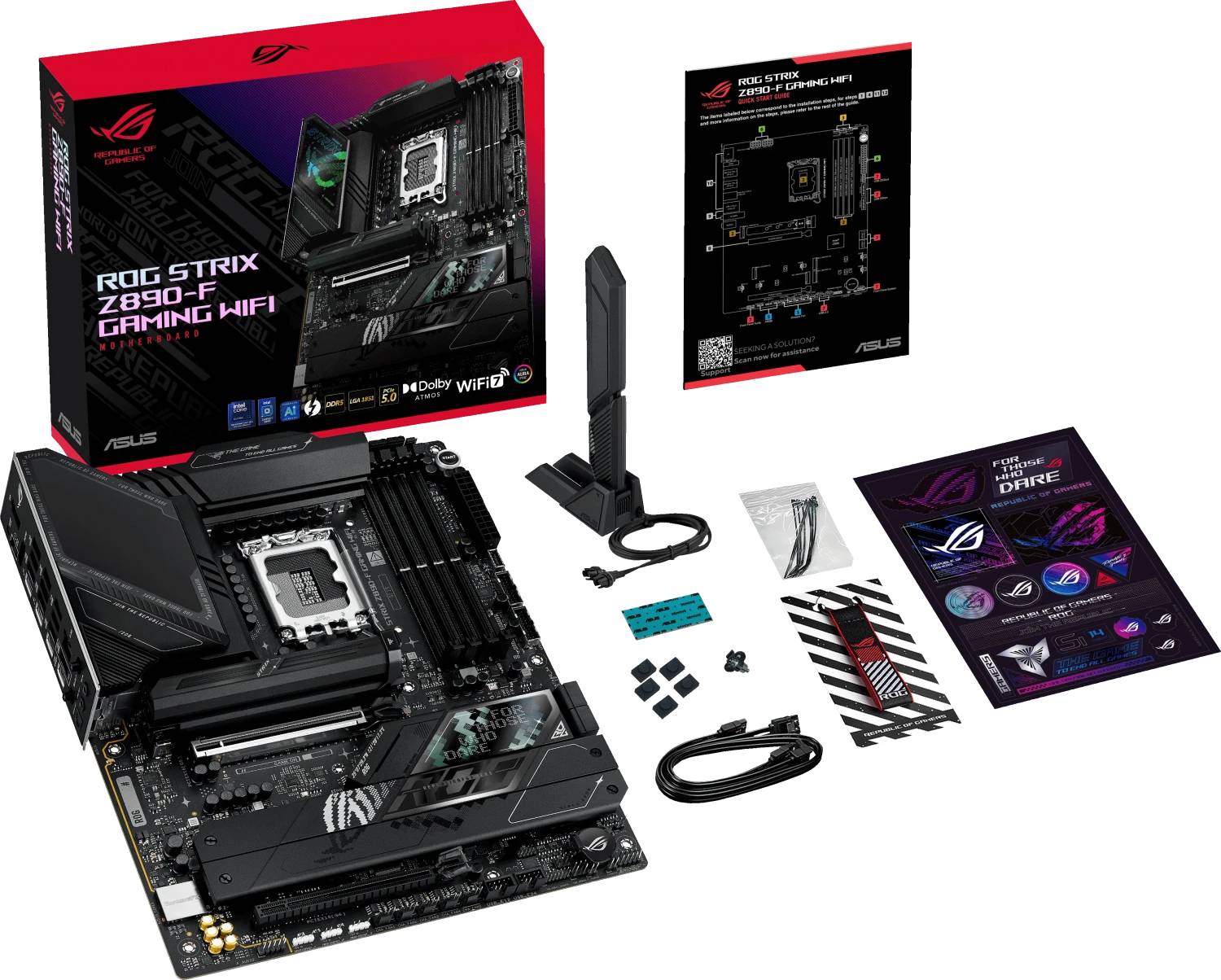

| Included Accessories | Thermal pad for M.2 SSD, 2 x M.2 Q-Slides, 3 x M.2 rubber package, ASUS Wi-Fi Q-antenna, cable ties, M.2 Q-Latch, ROG key chain, ROG Strix sticker |
| Cables Included | 2 x SATA Express cable |
| Software Included | Adobe Creative Cloud (free trial), AIDA64 Extreme (60 days trial), Armoury Crate, ASUS AURA Creator, ASUS DriverHub, ASUS Fan Xpert 4, ASUS GlideX, HWiNFO, Norton 360 for Gamers (60 days trial), ROG CPU-Z, ROG GameFirst Utility, TurboV Core, USB Wattage Watcher, WinRAR (40 days trial) |
| Compliant Standards | DisplayPort 1.4 |
| Width | 30.5 cm |
| Depth | 24.4 cm |
