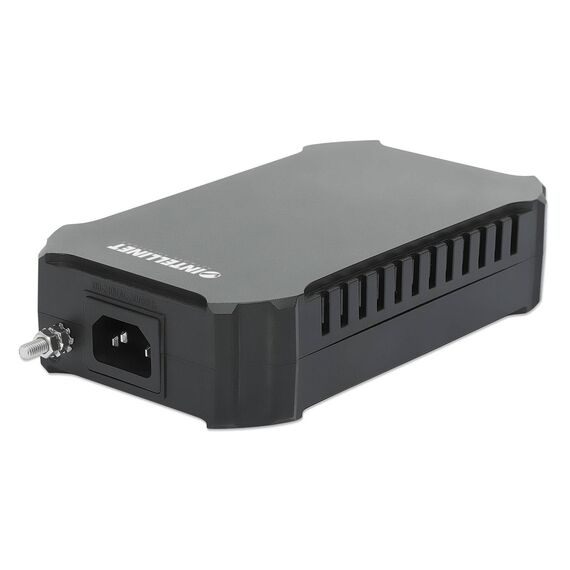

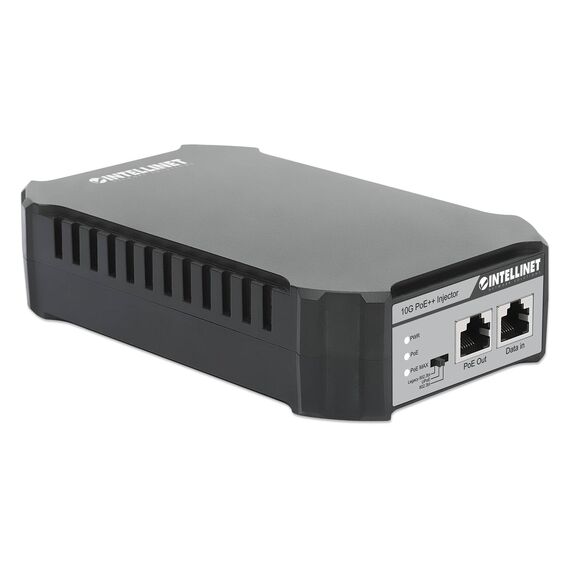

Intellinet 10G PoE++ Injector 95W, IEEE 802.3bt, 10 Gbps Data, 1 Port, Internal Power Supply 100-240V AC

The Intellinet 10G PoE++ Injector (561945) is a single-port 802.3bt midspan that adds up to 95 W of power to a 10 Gbps Ethernet link, so a Wi-Fi 6E/7 access point, PTZ camera or thin client can run from one cable. It suits anyone with a fast non-PoE switch, or a PoE switch that runs out of budget, who needs to power one demanding device.

Plug the switch into the Data IN port, the device into the PoE OUT port and the injector into the mains. The power supply is built in, so there is no external brick to hide.

• Intellinet 10G PoE++ Injector (561945)
• Mains power cable
• Earthing kit
• Instructions
• No network cables

• One port gives up to 95 W at 54 VDC — enough for high-power access points, PTZ cameras, PoE lighting or displays that a PoE+ switch cannot drive.
• Data passes at 10/100/1000/2500/5000/10,000 Mbps, so a Multi-Gig Wi-Fi 6E/7 access point is not held back by the injector.

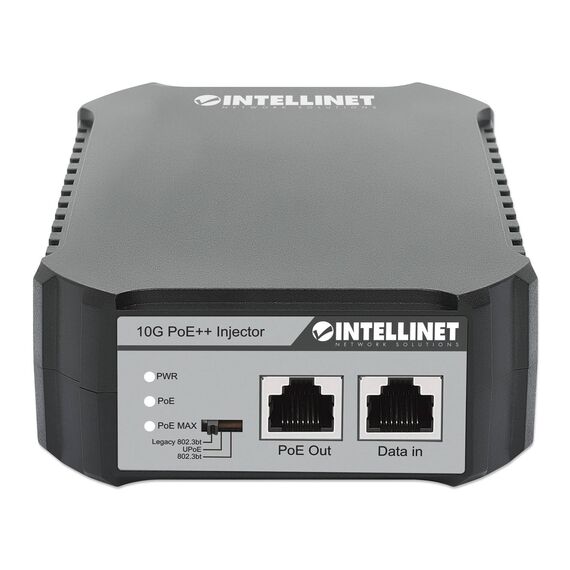

• The three LEDs (Power, PoE, PoE max) show at a glance whether the device draws power and whether it is hitting the limit.
• Built-in wall-mount holes and rubber feet let it sit on a shelf or be fixed next to the rack.

• It powers one device only — for several devices, a PoE switch is the better choice.
• It does not add network distance: the run from switch to device stays within 100 m.
• Passive (non-standard 24 V/48 V) PoE devices are not supported.
• It cannot run without mains power at the switch end.
