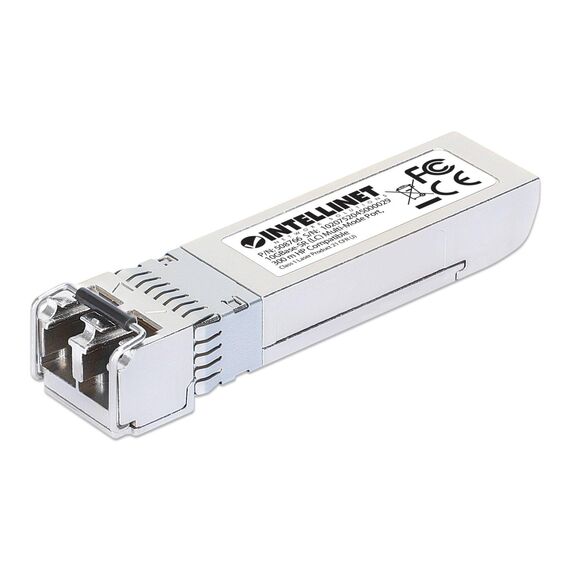

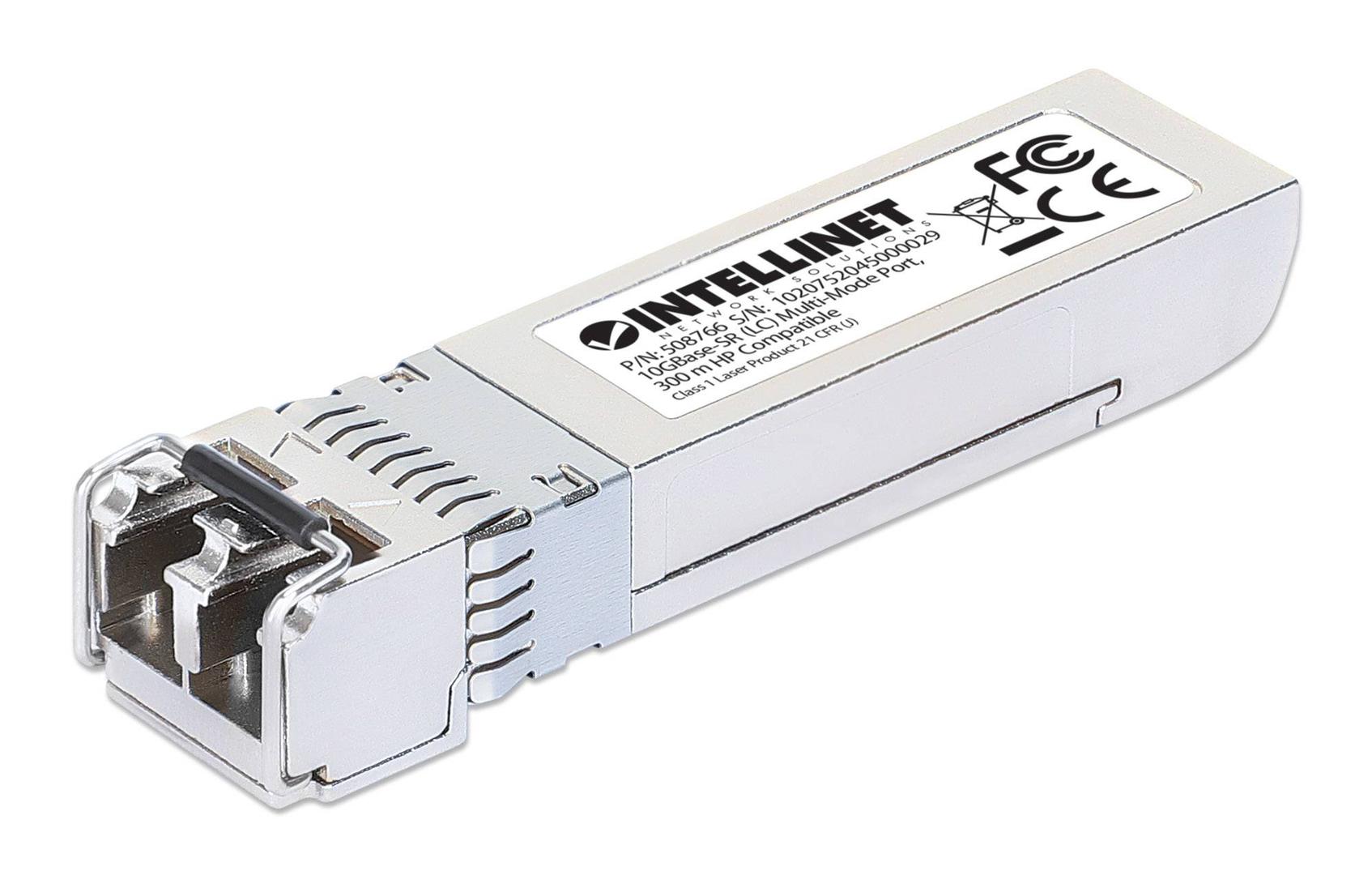

Intellinet 508766 — HPE-Compatible 10G SR SFP+
10 Gbps10GBASE-SRHPE coded300 m multimode
The Intellinet 508766 is a 10 Gbit SFP+ transceiver for multimode fibre, reaching 300 m at 850 nm on 50/125 µm fibre over a duplex LC connection, with digital diagnostics. Intellinet programs it as an equivalent of the HPE J9150A, J9150D, JD092A and JD092B, so HPE ProCurve, Aruba and Comware switches that use those parts accept it. In practice, multimode optics are the cheaper choice for links inside one building: most server rooms and floor risers already carry OM3 or OM4 fibre, and the module plus a short patch cord is all a port needs. Before you order, check the fibre grade printed on the cable jacket and the real length of the run, including patch panels.
Compatibility — check before buying:
It is HPE-coded — for Cisco switches Intellinet’s 507462 is the Cisco-coded SR module, and the 508759 is the HPE-coded single-mode LR version. Reach drops sharply on older fibre: 300 m on 50/125 µm but only 33 m on 62.5/125 µm. Keep the dust cap on until you connect the fibre, and clean both connector ends before every mating — dirt is the most common cause of a link that will not come up. Not sure? Send us your device model and the cable run and we check it before you order.
Best For
✓ 10G uplinks on HP / HPE switches
✓ Replacing J9150A / J9150D optics
✓ Comware switches that use JD092A/B
✓ Server links inside one building
✓ Multimode runs up to 300 m
✓ Spare optics at a lower cost
Key Features
Coded for HPE
Programmed as an equivalent of the HPE J9150A, J9150D, JD092A and JD092B, so HPE switches accept it as a supported optic.
Multimode fibre, short reach
Built for the short runs inside a building or data room over OM-grade multimode fibre. Reach depends on the fibre grade — check what is actually in your walls before you plan a link.
Monitoring you can read
Digital diagnostics (SFF-8472) let the host report temperature, laser power and received light, so a dirty connector or a failing link shows up before users call.
Hot-swappable
Modules plug into a live port without shutting the switch down, so a link can be added or replaced during working hours. Seat it until it clicks and use the latch to remove it.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
We offer the 508766 for HP and HPE networks that need a 10G SR optic with a three-year warranty at a lower cost than the original. Check the fibre first — 62.5 µm fibre limits you to 33 m. Every order is backed by Singular’s local support in Cyprus — if a link will not come up, send us the port status and we help you find out whether it is the module, the cable or the configuration. Browse all transceivers and DAC cables or the switches they plug into.
Buyer’s Guide
Buy it if
You need 10G over multimode on an HP or HPE switch that accepts J9150A/D or JD092A/B.
Skip it if
Your switch is Cisco (507462), your fibre is single-mode (508759), or the run is long on old 62.5 µm fibre.
Also consider
Intellinet 508759 for HPE-coded 10G single-mode.
Features - Intellinet - 508766
More Details
Product Code
04:459373
EAN Code
0766623508766
Manufacturer
Intellinet
