Intellinet 711432 — 19" 1.5U PDU with 6 Schuko outlets and dual circuit breaker
6 x Schuko CEE 7/3Dual circuit breaker250 V · 16 A1.5U · 19"

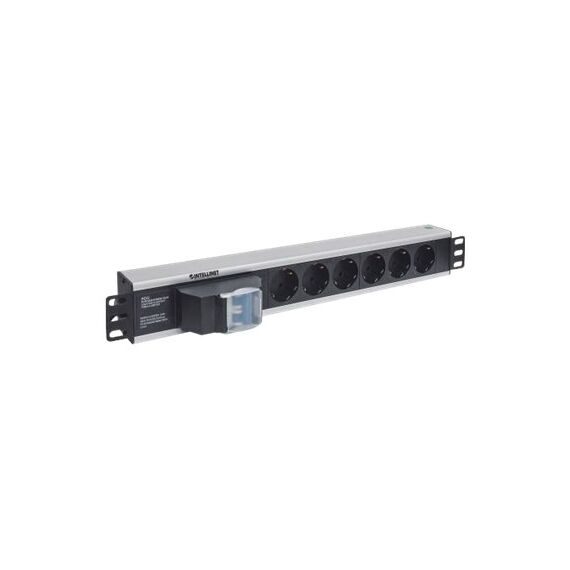

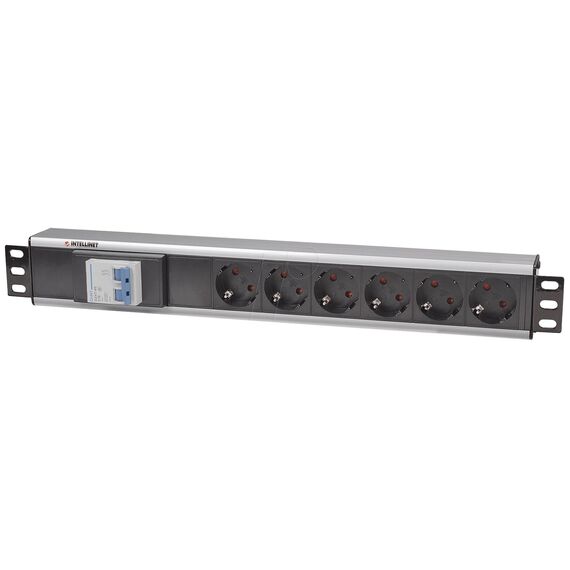

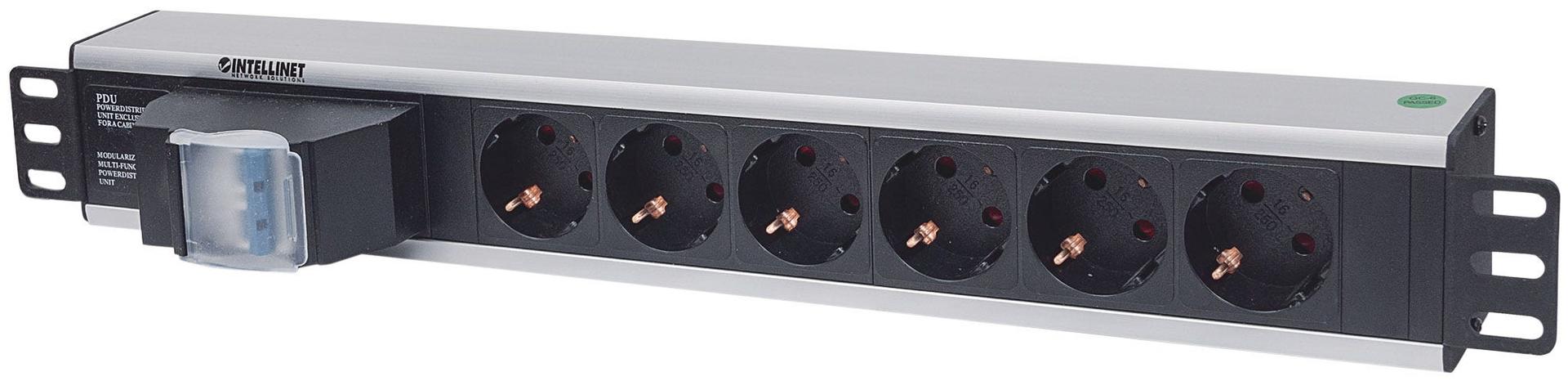

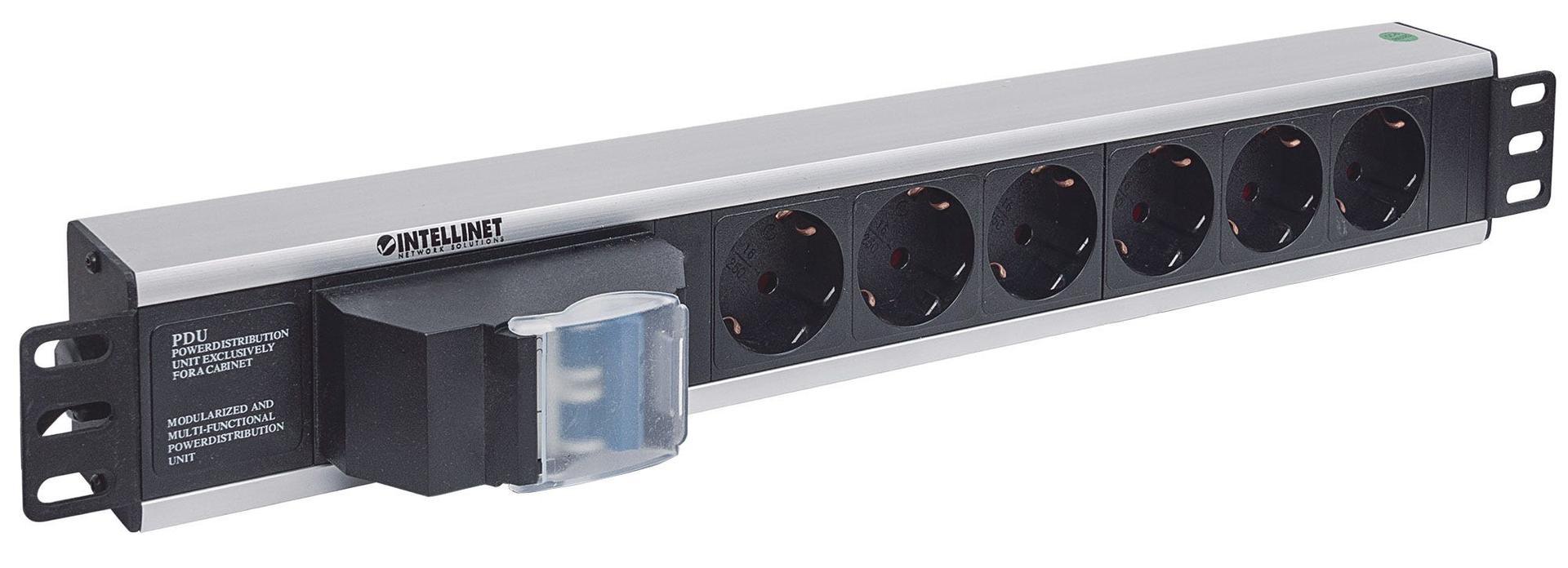

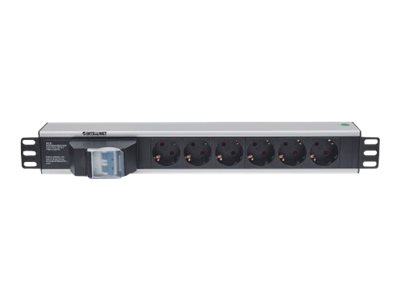

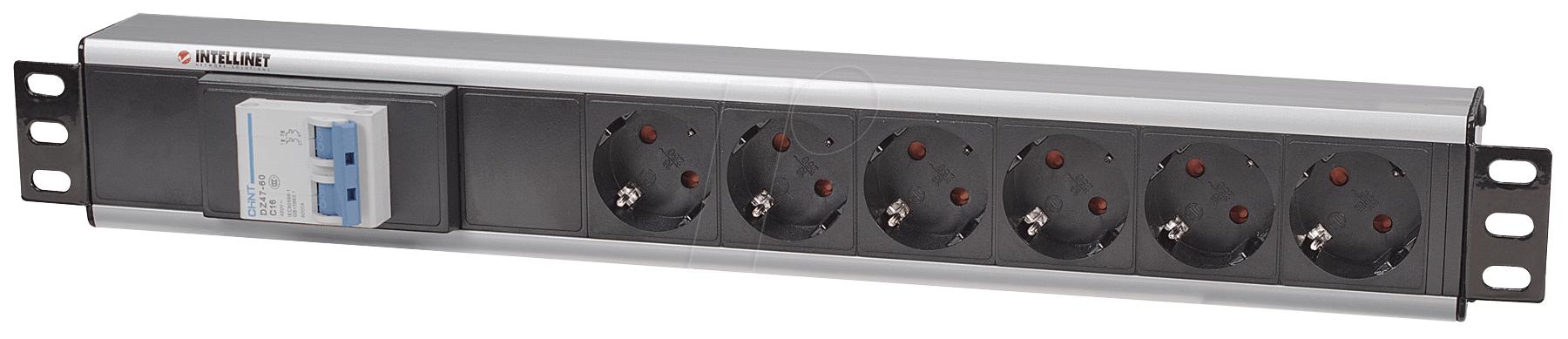

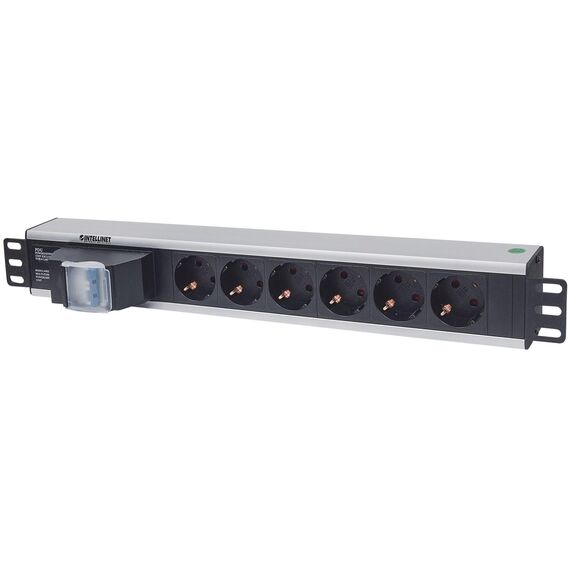

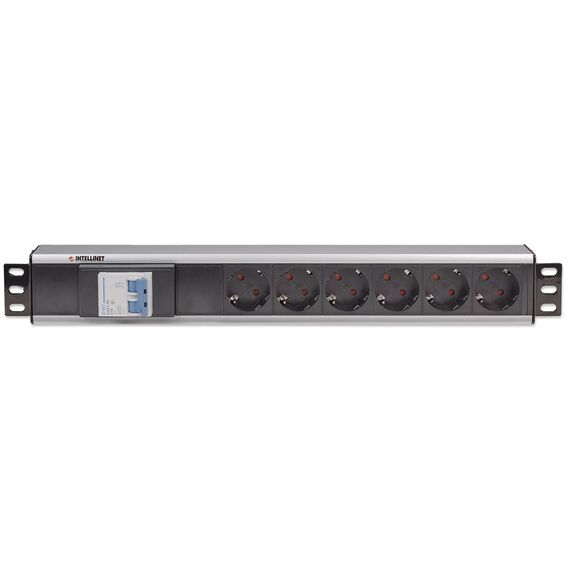

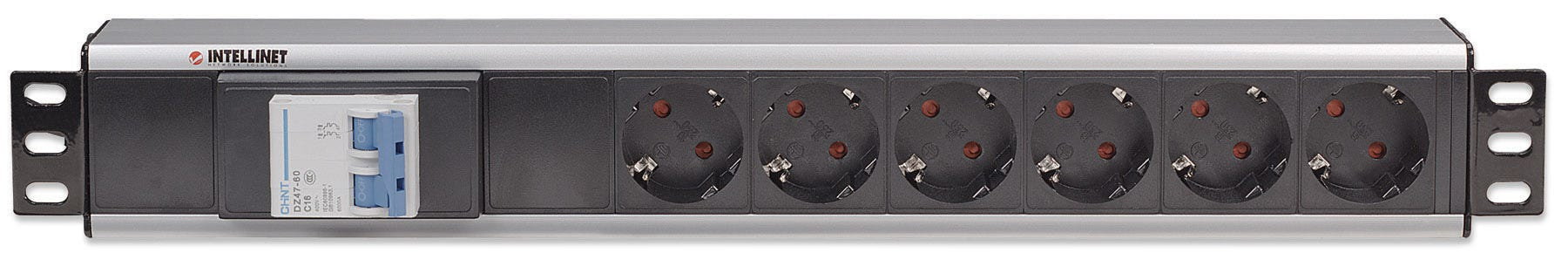

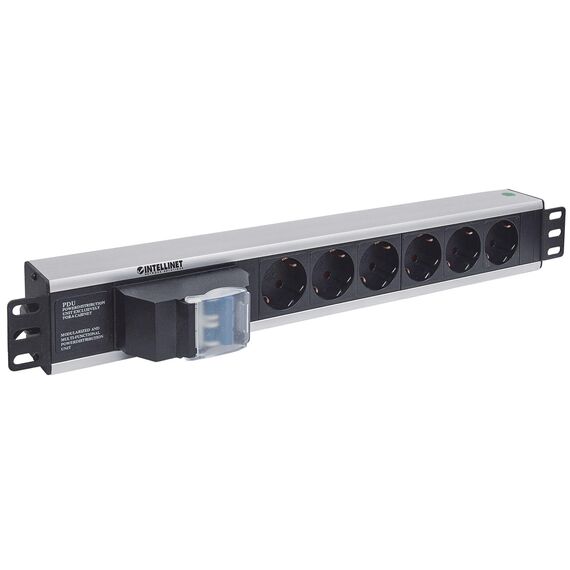

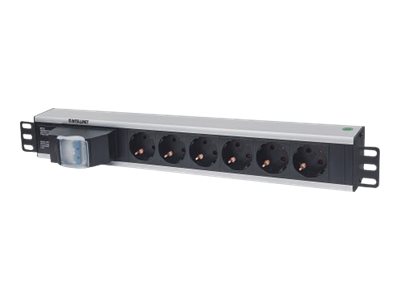

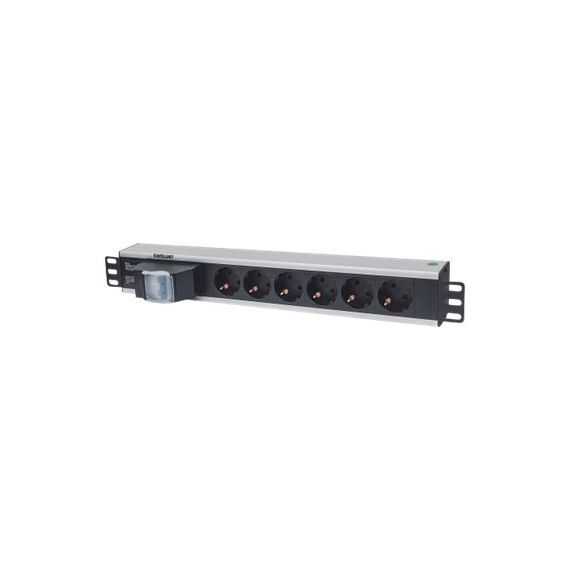

The Intellinet 711432 is a 19-inch, 1.5U rack power distribution unit with six Schuko (CEE 7/3) outlets and a dual (two-pole) circuit breaker, rated 250 V / 16 A. The breaker doubles as the main switch and trips on overload, protecting both the strip and the circuit that feeds it.
It has no surge protection — Intellinet sells it specifically as the "no surge" version for racks already behind a UPS or a protected supply. The black aluminium housing mounts on the front rails, and power comes in through a 1.8 m cable with a Schuko CEE 7/4 plug.
Before you order: The plug and outlets are Schuko. In Cyprus that means a Schuko outlet installed by an electrician or a UPS with Schuko outputs — the strip does not plug into a BS 1363 wall socket, and devices with BS 1363 plugs need CEE 7/4 or CEE 7/7 cords.
What's in the Box
- 1 x Intellinet 711432 19" PDU with fixed 1.8 m supply cable (Schuko CEE 7/4 plug)
- Front 19" mounting brackets (fitted)
- Intellinet does not publish a full package list — use the screws and cage nuts of your rack
What It Means in Practice
- The circuit breaker trips on overload and can be reset by hand — no fuse to replace.
- Two-pole switching disconnects both live and neutral, which is the safer way to isolate the rack for maintenance.
- No surge module: put it behind a UPS, or choose the Intellinet 713962 if the rack is fed straight from the mains.
- The 1.5U height gives more room between plugs than a 1U strip.
What Will Not Work
- Surge or spike protection — this is the no-surge version.
- BS 1363 (UK/Cyprus) plugs — they do not fit Schuko outlets.
- Plugging into a Cyprus BS 1363 wall socket — needs a Schuko outlet or a UPS with Schuko outputs.
- A 1U space — the unit takes 1.5U.
Key Features

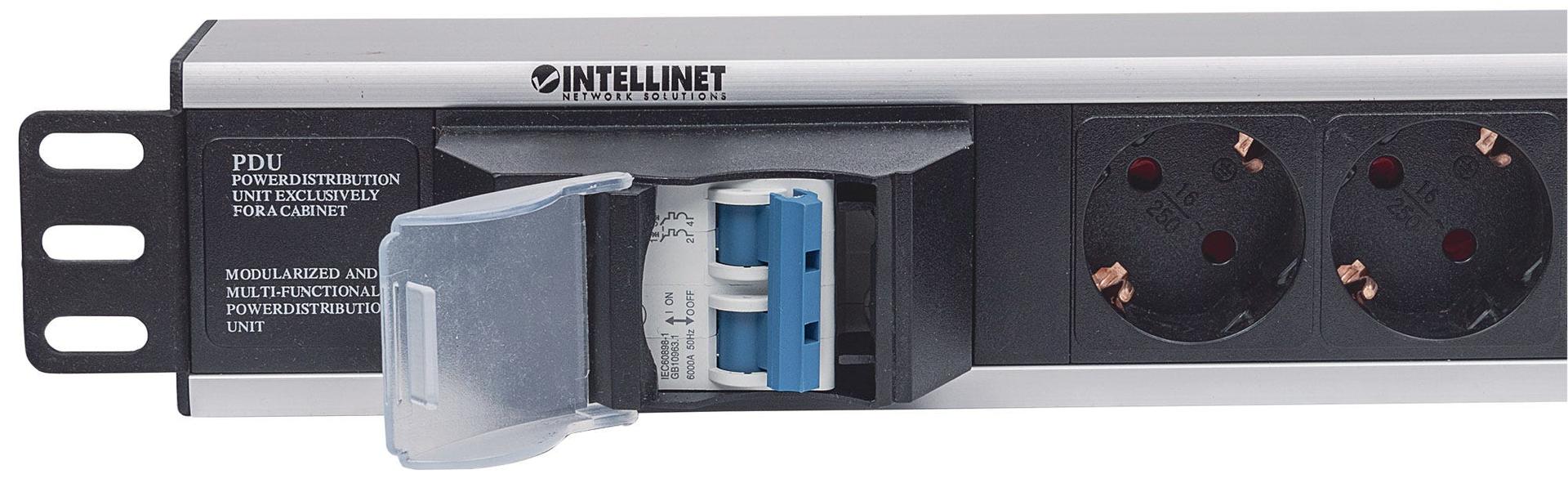

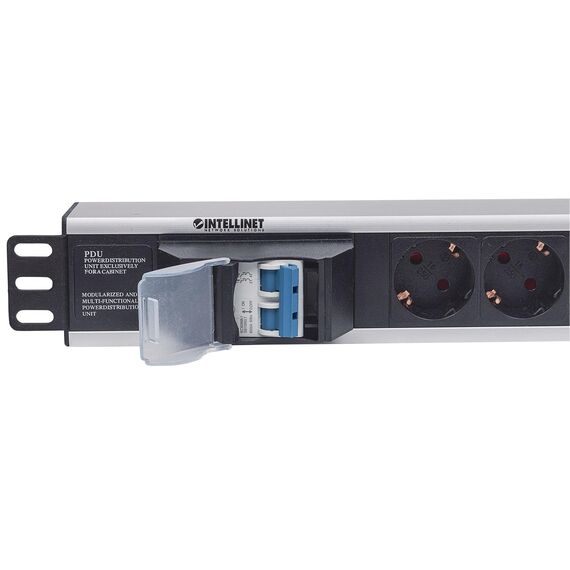

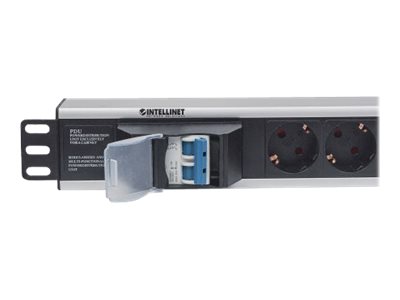

Dual circuit breaker
Two-pole breaker acts as main switch and overload protection.
6 Schuko outlets
CEE 7/3 sockets for CEE 7/4 and CEE 7/7 plugs.
Certified
VDE, CE, RoHS, REACH and UKCA listed by Intellinet.
Black aluminium, 1.5U
Front-mount brackets for 19" racks.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
A solid choice for UPS-backed racks with Schuko equipment: a proper resettable breaker instead of a fuse, and no surge module you do not need behind a UPS. More rack power parts are in our rack accessories.
✓ Buy it if your rack is behind a UPS and you want Schuko outlets with a resettable breaker.
✕ Skip it if the rack is fed straight from the mains and needs surge protection, or you only have 1U free.
→ Also consider Intellinet 713962 (6 x Schuko with surge protection) or Intellinet 714051 (2U, 15 x Schuko).
Not sure which plugs your equipment uses? Send us the model numbers and we will tell you which PDU fits before you order.
Features - Intellinet - 711432
Colour
black
More Details
Product Code
04:200743
EAN Code
0766623711432
Manufacturer
Intellinet
