Intellinet 19-inch Cantilever Shelf, 2U, 400 mm Depth, 2-Point Front Mount, Vented, 25 kg Load, Grey RAL 7035

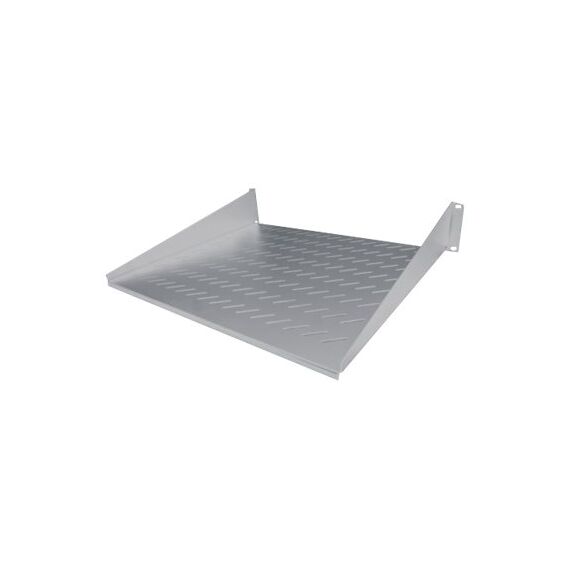

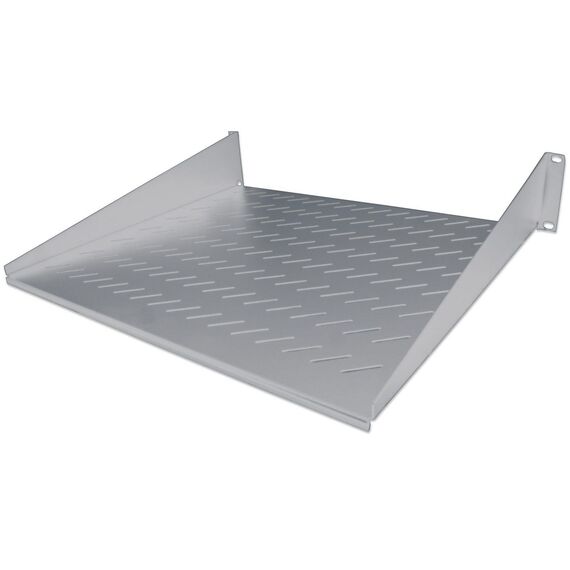

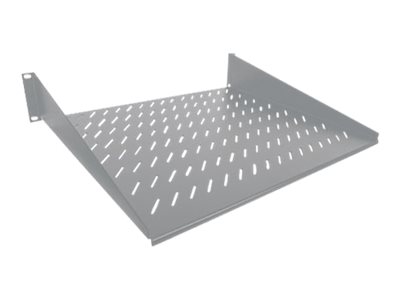

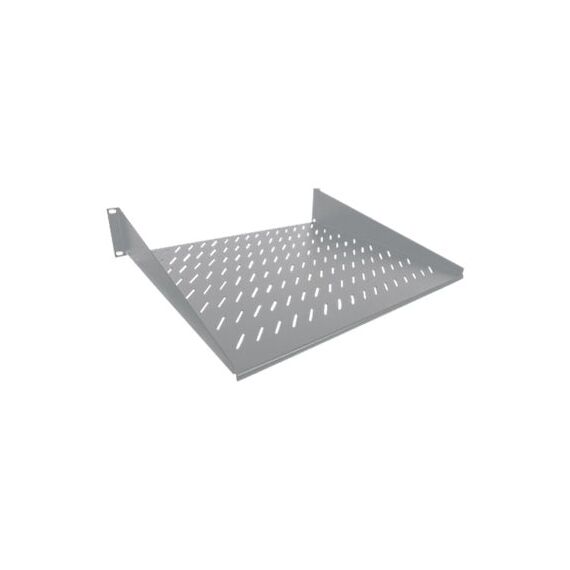

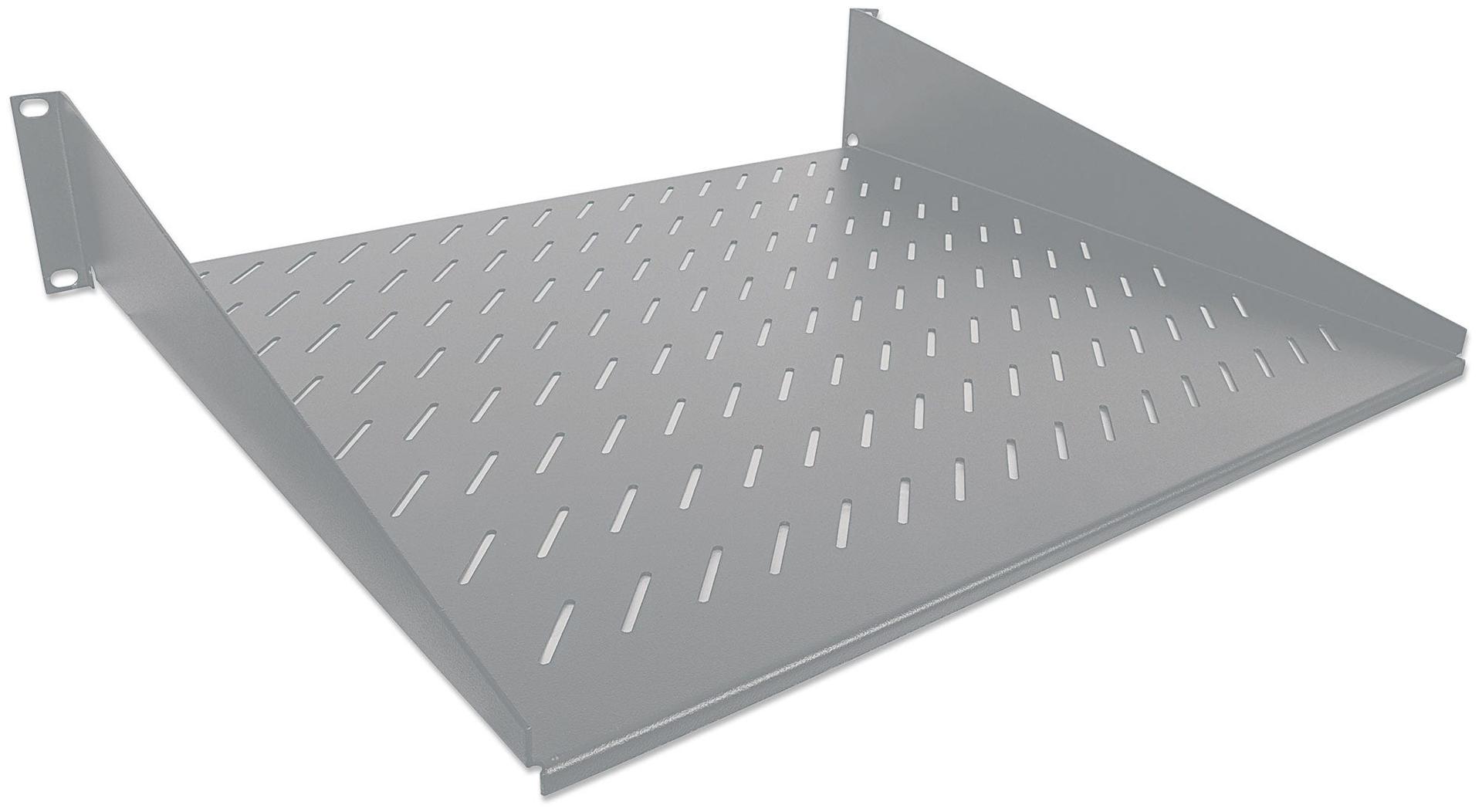

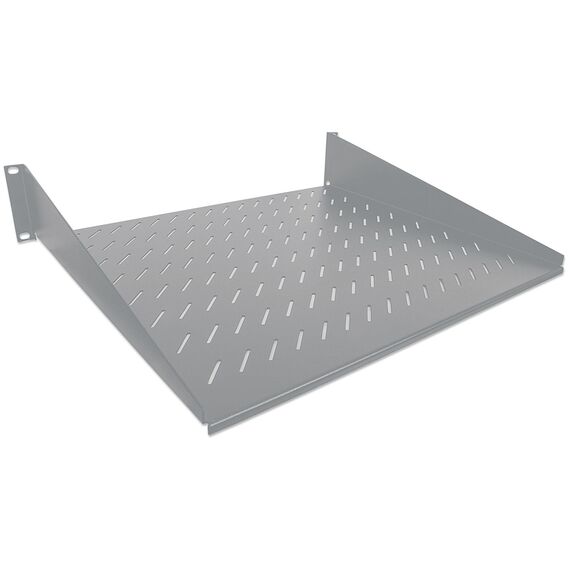

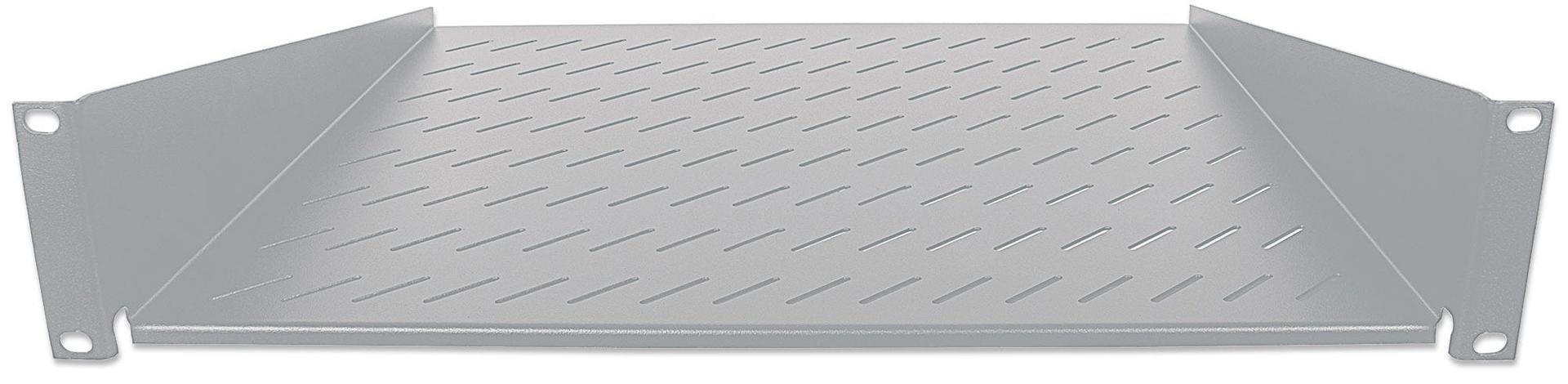

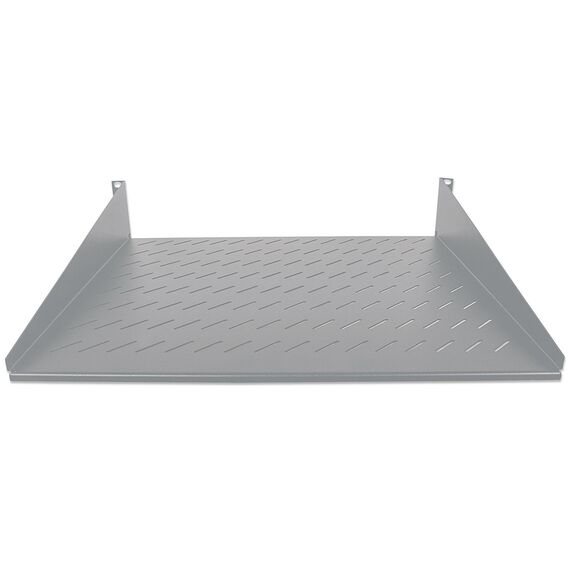

The Intellinet 712224 is a 2U 19-inch cantilever shelf, 400 mm deep and vented, that mounts to the front pair of rack uprights only and holds up to 25 kg of static load. It is for anyone who needs to place a modem, router, NAS, mini PC or other non-rackable device inside a 19-inch cabinet or wall rack from 600 mm depth.

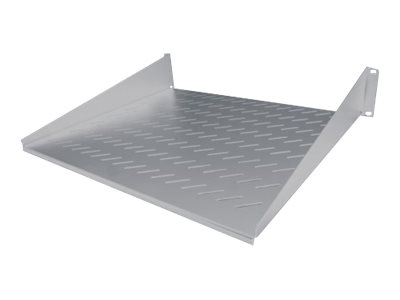

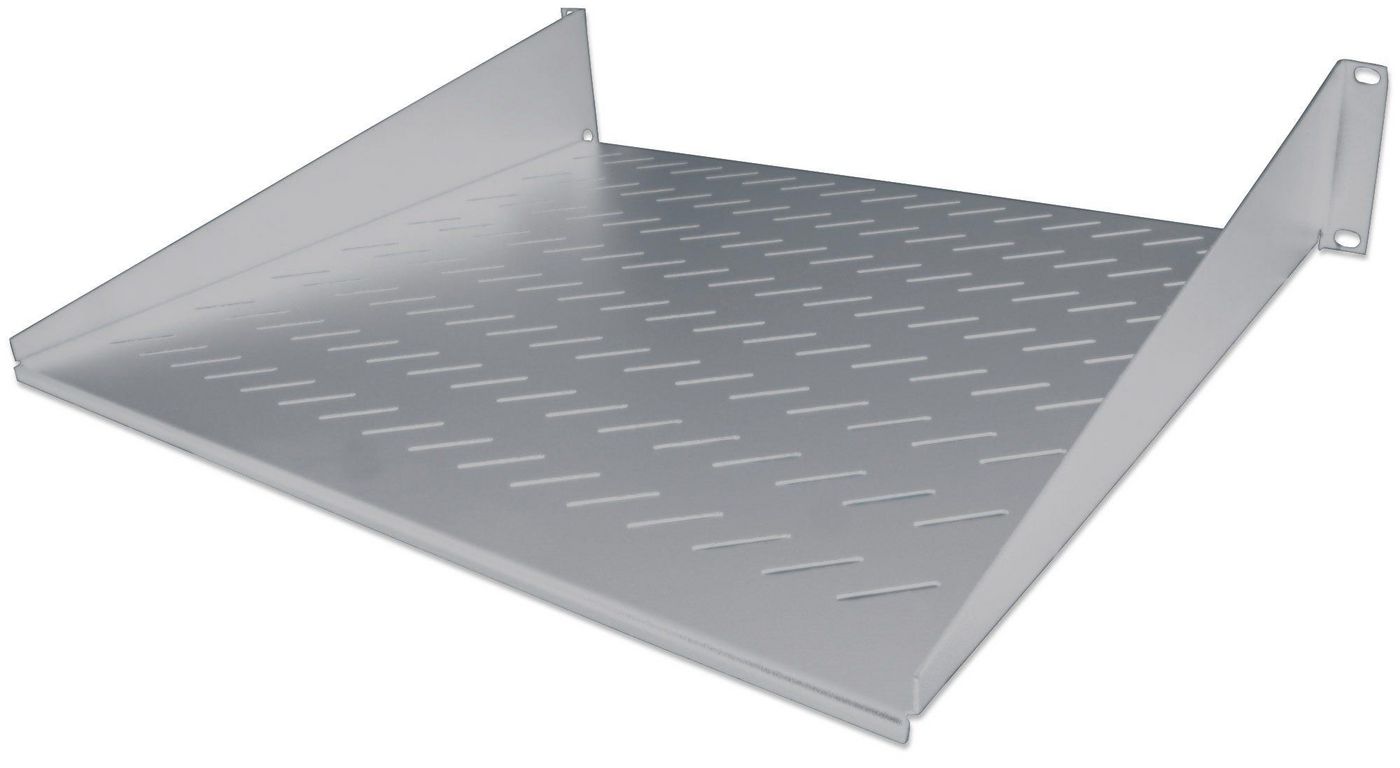

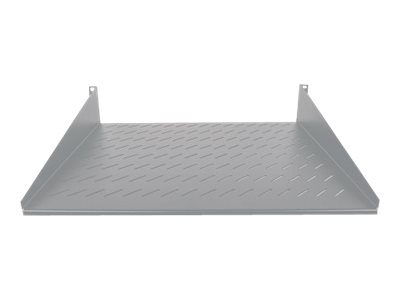

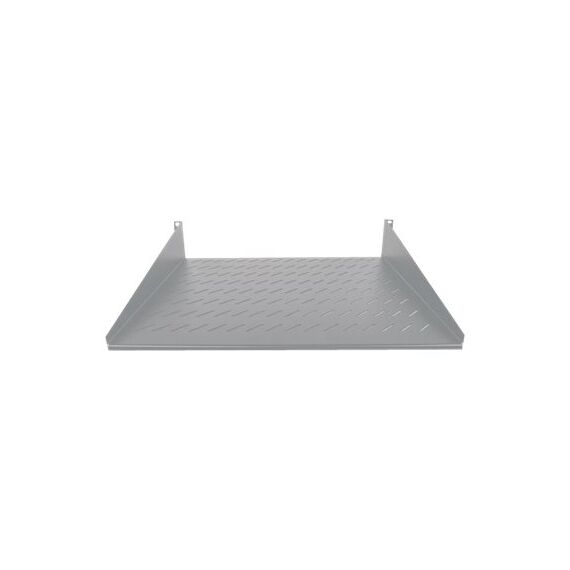

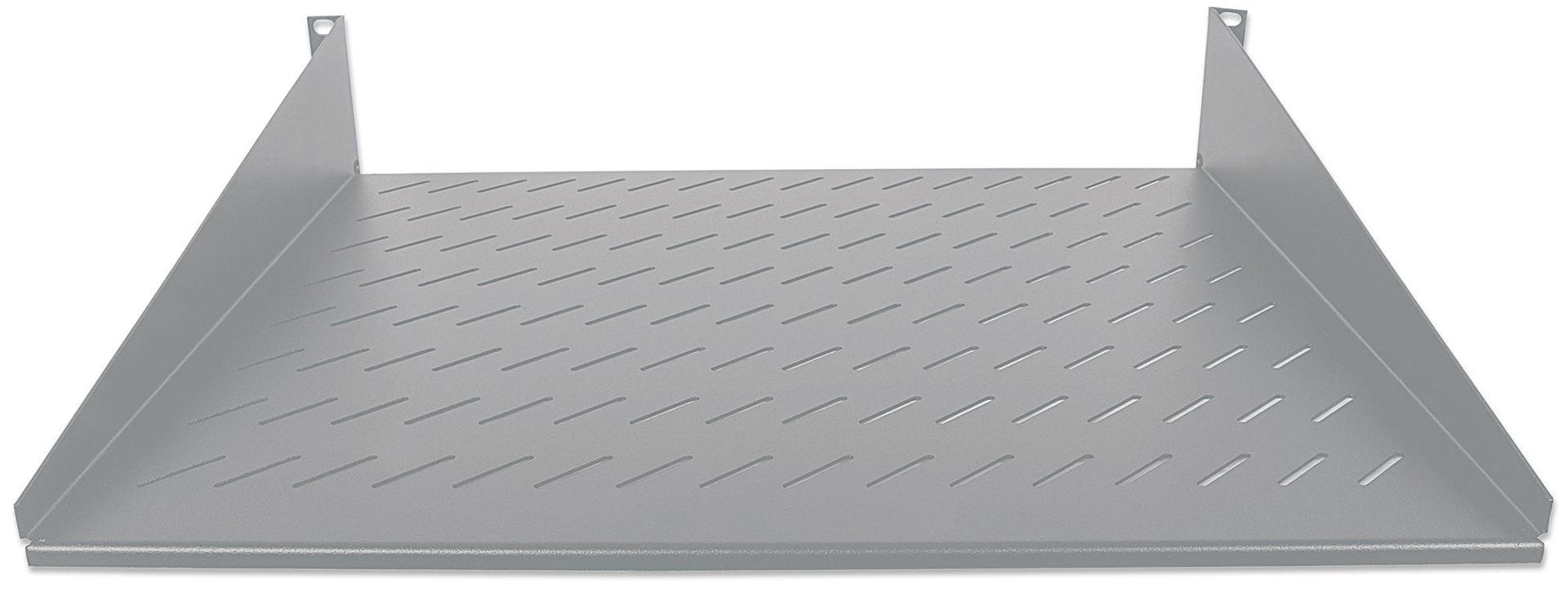

The 1.5 mm steel shelf is formed with a front flange that carries the load, so no rear uprights are needed. Ventilation slots let warm air leave the device, and the light grey RAL 7035 finish matches most grey network cabinets.

• 1 x 19-inch 2U cantilever shelf, grey RAL 7035
• Mounting screws and cage nuts are not listed by Intellinet - if your cabinet has no spare M6 fixings, add a pack of cage nuts

• Two-point front mounting works in wall cabinets and racks without rear uprights, where a 4-point shelf cannot be installed.

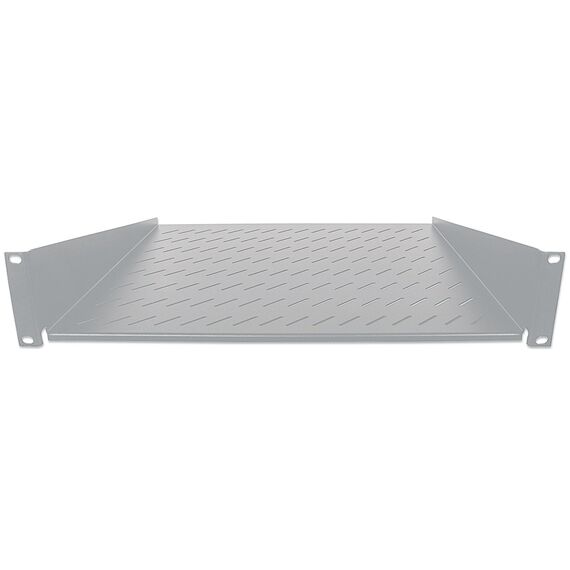

• The 2U flange gives a rigid front fixing; the shelf occupies two rack units at the front.
• The vented tray lets heat rise through the shelf, useful for routers and NAS units that run warm.
• 400 mm of depth fits most desktop network devices, small NAS units and mini PCs.

• It will not fit cabinets shallower than 600 mm, according to Intellinet.
• It is not meant for loads above 25 kg; heavy UPS units need a 4-point shelf or the cabinet floor.
• It does not slide out - it is a fixed shelf.
• It does not match black cabinets; this version is light grey.
