Intellinet 712675 — 19-inch 1U Blank Panel, Black RAL 9005
19" · 1U1.0 mm steelBlack RAL 9005Antistatic powder coat

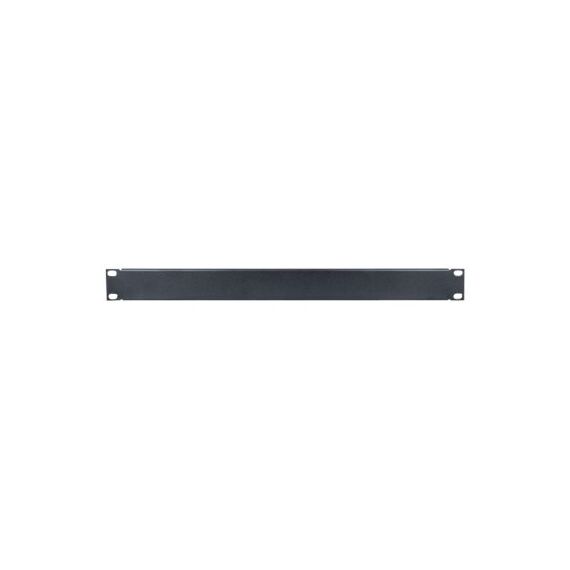

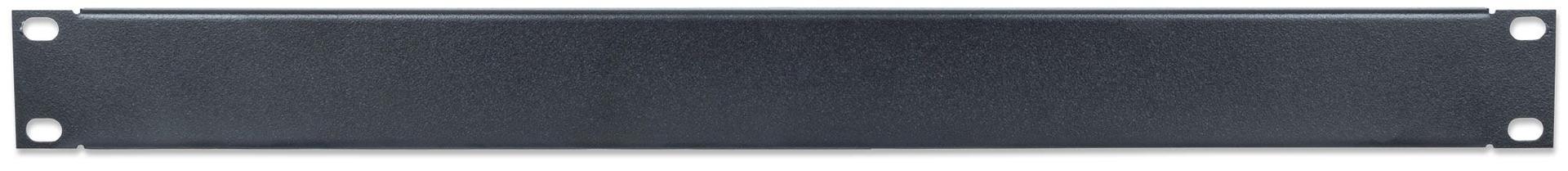

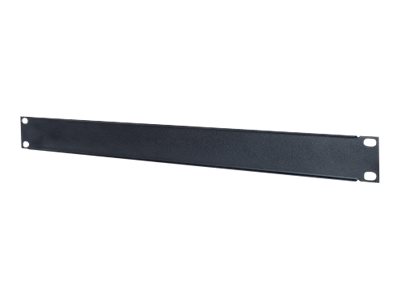

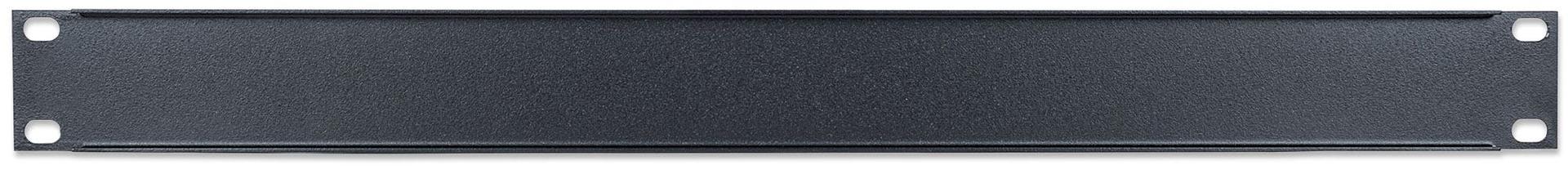

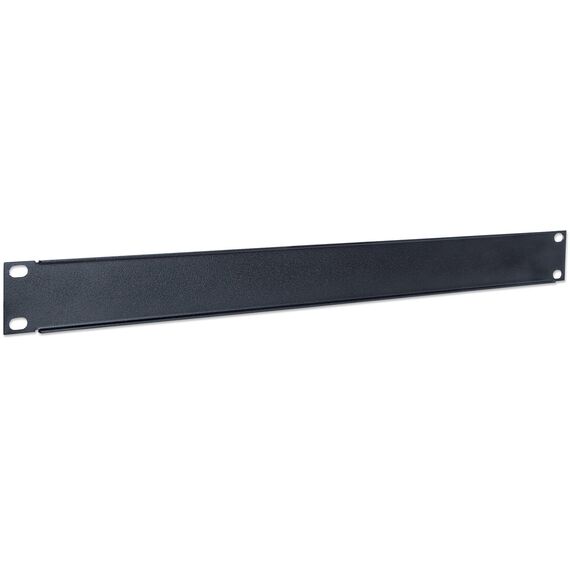

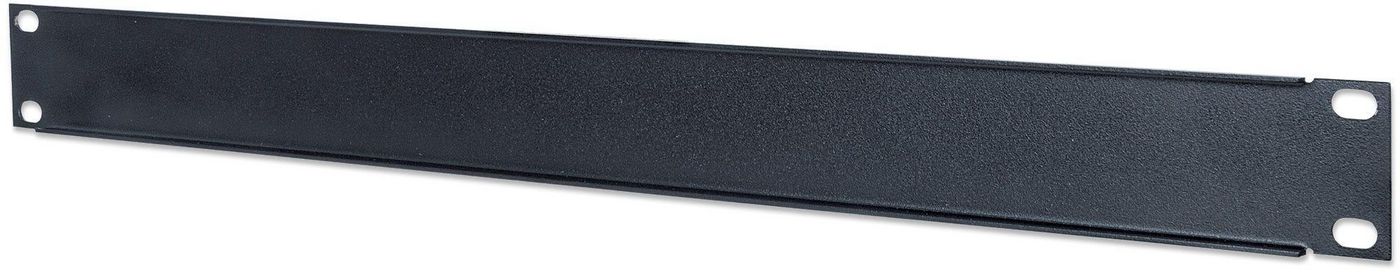

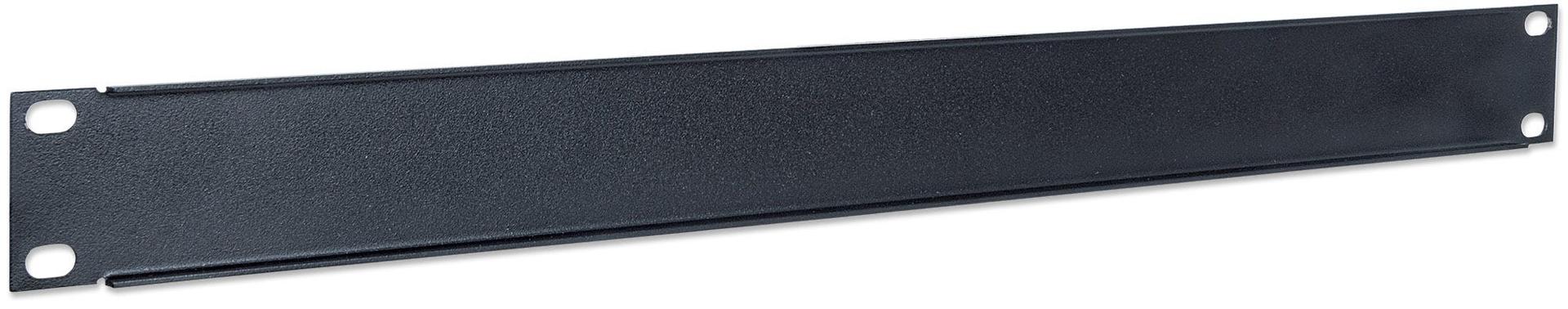

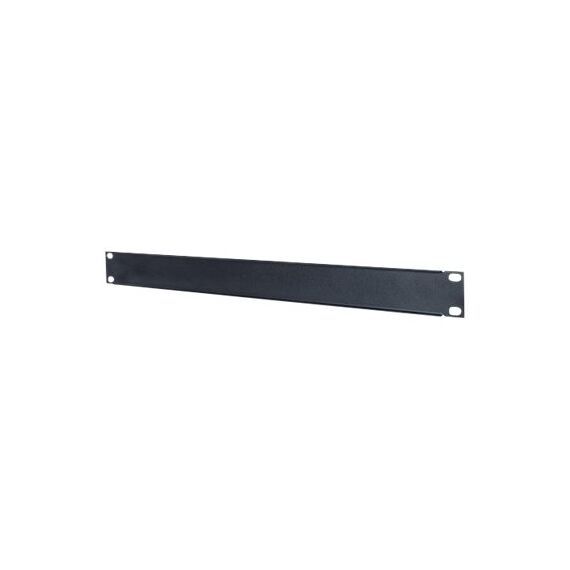

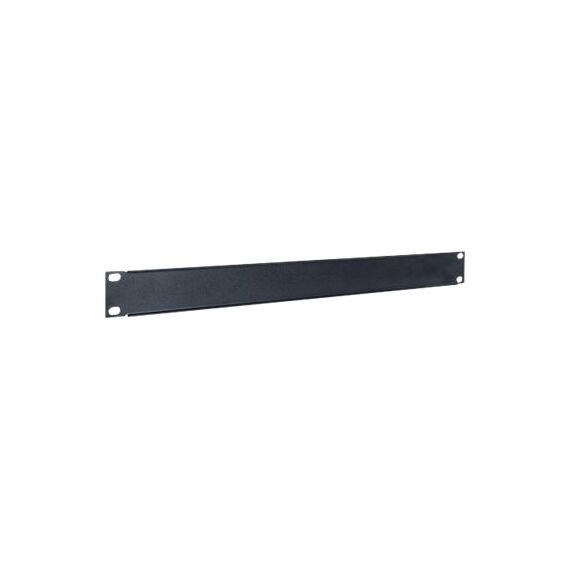

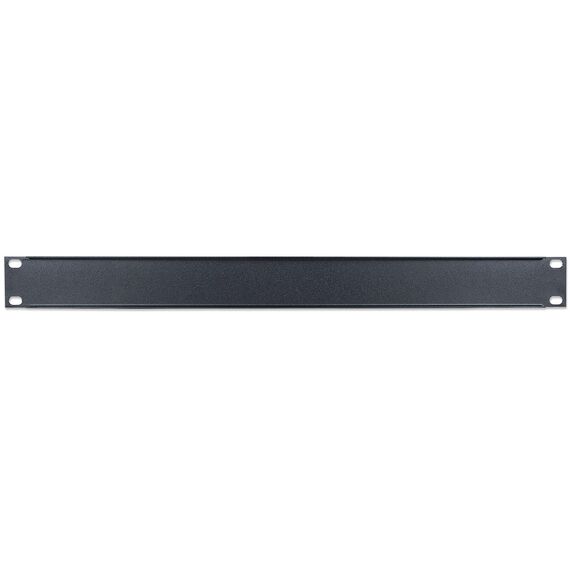

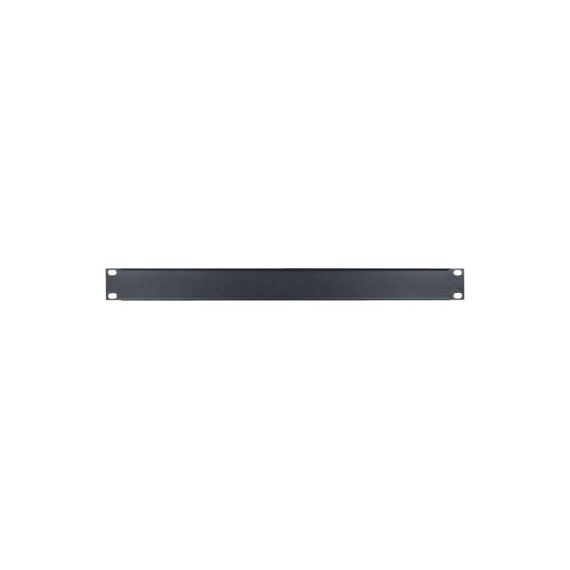

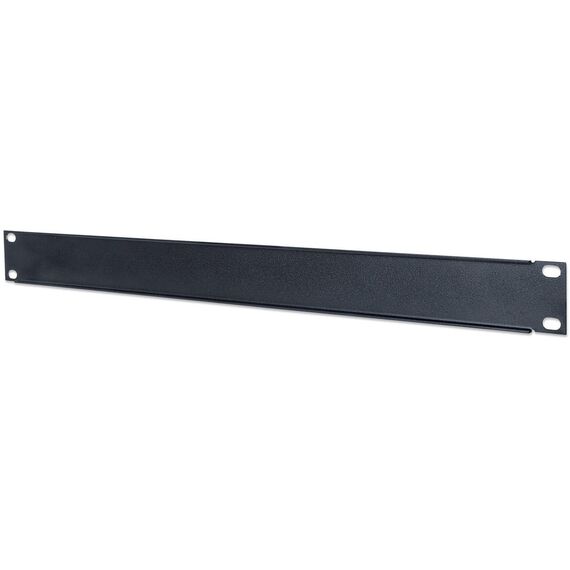

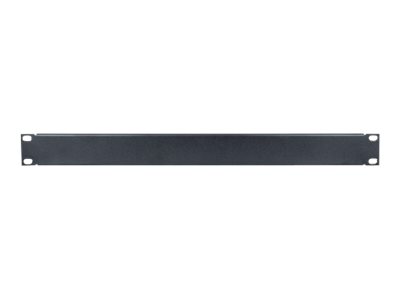

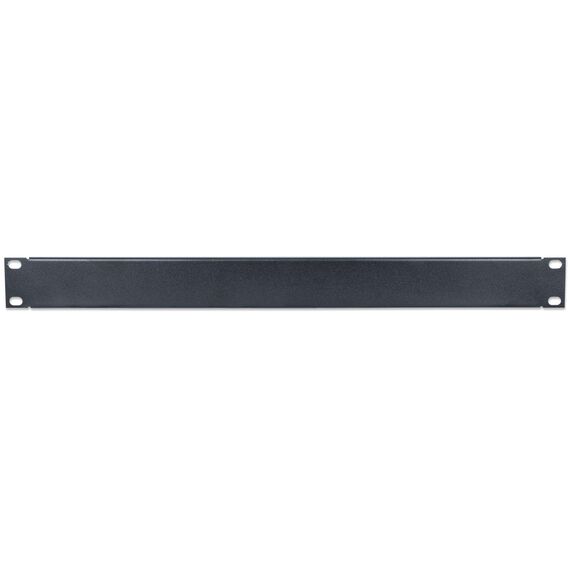

The Intellinet 712675 is a 19-inch 1U blank panel (rackmount spacer panel) in 1.0 mm steel with an antistatic powder coating in black RAL 9005, for closing unused height units in network cabinets and server racks.
Empty units in the front of a rack are more than a cosmetic problem. They let hot air from the back of the equipment flow back to the front intakes, they let dust in, and they leave cables and power strips exposed. Intellinet designed this panel to cover unused positions in the cabinet and keep the airflow consistent, with a flat 9 mm profile that sits flush on the front rails.
Before you order: Intellinet does not list mounting screws in the scope of delivery. Plan on four rack screws with cage nuts (M6 is the usual size on square-hole rails) — if your rack already has spares, you are ready to go.
What's in the Box
- 1 × Intellinet 19-inch 1U blank panel, black RAL 9005
- Mounting screws and cage nuts are not listed by Intellinet — order them separately if you have none
What It Means in Practice
- Covers one height unit (1U). Order one panel per empty unit.
- Fits standard 19-inch front rails; the panel is 483 mm wide, the full width of the rack front.
- At 9 mm deep it does not take space from equipment mounted directly above or below.
- The powder coat is antistatic, which is what you want on a panel that sits next to active network equipment.
What Will Not Work
- 10-inch cabinets: the panel is 483 mm wide and needs 19-inch rails.
- Cable pass-through: it is a solid plate; use a brush panel where cables must reach the front.
- Tool-less installation: the panel needs screws and cage nuts.
- Grey cabinets: it fits, but black will stand out. The grey version is Intellinet 712385.
Key Features
Closes unused units
Covers empty positions in the cabinet so the front of the rack is sealed.
Consistent airflow
Stops hot exhaust air from recirculating to the front of the equipment.
1.0 mm steel
Solid steel plate with an antistatic powder coating.
Flat 9 mm profile
Sits flush on the rails without intruding into the rack depth.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Blank panels cost little and make a visible difference to both the look and the airflow of a rack. Match the colour to the cabinet, count the empty units and remember the screws: this panel has no hardware listed, so add a cage nut set if you have no spares. Everything else for the cabinet is in our rack accessories range.
✓ Buy it if you need to close empty units in a 19-inch black cabinet and have rack screws on hand.
✕ Skip it if your cabinet is 10-inch, or you need cables to pass through the gap.
→ Also consider the Intellinet 712194 M6 cage nut set (20 pcs) if you need mounting hardware, or a 1U brush panel for cable entry.
Not sure what fits your rack? Send us the cabinet model and we will check the panel and hardware before you order.
Features - Intellinet - 712675
Colour
black
More Details
Product Code
04:168031
EAN Code
0766623712675
Manufacturer
Intellinet
