Intellinet 19-Inch Heavy-Duty Fixed Shelf 1U, 600 mm Depth, 100 kg Static Load, 1.5 mm Steel, Grey RAL 7035, for 800 mm Cabinets
Brand:
Intellinet
Intellinet 19-Inch Heavy-Duty Fixed Shelf 1U, 600 mm Depth, 100 kg Static Load, 1.5 mm Steel, Grey RAL 7035, for 800 mm Cabinets
€52.55 inc. VAT
712286
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply

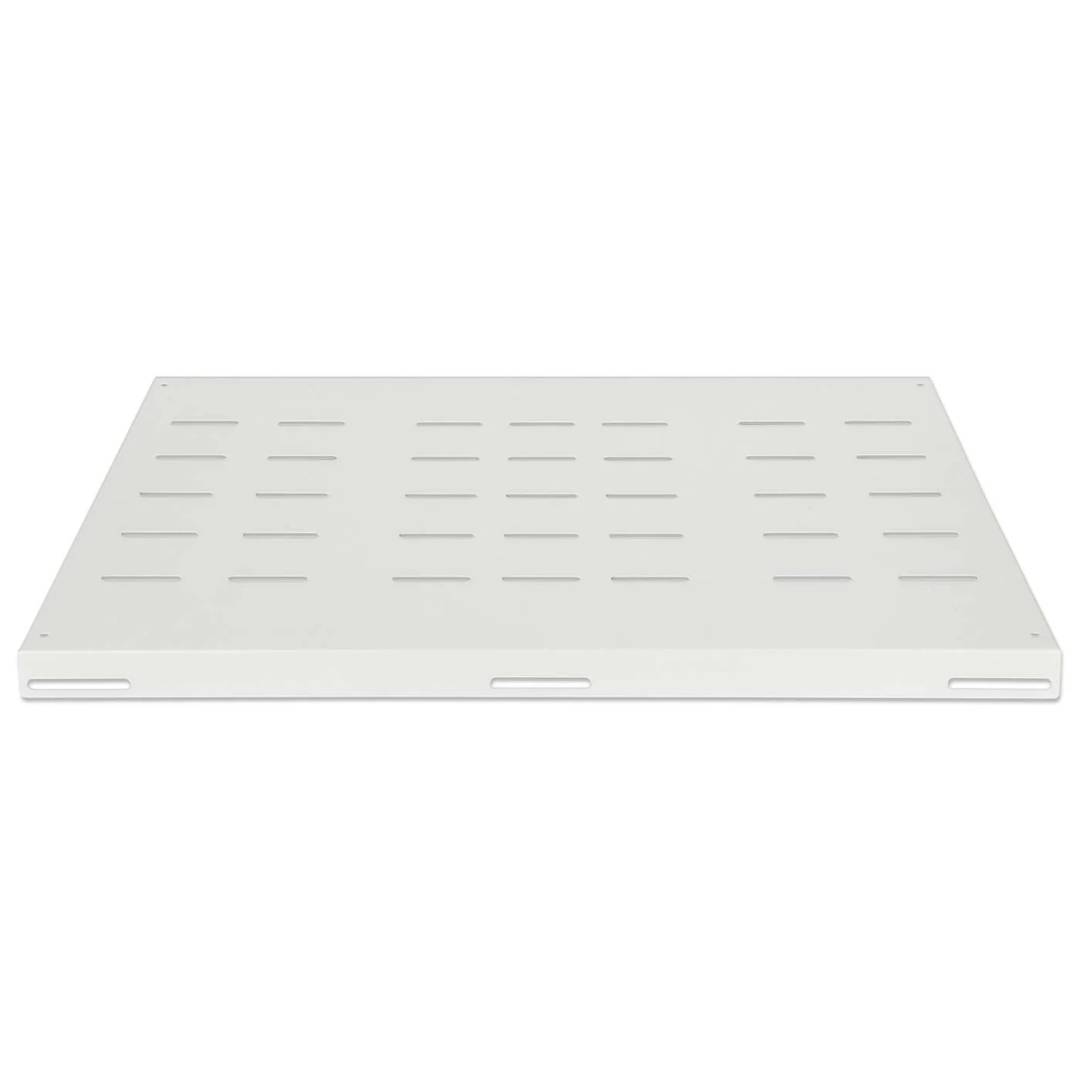

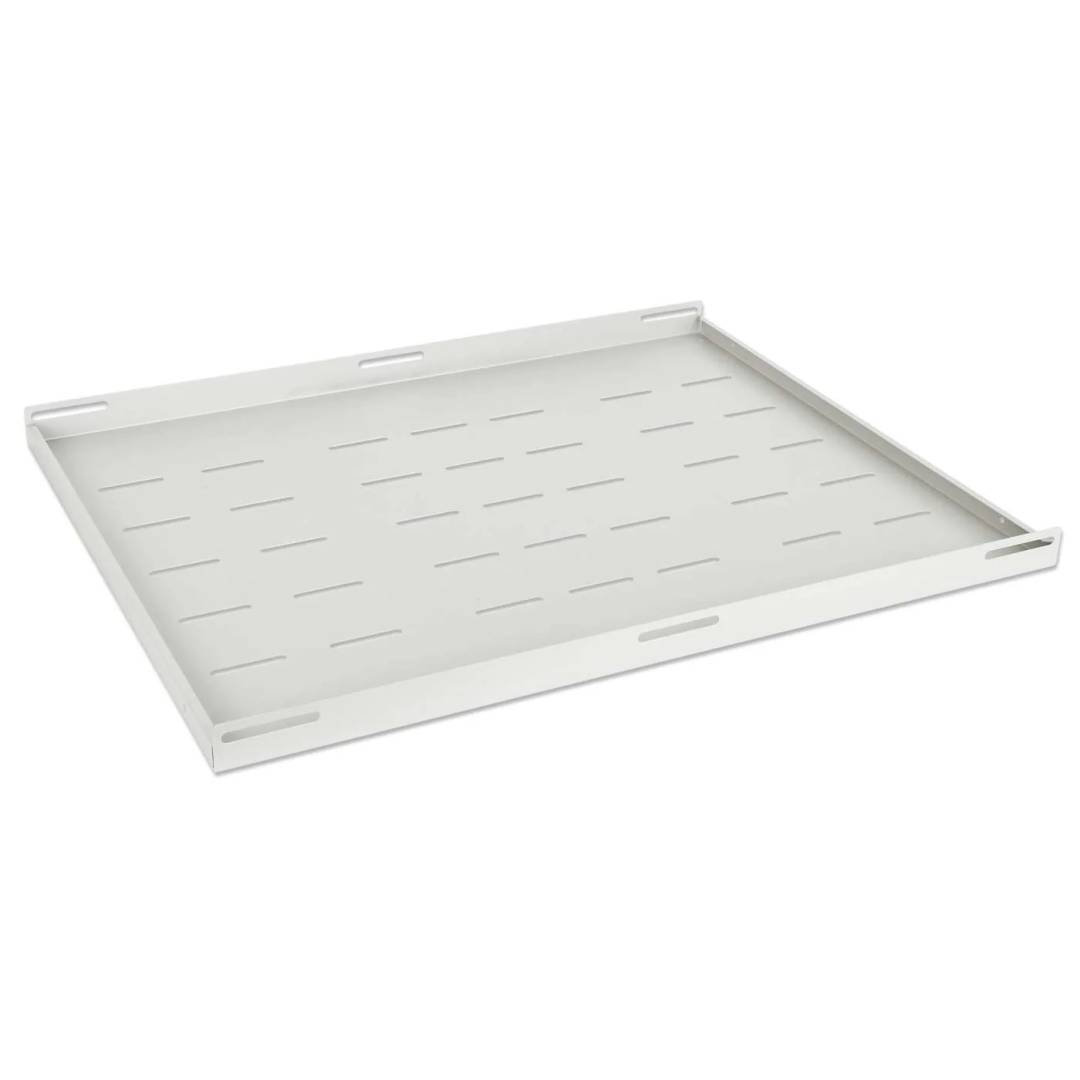

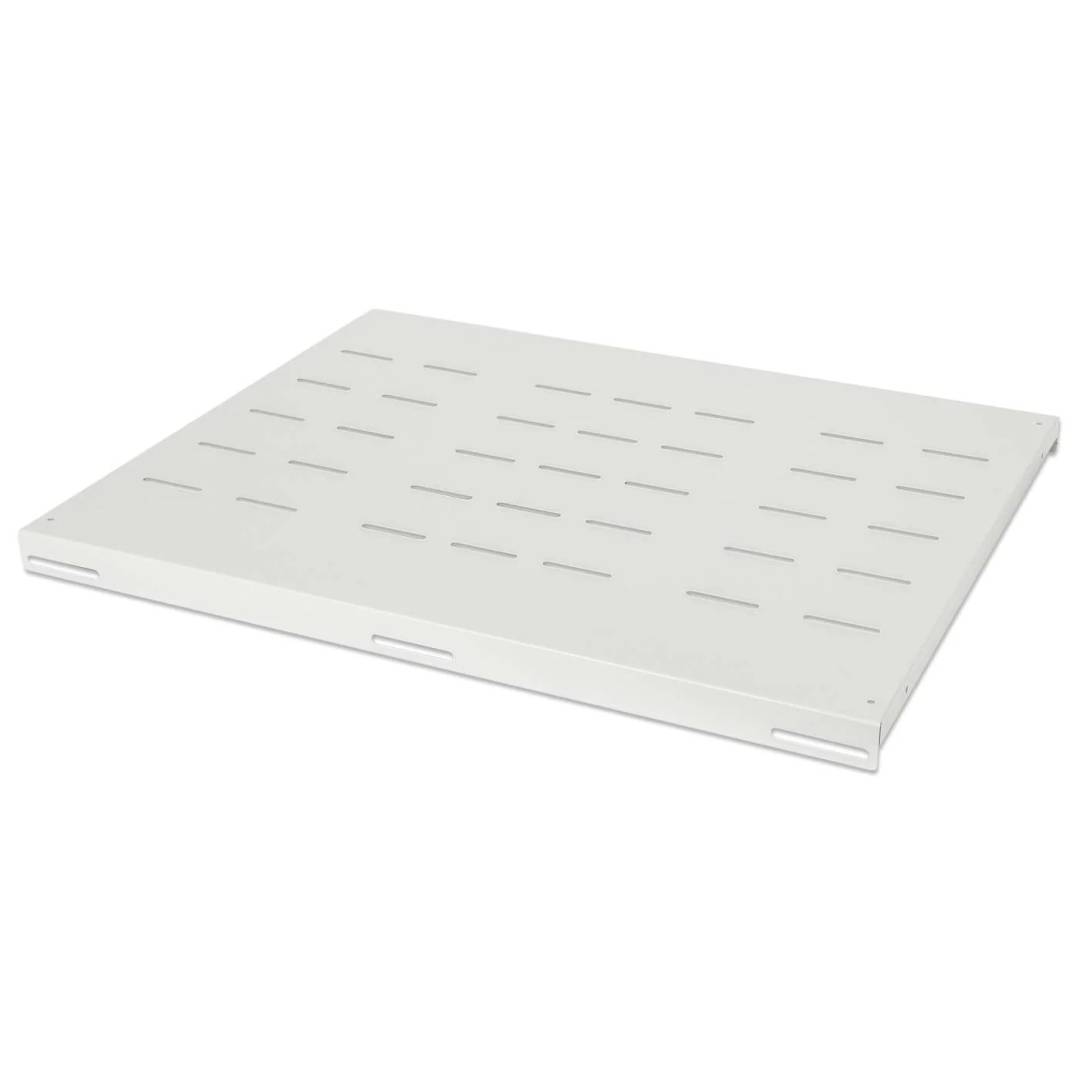

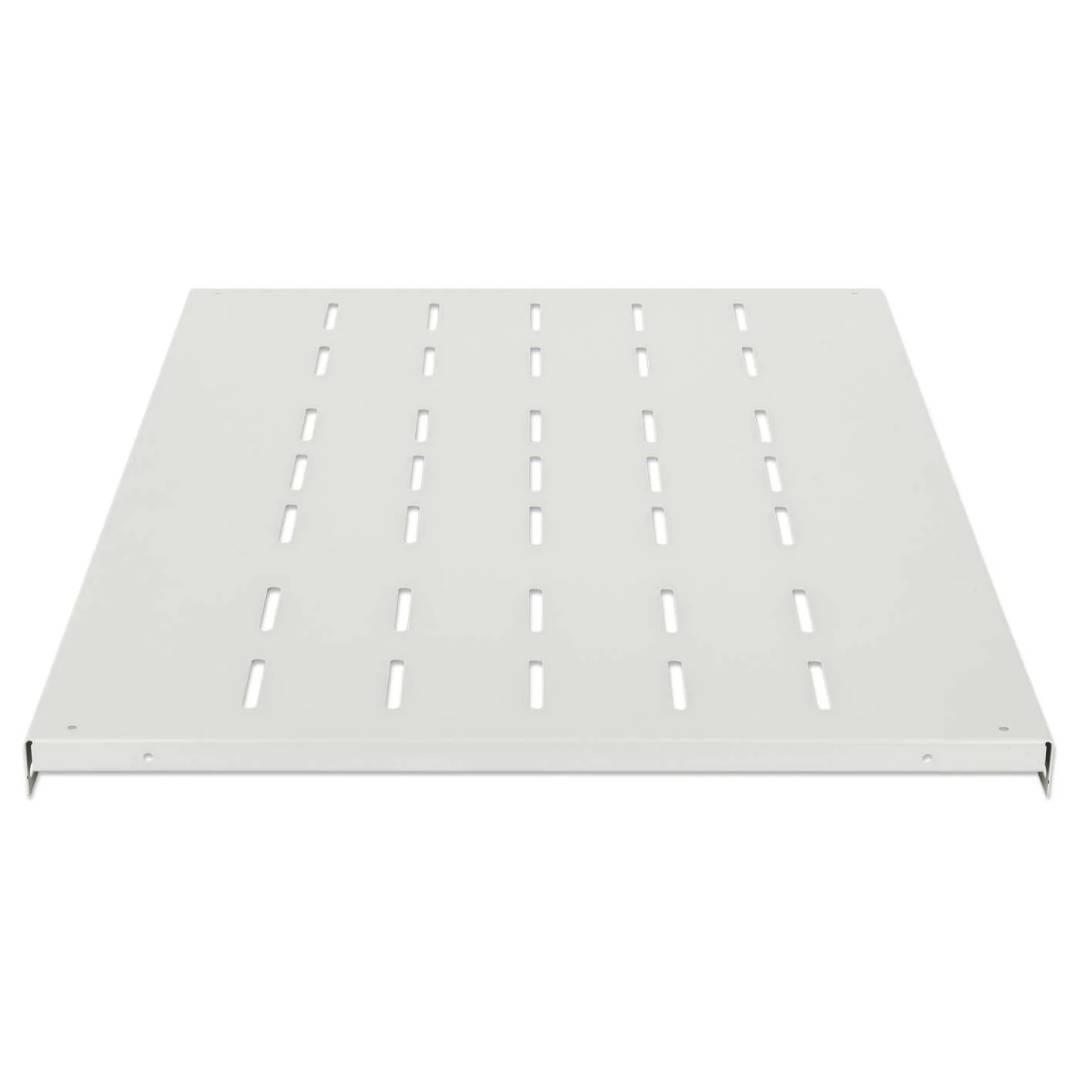

Intellinet 19-Inch Heavy-Duty Fixed Shelf, 1U, 600 mm — 100 kg Static Load, Grey RAL 7035
1U600 mm depth100 kg staticCabinets from 800 mm
The Intellinet 712286 is a heavy-duty 1U 19-inch fixed shelf, 600 mm deep and made of 1.5 mm steel, with a maximum static load of 100 kg, for supporting UPS systems, servers, storage and other heavy equipment in 19-inch cabinets at least 800 mm deep.
Most rack shelves are rated for 15 to 50 kg. This one is built for the heavy end of a cabinet: rack UPS units without their own rails, tower servers laid on their side, battery packs and full storage enclosures. The 600 mm depth supports long devices along their whole length, and the antistatic powder-coated grey RAL 7035 finish matches grey Intellinet and third-party cabinets.
Before you order: Intellinet specifies this shelf for 19-inch cabinets with a minimum depth of 800 mm. It will not fit a 600 mm deep cabinet. The 100 kg rating is a static load — the shelf is not designed to be pulled out with equipment on it.
What's in the Box
- 1 x 19-inch 1U heavy-duty fixed shelf, grey RAL 7035
- Cage nut set: 4 cage nuts, 4 screws, 4 plastic washers
What It Means in Practice
- 100 kg static load: a rack UPS, a server or a storage enclosure can sit on one shelf.
- 600 mm of depth supports long devices along their full length.
- 1.5 mm steel keeps the shelf flat under heavy loads.
- Mount heavy shelves low in the cabinet to keep the centre of gravity down.
What Will Not Work
- Cabinets shallower than 800 mm — including all 600 mm deep wall and floor cabinets.
- Sliding or pull-out use: it is a fixed shelf rated for static load.
- Dynamic loads such as equipment moved on the shelf while the rack is transported.
- Open frames or cabinets without standard 19-inch rails.
Key Features
100 kg static load
Built for UPS systems, servers and storage.
1.5 mm steel
Heavy-gauge construction for rigidity.
600 mm depth
Full-length support for long devices.
3-year warranty
Intellinet backs the shelf with a three-year warranty.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Heavy equipment without rack rails is a common reason for sagging front rails and bent shelves. A 1.5 mm, 100 kg-rated shelf solves that properly — as long as your cabinet is 800 mm deep or more. See more 19-inch rack accessories for your cabinet.
✓ Buy it if you need to carry a UPS, a server or storage up to 100 kg in a cabinet at least 800 mm deep.
✕ Skip it if your cabinet is 600 mm deep, or you need a pull-out shelf.
→ Also consider the Intellinet shelf with variable rails for 600 mm cabinets and loads up to 20 kg, or 712576 in black.
Not sure your cabinet is deep enough? Send us the cabinet model or its depth and we will check before you order.
Features - Intellinet - 712286
Colour
grey
More Details
Product Code
04:155751
EAN Code
0766623712286
Manufacturer
Intellinet
