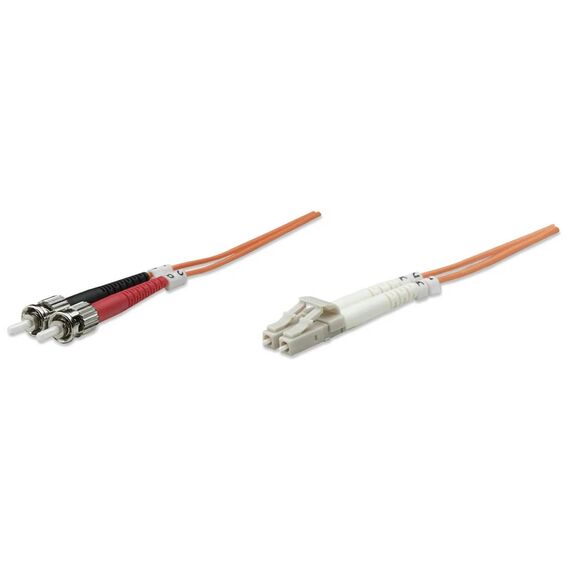

Intellinet LC-ST OM1 Duplex Fibre Patch Cable — 1 m
OM1 MultimodeLC/UPC – ST/UPC1 mLSZH 3 mm

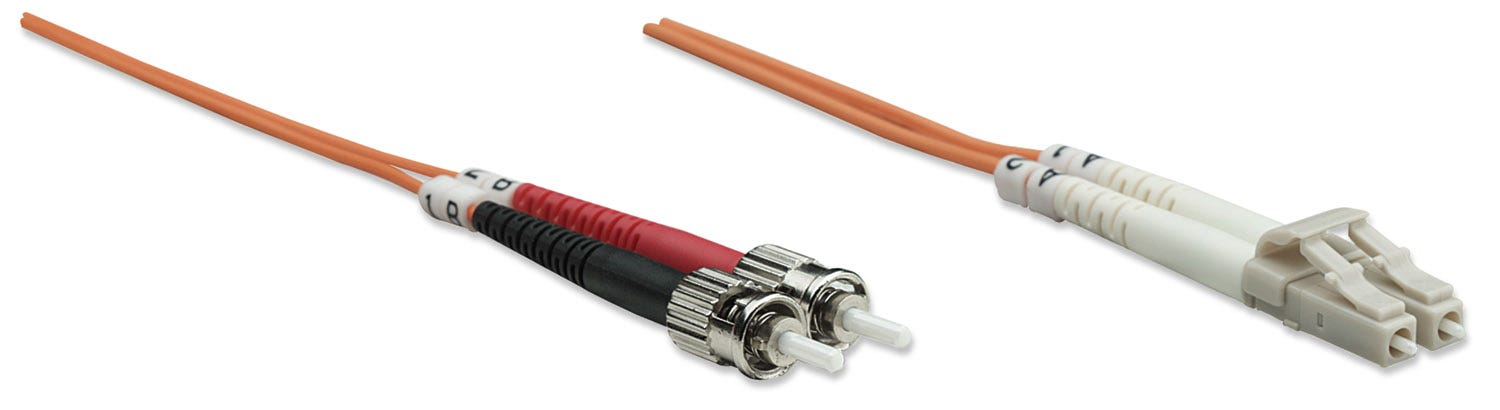

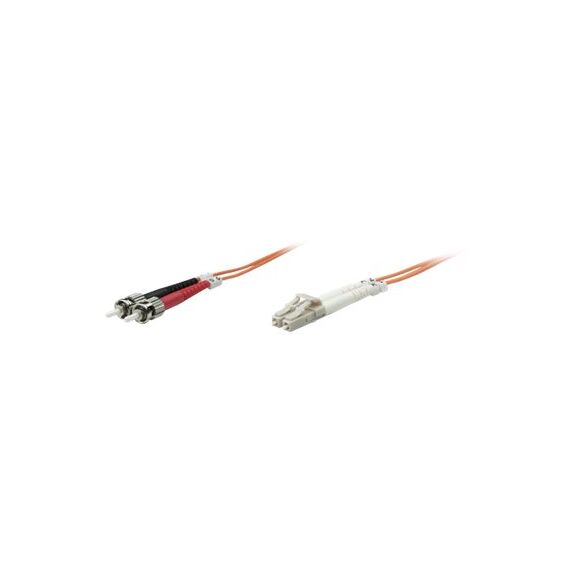

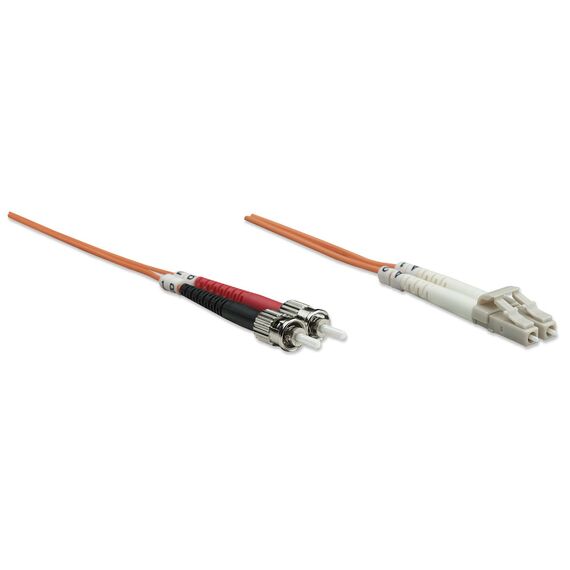

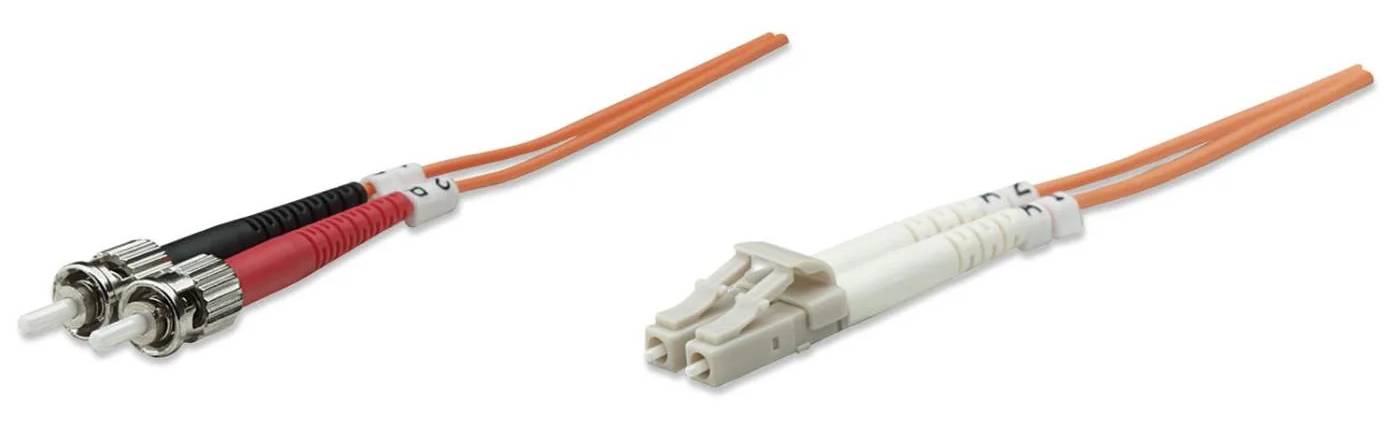

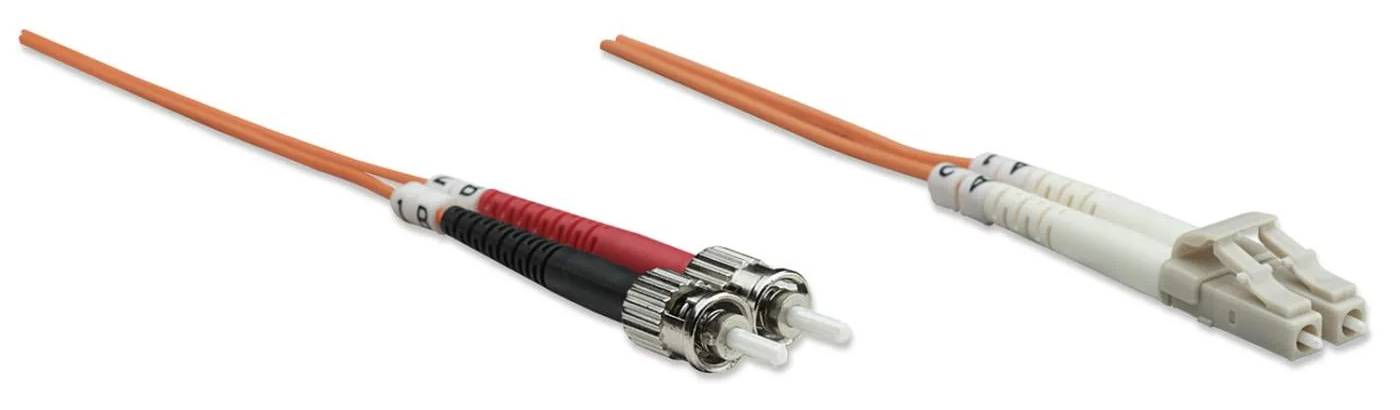

The Intellinet 471305 is a 1 m duplex fibre optic patch cable with LC/UPC and ST/UPC connectors on OM1 multimode fibre (62.5/125 µm), for connecting multimode SFP/SFP+ transceivers, media converters and patch panels in racks, offices and server rooms.
OM1 (62.5/125 µm, orange jacket by convention) is the legacy multimode type found in older campus and building backbones. Use this cable to extend, repair or re-patch an existing OM1 installation; for a brand-new multimode link, OM3 or OM4 is the modern choice.
Before you order: This is OM1 multimode cable. It only works with multimode optics (SR/SX, 850 nm) and multimode panels, not with LX/LR singlemode transceivers.
What's in the Box

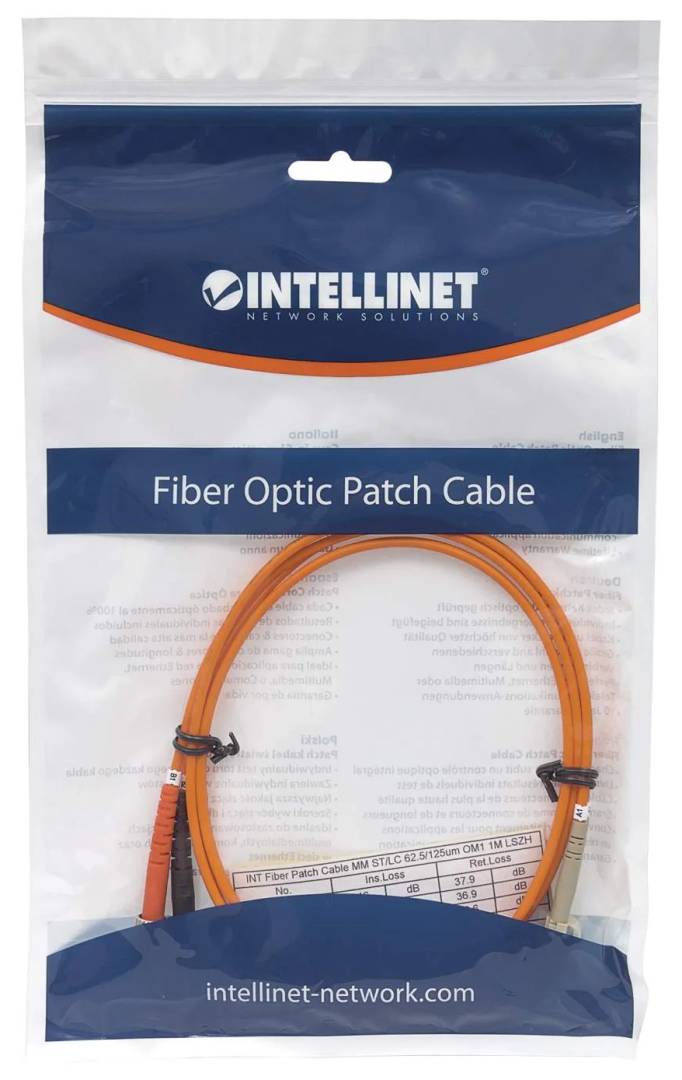

- 1 × Intellinet 471305 duplex fibre patch cable, LC/UPC – ST/UPC, 1 m

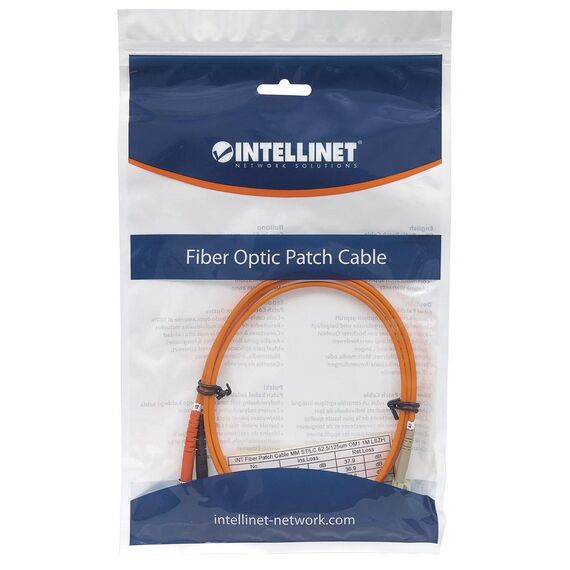

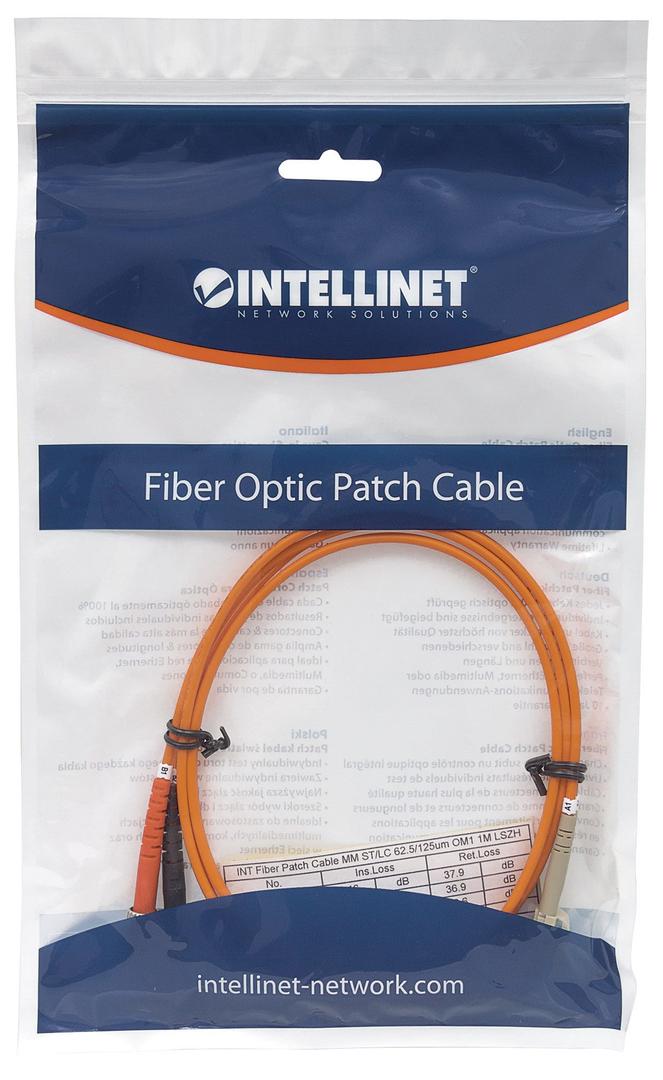

- Supplied in a polybag
What It Means in Practice
- 1 m is a short jumper: switch to patch panel in the same rack, transceiver to a nearby panel, or port to port in adjacent units.
- Duplex means two fibres (transmit and receive) in one cable, which is exactly what a standard duplex SFP, SFP+ or QSFP transceiver needs.
- LSZH jacket, 3 mm outer diameter, orange: halogen-free, the usual requirement for cabling inside offices, public buildings and data rooms.
- Minimum bend radius 30 mm: keep curves in cable managers and trunking wider than this to avoid extra loss or a damaged fibre.
What Will Not Work
- It will not mate correctly with APC (angled, normally green) ports or adapters; those need an APC cable.
- The two ends are different (LC and ST). If both of your ports are LC (or both ST), you need an LC-LC or ST-ST cable instead.
- Do not mix OM1 (62.5 µm core) with OM3/OM4/OM5 (50 µm core) segments in the same link: the core mismatch causes high loss.
- It is not a copper cable: it does not connect to RJ45 ports or copper (RJ45) SFP modules.
Key Features
Connectors

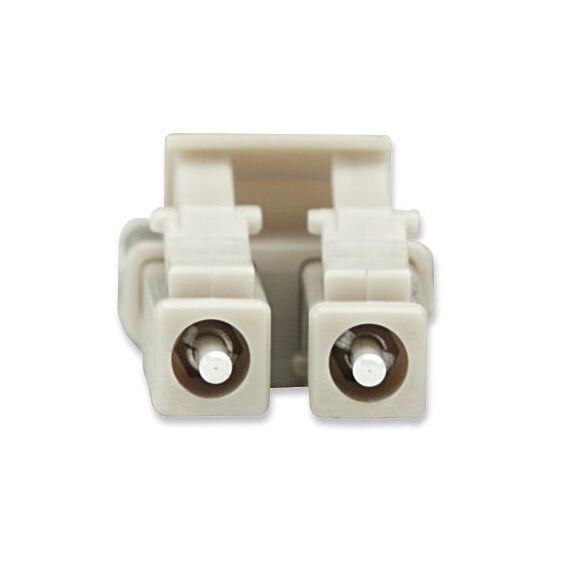

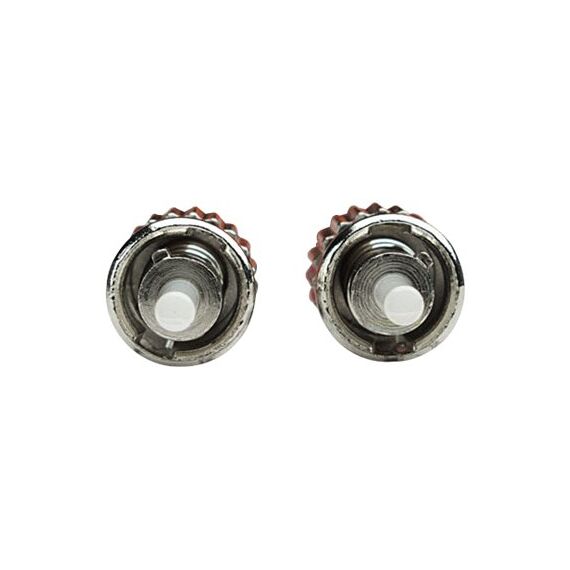

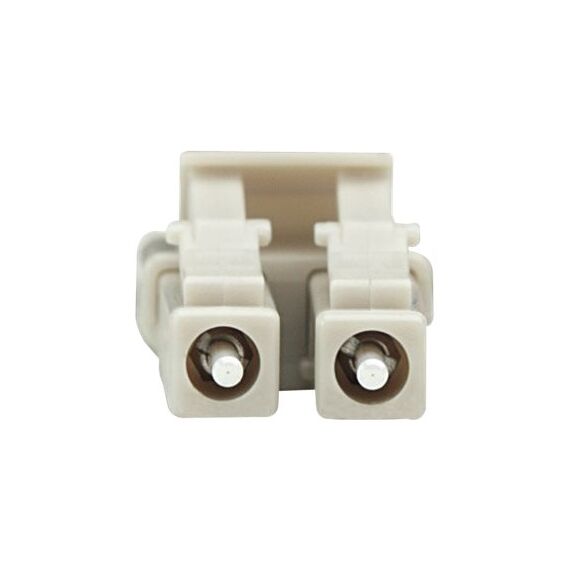

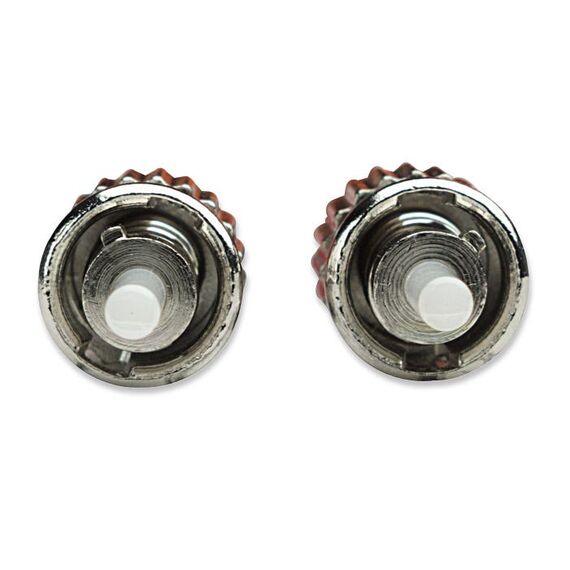

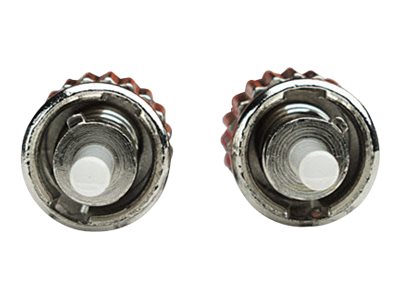

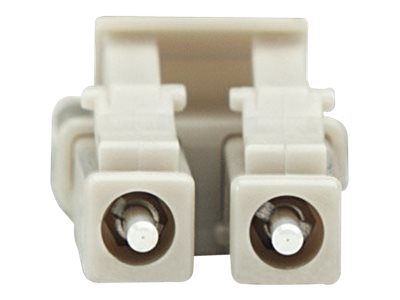

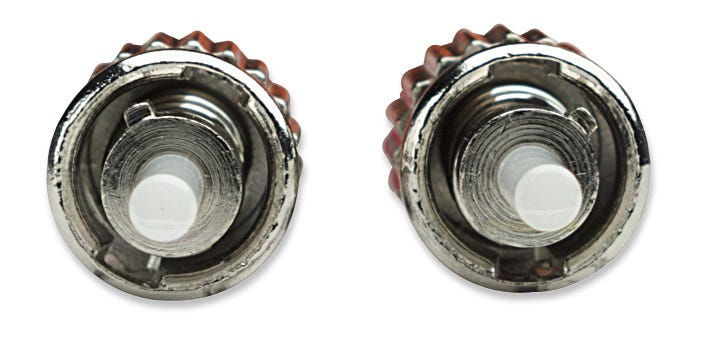

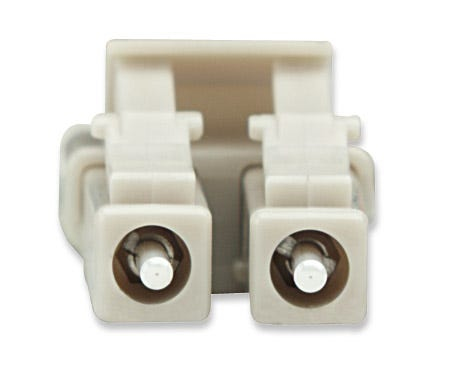

LC/UPC to ST/UPC with ceramic ferrules.
Fibre
OM1 multimode, 62.5/125 µm, 2 fibres.
Jacket
LSZH, 3 mm, orange.
Quality
Insertion loss ≤ 0.25 dB, return loss ≥ 35 dB, per the manufacturer datasheet.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Most fibre problems we see come from three mismatches: multimode vs singlemode, UPC vs APC, and LC vs SC. This Intellinet cable is OM1 multimode, UPC LC-ST, so match it to your optics and panel first. If you are building the link from scratch, pick the transceivers and switches with SFP ports first, then choose the cable that matches them.
✓ Buy it if your equipment uses OM1 multimode fibre with LC/UPC and ST/UPC ports and 1 m covers the distance.
✕ Skip it if your transceivers are singlemode (LR/LX), or your ports are APC.
→ Also consider the same cable in other lengths, or an LC-LC version if your ports differ; matching SFP/SFP+ transceivers.
Not sure which cable you need? Send us the model of your switch, transceiver or panel and we will check connectors and fibre type before you order.
Features - Intellinet - 471305
Colour
orange
Length
1.0m
More Details
Product Code
04:193986
EAN Code
0766623471305
Manufacturer
Intellinet
