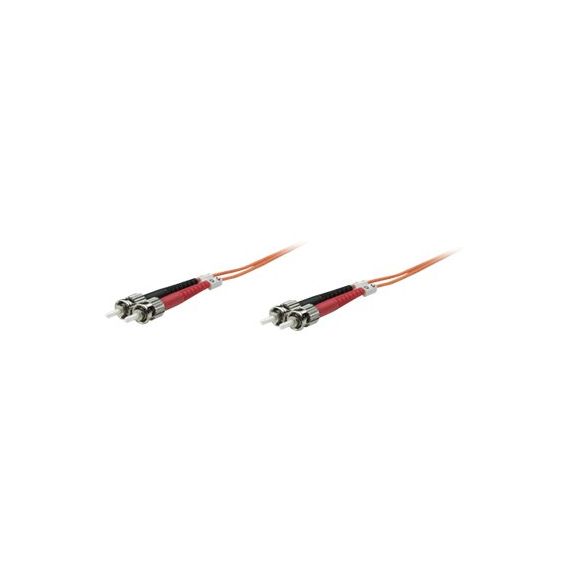

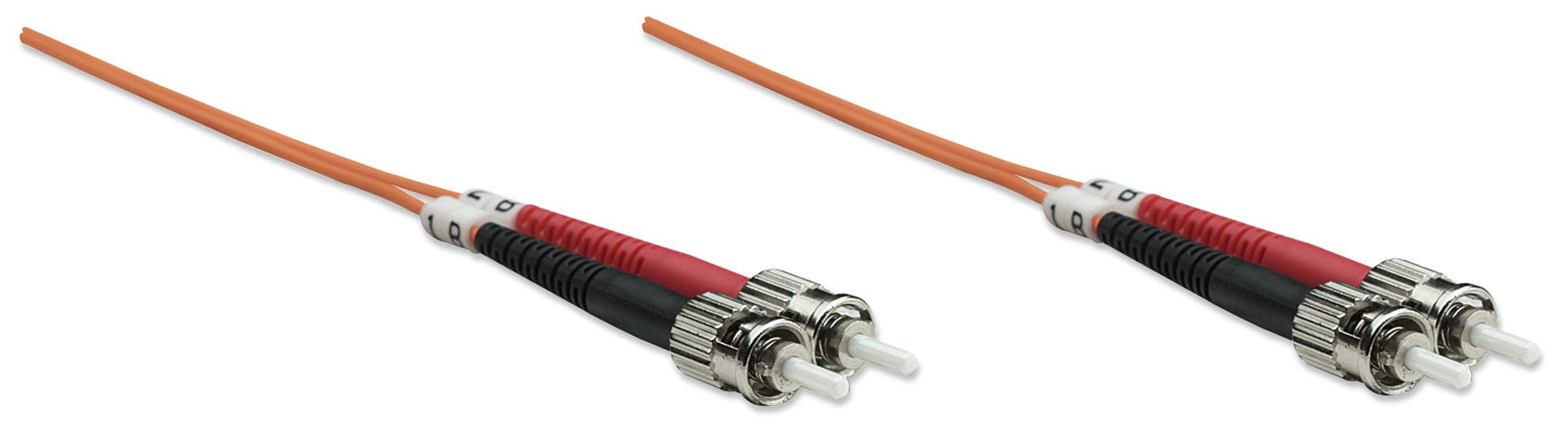

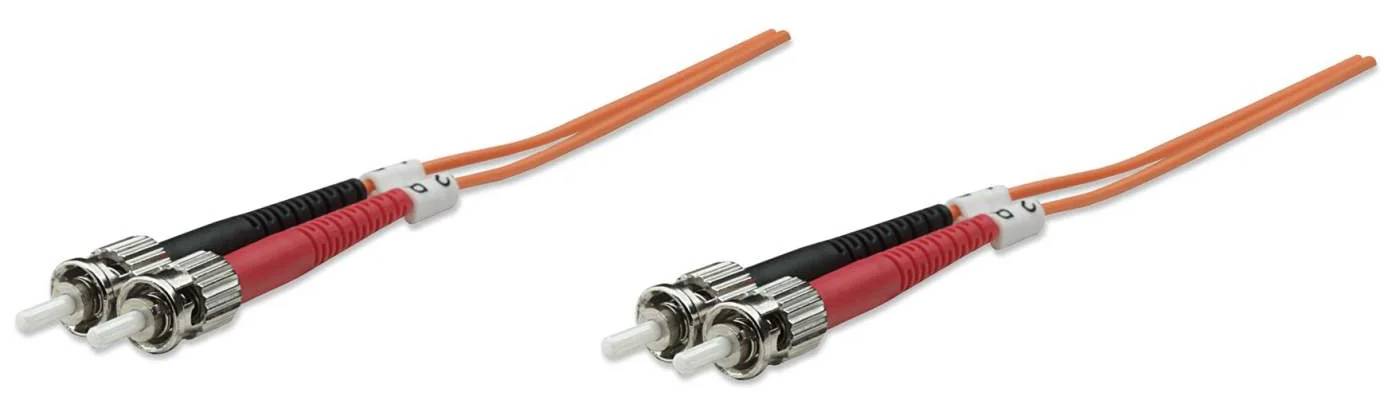

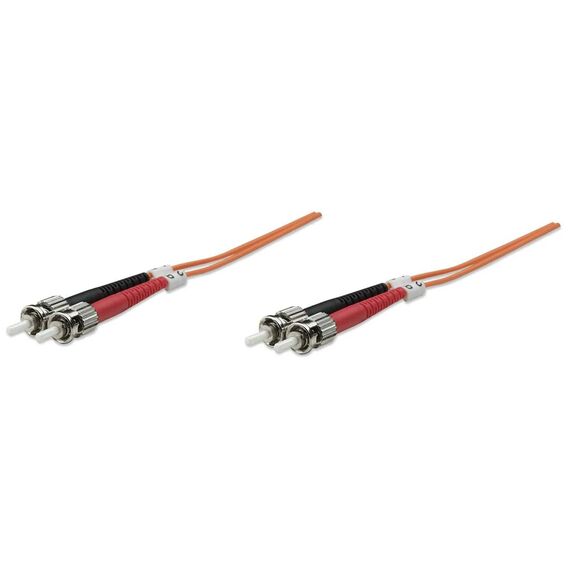

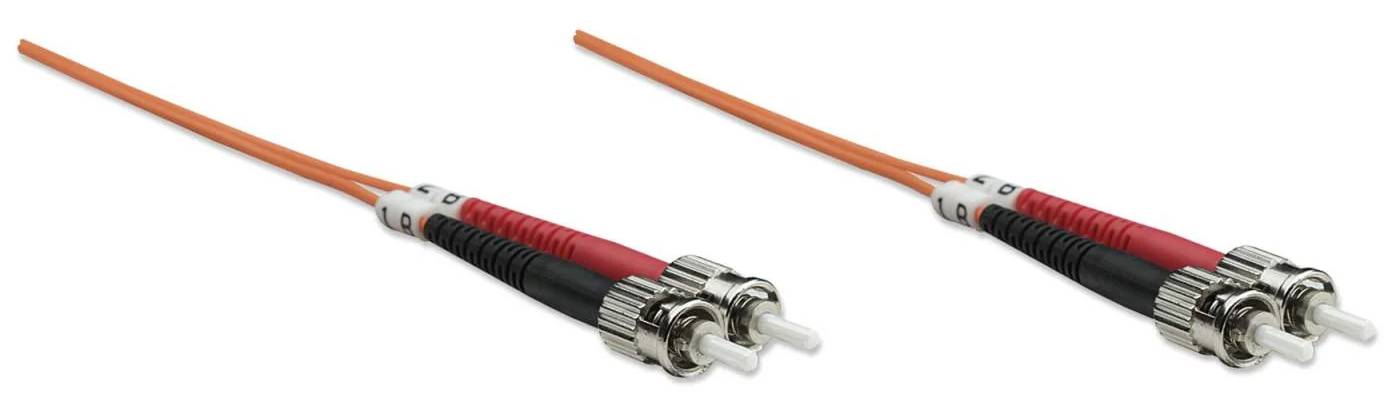

Intellinet 1m ST to ST OM1 Multimode Duplex Fibre Patch Cable
ST ↔ STOM1 62.5/125 µm1m · DuplexLSZH · Orange

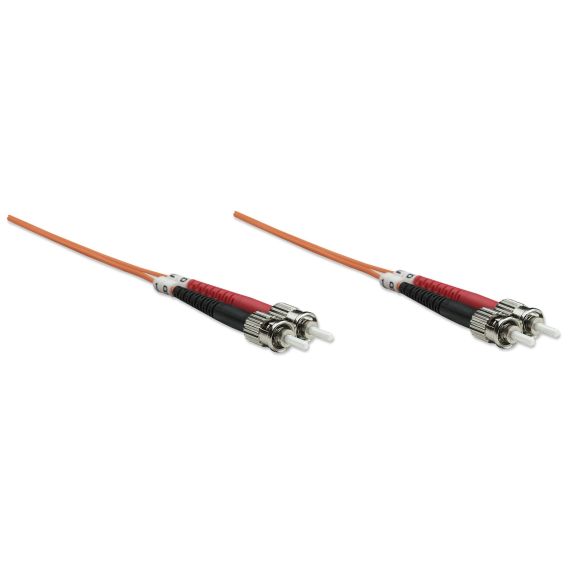

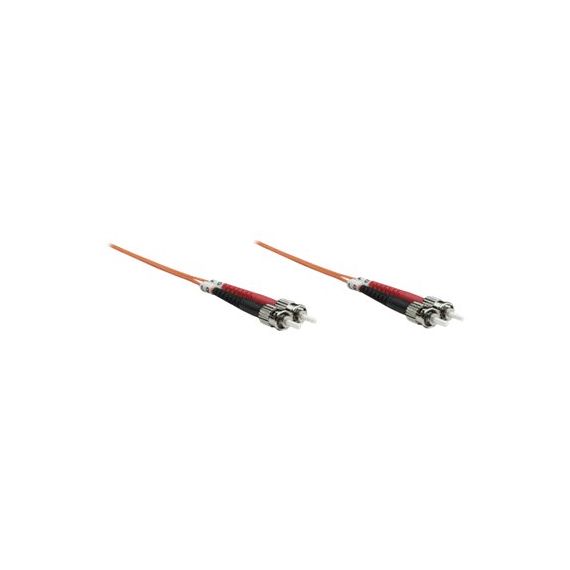

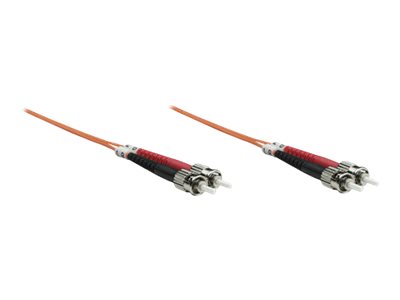

The Intellinet 1m ST to ST patch cable is a duplex OM1 multimode 62.5/125 µm fibre jumper with UPC-polished ceramic ferrules, built for linking ST patch panels, media converters and switch ports in racks and comms rooms.
The 3.0 mm LSZH (low smoke, zero halogen) jacket is orange, the usual colour code for OM1 multimode fibre, so it is easy to tell apart from other links in a crowded rack. Insertion loss is rated at ≤0.25 dB per connector and return loss at ≥35 dB.
Before you order: Fibre type must match on both ends. This is OM1 multimode (62.5 µm core) — do not mix it with OM2/OM3/OM4 (50 µm) links or with single-mode optics.
What's in the Box
- 1 × Intellinet duplex fibre optic patch cable, ST to ST, 1m

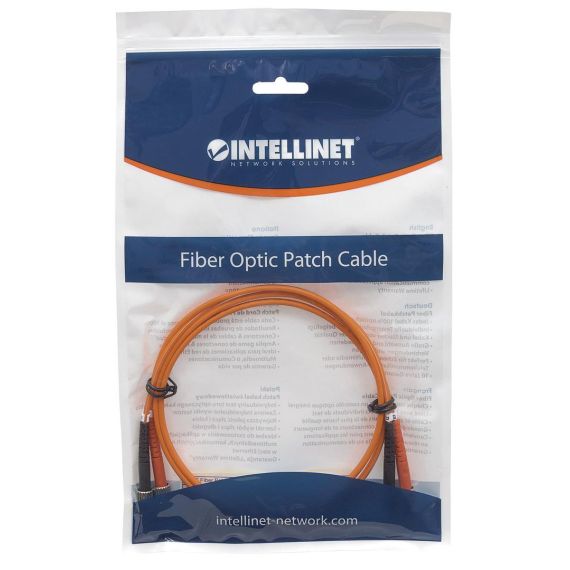

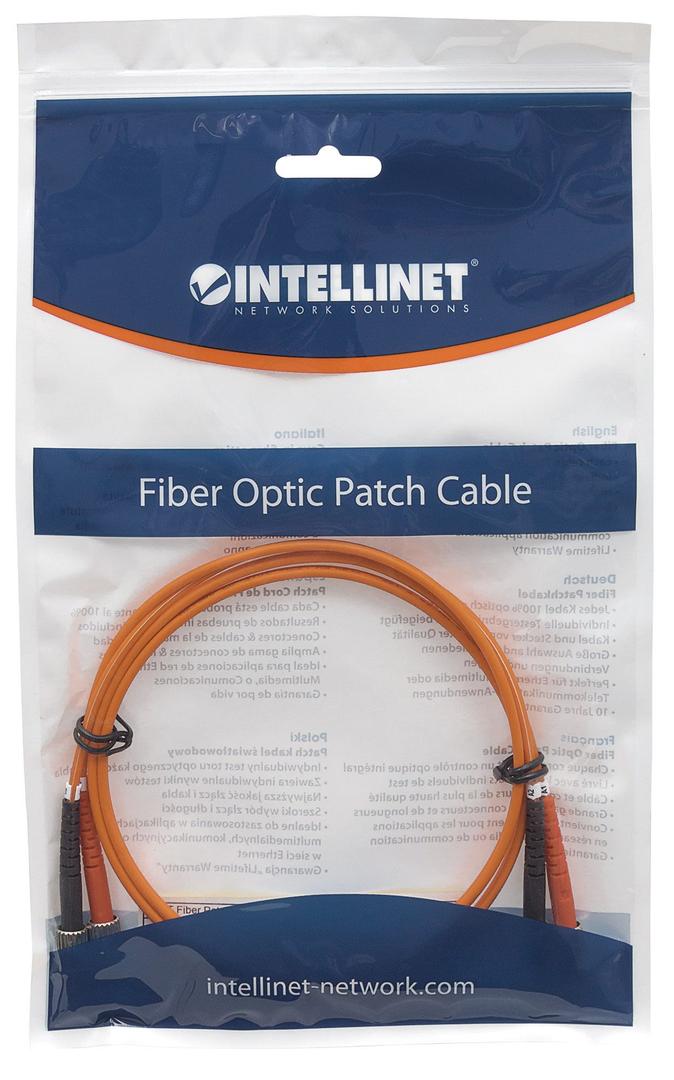

- Supplied in a polybag (bag packaging)
What It Means in Practice
- Duplex means two fibres in one zip-cord: one carries transmit, the other receive — exactly what SFP/SFP+ ports and media converters expect.
- Both ends are ST, so it suits panel-to-panel or panel-to-device runs where both sides use ST adapters.
- OM1 is the legacy multimode grade: fine for 100M and 1G links; at 10G the standard reach over OM1 is only about 33 m, so it is mainly for maintaining existing OM1 installations.
- LSZH jacketing is the safer choice inside offices and server rooms, where low smoke and no halogen gases matter in case of fire.
What Will Not Work
- Single-mode optics (LX, LR) or OS2 patch panels — use an OS2 single-mode cable instead.
- Ports with other connectors (SC, MTP/MPO, E2000) unless you use the matching connector type at each end.
- APC (green, angled) ports — this cable is UPC polished; mating UPC with APC damages the end faces.
- Copper RJ45 ports — fibre needs an SFP module or a media converter.
Key Features

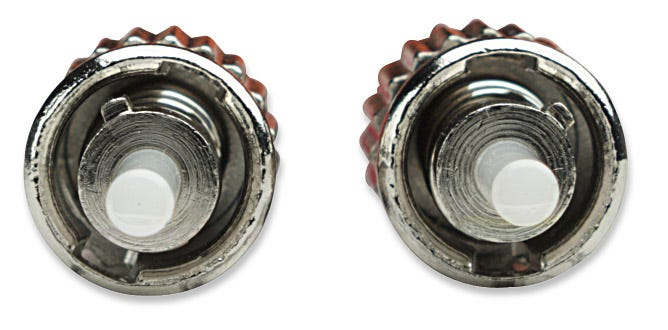

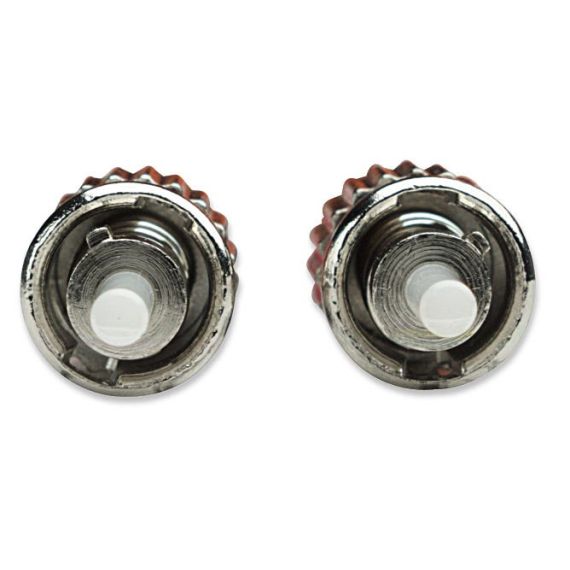

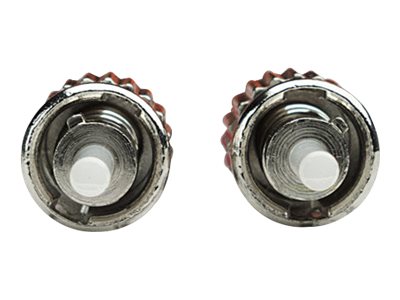

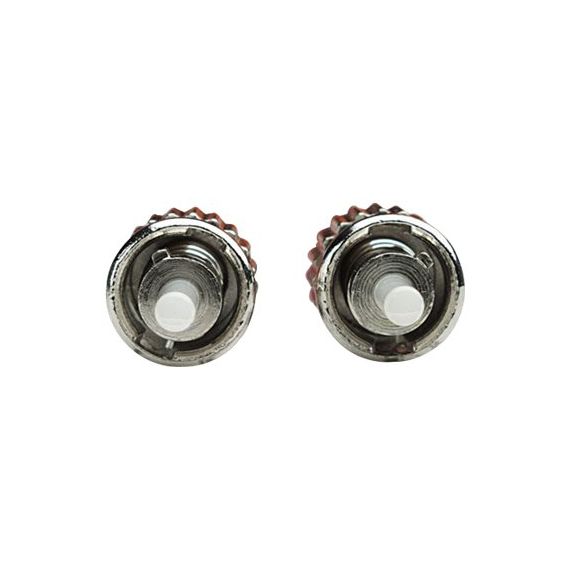

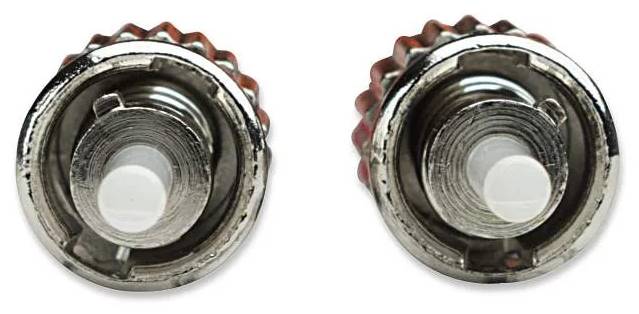

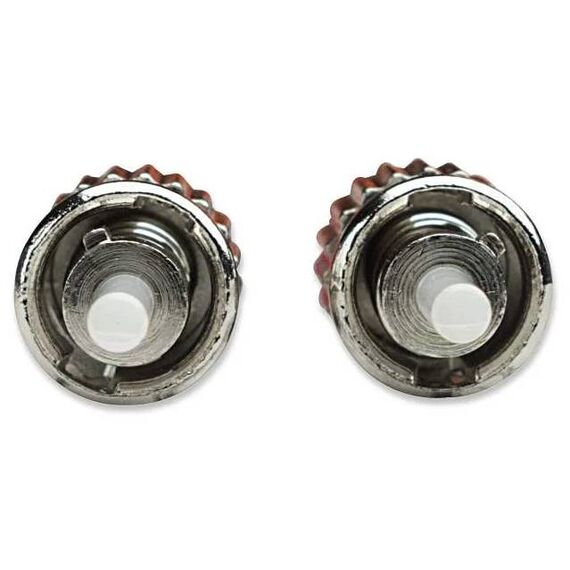

UPC ceramic ferrules
Precision ceramic ferrules with UPC polish keep insertion loss at ≤0.25 dB and return loss at ≥35 dB.
LSZH 3.0 mm jacket
Low-smoke zero-halogen jacket, orange colour-coded for OM1 fibre.
Duplex zip-cord
Two fibres for transmit and receive, ready for SFP ports and media converters.
Wide temperature range
Rated for −40 to +75 °C operation with a 30 mm bend radius.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Most fibre problems come from mismatched fibre types or connectors, not from the cable itself. Check the label on your transceivers (SX = multimode) and the connector on each end before ordering. If you are planning new links, browse our fibre-capable switches and pick optics that match this cable.
✓ Buy it if you need a 1m duplex OM1 multimode jumper with ST on one end and ST on the other.
✕ Skip it if your optics are single-mode or OM3/OM4, or your ports are APC (green).
→ Also consider the same cable in other lengths, or an OM3/OS2 version with different connectors — ask us.
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
Features - Intellinet - 515757
Colour
orange
Length
1.0m
More Details
Product Code
04:194057
EAN Code
0766623515757
Manufacturer
Intellinet
