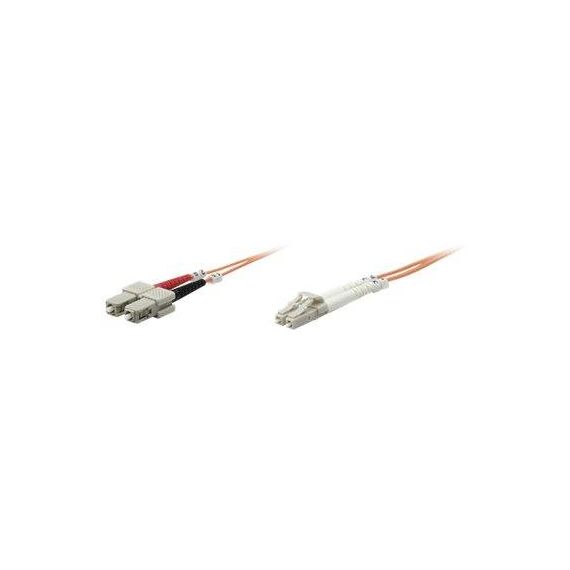

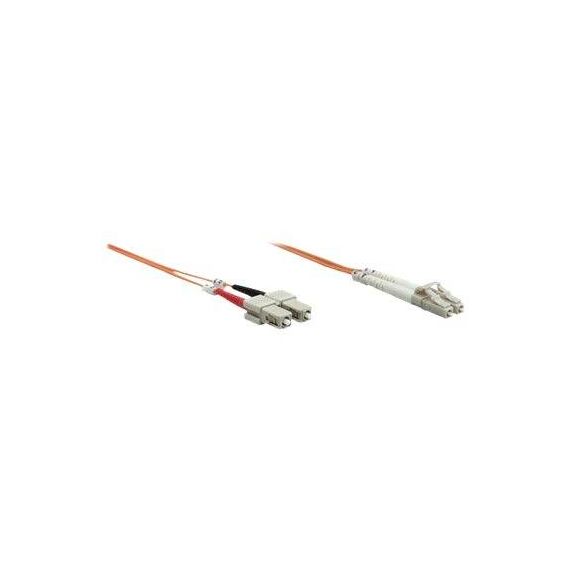

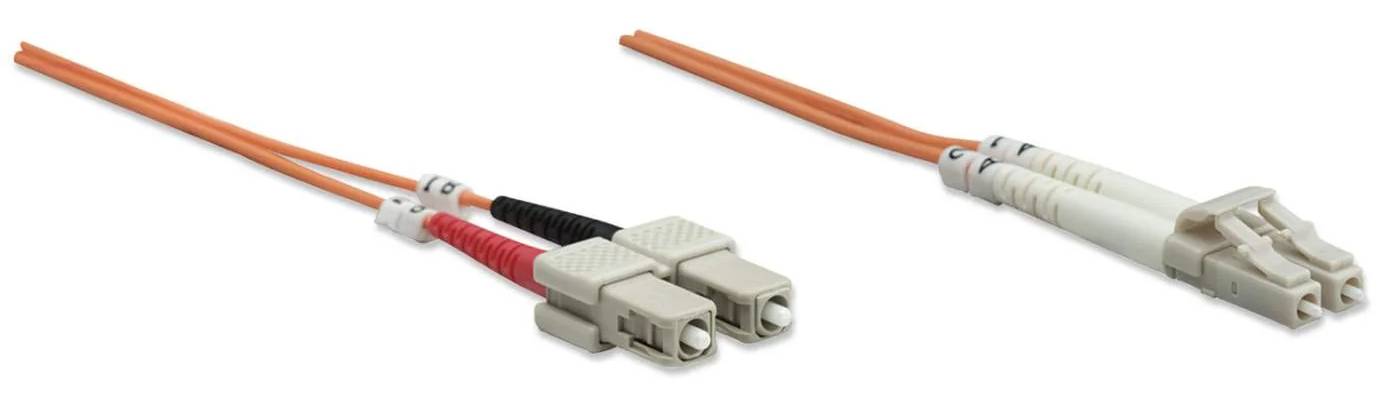

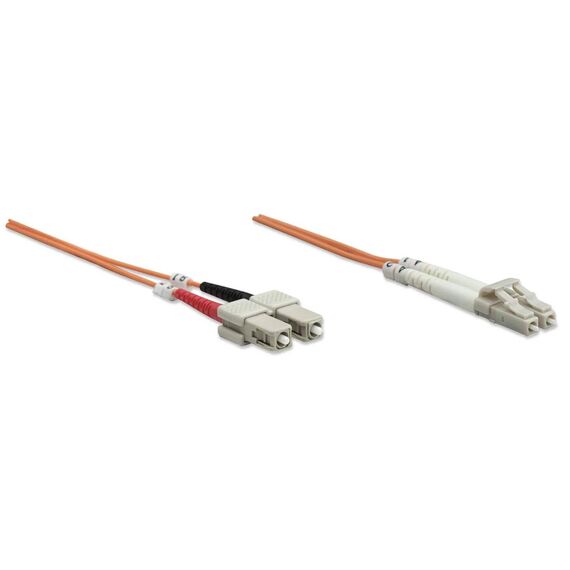

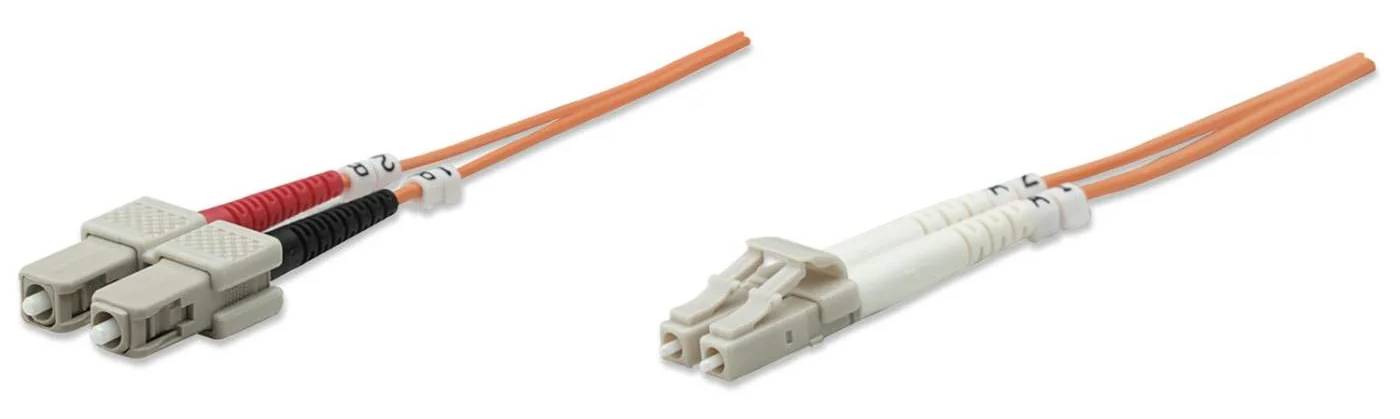

Intellinet OM2 LC to SC Duplex Fiber Optic Patch Cable, 1 m
OM2 MultimodeLC to SCDuplex1 m
The Intellinet OM2 multimode fiber optic patch cable connects an LC port to an SC port over 1 m of 50/125 µm duplex fibre, made for the fiber ports of switches, servers, media converters and patch panels.
It suits IT technicians and installers who need a short jumper inside a rack on an OM2 link — OM2 is the classic grade for Gigabit short-reach links and for extending existing OM2 installations.
Before you order: This is a hybrid cable: LC on one end, SC on the other. Check both ports — and the fibre type (multimode OM2) — before you order; it is the most common mix-up with fiber patch cords.
What's in the Box
- 1 × Intellinet OM2 fiber optic patch cable, LC to SC, duplex, 1 m
- Supplied in a polybag
- SFP/SFP+ transceivers, couplers and cleaning tools are not included
What It Means in Practice
- Two fibres in one jacket: one carries transmit (Tx), the other receive (Rx) — one cable is a complete link between two duplex ports.
- OM2 multimode is rated for 1000BASE-SX Gigabit links up to 550 m and 10GBASE-SR up to 82 m; at 1 m the cable length never limits the link — the transceivers do.
- 1 m is the cable length end to end. Good for a jumper within the same rack or to the next one.
- If the link stays down after plugging in, the Tx/Rx pair is crossed: swap the two fibres at one end (on most duplex connectors this means swapping the two simplex halves or using the other cable end).
- Keep bends gentle and use soft velcro ties — a tight cable tie or kink adds loss or breaks the fibre.
- Jacket colour helps you identify the fibre at a glance in a busy rack: orange is the usual colour for OM1/OM2; this cable is orange.
- To extend a run, join two cables with an LC coupler of the same fibre type; every joint adds about 0.3 dB of loss, so on short links it does not matter, but a single longer cable is always cleaner.
What Will Not Work
- It will not work with singlemode transceivers (LX/LR, 1310/1550 nm) or on a singlemode (yellow) backbone — multimode and singlemode cannot be mixed.
- It does not fit ST/MPO/MTP ports — check the connector on both devices.
- It does not mate with APC (green, angled) connectors or couplers — those need an APC cable.
- It does not plug into copper RJ45 ports — a switch needs an SFP/SFP+ slot with a fiber transceiver, or a media converter.
Key Features
OM2 50/125 µm
Multimode fibre for short-reach 850 nm optics in racks and server rooms.

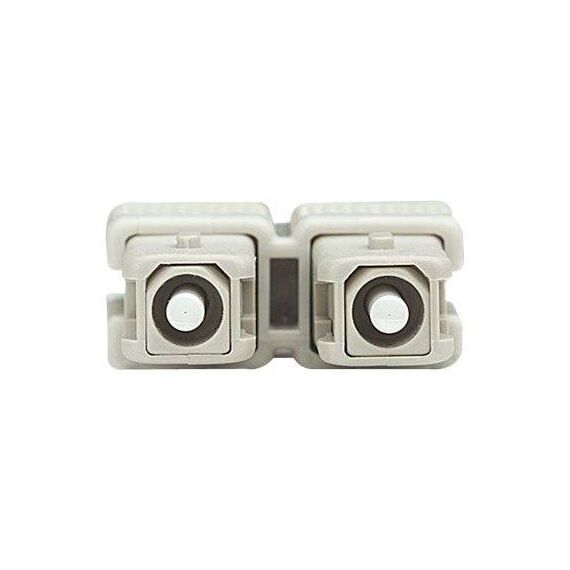

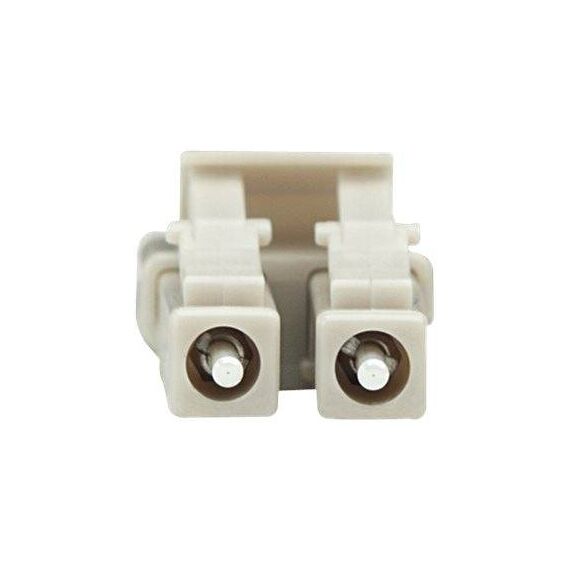

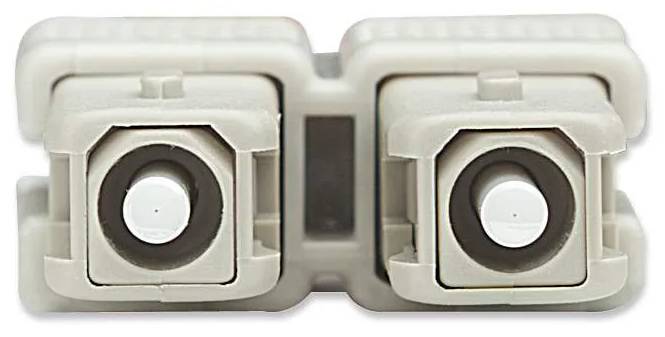

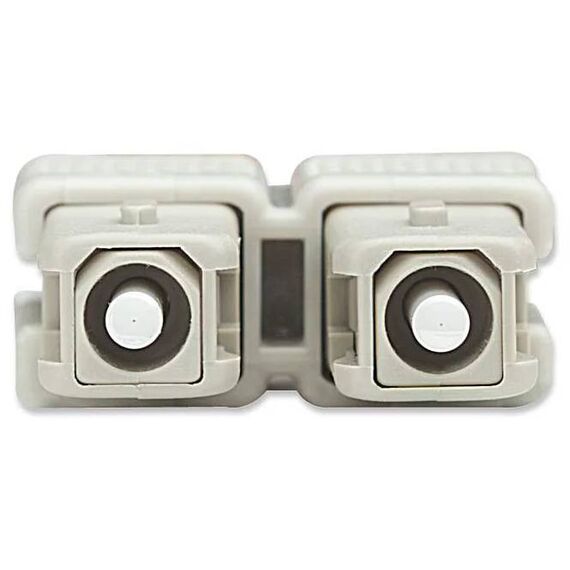

LC to SC connectors
Hybrid cable: LC on one end, SC on the other — links equipment with different port types.
LSZH jacket
Low-smoke, zero-halogen sheath for offices, server rooms and public buildings. Outer diameter 3.0 mm.
Ready to plug
Factory-terminated, polished connectors — no splicing or field termination needed for this 1 m run.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Most fiber links that fail on day one fail on the details: wrong fibre type, wrong connector or crossed Tx/Rx. This Intellinet cable is the right choice when both ends are LC and SC multimode and the run is 1 m. Pair it with the matching SFP/SFP+ modules on your network switches. In a rack we recommend ordering one spare jumper per link type and labelling both ends — it turns a midnight outage into a two-minute swap.
✓ Buy it if your devices have LC and SC ports, use multimode SX/SR optics and 1 m covers the route with some slack.
✕ Skip it if your optics are singlemode (LX/LR), your ports are APC (green), or you need a different length.
→ Also consider OM4 or OM3 cable in another length or with other connectors, and the SFP/SFP+ transceivers for both ends — ask us for the right match.
Not sure it fits? Send us the model of your switch, transceiver or patch panel and we will check connector, fibre type and length before you order.
Features - Intellinet - 470353
Colour
orange
Length
1.0m
More Details
Product Code
04:193761
EAN Code
0766623470353
Manufacturer
Intellinet
