Intellinet Fibre Optic Patch Cable OM3 Multimode, LC/UPC to SC/UPC Duplex, 50/125 µm, 1m, LSZH 3.0 mm, Aqua
Brand:
Intellinet
Intellinet Fibre Optic Patch Cable OM3 Multimode, LC/UPC to SC/UPC Duplex, 50/125 µm, 1m, LSZH 3.0 mm, Aqua
€8.85 inc. VAT
750912
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply

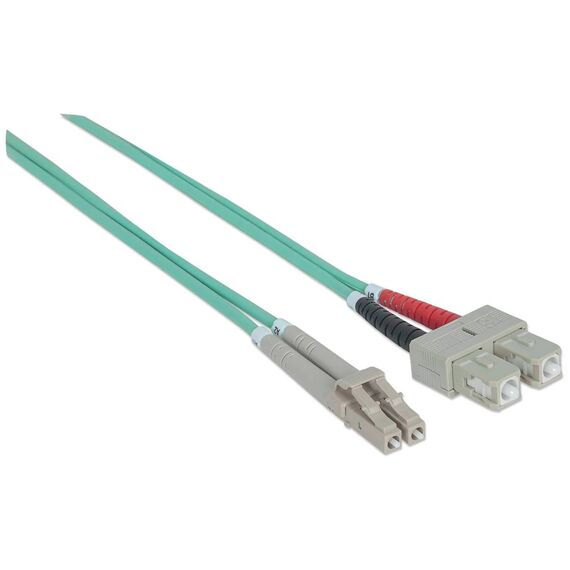

Intellinet OM3 Multimode Fibre Patch Cable — LC/UPC to SC/UPC, Duplex, 1 m
OM3 50/125 µmLC – SC UPC1 m DuplexLSZH Aqua

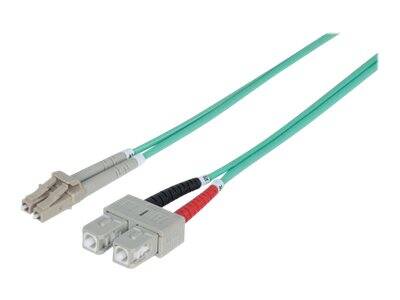

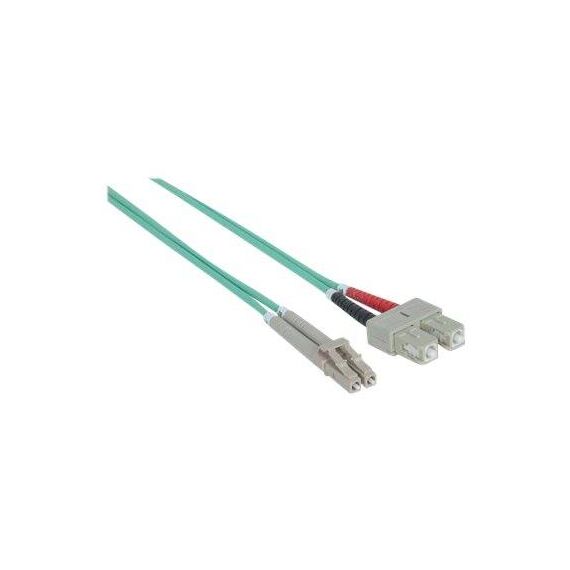

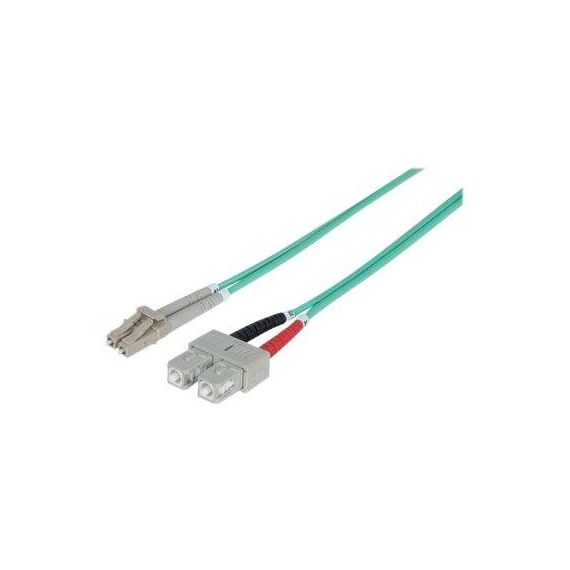

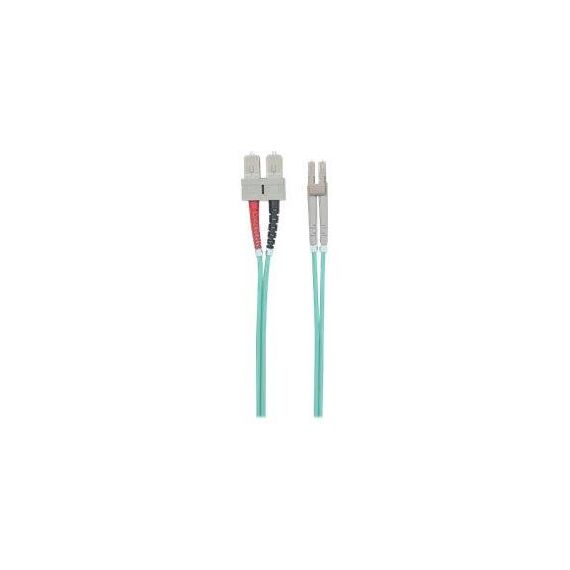

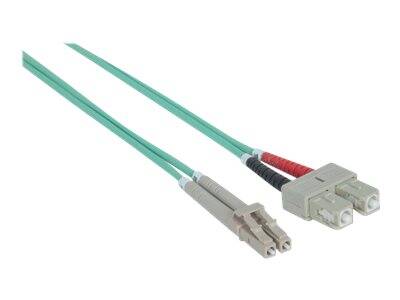

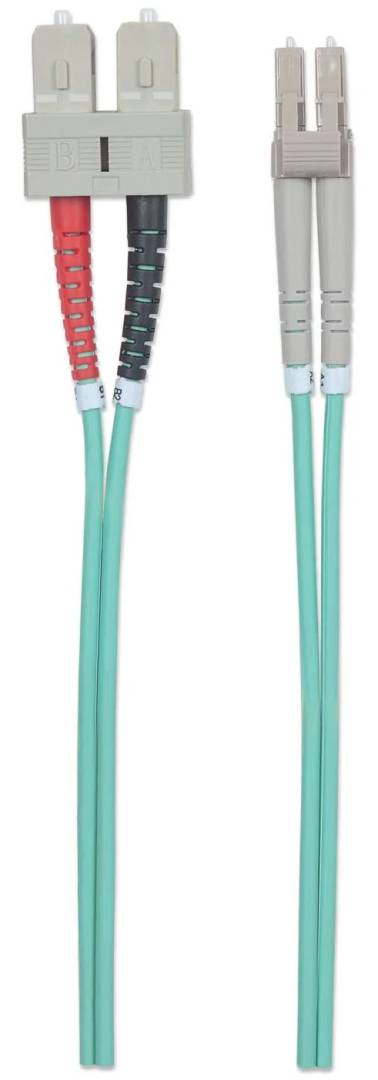

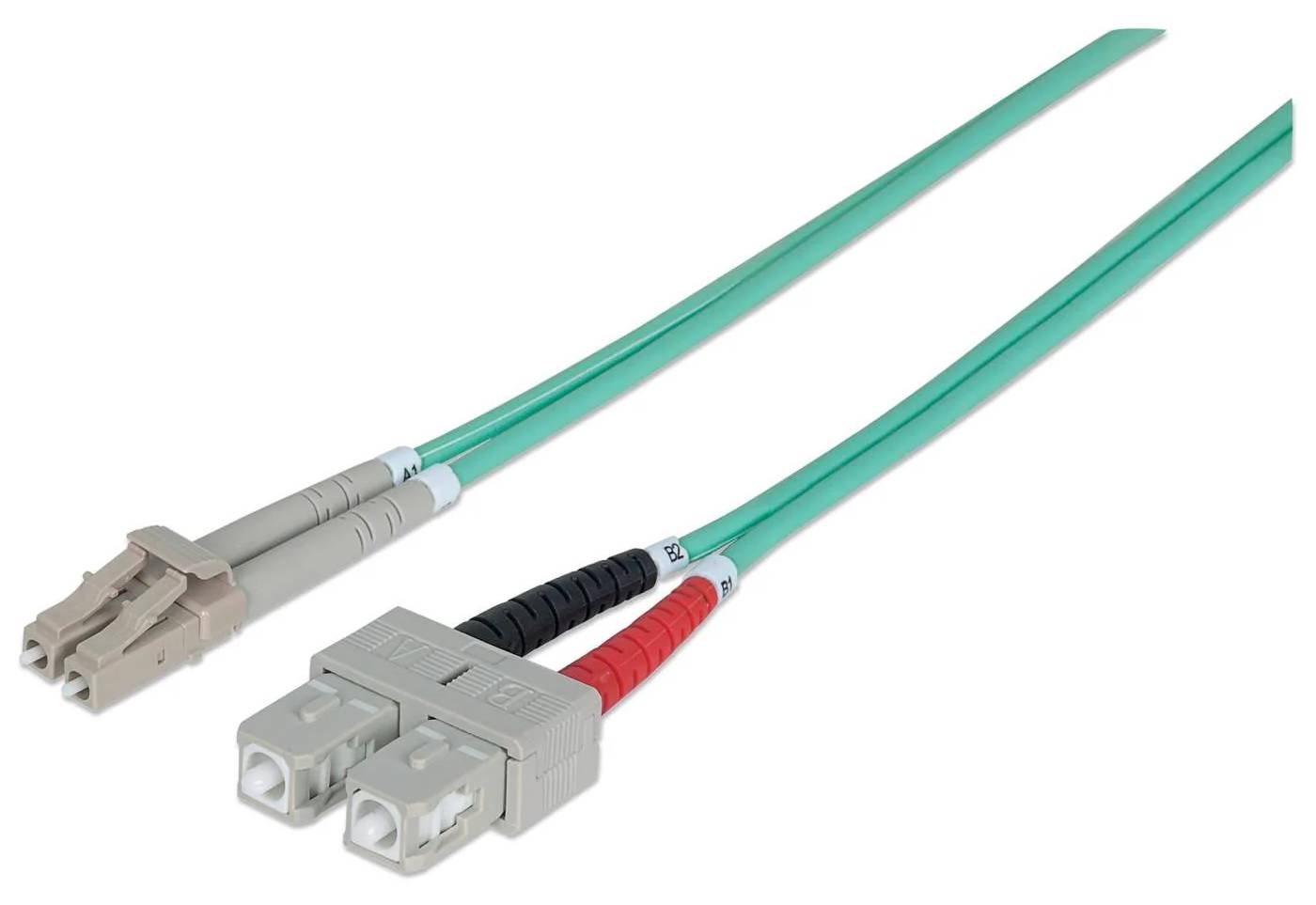

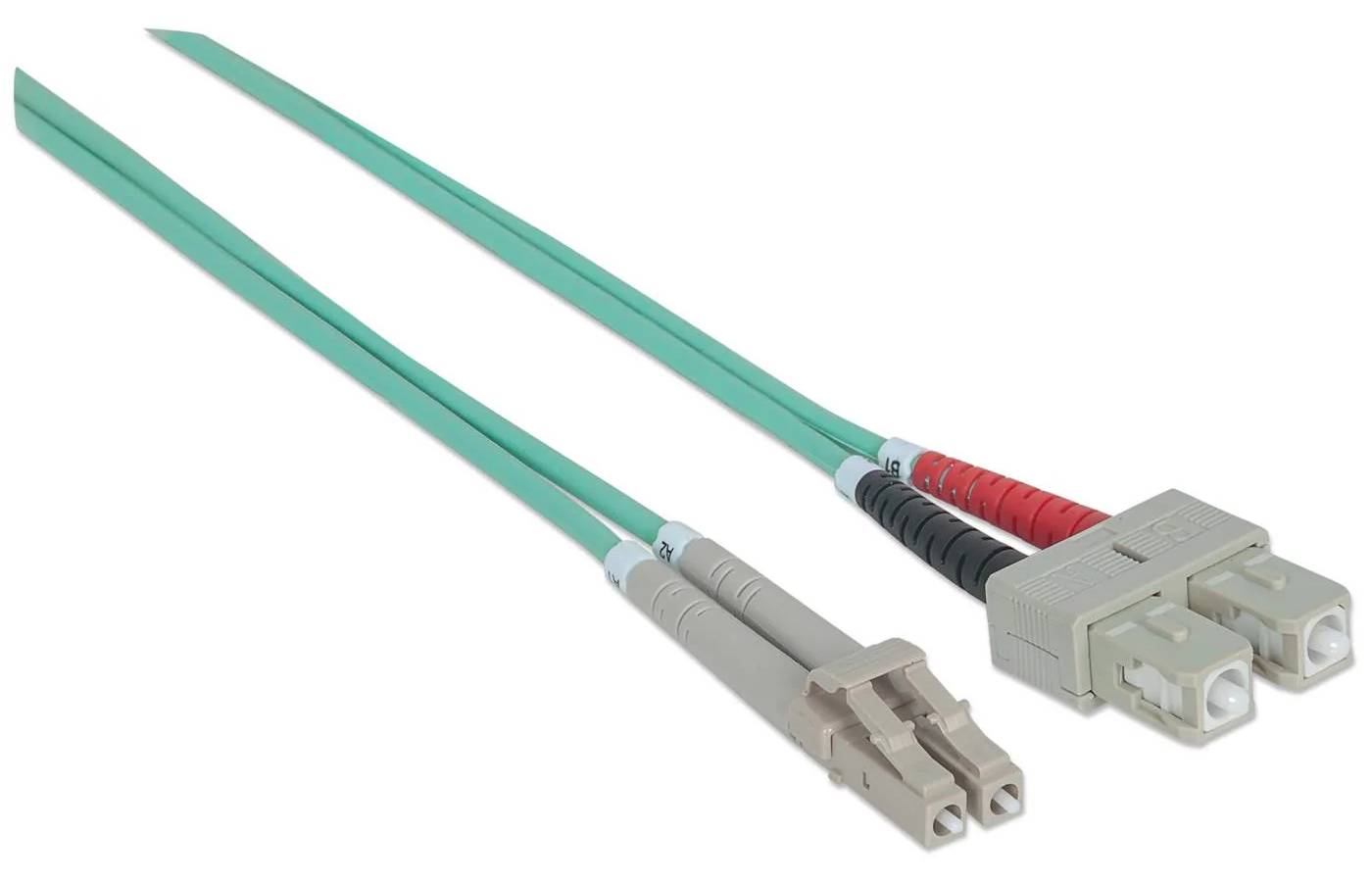

The Intellinet 750912 is a 1 m duplex OM3 multimode fibre optic patch cable with LC/UPC on one end and SC/UPC on the other, built on 50/125 µm fibre in a LSZH aqua jacket, 3.0 mm in diameter. It is made for short-reach links in server rooms and buildings with 850 nm SR/SX multimode transceivers on 50/125 µm fibre.

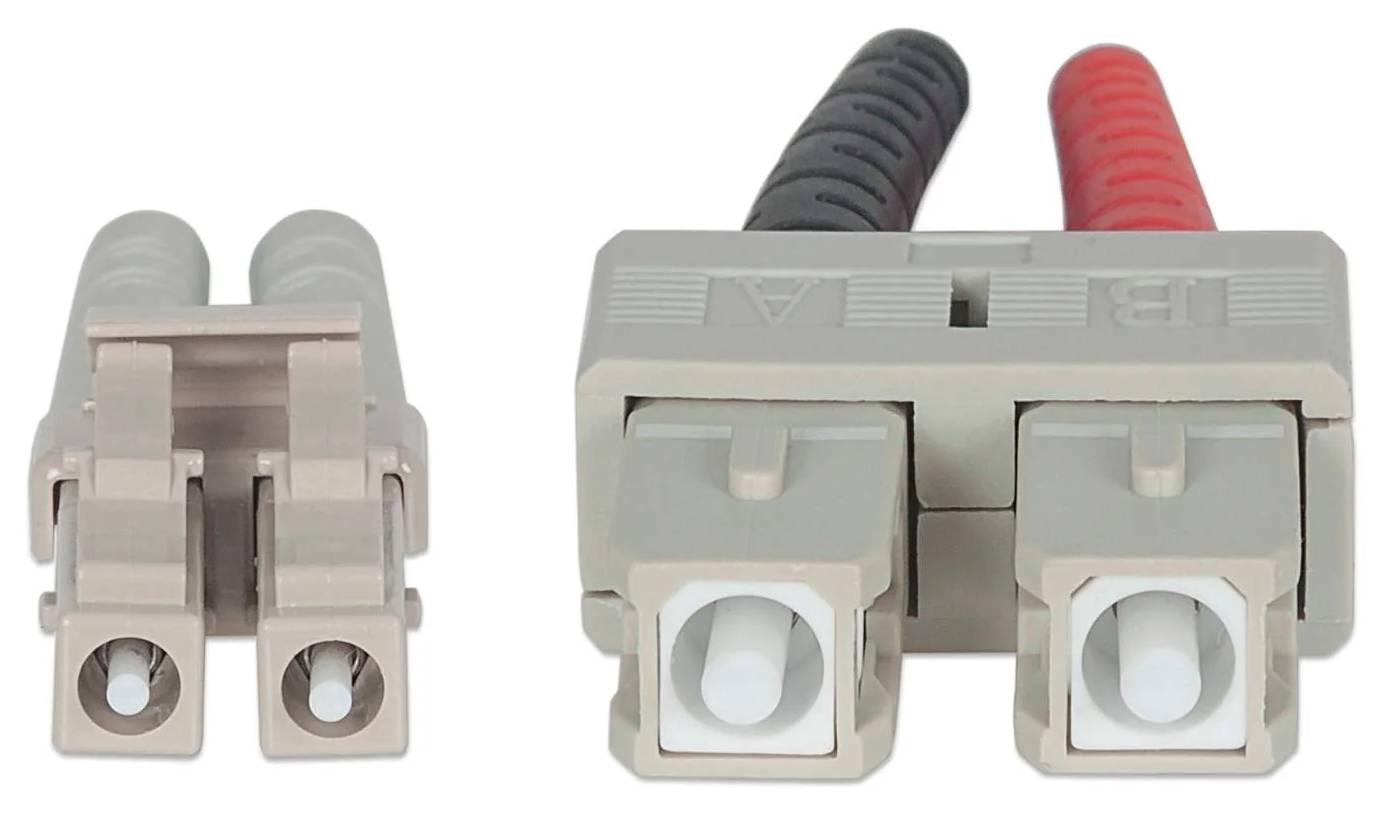

LC is the small-form connector used by SFP/SFP+ transceivers and most current switch and media-converter fibre ports. SC is the larger square push-pull connector found on many patch panels, media converters and FTTH ONTs. So this cable bridges an LC port on one side and an SC port on the other — check both ends before ordering.
Before you order: This is OM3 50/125 µm multimode. Use it with multimode optics (SR/SX, 850 nm) and match the fibre type already installed — do not mix it with singlemode or 62.5/125 µm OM1 fibre.
What's in the Box
- 1 × Intellinet duplex fibre optic patch cable, LC/UPC – SC/UPC, 1 m
- Supplied in a polybag
- Transceivers, couplers and cleaning tools are not included
What It Means in Practice
- Duplex means two fibres: one transmits, one receives. If the link does not come up, transmit and receive are usually crossed — swap the two connectors at one end (A↔B) or use a coupler with the correct polarity.
- 1 m is the end-to-end length. Measure the route including slack in cable managers and trays before ordering — fibre should never be pulled tight or kinked.
- Minimum bend radius is 15 mm — keep loops wider than that in racks, boxes and trays.
- On OM3, 10GBASE-SR is specified up to 300 m, so a short patch cord like this never limits the link.
What Will Not Work
- It will not work with singlemode or 62.5/125 µm OM1 fibre or with singlemode optics.
- It does not mate correctly with APC (green, angled) ports or couplers.
- It does not plug into ST, MPO ports. If one end of your link is different, tell us the ports and we will match the right cable.
- It is an indoor patch cord, not an outdoor or direct-burial cable.
Key Features
Fibre
OM3 multimode 50/125 µm; insertion loss ≤ 0.25 dB, return loss ≥ 35 dB.
Connectors

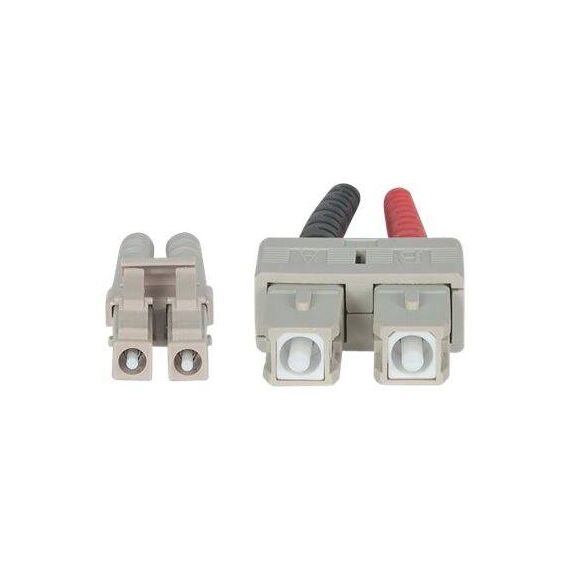

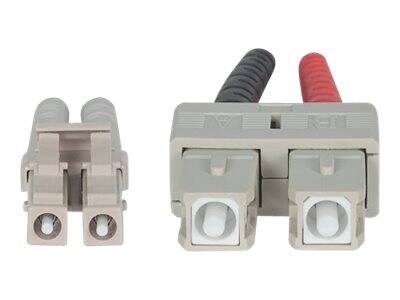

LC/UPC to SC/UPC, duplex, Ceramic ferrules.
Jacket
LSZH (low smoke, zero halogen), 3.0 mm, aqua — suited to offices, server rooms and public buildings.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Most fibre faults we see come from three mismatches: singlemode versus multimode, UPC versus APC, and the wrong connector at one end. This Intellinet cord is OM3, UPC, LC to SC — confirm those three on both devices and it will simply work. For the equipment side, see our network switches.
✓ Buy it if your link is OM3 multimode, both ports are LC and SC with UPC polish, and 1 m covers the route with a little slack.
✕ Skip it if either end uses a different connector or polish, your transceivers are singlemode (LX/LR), or you need an outdoor-rated cable.
→ Also consider the same cable in another length, or a coupler/patch panel if you are extending an existing run.
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
Features - Intellinet - 750912
Colour
blue
Length
1.0m
More Details
Product Code
04:194147
EAN Code
0766623750912
Manufacturer
Intellinet
