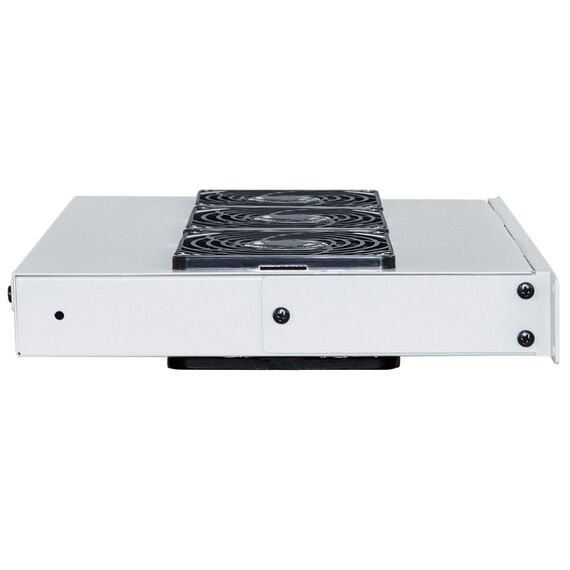

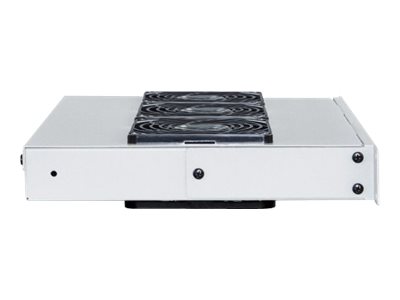

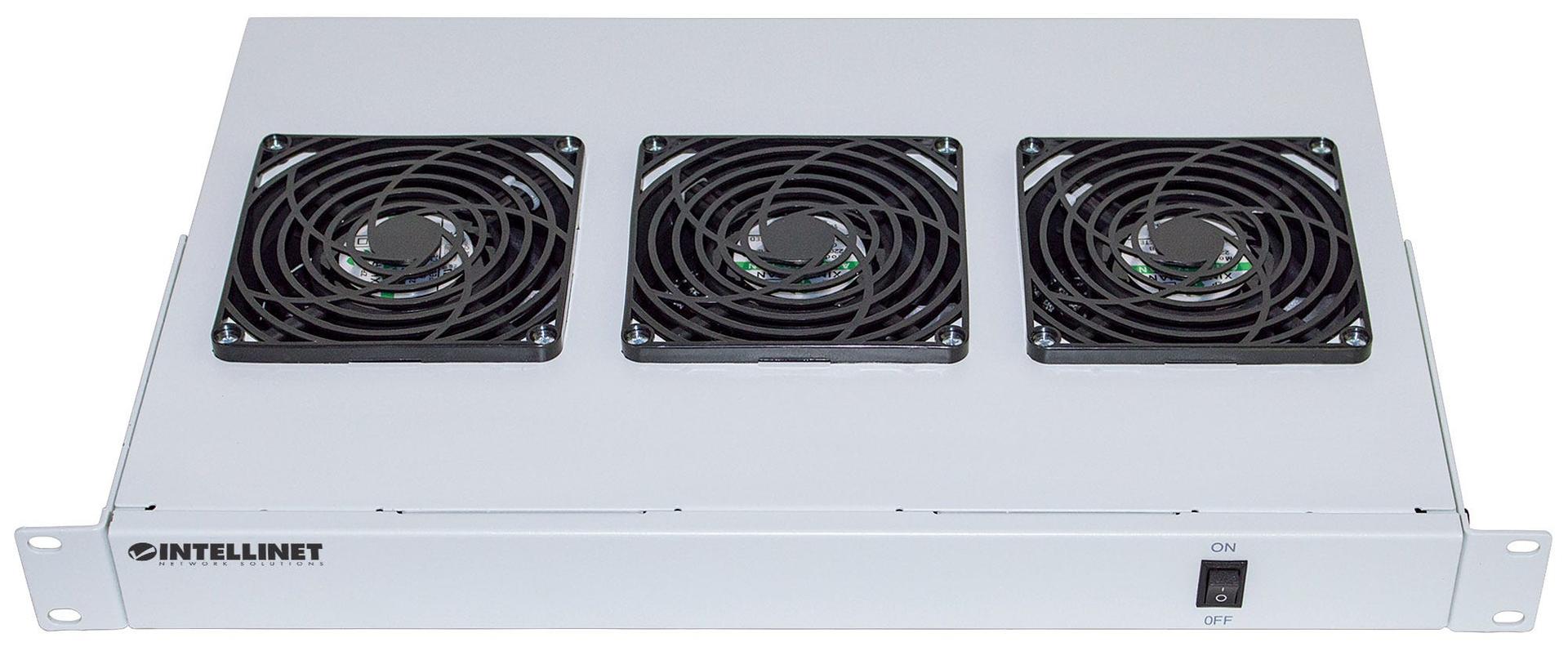

Intellinet 712378 — 1U Three-Fan Cooling Unit with Thermostat for 19-inch Racks
1U · 19-inch3 fans, 85–90 CFMDigital thermostatGrey RAL 7035

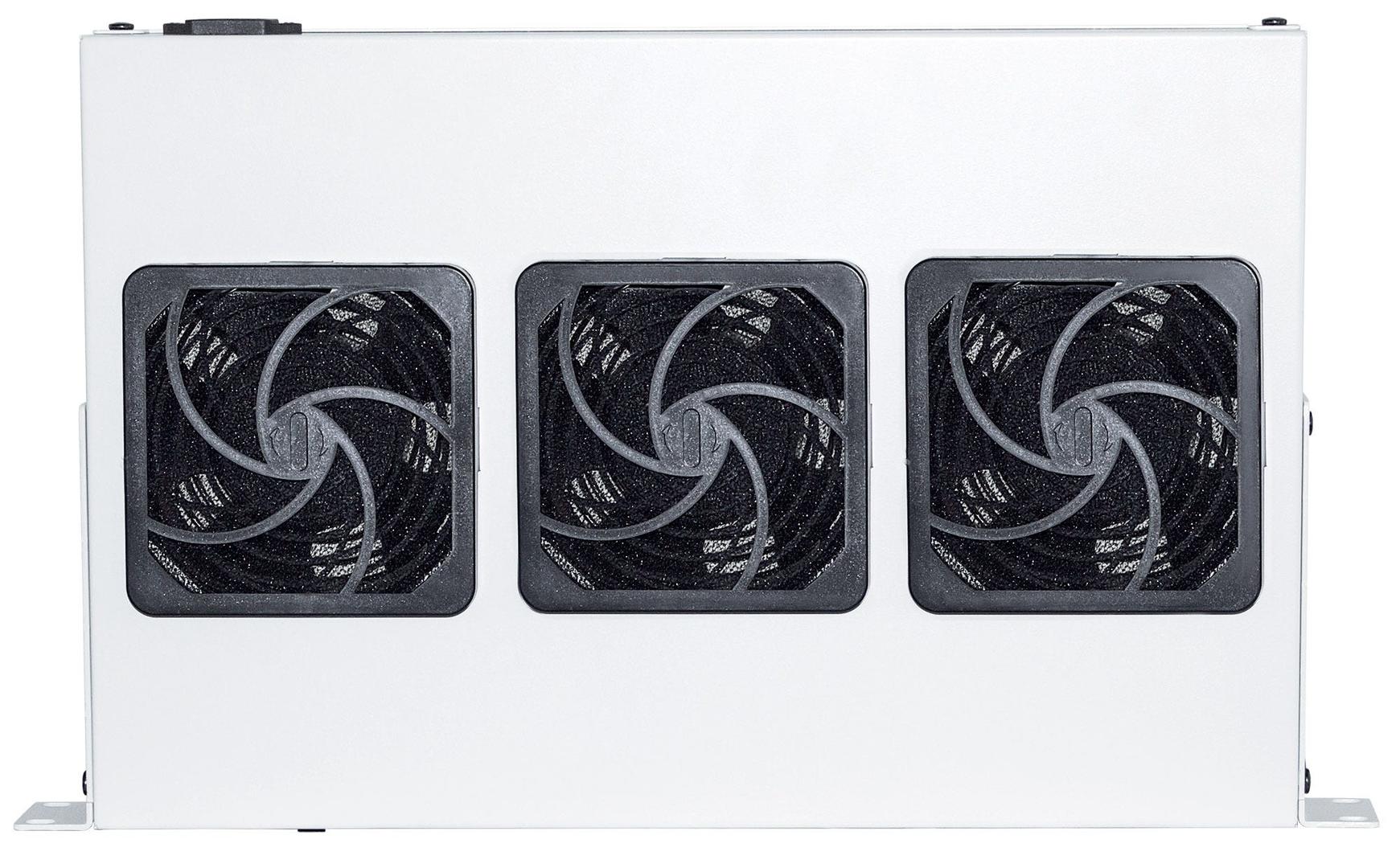

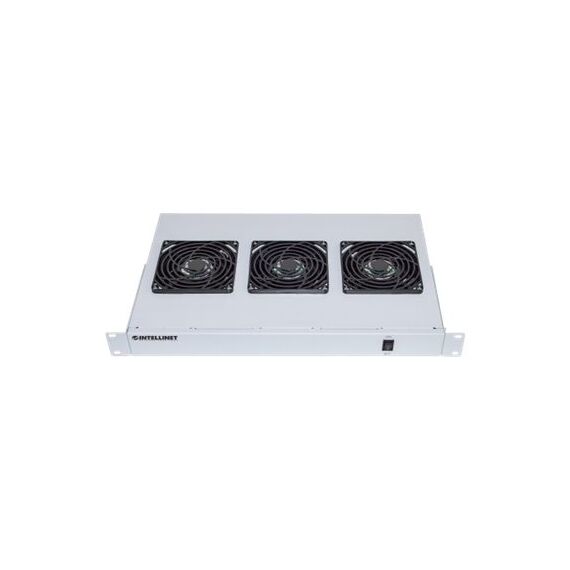

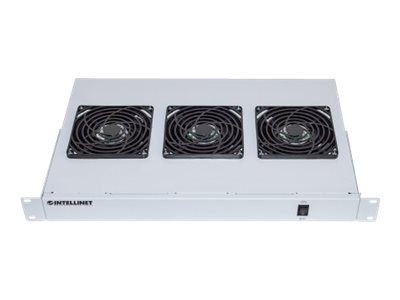

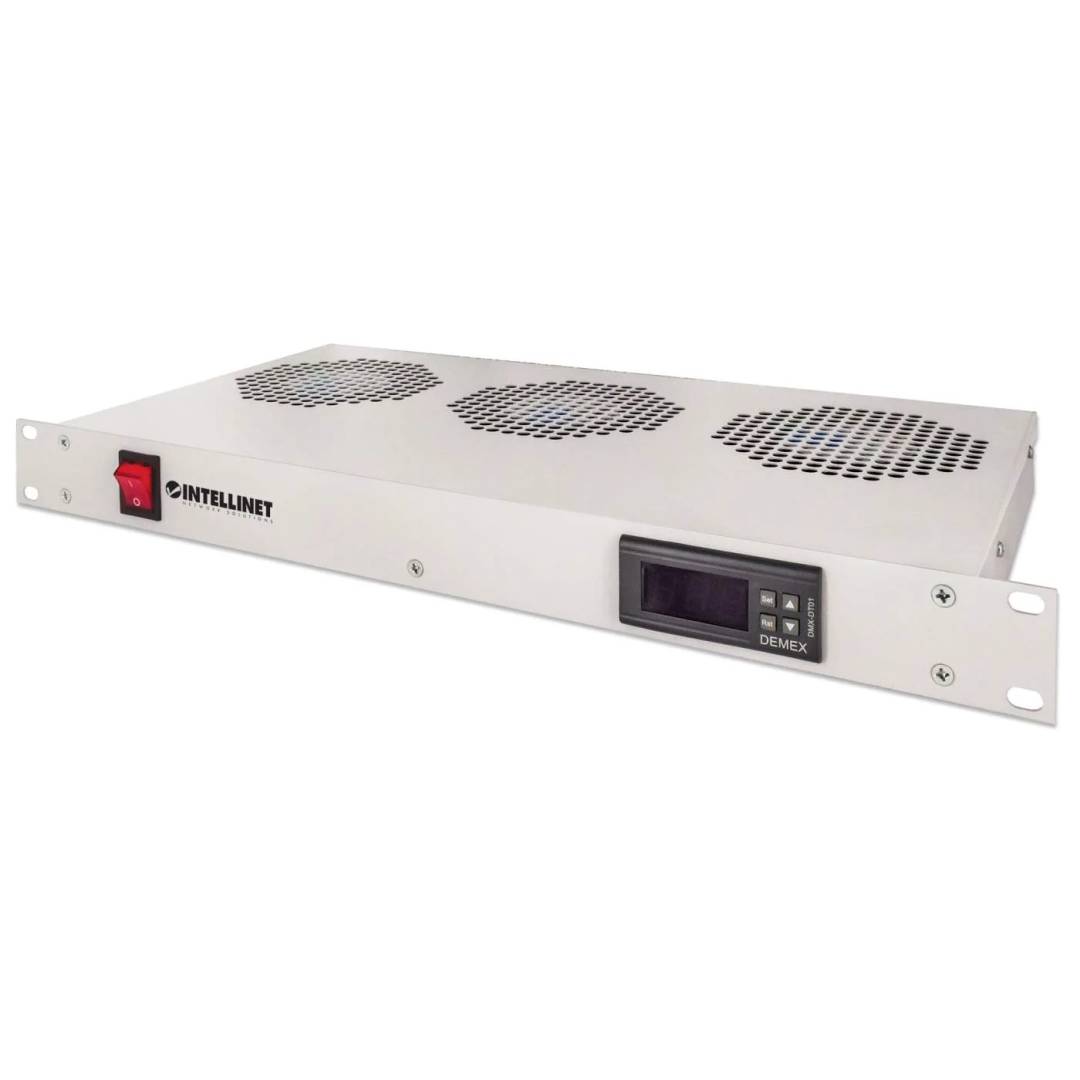

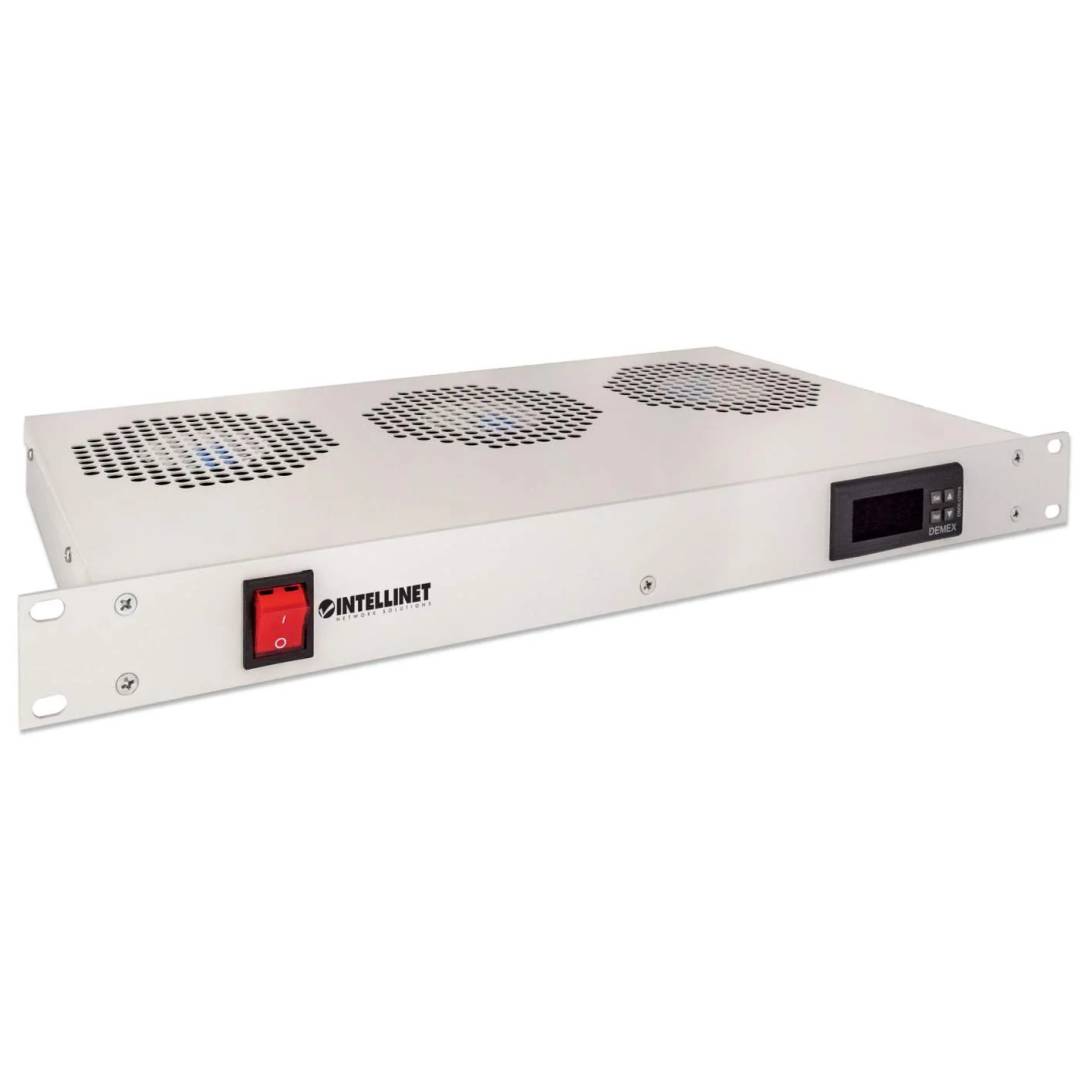

The Intellinet 712378 is a 1U, 19-inch ventilation unit with three fans, 85–90 CFM of airflow and a built-in digital thermostat, for moving warm air out of network and server cabinets where switches, NVRs or small servers are heating the rack.

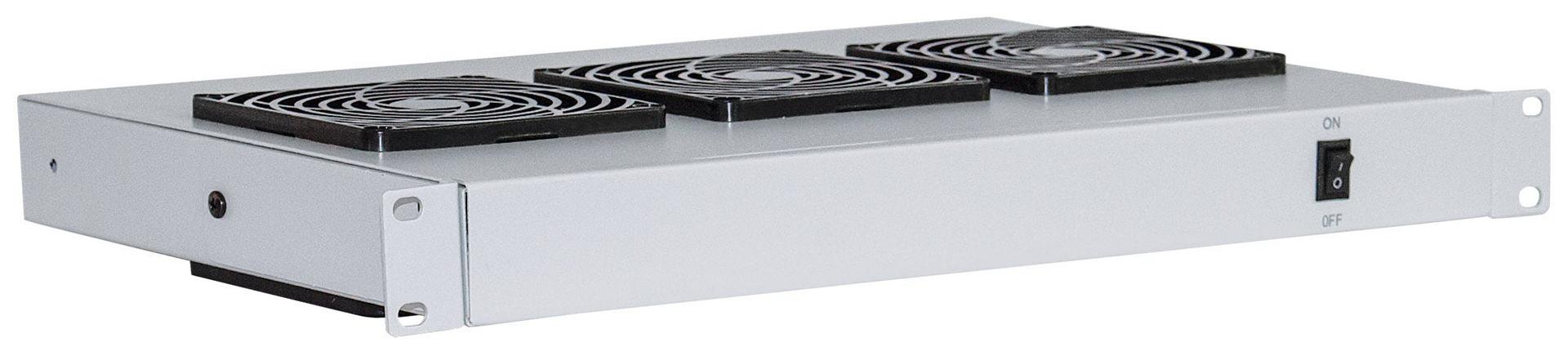

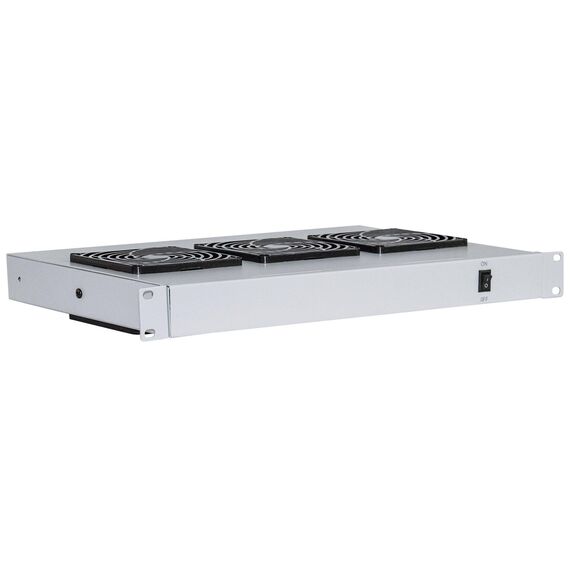

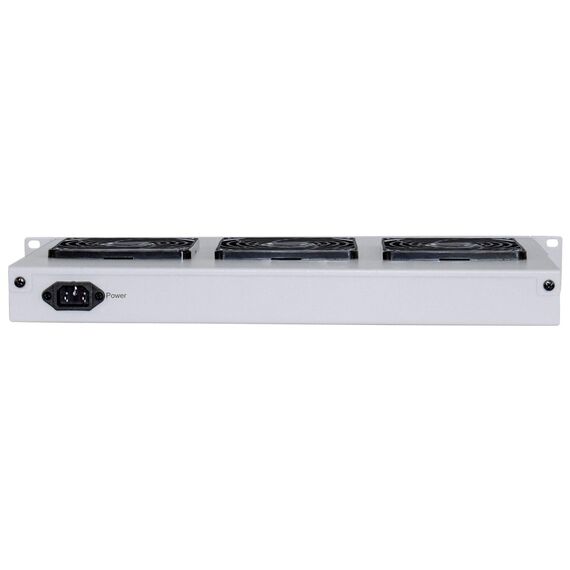

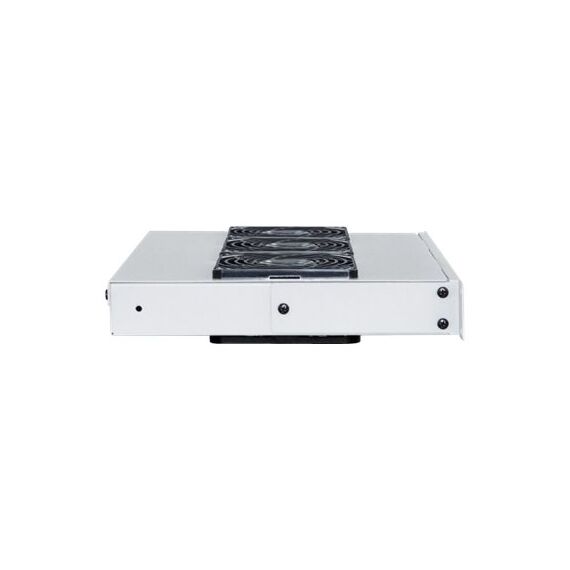

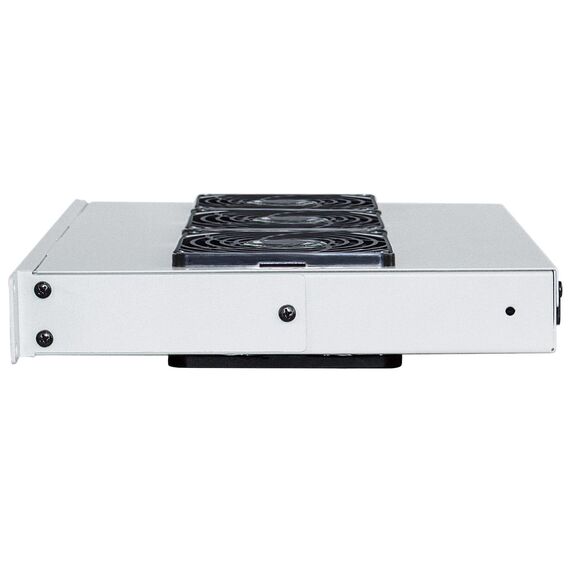

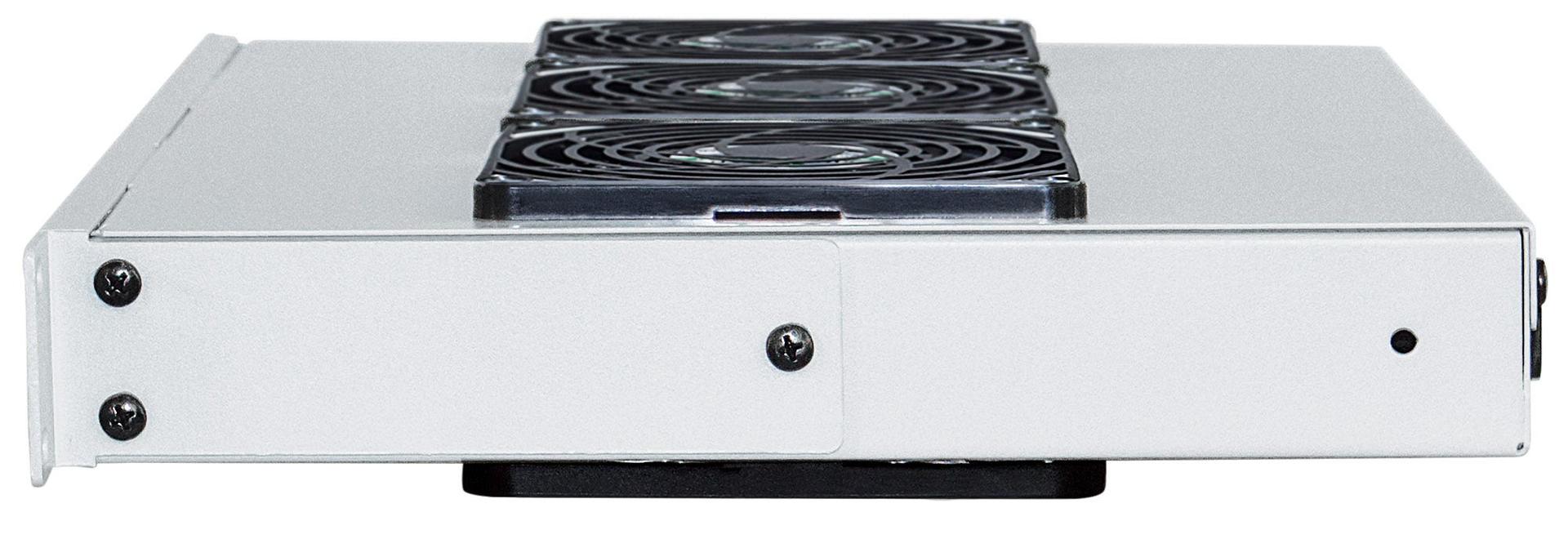

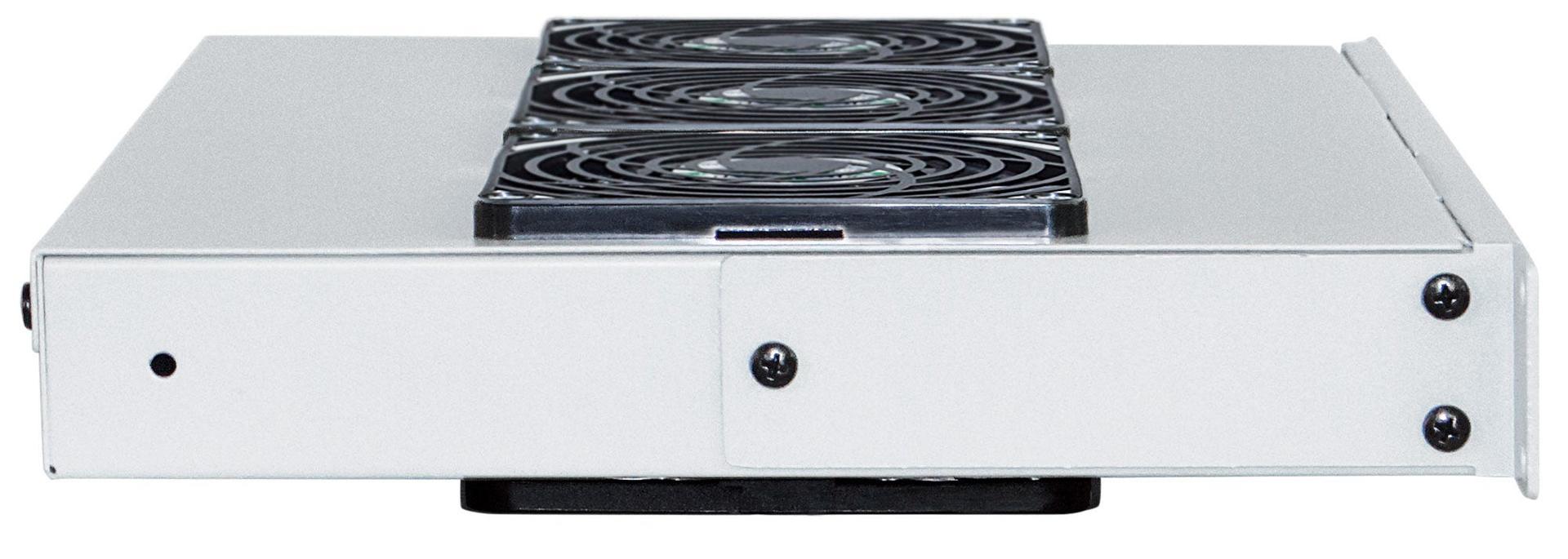

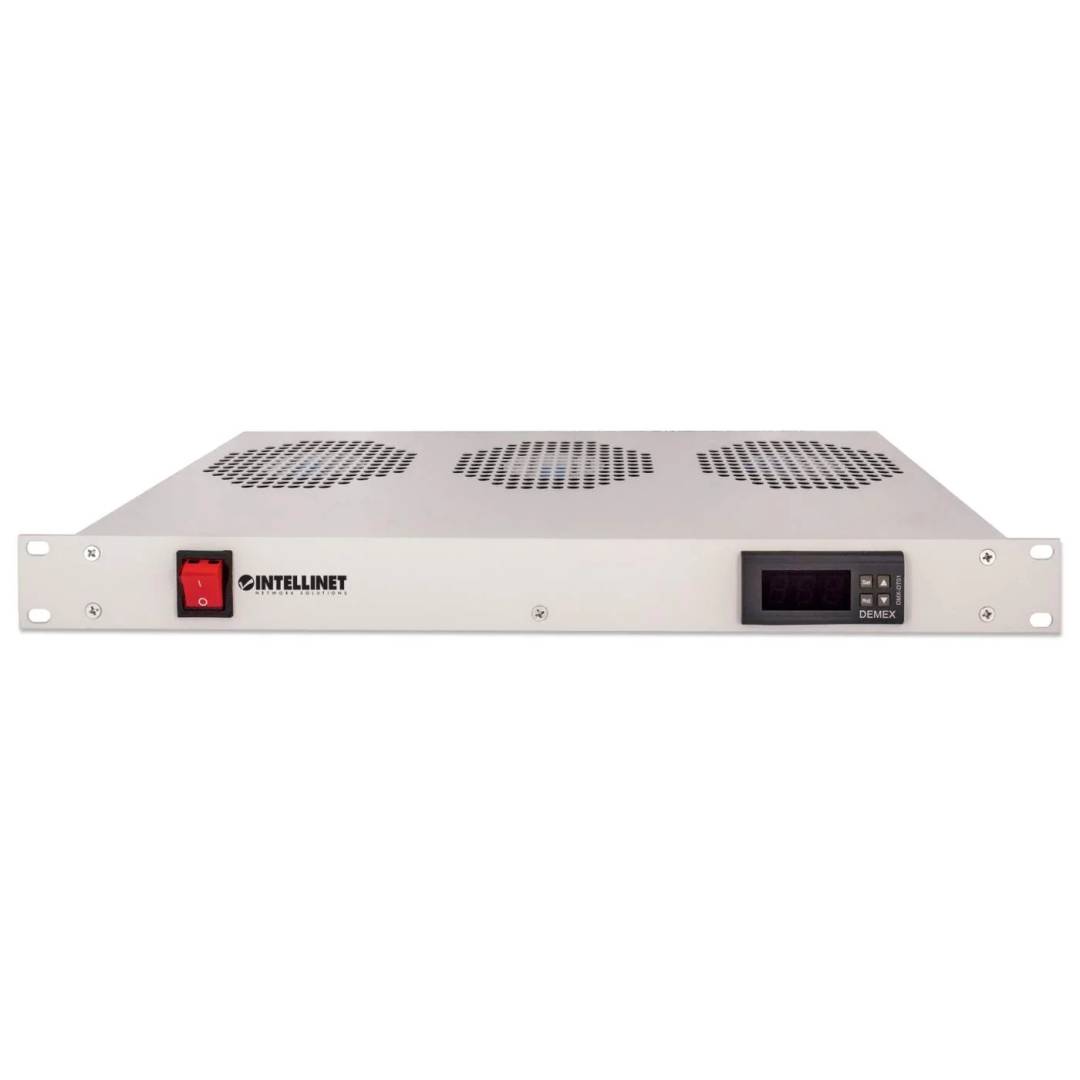

It mounts in any 19-inch rack or cabinet with the supplied cage nuts and bolts and runs from 220–240 V mains. The thermostat is set with Set, up and down buttons (factory default 21 °C, restorable with the Rst button), and a power switch sits on the left-hand side. The housing is 1.5 mm steel with antistatic powder coating in grey RAL 7035, 258 mm deep.
Before you order: Intellinet does not publish the plug type of the power cord. Cyprus uses UK-type sockets — ask us which plug is supplied before you order if you have no suitable PDU outlet.
What's in the Box
- 1 × 3-fan ventilation unit
- Cage nuts and bolts for mounting
What It Means in Practice
- Place it where hot air collects — usually near the top of the cabinet — and set the thermostat so fans run only when needed.
- Noise of 42–49 dB(A) is fine in a comms room but noticeable in a quiet office.
- Only 258 mm deep, so it fits shallow wall cabinets as well as floor racks.
- Needs a free power outlet in the cabinet or a PDU.
What Will Not Work
- Roof-mount installation — this is a 1U front-rail unit.
- 110–120 V power.
- Cooling a sealed cabinet without any air inlet — fans need somewhere for fresh air to enter.
- Remote monitoring or network alarms — the thermostat is local only.
Key Features
Digital thermostat
Runs fans by temperature, default 21 °C.

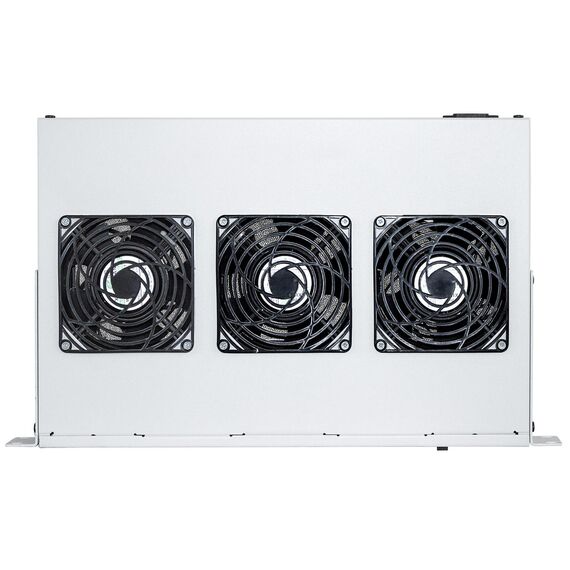

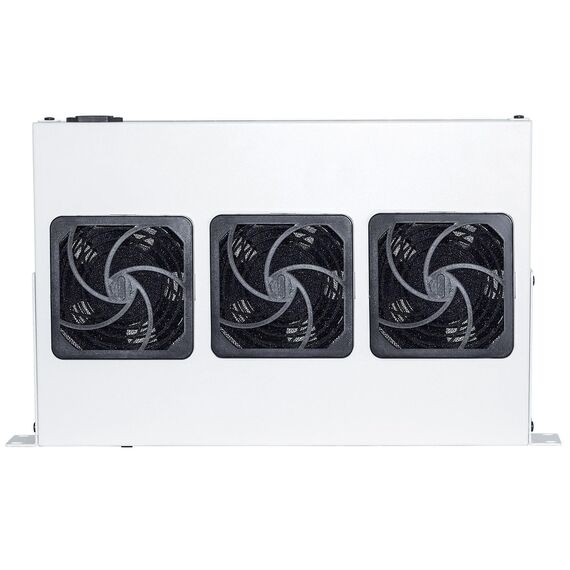

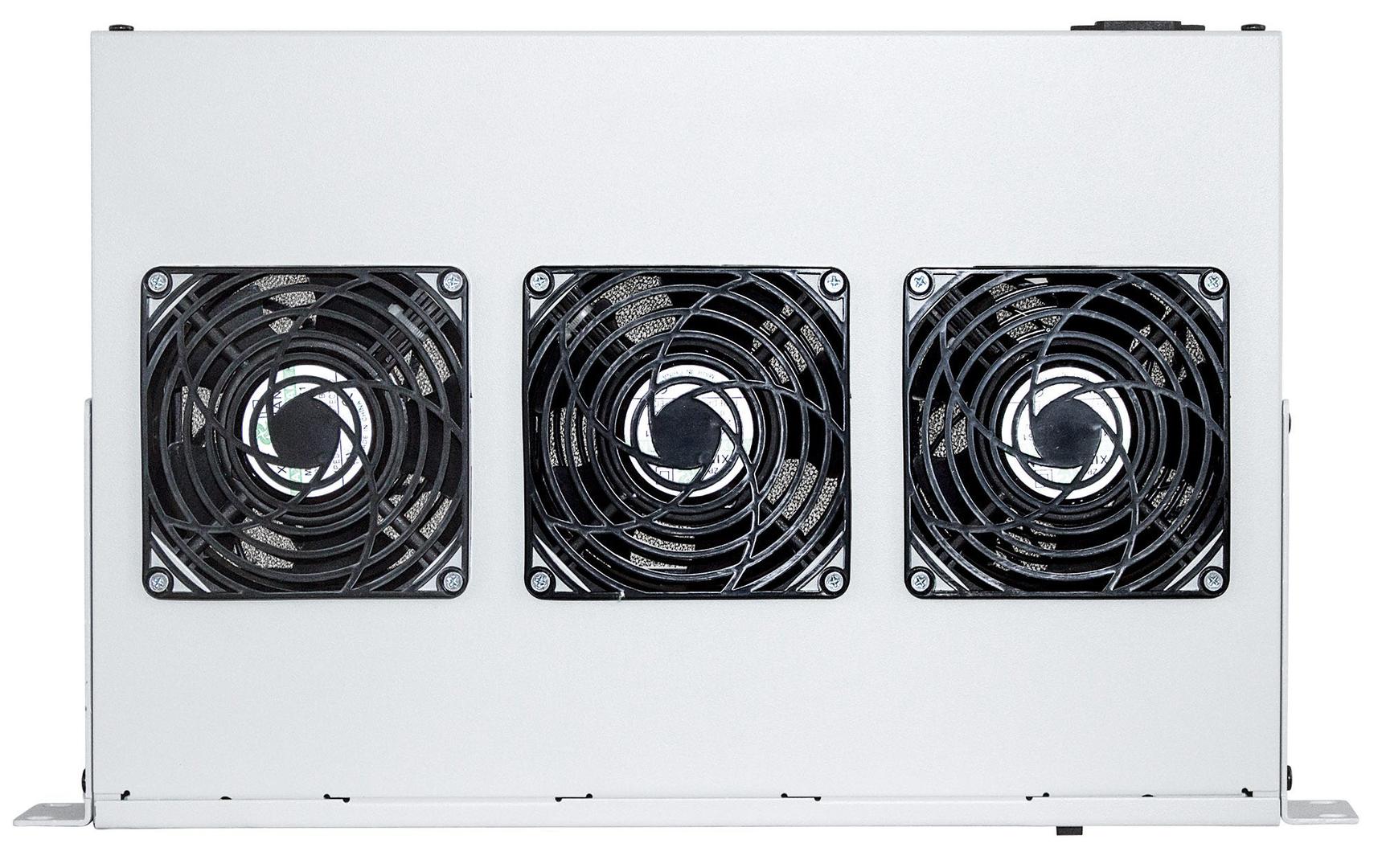

Three fans
85–90 CFM total airflow.
Compact 1U
258 mm deep for wall and floor cabinets.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
A thermostat-controlled fan unit is the simplest way to stop a closed cabinet cooking its switches in a Cyprus summer. Make sure the cabinet has a vented door or inlet, and see our rack accessories range for blanking panels that direct the airflow.
✓ Buy it if your 19-inch cabinet runs warm and you want temperature-controlled extraction in 1U.
✕ Skip it if you need a roof-mounted fan tray or remote temperature monitoring.
→ Also consider the black Intellinet 712668 for RAL 9005 cabinets.
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
