Intellinet 780124 Universal Modular Crimping Tool & Cable Tester RJ45/RJ11/RJ12

Brand:
Intellinet
Intellinet Universal Modular Plug Crimping Tool and Cabl | 780124
Intellinet 780124 Universal Modular Crimping Tool & Cable Tester RJ45/RJ11/RJ12
€52.59 inc. VAT
Buy
780124
€44.19
€52.59 inc. VAT
Ships from EU stock: 2 item(s)
+ −
Add to wish list Ask a question
Product Code
04:252682
EAN Code
0766623780124
Manufacturer
Intellinet
Quick Specs
Type
Crimping tool + cable tester
Plugs
RJ45 · RJ11 · RJ12 · RJ22
Key spec
Ratchet · split-pair test
Power
4 x LR44 (not incl.)
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

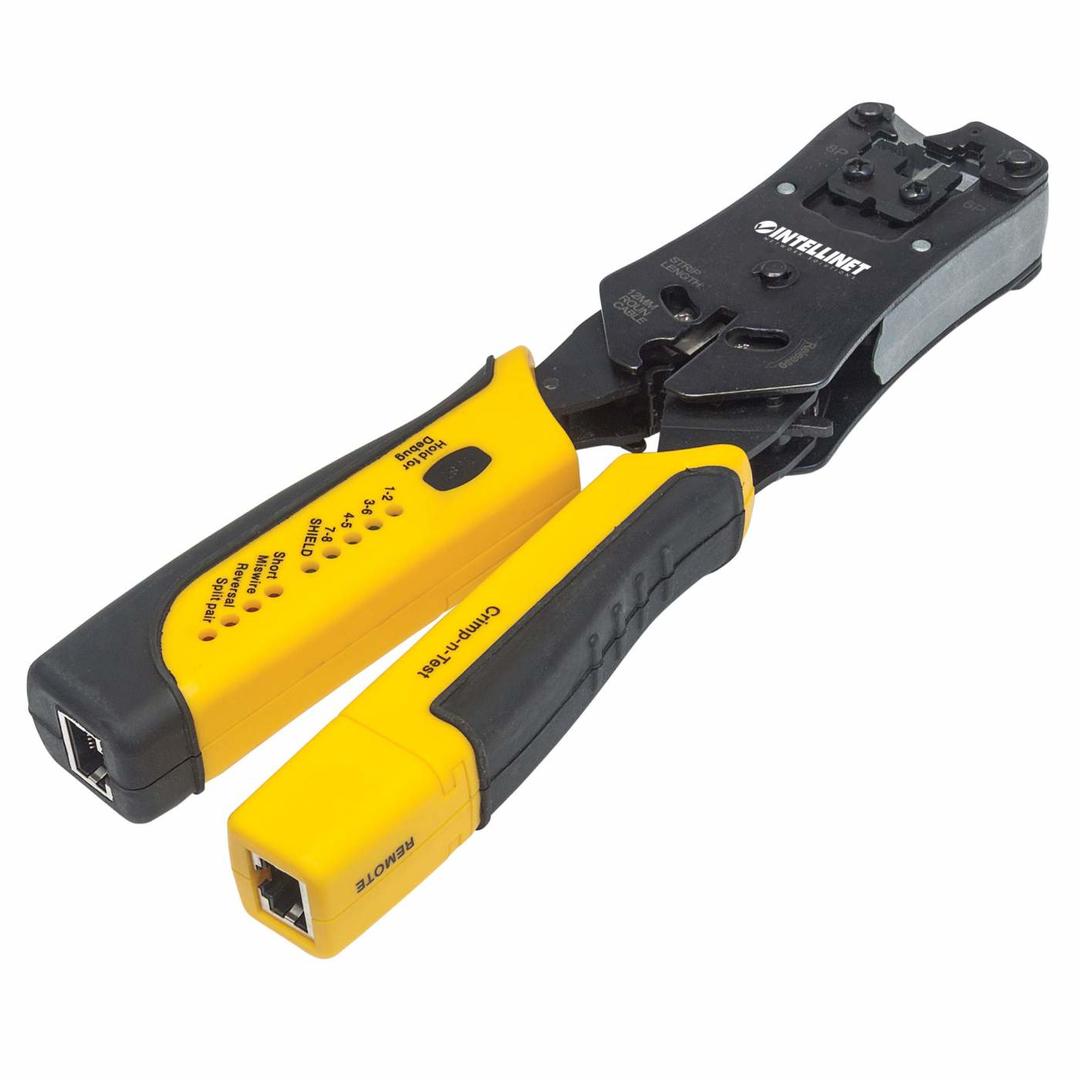

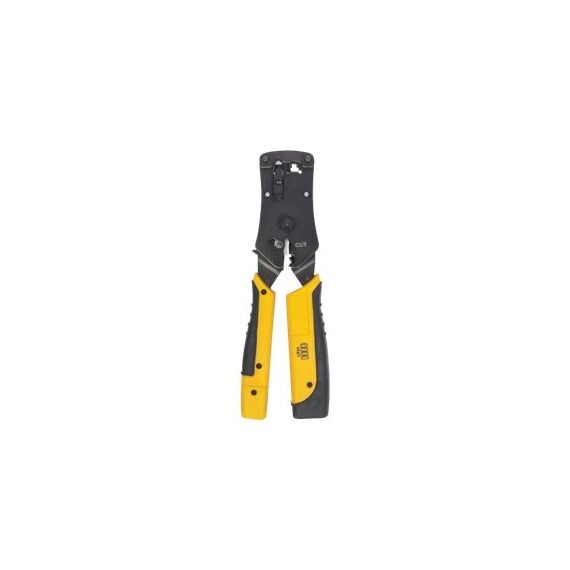

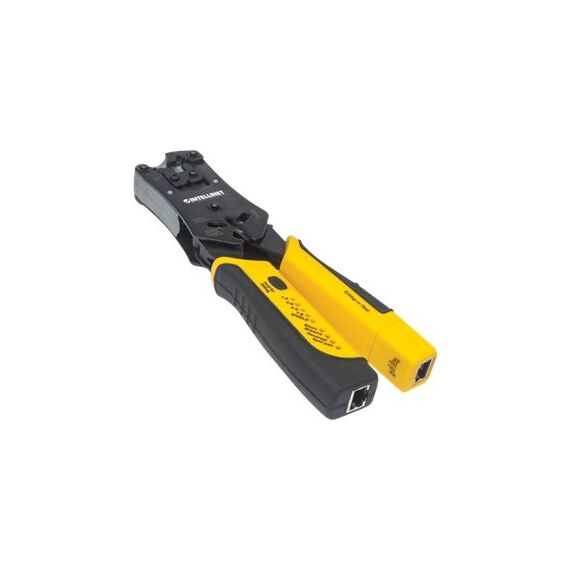

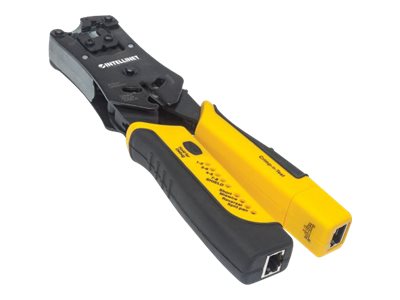

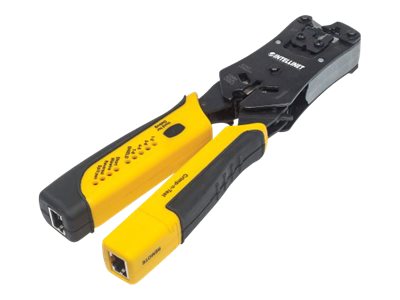

Intellinet 780124 Crimping Tool and Cable Tester

2-in-1 crimp + testRJ45 · RJ11 · RJ12 · RJ22Ratchet · snap-in remote

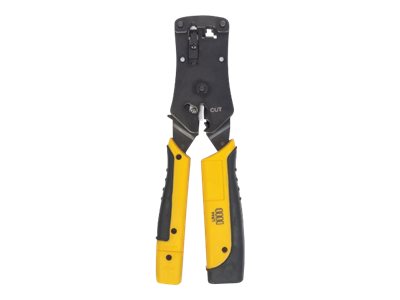

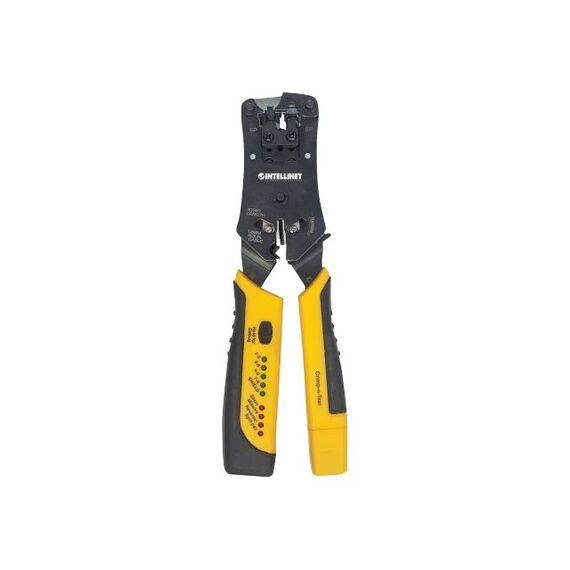

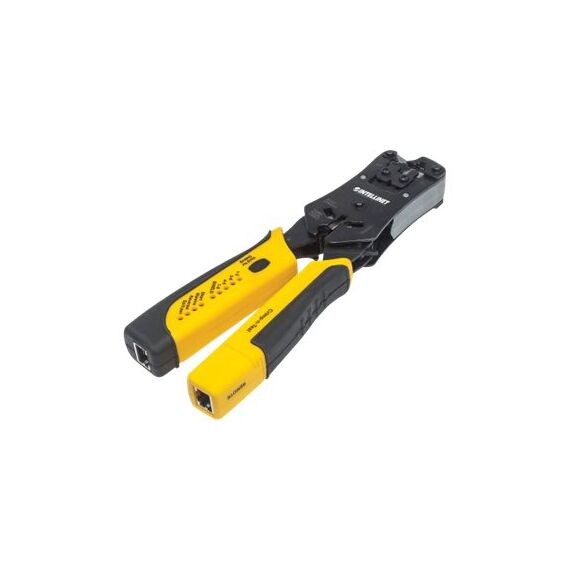

The Intellinet 780124 Universal Modular Plug Crimping Tool and Cable Tester is a 2-in-1 tool that cuts, strips and crimps RJ45, RJ11, RJ12 and RJ22 plugs and then tests the finished cable, for installers who want fewer tools in the bag. It works with Cat3 to Cat6a patch cables and installed wiring.

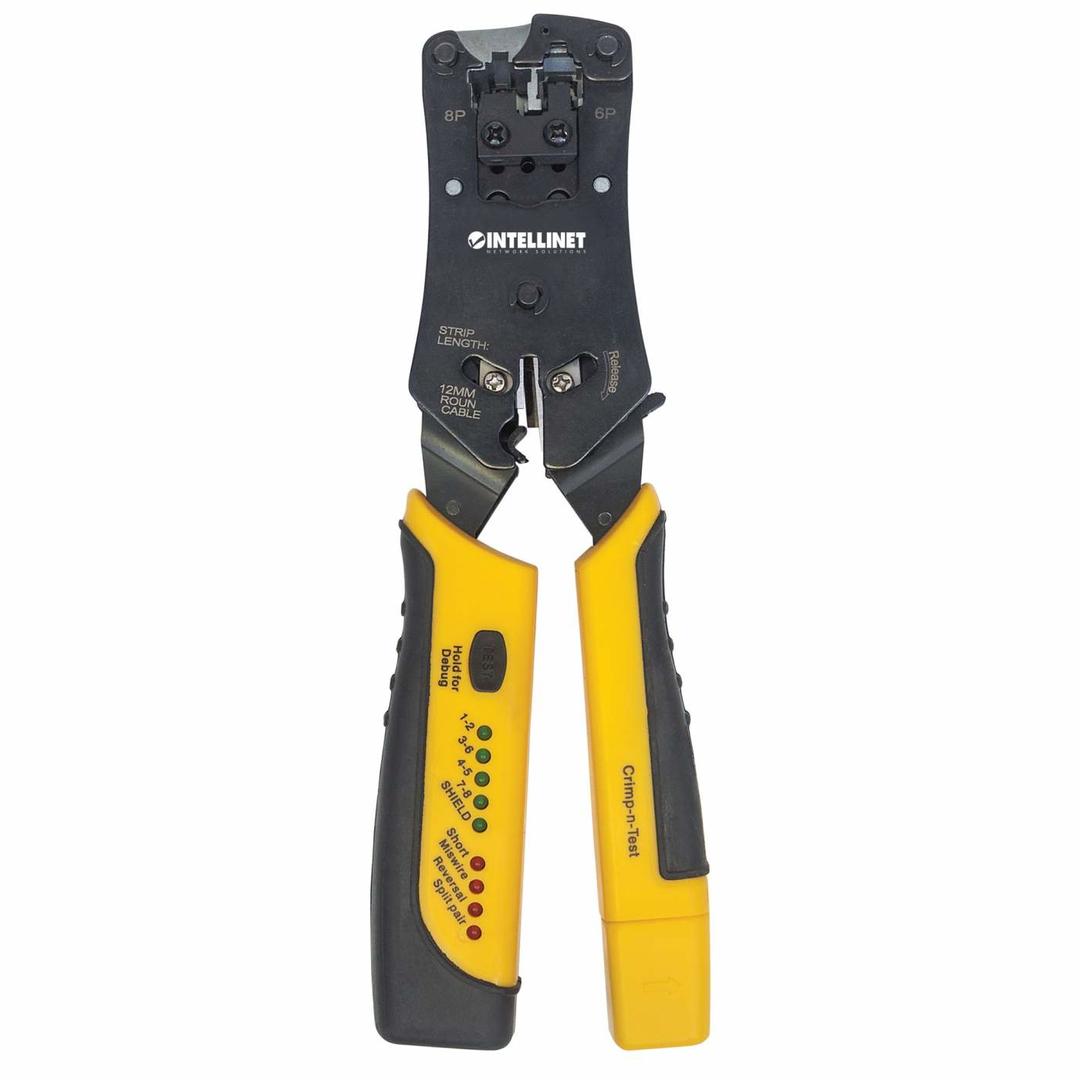

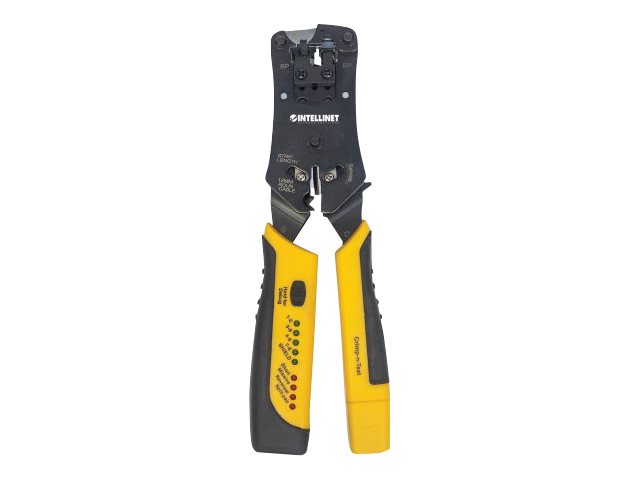

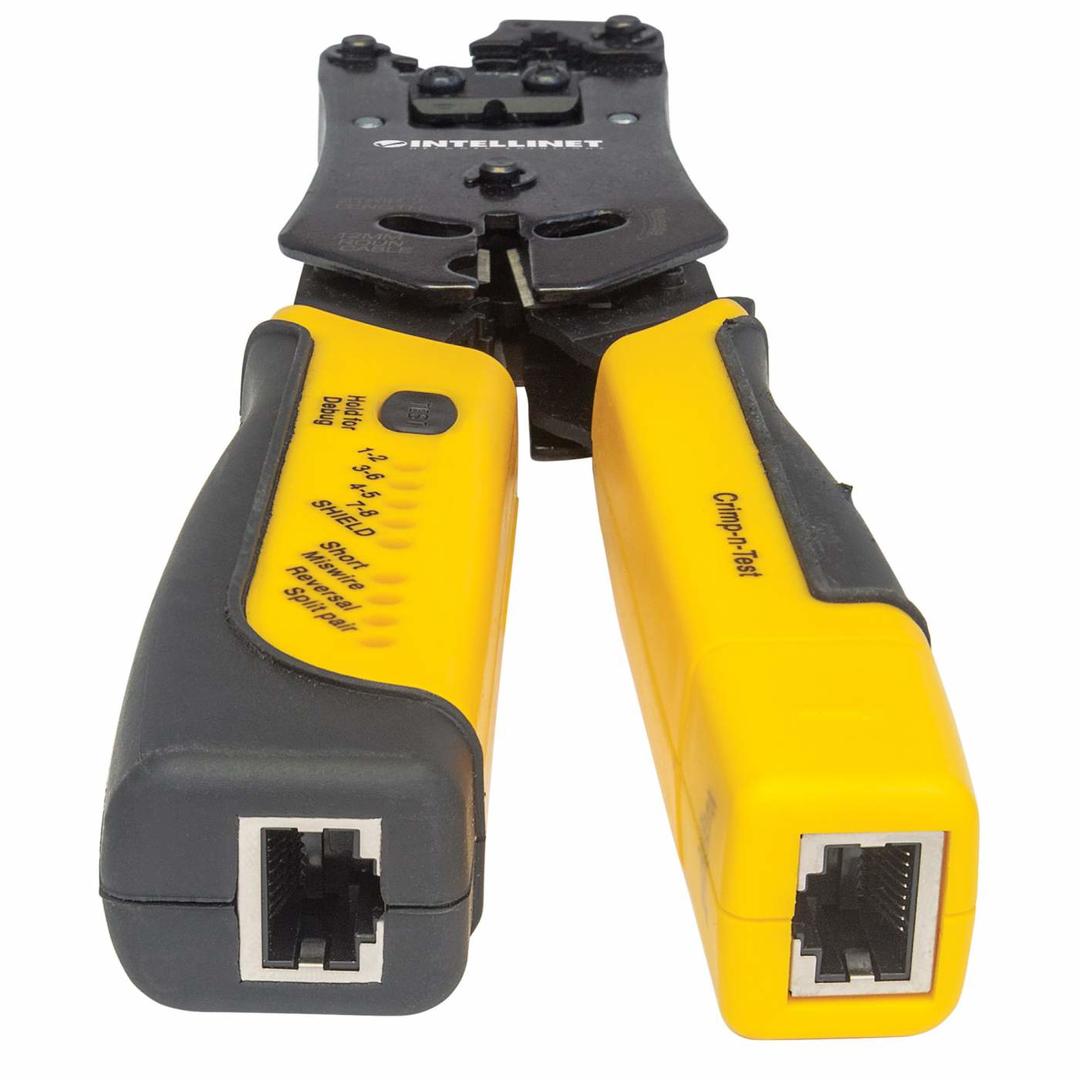

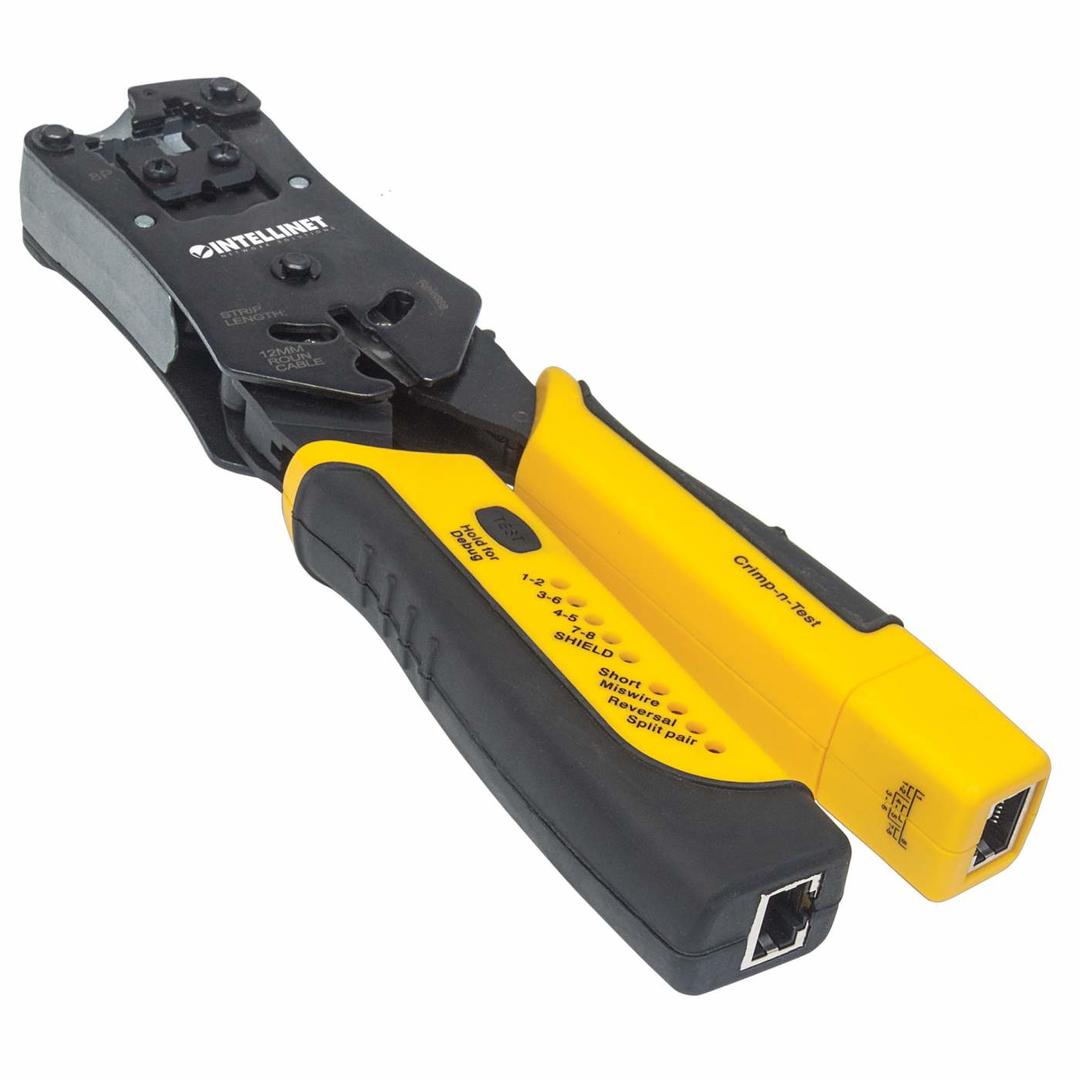

The built-in tester has a detachable snap-in remote and nine LEDs that confirm all four pairs and the shield, or flag shorts, miswires, reversals and split pairs.

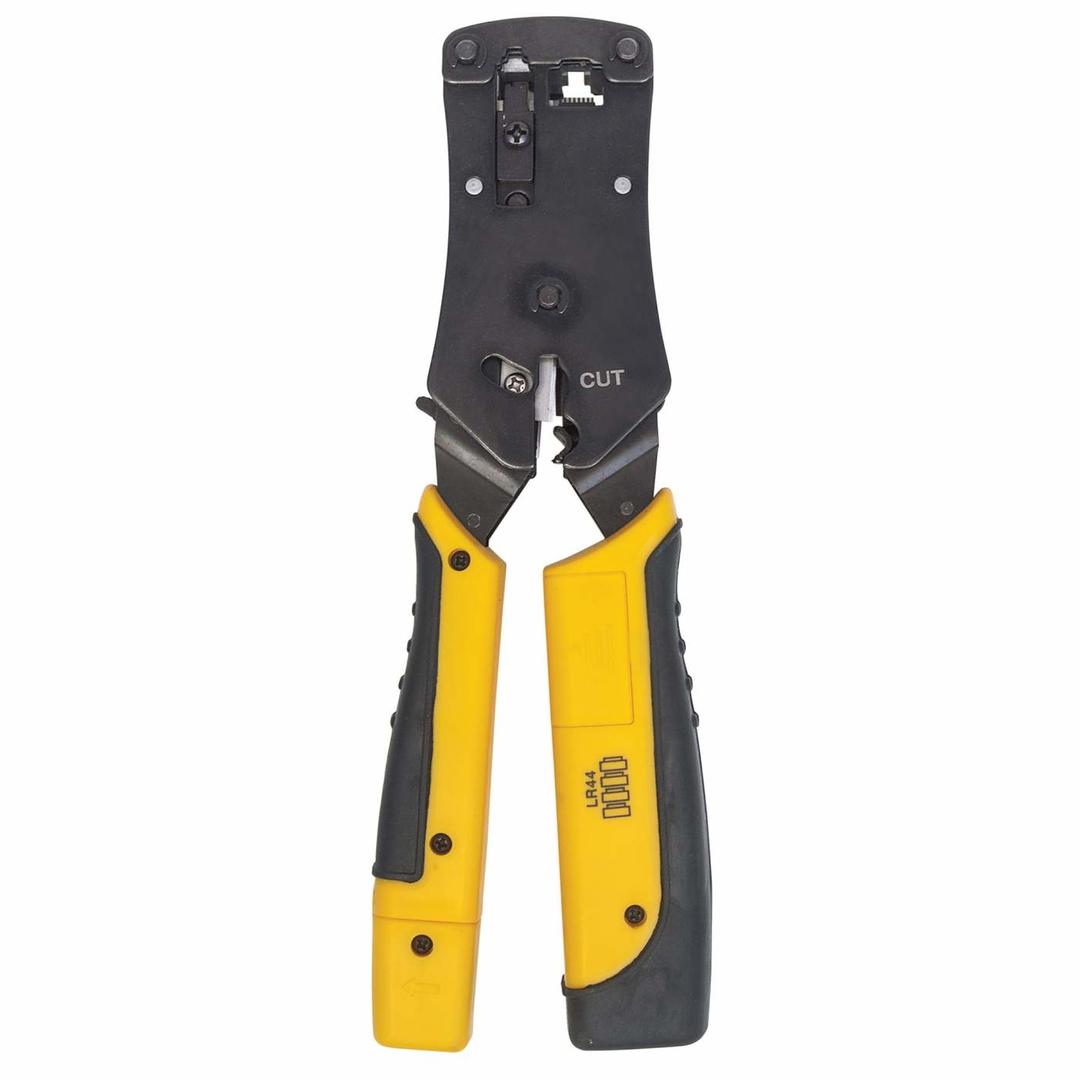

Good to know: The tester runs on 4 x LR44 button cells, which are not included. Intellinet does not publish a maximum test length.

Technical Specifications

Identification
Part Number 780124 (alt. code ICT-MF5C)
EAN / GTIN 0766623780124
MPN 780124
Brand Intellinet
Crimping
Plug types RJ45 · RJ11 · RJ12 · RJ22
Mechanism Ratchet
Functions Cut · strip · crimp
Testing
Cables Cat3 · Cat5 · Cat5e · Cat6 · Cat6a — patch and installed
Pass indicators All 4 pairs and shield
Fail indicators Shorts · miswires · reversals · split pairs
Display 9 LEDs
Remote unit Detachable snap-in remote (included)
Physical & Power
Power 4 x LR44 button cells (not included)
Dimensions 220 x 80 x 25 mm
Weight 513 g
Warranty 3 years (manufacturer)

Frequently Asked Questions

Does the Intellinet 780124 detect split pairs?
Yes. Unlike many basic continuity testers, it flags split pairs as well as shorts, miswires and reversals — split pairs pass a simple pin-to-pin check but cause crosstalk and poor performance on real links.
Can I test a cable that is already installed in the wall?

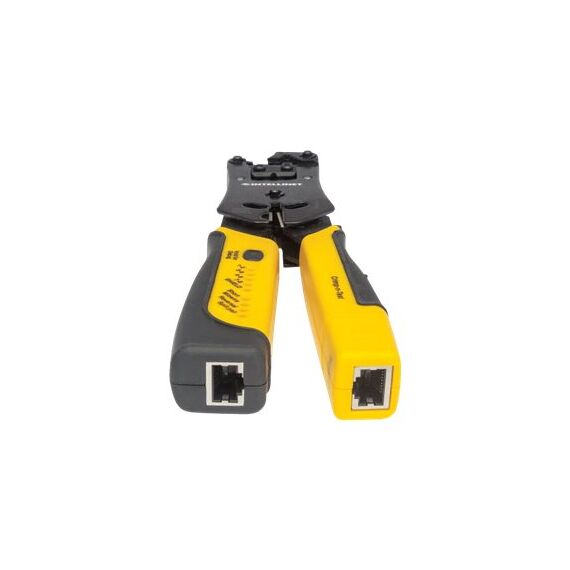

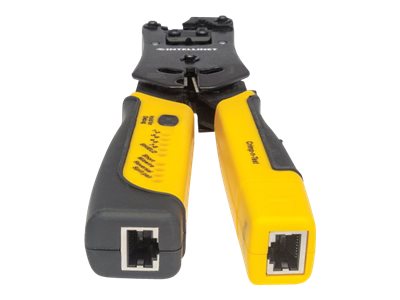

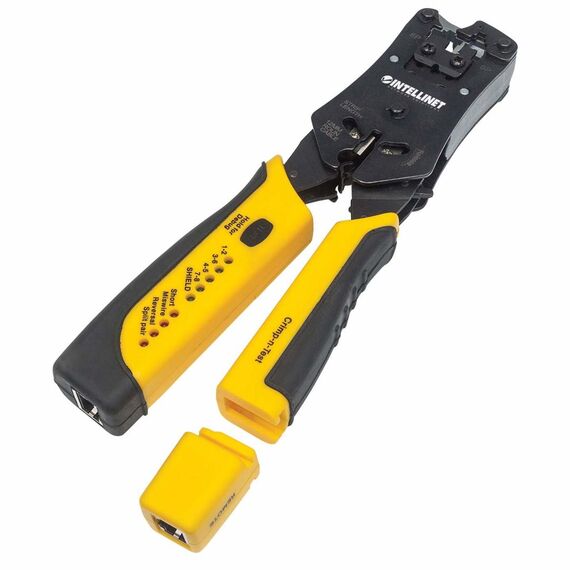

Yes. Snap the remote out of the tool, plug it into the far end of the run, and connect the near end to the tool to read the result on the LEDs.
Singular Expert Insight
The 780124 suits field technicians who want to crimp and verify in one step without carrying a separate tester; split-pair detection is a real plus at this price. For PoE or multi-cable testing, pick a dedicated unit from our cable tools and testers.
✓ Buy it if you crimp RJ45/RJ11/RJ12 plugs on site and want to test each cable immediately with split-pair detection.
✕ Skip it if you need USB/BNC testing, PoE detection or tone tracing.
→ Also consider the Equip 129409 ratchet crimper if you already own a separate tester.
