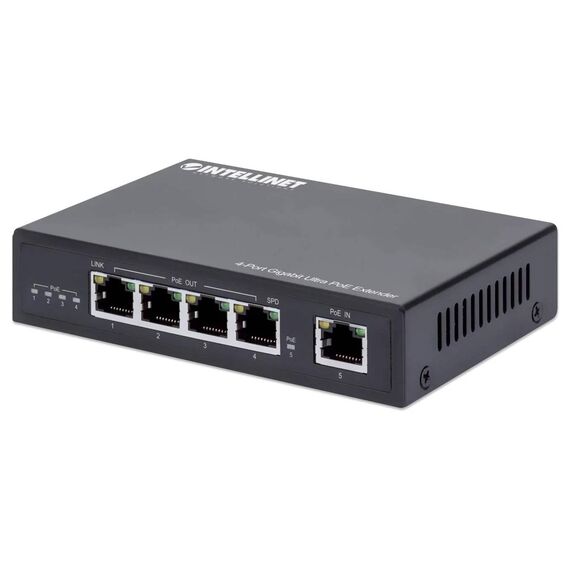

Intellinet 4-Port Gigabit Ultra PoE Extender — one 802.3bt cable in, four PoE+ devices out, 100 m further
802.3bt PoE in4x PoE+ out · 90WGigabit · +100 mNo power supply
The Intellinet 4-Port Gigabit Ultra PoE Extender (561617) is a PoE-powered extender that takes one IEEE 802.3bt (Ultra PoE) cable and turns it into four Gigabit PoE+ ports, each delivering up to 30 W, at up to 100 m from the source. It is built for installers who need to reach a group of IP cameras, access points or VoIP phones beyond the 100 m Ethernet limit without running mains power to the far end.

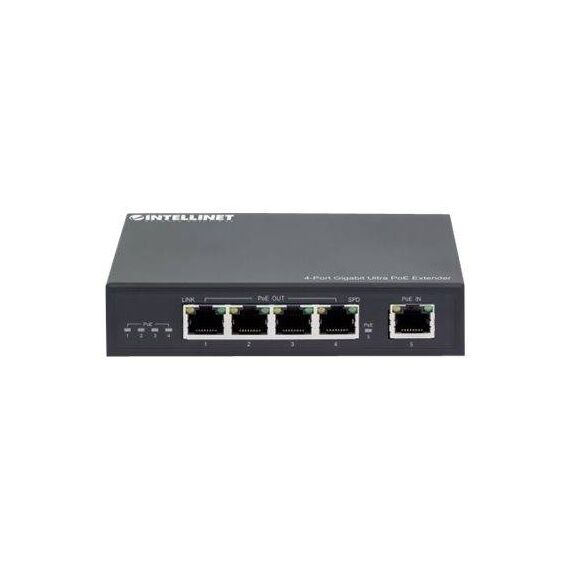

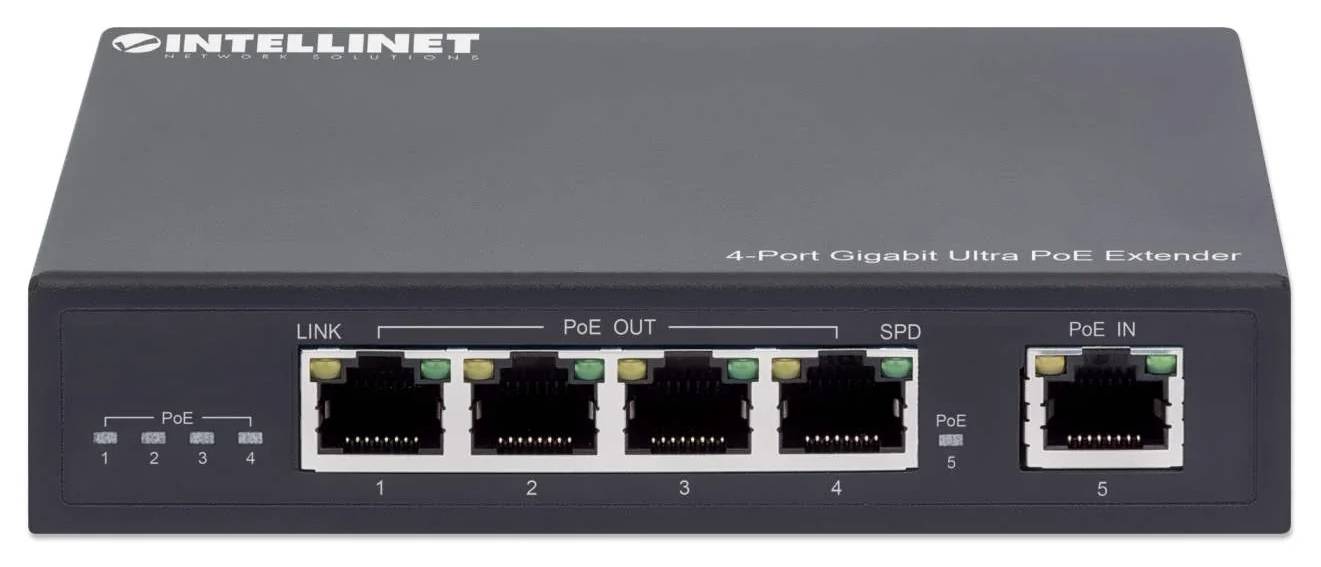

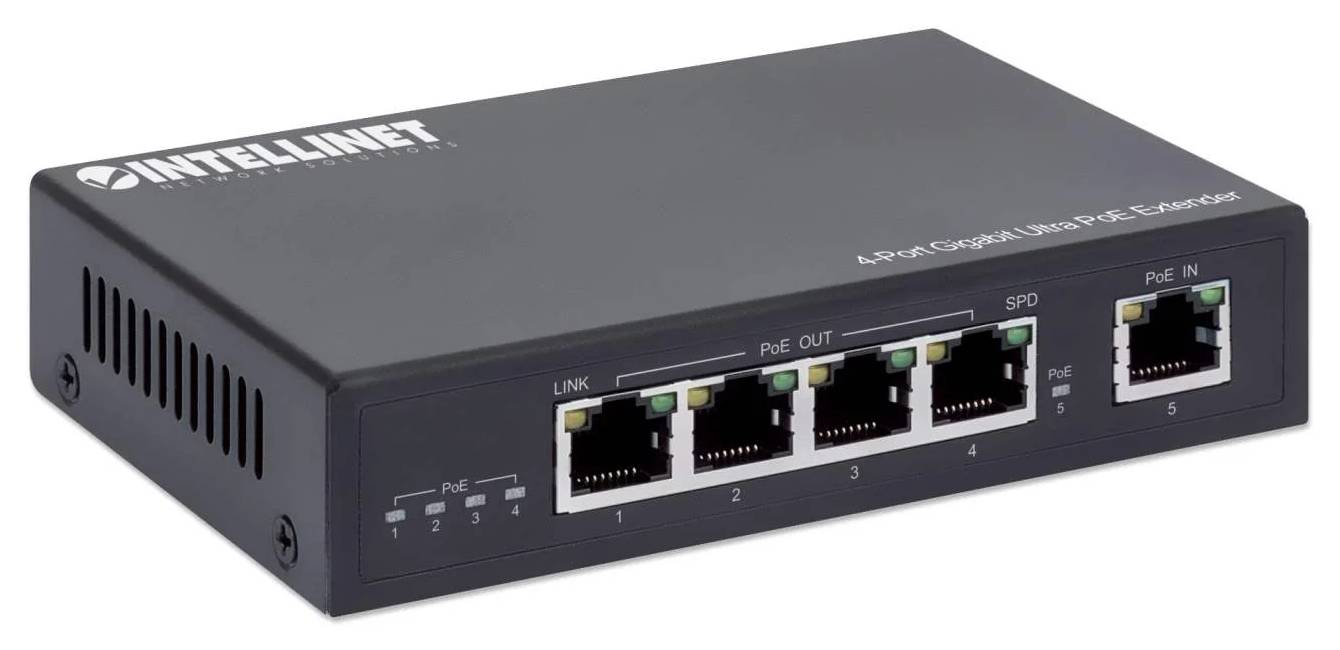

Inside it behaves as a 5-port Gigabit switch: one PoE IN port feeds the unit and carries the uplink, four PoE OUT ports power and connect the end devices. There is no adapter and no mains socket — everything it needs comes down the network cable.
Before you order: The full 90 W budget across the four outputs needs an 802.3bt source that can supply 90 W on the input port. The extender also accepts 802.3at/af sources, but Intellinet does not publish how much output power remains in that case — plan with an 802.3bt switch or injector.
What's in the Box
- Intellinet 4-Port Gigabit Ultra PoE Extender (561617)
- 4 rubber feet
- Instructions
- No power supply and no network cables — it is powered only from the PoE IN port
What It Means in Practice
- One cable from an 802.3bt switch or injector can power and connect up to four PoE devices up to 200 m from the switch (100 m to the extender + 100 m to each device).
- Each output gives up to 30 W (802.3at/af), so typical fixed cameras, Wi-Fi access points and desk phones are covered; the four outputs share the 90 W total.
- Non-PoE devices can still be plugged into the outputs — they get data only, no power.

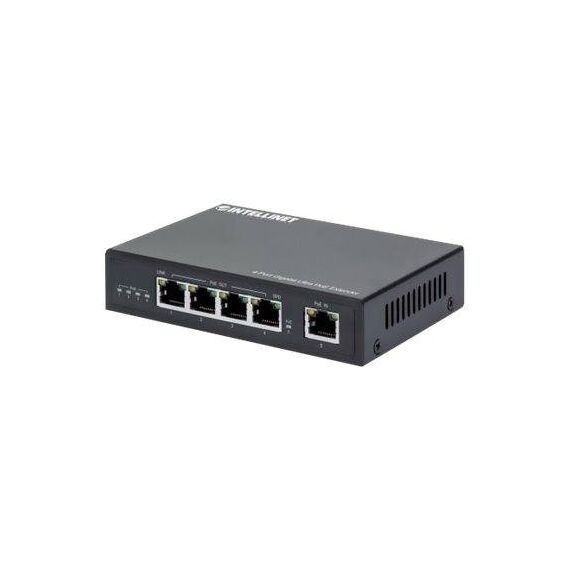

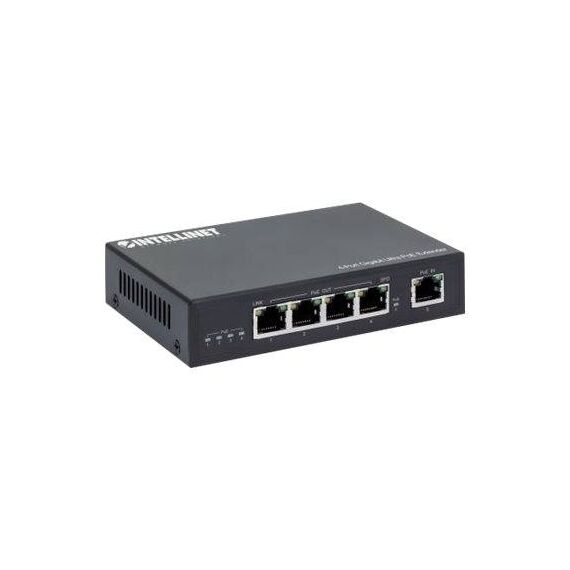

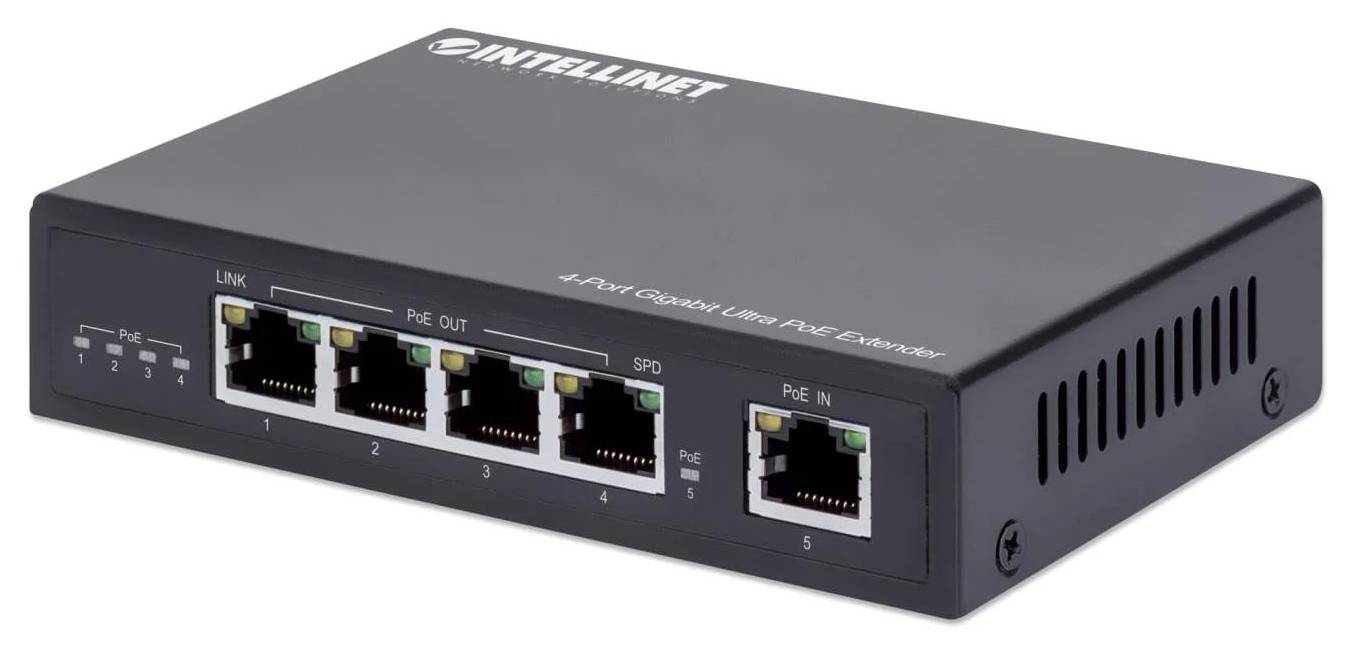

- The metal, fanless housing runs silently and can sit in a ceiling void or a small cabinet; it is a desktop-style unit with rubber feet.
What Will Not Work
- It does not pass 802.3bt power onwards: each output is limited to 30 W (802.3at), so 60 W/90 W PTZ cameras, PoE lighting or bt-class devices will not be powered.
- It cannot be powered from a wall adapter — without a PoE source on the IN port it does nothing.
- It does not extend 10G or 2.5G links; the ports are 10/100/1000 Mbps.
- No wall-mount or DIN-rail kit is published for this model.
Key Features
Ultra PoE input
Accepts IEEE 802.3bt (4PPoE) input up to 90 W and is backward compatible with 802.3at/af sources.
Four PoE+ outputs
Up to 30 W per port to 802.3at/af devices, 90 W shared across all four.
Built-in Gigabit switch
10 Gbps switching fabric, store-and-forward, 2,048 MAC entries and 9 kB jumbo frames.
Protected and silent

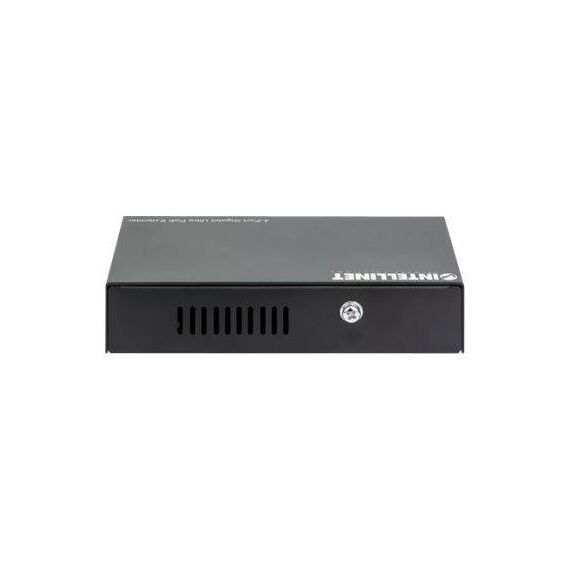

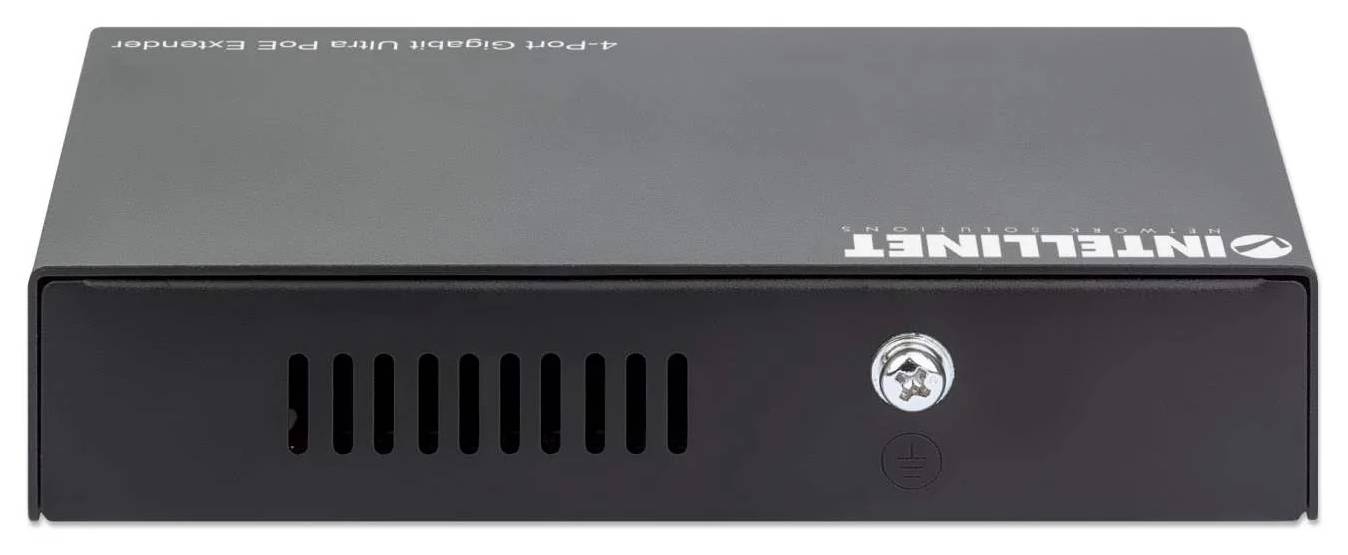

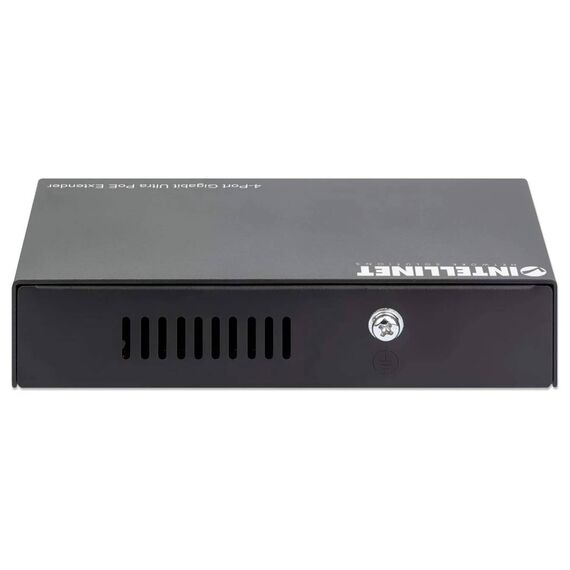

Short-circuit, overload and high-voltage protection in a fanless metal case with grounding point.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
This is the tidy answer for a cluster of four IP cameras or access points at the end of a long corridor or car park: one 802.3bt cable out, four PoE+ devices powered at the far end. Size the source correctly — the extender itself has no power of its own.
✓ Buy it if you have an 802.3bt switch or injector and need up to four 802.3at/af devices more than 100 m away.
✕ Skip it if your far-end device needs more than 30 W, or you only have a PoE+ (30 W) source.
→ Also consider Intellinet 2-Port Gigabit Ultra PoE Extender (561600) for two devices, or a 10G/Multi-Gig injector at the source.
Tell us your switch model and the devices at the far end and we will check the power budget before you order.
