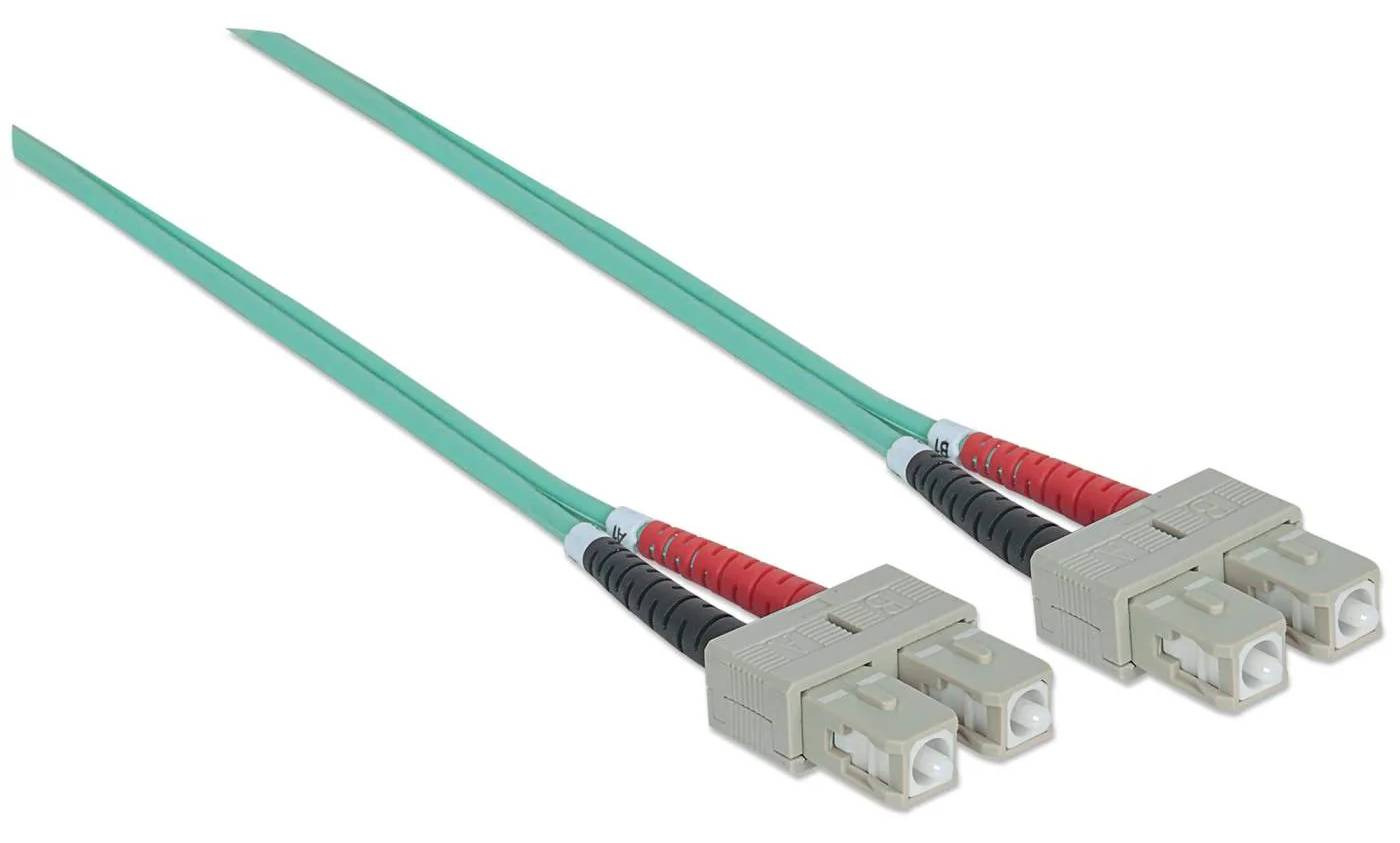

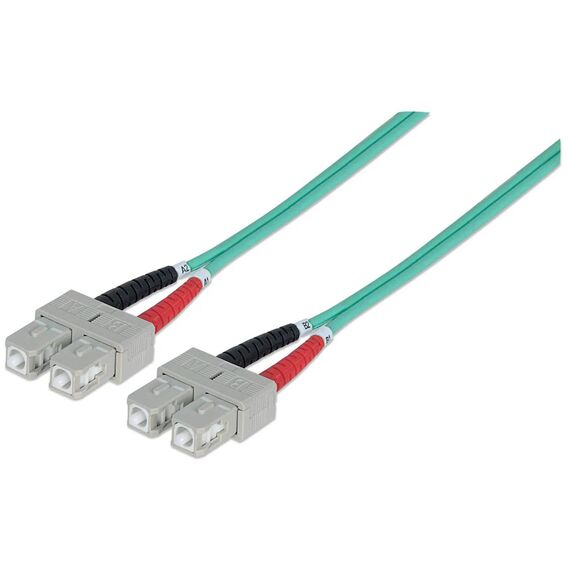

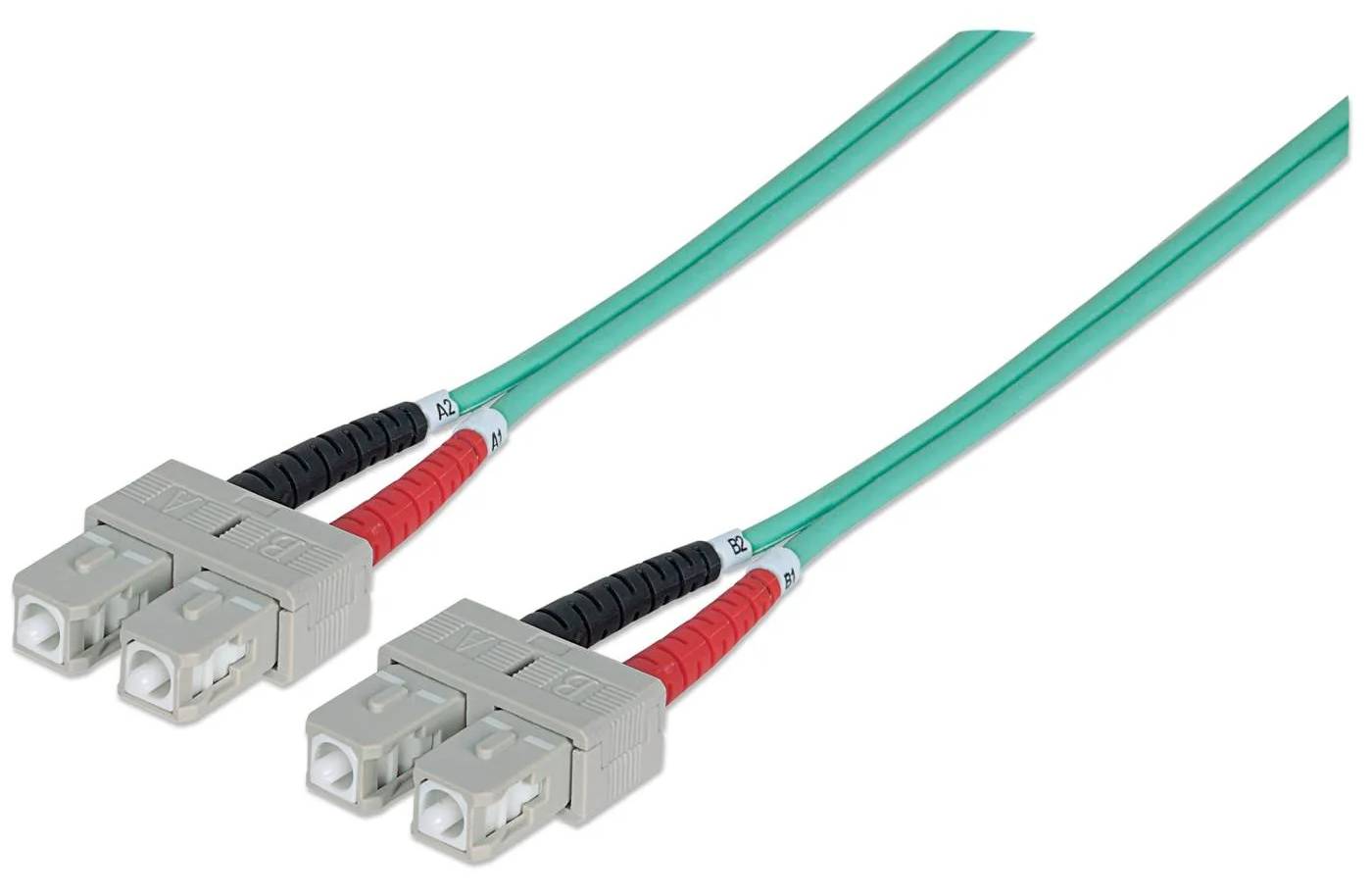

Intellinet SC-SC OM3 Duplex Fibre Patch Cable — 5 m
OM3 MultimodeSC/UPC – SC/UPC5 mLSZH 3 mm

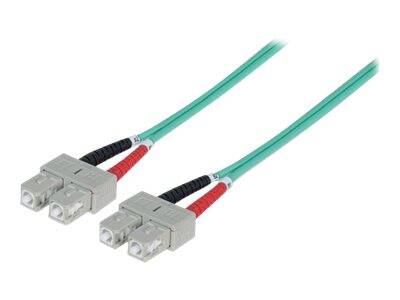

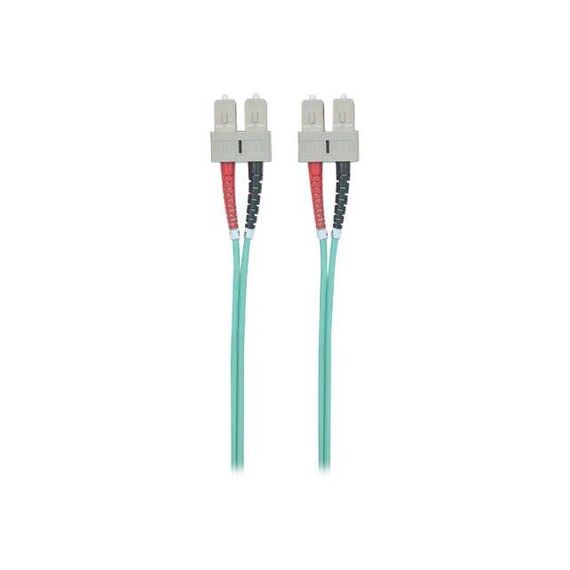

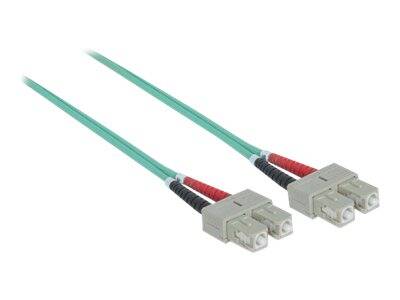

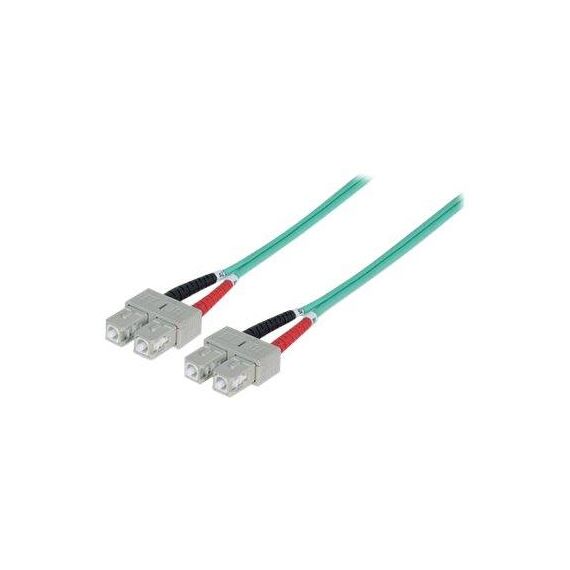

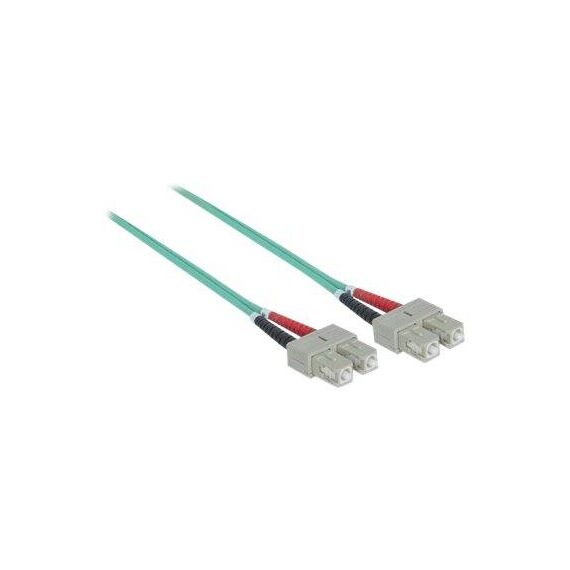

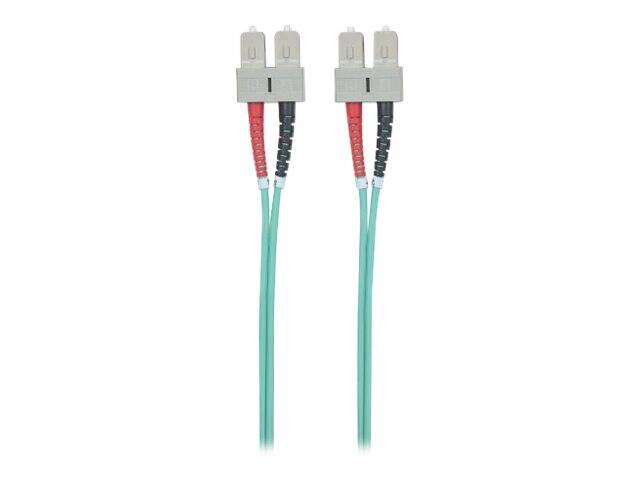

The Intellinet 750844 is a 5 m duplex fibre optic patch cable with SC/UPC and SC/UPC connectors on OM3 multimode fibre (50/125 µm), for connecting multimode SFP/SFP+ transceivers, media converters and patch panels in racks, offices and server rooms.
OM3 is laser-optimised 50/125 µm multimode fibre, the usual choice for 1G and 10G short-reach links between switches, servers and storage in the same room or building. The aqua jacket follows the common OM3 colour convention, so the link is easy to identify in the rack.
Before you order: This is OM3 multimode cable. It only works with multimode optics (SR/SX, 850 nm) and multimode panels, not with LX/LR singlemode transceivers.
What's in the Box
- 1 × Intellinet 750844 duplex fibre patch cable, SC/UPC – SC/UPC, 5 m

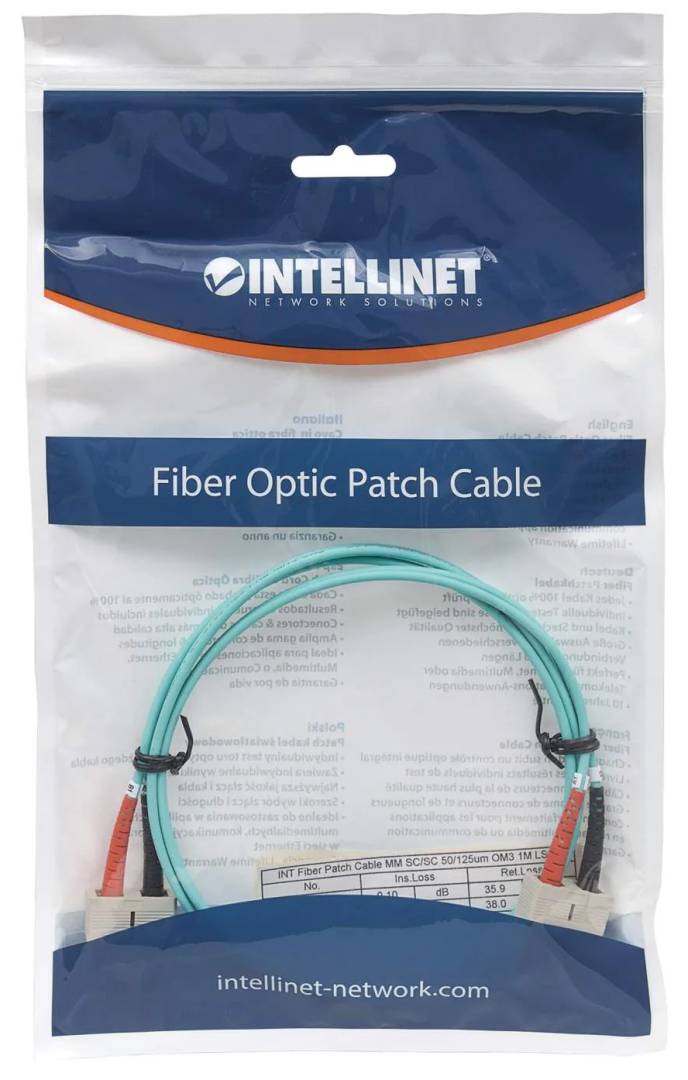

- Supplied in a polybag
What It Means in Practice
- 5 m covers patching inside a rack or between neighbouring racks, or from a wall outlet to a desk-side device.
- Duplex means two fibres (transmit and receive) in one cable, which is exactly what a standard duplex SFP, SFP+ or QSFP transceiver needs.
- LSZH jacket, 3 mm outer diameter, aqua: halogen-free, the usual requirement for cabling inside offices, public buildings and data rooms.
- Minimum bend radius 15 mm: keep curves in cable managers and trunking wider than this to avoid extra loss or a damaged fibre.
What Will Not Work
- It will not mate correctly with APC (angled, normally green) ports or adapters; those need an APC cable.
- Both ends are SC. Most SFP/SFP+ transceivers use LC, so this cable is for SC panels, media converters and SC-equipped devices, not for plugging straight into an LC transceiver.
- It is not a copper cable: it does not connect to RJ45 ports or copper (RJ45) SFP modules.
Key Features
Connectors

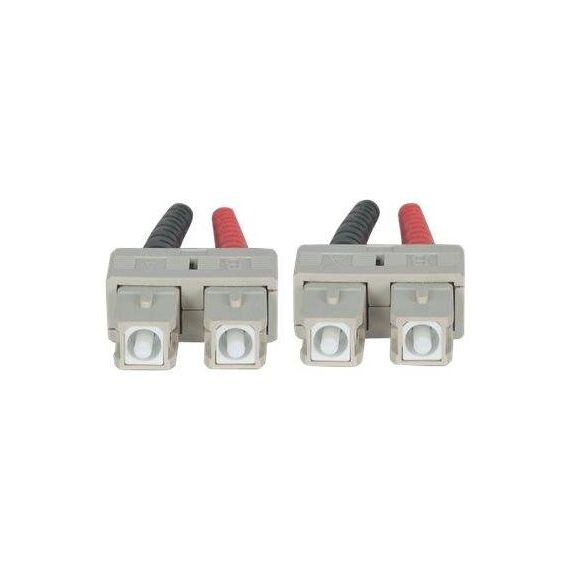

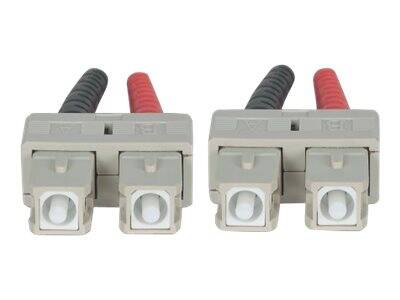

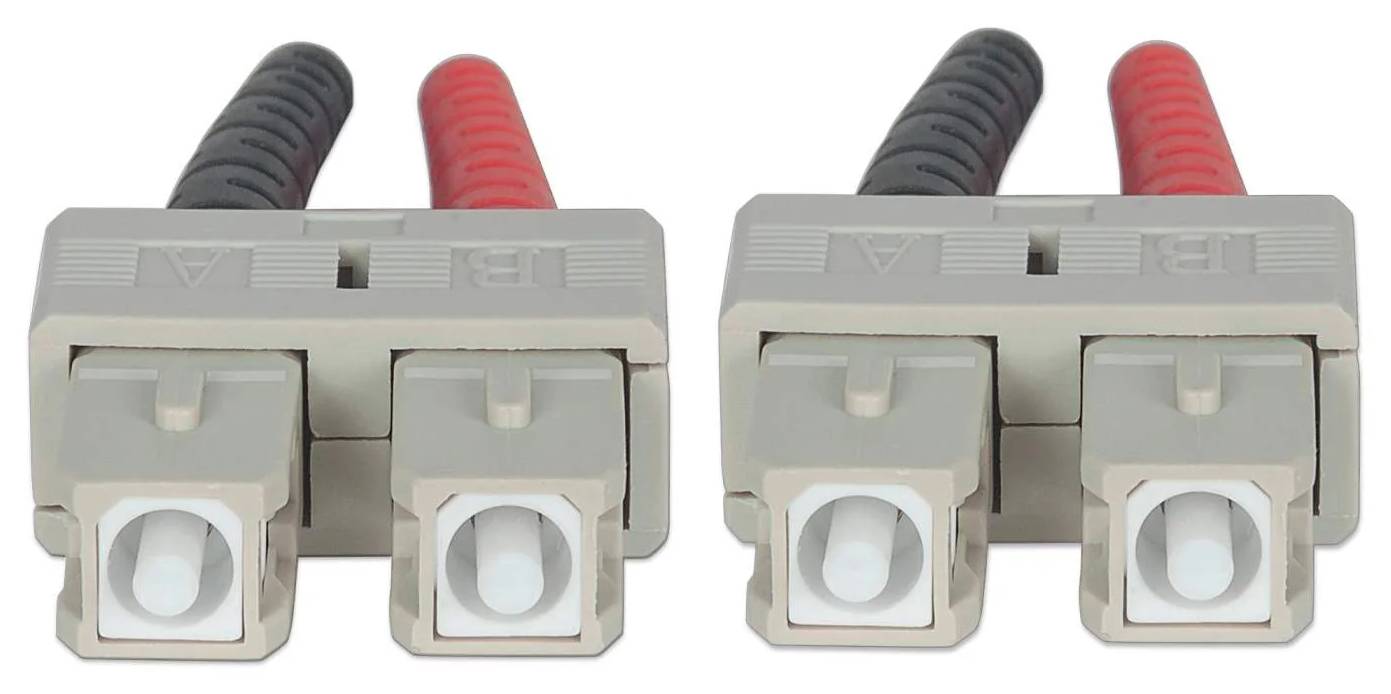

SC/UPC to SC/UPC with ceramic ferrules.
Fibre
OM3 multimode, 50/125 µm, 2 fibres.
Jacket
LSZH, 3 mm, aqua.
Quality
Insertion loss ≤ 0.25 dB, return loss ≥ 35 dB, per the manufacturer datasheet.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Most fibre problems we see come from three mismatches: multimode vs singlemode, UPC vs APC, and LC vs SC. This Intellinet cable is OM3 multimode, UPC SC-SC, so match it to your optics and panel first. If you are building the link from scratch, pick the transceivers and switches with SFP ports first, then choose the cable that matches them.
✓ Buy it if your equipment uses OM3 multimode fibre with SC/UPC and SC/UPC ports and 5 m covers the distance.
✕ Skip it if your transceivers are singlemode (LR/LX), or your ports are APC.
→ Also consider the same cable in other lengths, or an LC-SC hybrid version if your ports differ; matching SFP/SFP+ transceivers.
Not sure which cable you need? Send us the model of your switch, transceiver or panel and we will check connectors and fibre type before you order.
Features - Intellinet - 750844
Colour
Cyan
Length
5m
More Details
Product Code
04:194108
EAN Code
0766623750844
Manufacturer
Intellinet
