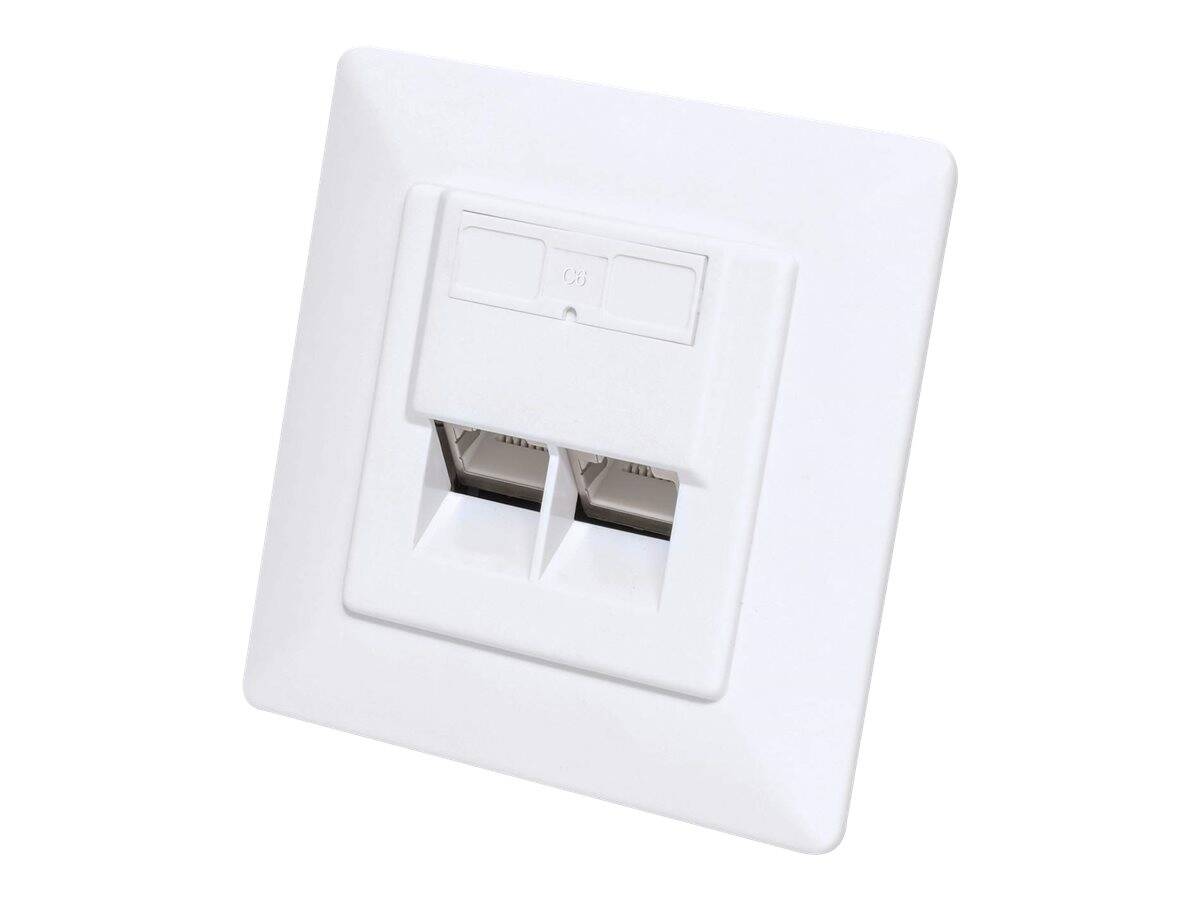

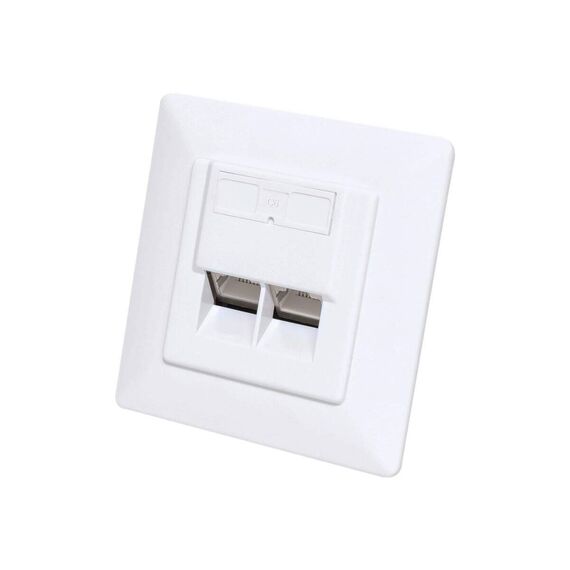

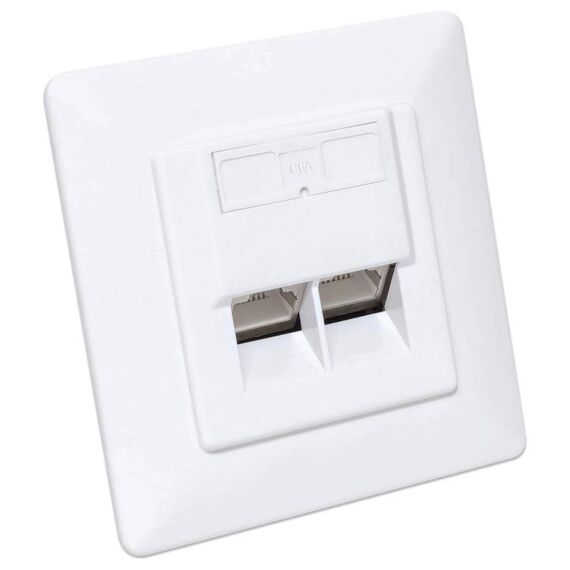

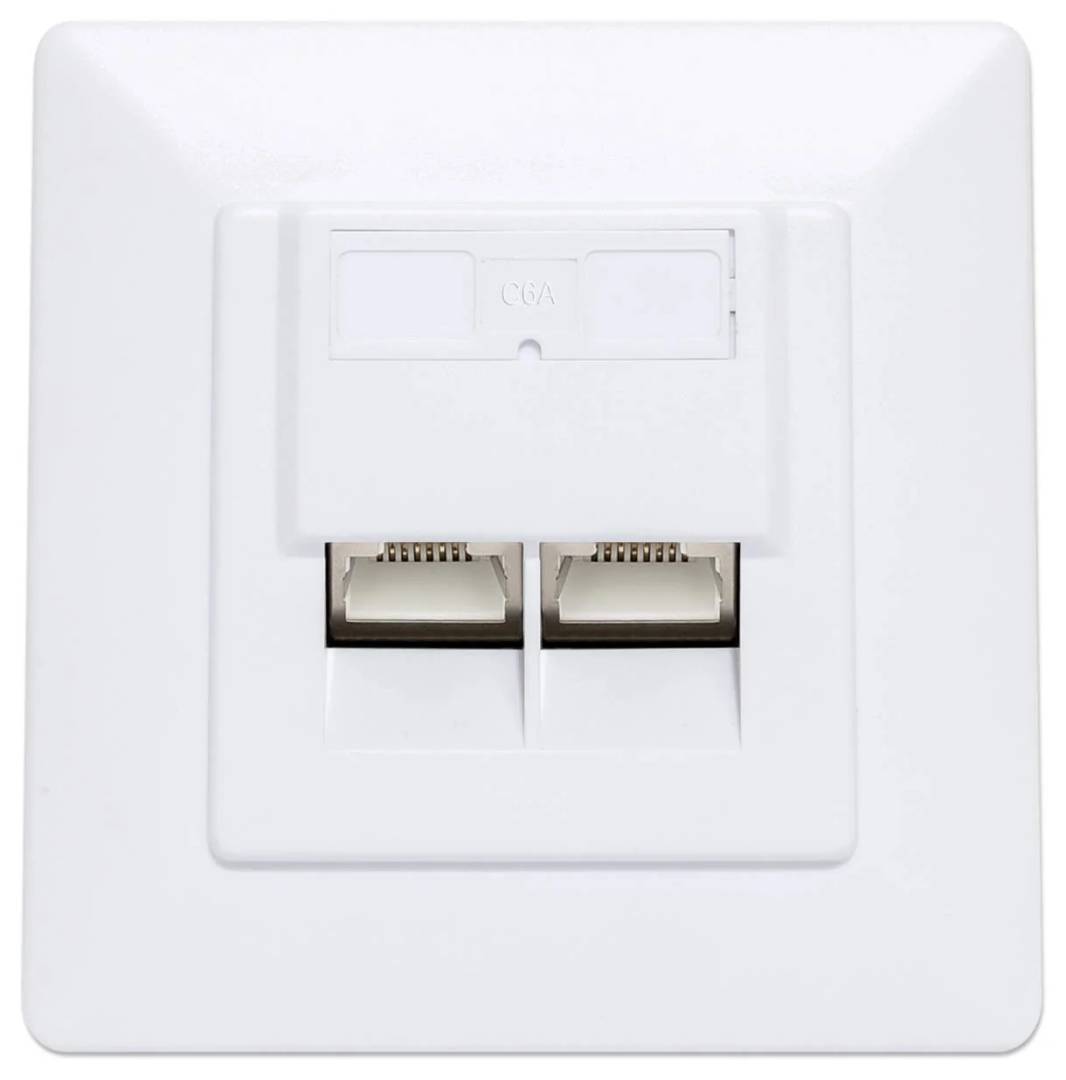

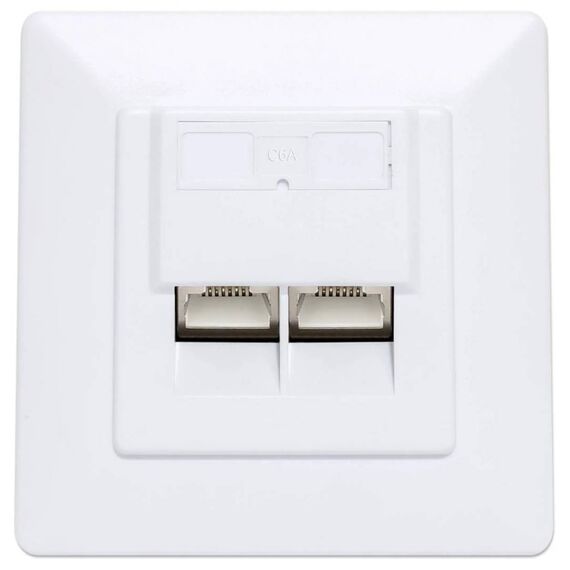

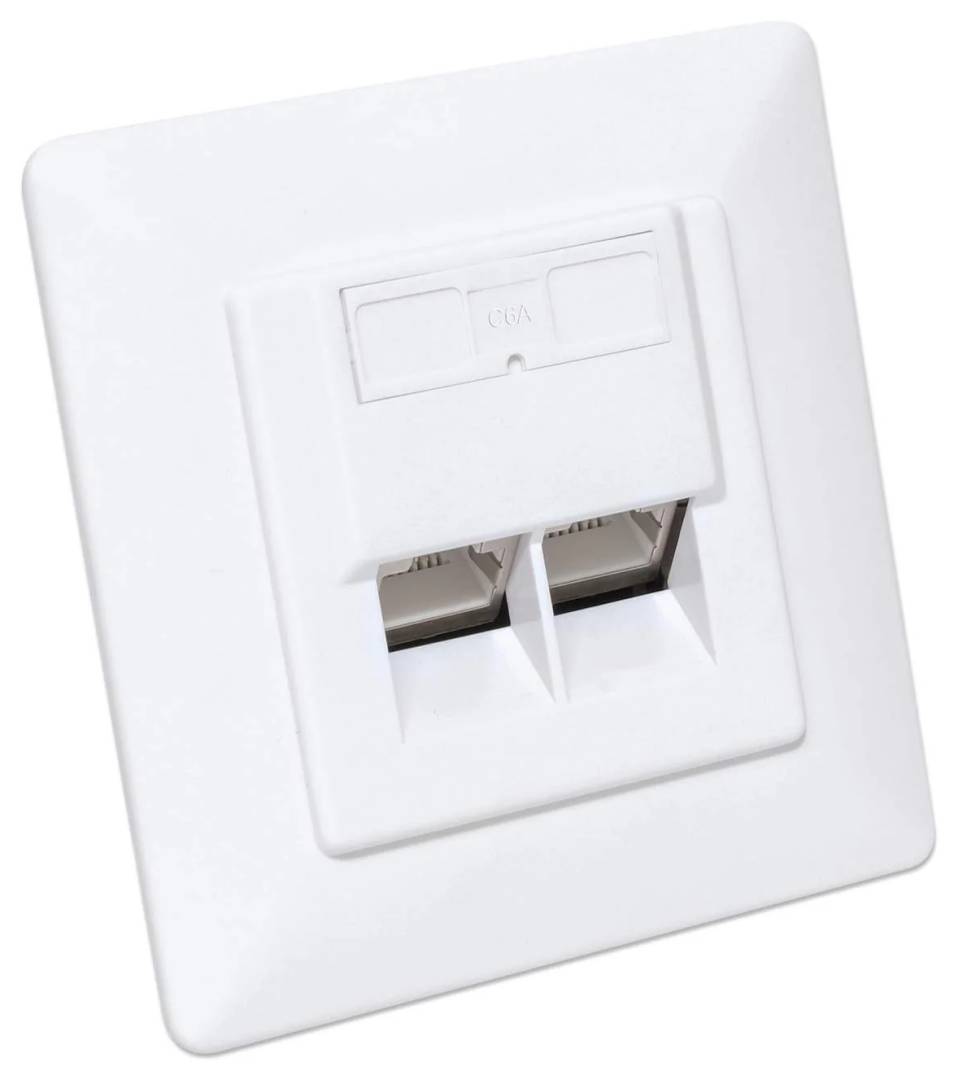

Intellinet 771917 Cat6a 10G Shielded Dual RJ45 Flush Wall Plate, 500 MHz, PoE++, Signal White RAL 9003

Brand:
Intellinet
Intellinet 771917 Cat6a Dual RJ45 Wall Plate, Signal White
Intellinet 771917 Cat6a 10G Shielded Dual RJ45 Flush Wall Plate, 500 MHz, PoE++, Signal White RAL 9003
€16.66 inc. VAT
Buy
771917
€14.00
€16.66 inc. VAT
Ships from EU stock: 21 item(s)
+ −
Add to wish list Ask a question
Product Code
04:405597
EAN Code
0766623771917
Manufacturer
Intellinet

Quick Specs

Network rating
Cat6a / up to 10 Gbps
Connections
2 × shielded RJ45
PoE support
Up to IEEE802.3bt / PoE++
Wire termination
LSA; solid AWG 26/1–22/1
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

A Cat6a termination point for two network runs

Cat6a10G2 × RJ45PoE++

Use the Intellinet 771917 to terminate two solid-wire network runs at a flush wall outlet. Its angled sockets keep the connection close to the wall, while Cat6a performance up to 500 MHz supports up to 10 Gbps when the complete cabling link and equipment meet the requirements.

Compatibility — check before buying:
For round cable with solid AWG 26/1 to 22/1 conductors. Plan for LSA punch-down termination. Surface mounting requires the optional 771894 pattress box; it is not included.

Key Features


10G and powered-device links
Cat6a sockets support 10G, HDBaseT and PoE applications through IEEE802.3bt / PoE++.

Angled twin outlets
Two 40° RJ45 sockets provide separate connection points within an 80 × 80 mm faceplate.

Practical cable termination
LSA termination accepts compatible punch-down tools; adjustable strain relief helps organise the cable entry.

Technical Specifications

Identification
MPN 771917
EAN 0766623771917
Colour Signal white RAL9003
Connectivity / installation
Category / frequency Cat6a STP / up to 500 MHz
Transfer speed Up to 10 Gbps
Applications 10G, HDBaseT; PoE up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE
Sockets 2 × RJ45 8P8C; 40° angled; 360° shielding
Termination / tools LSA punch-down; compatible with 110, Krone and other punch-down tools
Cable / wire support Round cable; solid wire AWG 26/1 to 22/1
Mounting Flush; optional surface mounting with pattress box 771894
Strain relief / label Adjustable strain relief; integrated writable label
Mating cycles ≥750
Materials / compliance
Contacts Zinc-plated phosphor bronze; gold contact plating
IDC / shielding / housing Phosphor bronze / zinc alloy / ABS plastic
Standards ISO/IEC 11801; DIN EN 50173-1; ANSI/TIA-568; CE; RoHS
Dielectric withstand 1,000 V DC / 700 V AC, 60 Hz for 1 minute
Physical / environmental
Dimensions (L × W × H) 80 × 80 × 31 mm
Net / gross weight 150 g / 160 g
Operating temperature -10 – 60 °C
Storage temperature -40 – 70 °C
Operating humidity 10 – 90% RH, non-condensing
Manufacturer term Lifetime warranty, subject to manufacturer terms

What's in the Box

2-Port Cat6a 10G Shielded RJ45 Wall Plate
Two screws for surface-mount trunking / optional 771894 pattress box

Frequently Asked Questions

Can it be installed on the surface of a wall?
Yes, with the optional Intellinet 771894 pattress box. The wall plate itself is designed for flush mounting.
Which cable conductors fit the terminals?
The specified range is solid wire AWG 26/1 to 22/1 in round cable. Check the conductor construction and gauge before terminating.
Does it supply PoE power?
It supports PoE connections through PoE++, but is a passive wall outlet. Power must come from suitable PoE equipment in the link.
Singular Expert Insight
Check conductor size and mounting method first. This Cat6a outlet makes sense in a suitably specified 10G link; use the optional pattress box when there is no flush mounting position. Compare network installation accessories

Buyer’s Guide

Buy it if

You need two shielded Cat6a connections for solid-wire cabling, with 10G and PoE++ support.

Skip it if

Your conductor gauge or mounting arrangement falls outside the specified requirements.

Also consider

The 771900 Cat6 version for a different cabling specification, or 771894 for surface mounting.
