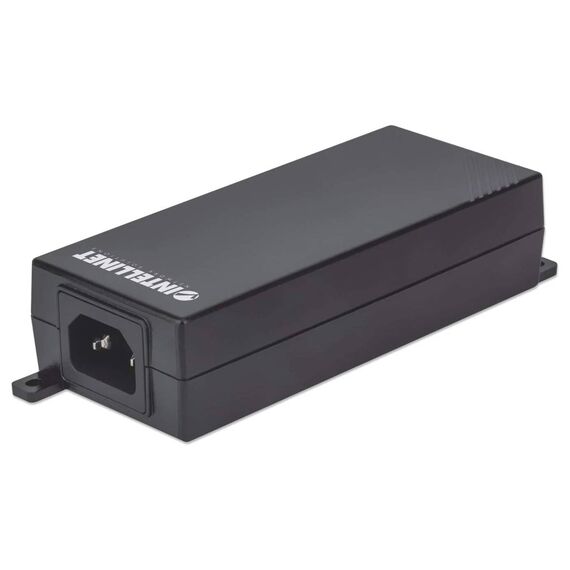

Intellinet 561518 Gigabit High-Power PoE+ Injector 30 W, IEEE 802.3at/af, 1-Port, Compact Plastic Housing, 100–240 V AC
Brand:
Intellinet
Intellinet 561518 Gigabit High-Power PoE+ Injector 30 W, IEEE 802.3at/af, 1-Port, Compact Plastic Housing, 100–240 V AC
€47.24 inc. VAT
561518
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Intellinet 561518 — compact 30 W PoE+ for one Gigabit device
IEEE 802.3at · 30 WGigabit141 g compactMode A

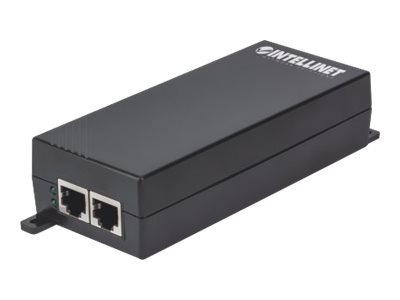

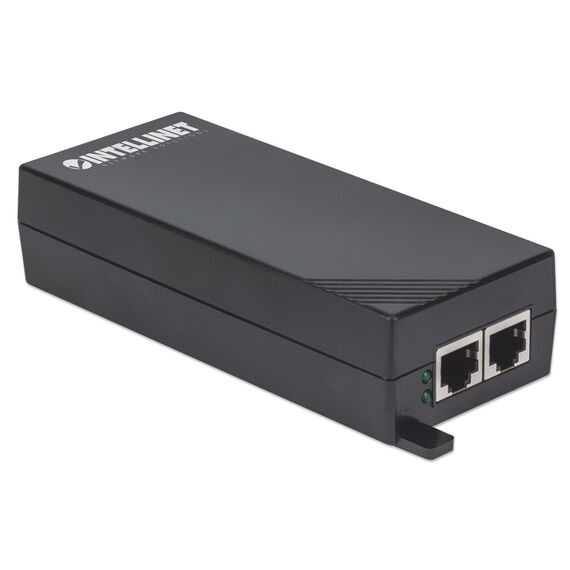

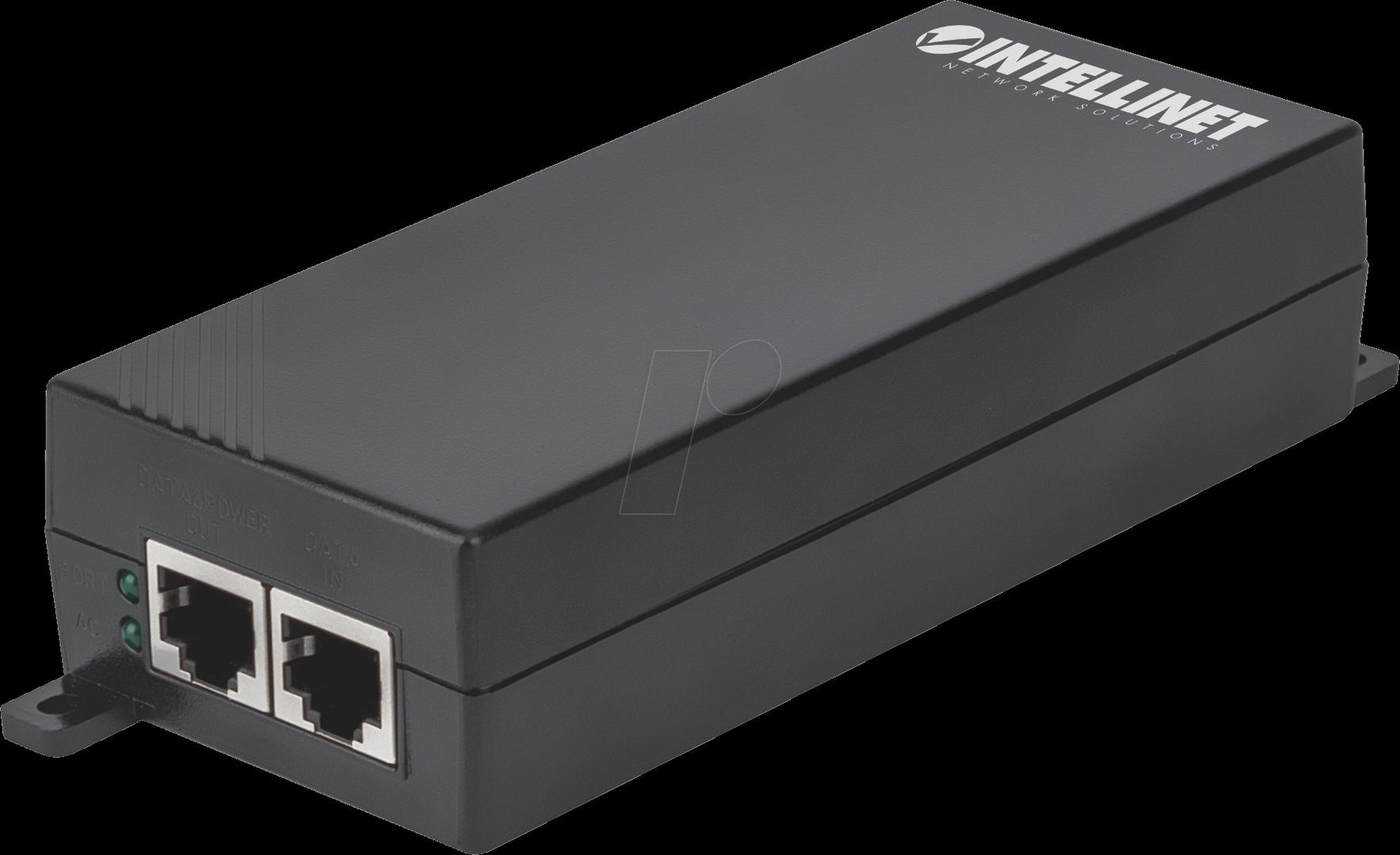

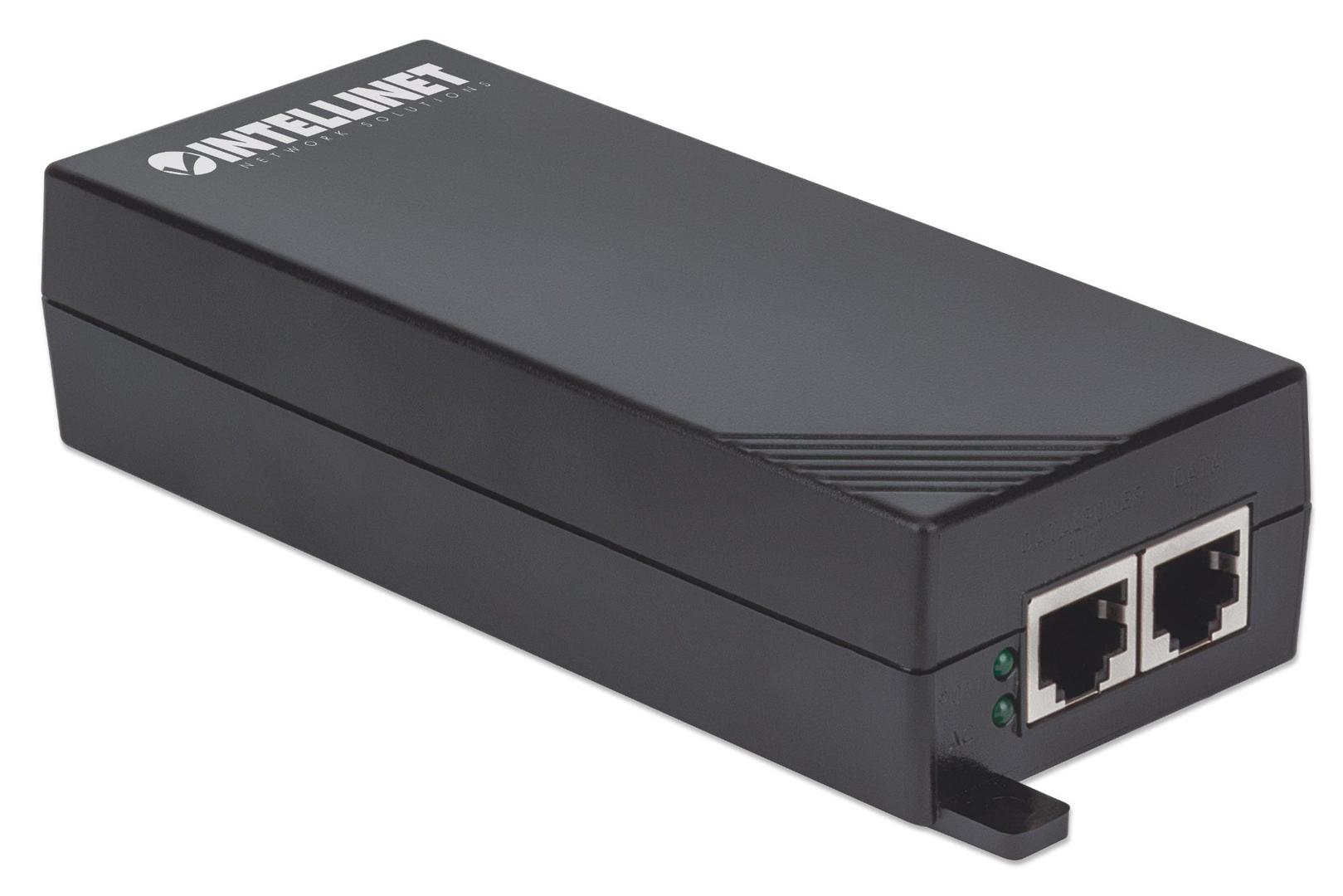

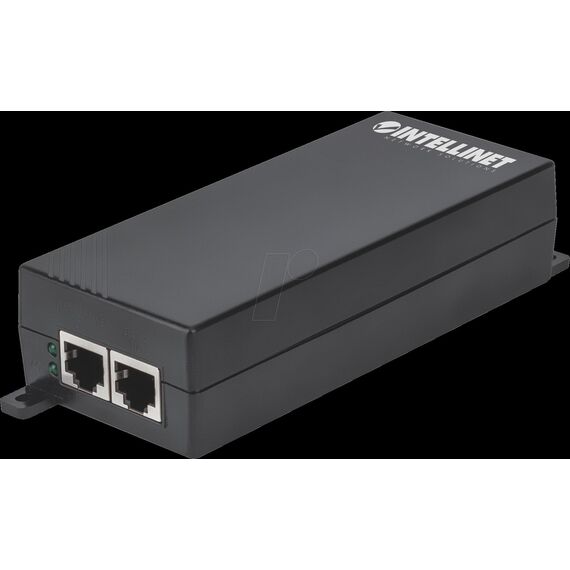

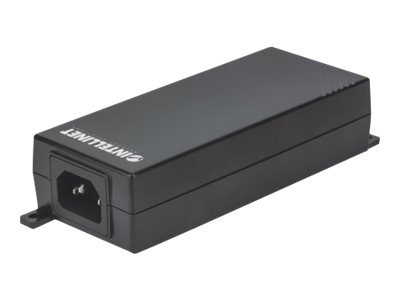

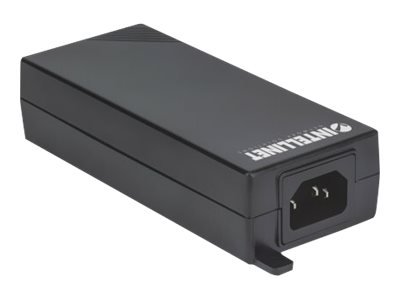

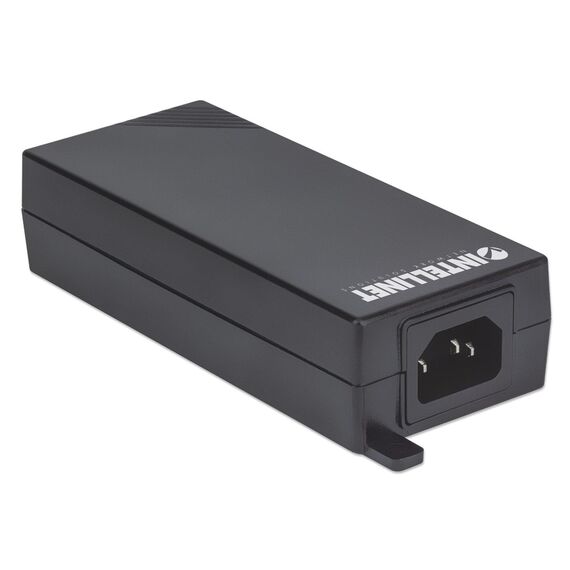

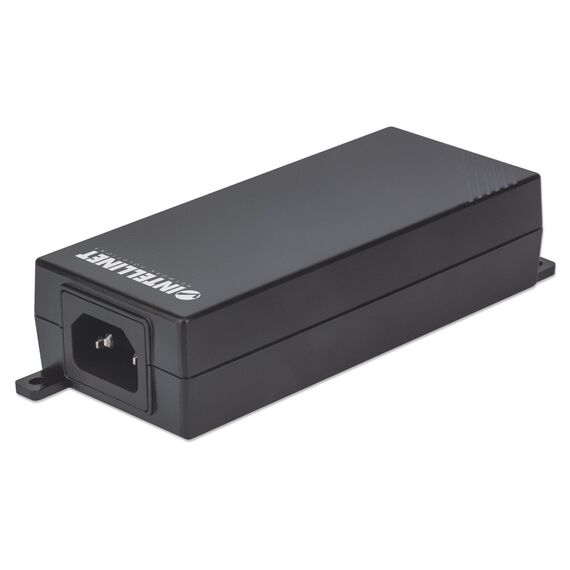

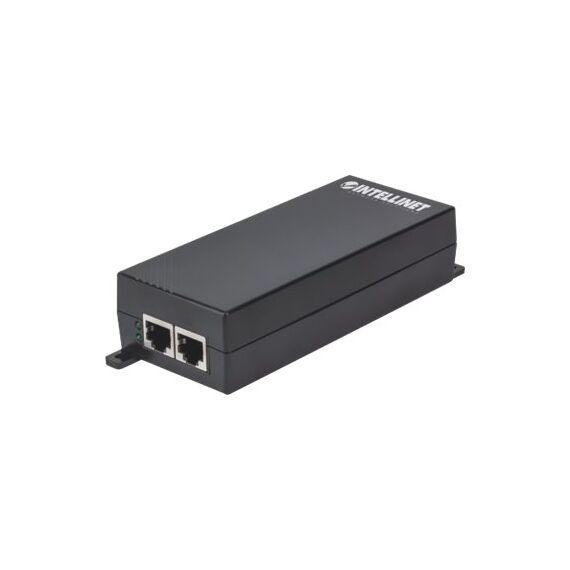

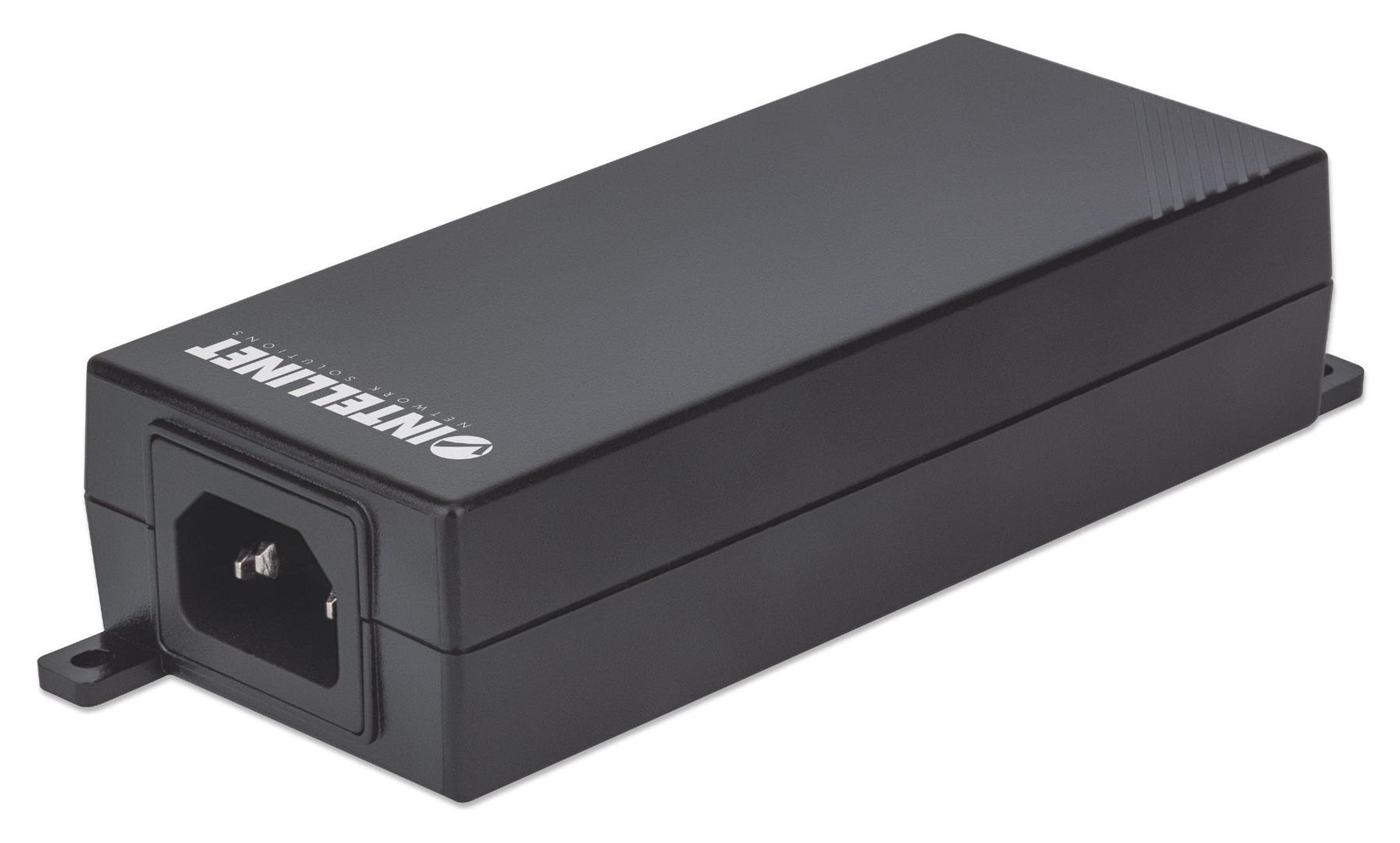

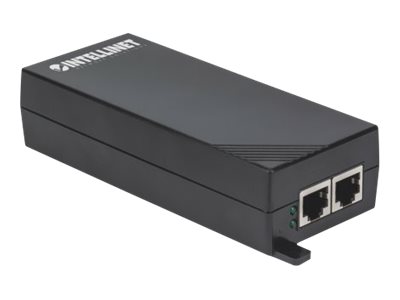

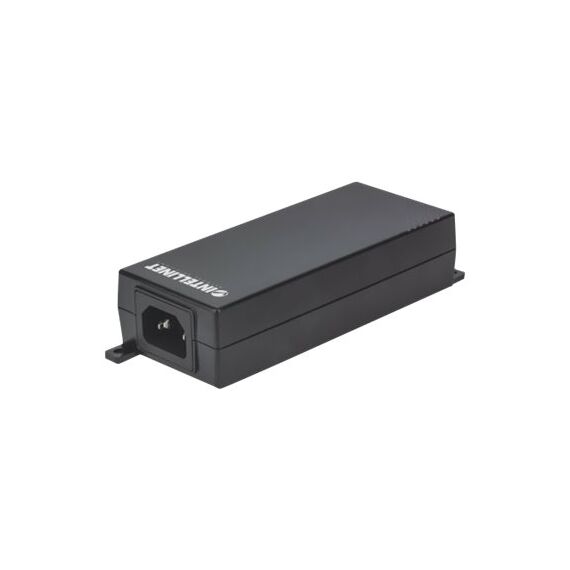

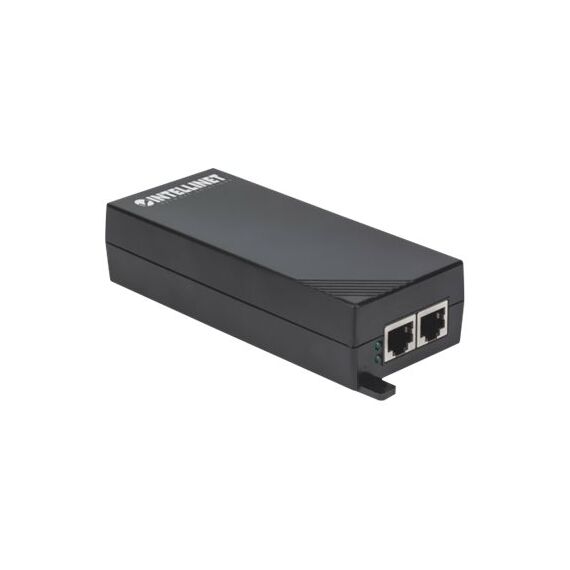

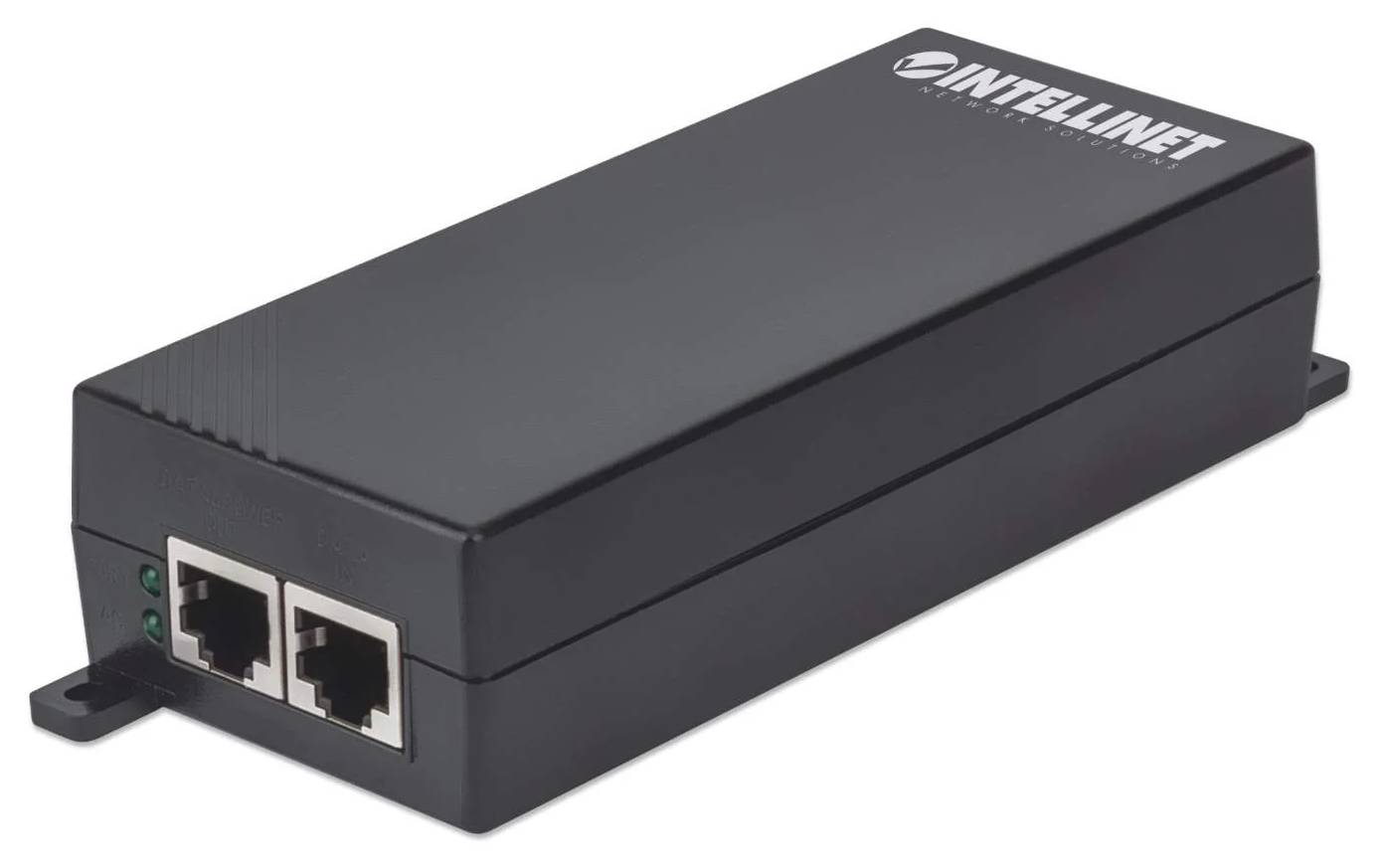

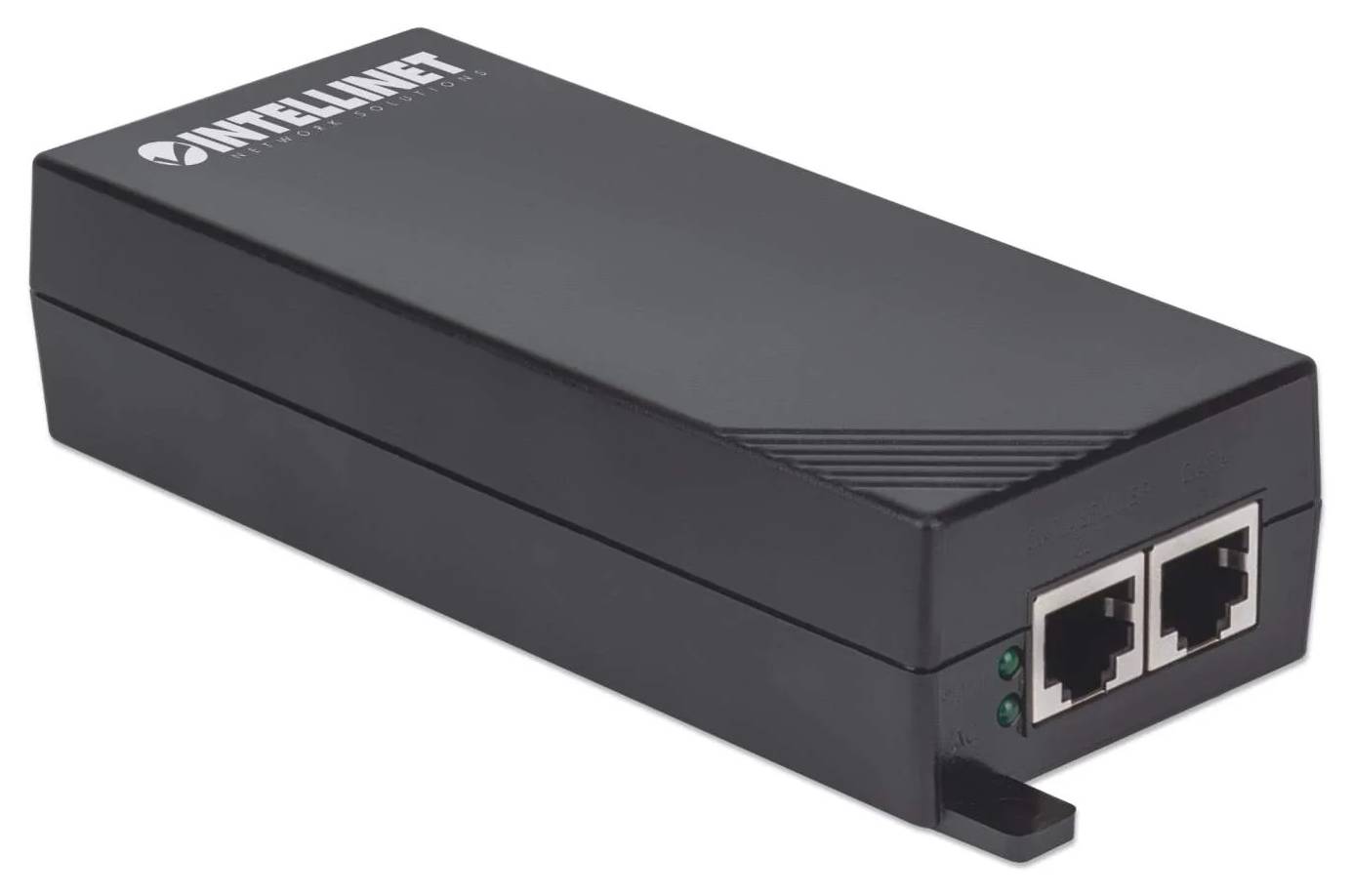

The Intellinet 561518 (IPI-30G) is a compact single-port Gigabit PoE+ injector that adds up to 30 W of IEEE 802.3at power to an Ethernet link. It is a light, low-cost way to power one access point, IP camera or IP phone from a switch or router that has no PoE.

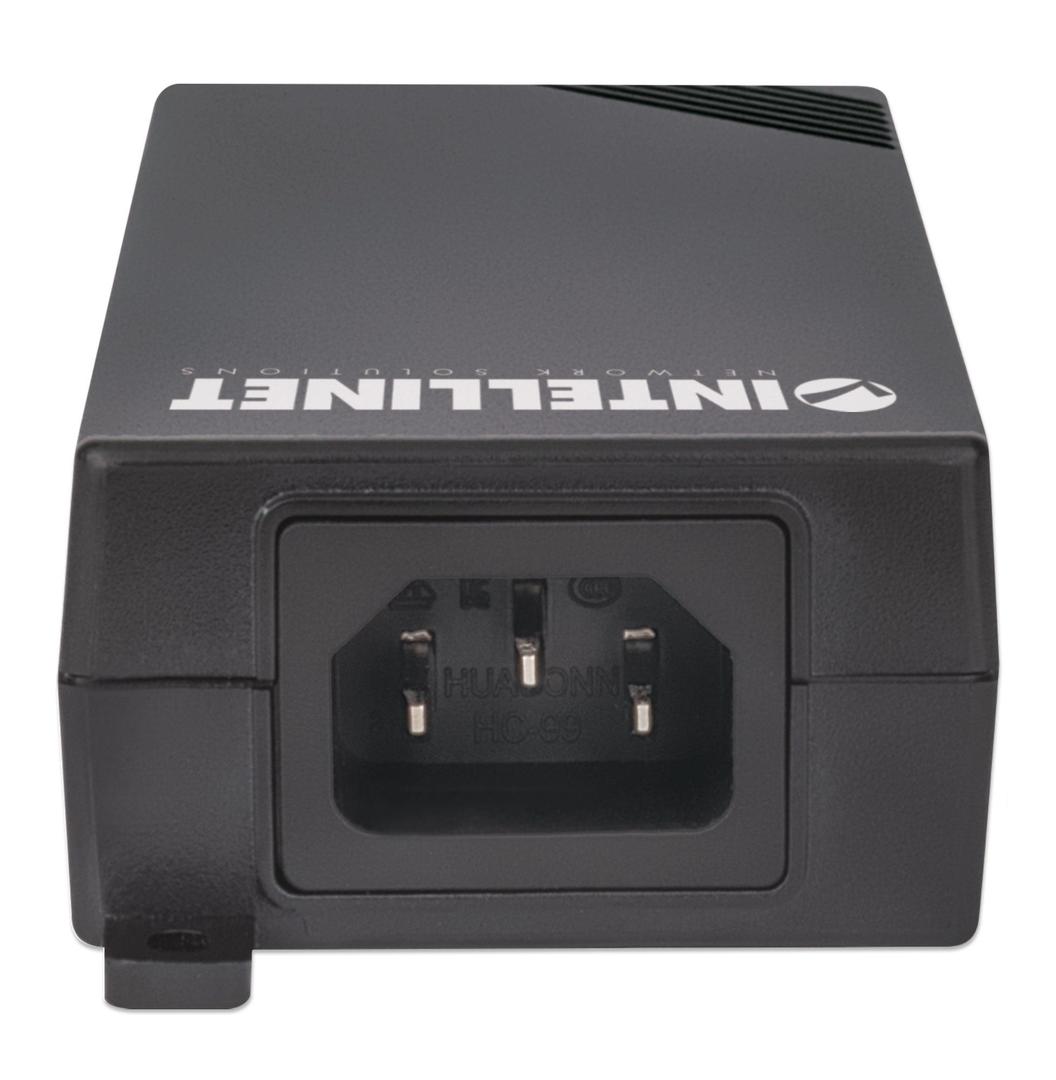

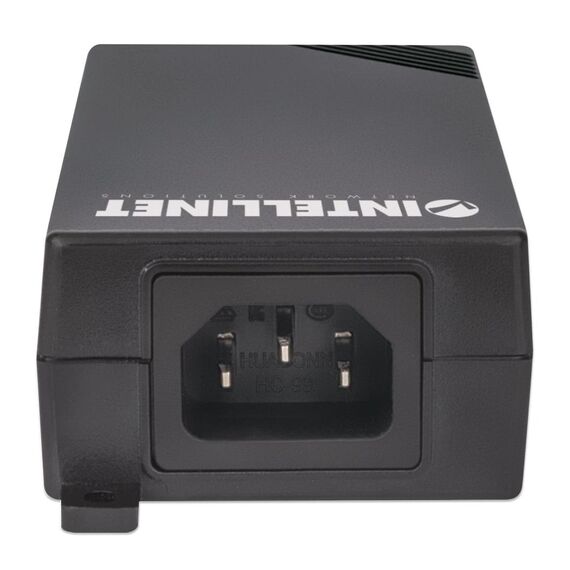

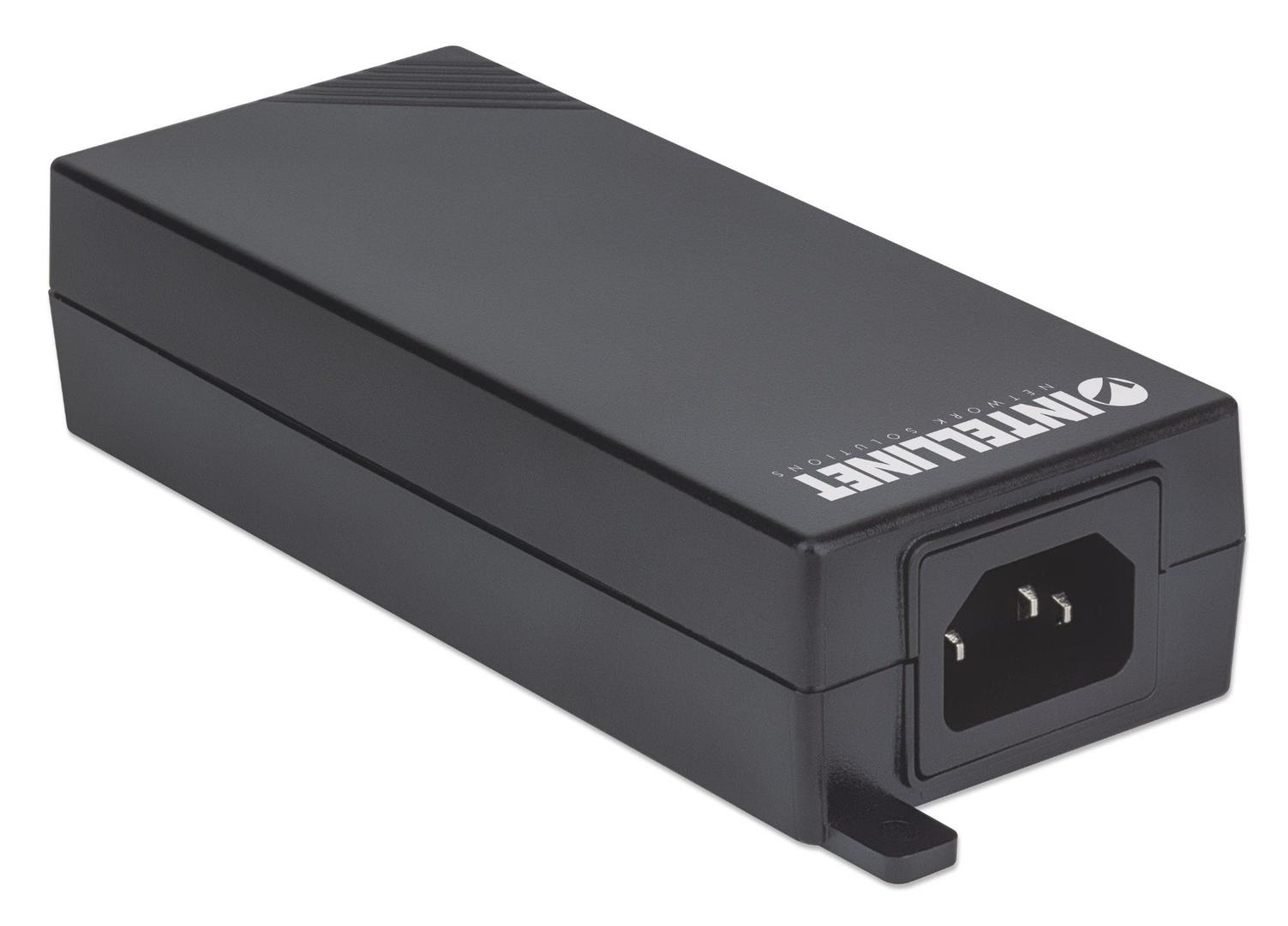

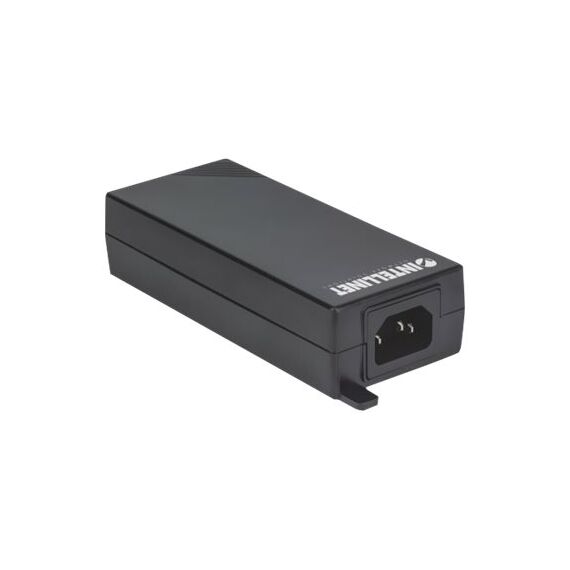

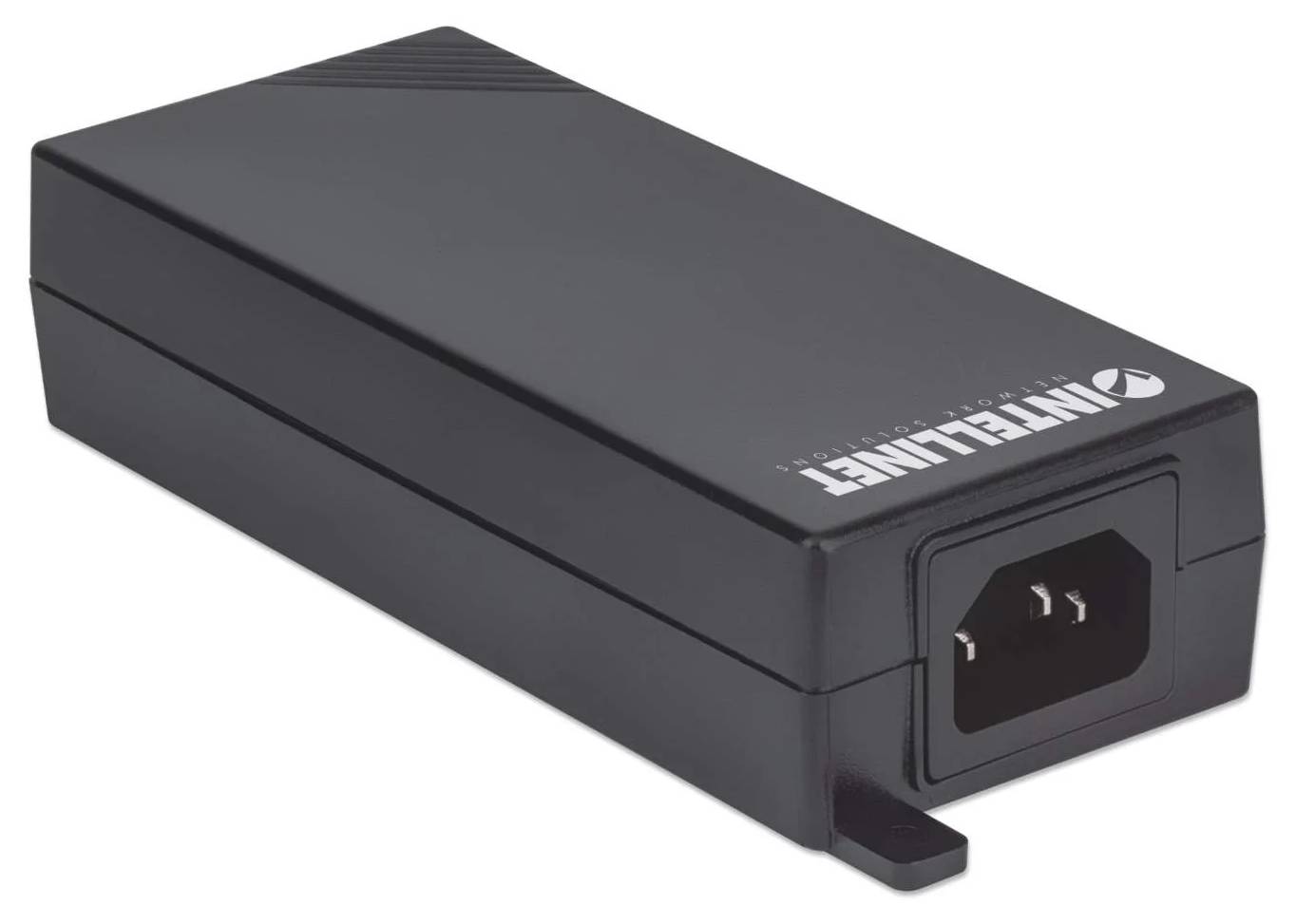

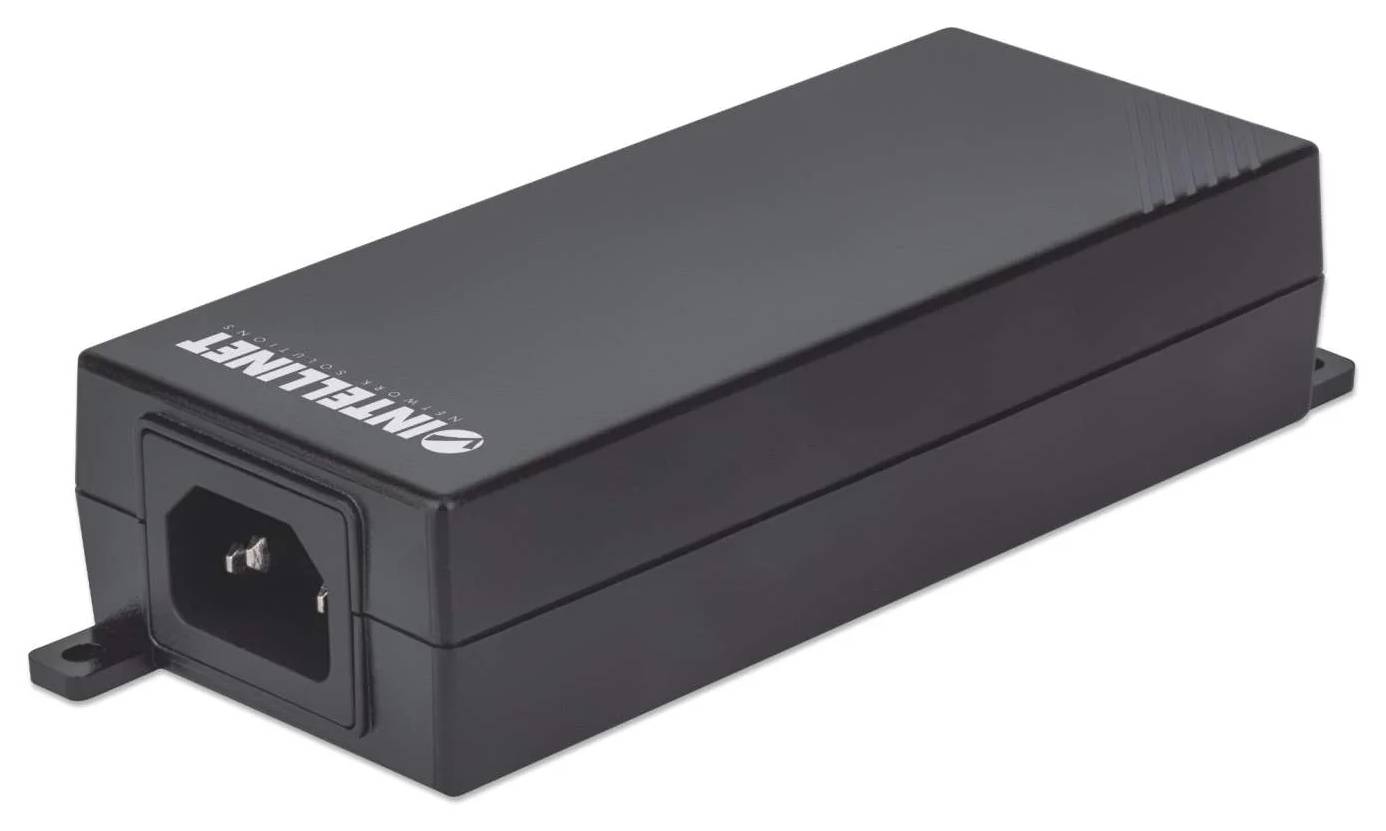

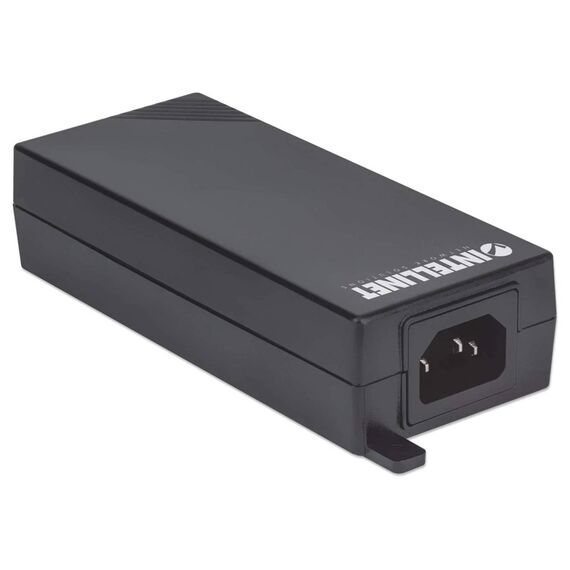

The power supply is built in and connects to the mains with a power cable. The injector detects compliant devices before it applies power, protects against short circuits, overload above 0.6 A and high voltage, and passes data at 10/100/1000 Mbps with 802.3x flow control.
Before you order: Power is delivered on the data pairs (1/2 positive, 3/6 negative — Mode A). Standard 802.3af/at devices accept Mode A; older passive or non-standard devices may not.
What's in the Box
- 561518 PoE+ injector
- Power cable
- Instructions
What It Means in Practice
- Enough for most Wi-Fi 6 access points and PoE+ cameras.
- At 111 × 57 × 33 mm and 141 g it fits behind a desk, on a shelf or next to a small router.
- A non-PoE device plugged in by mistake only receives data.

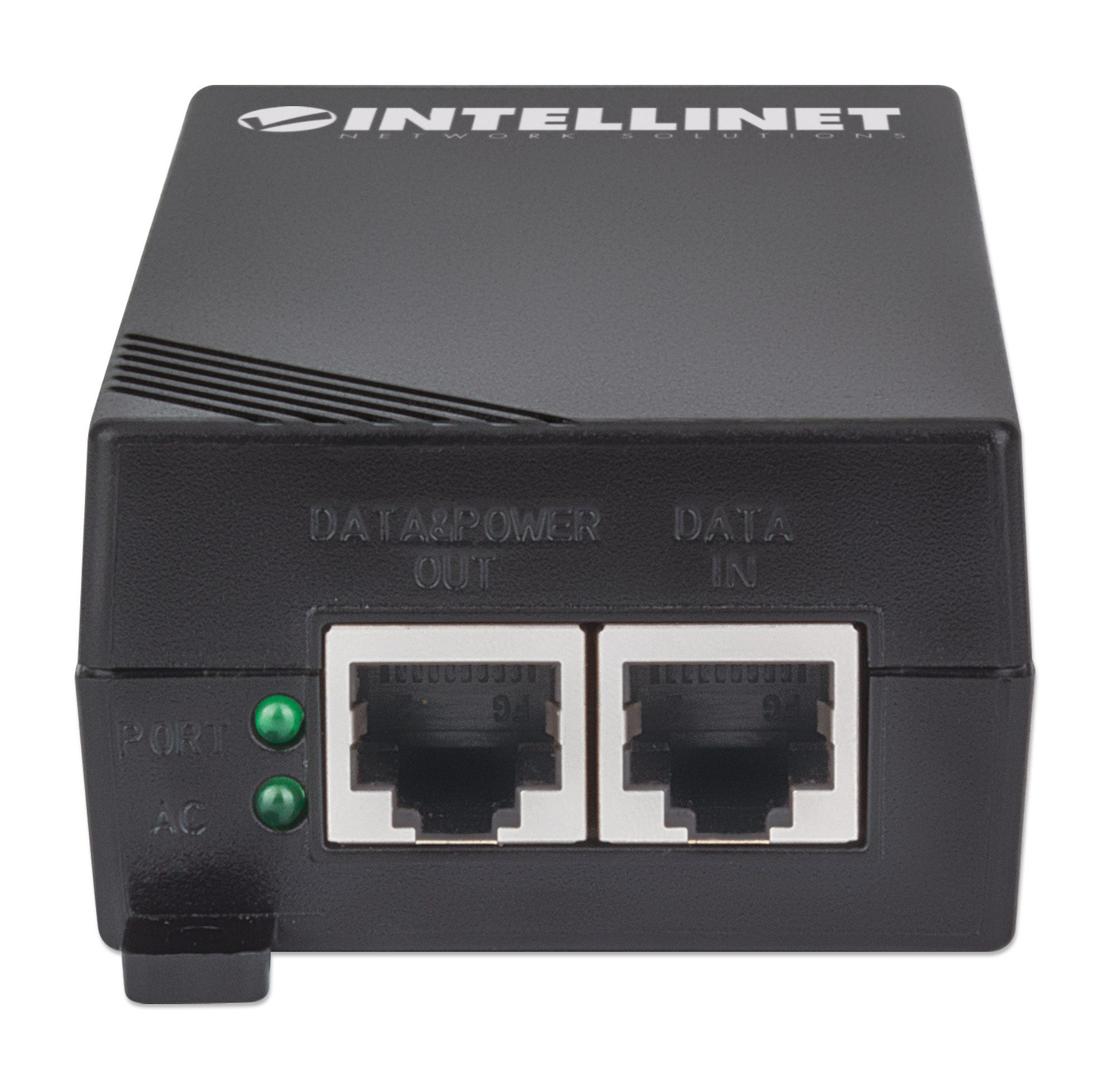

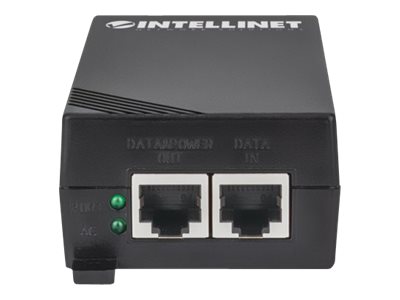

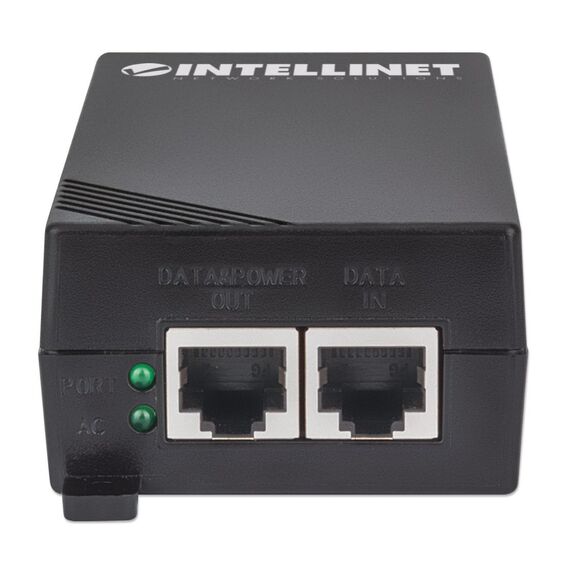

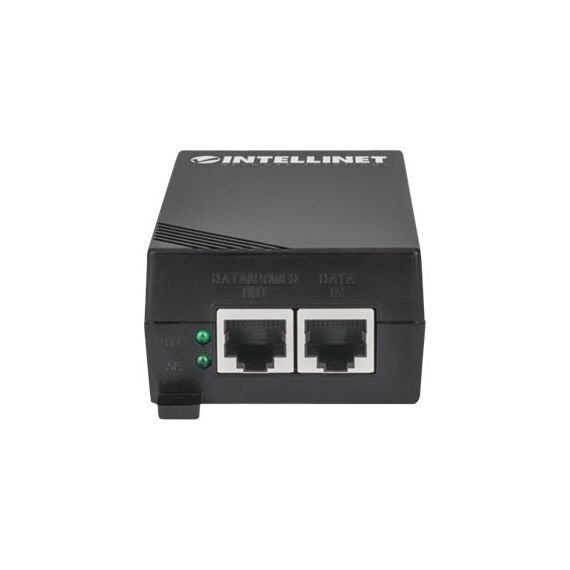

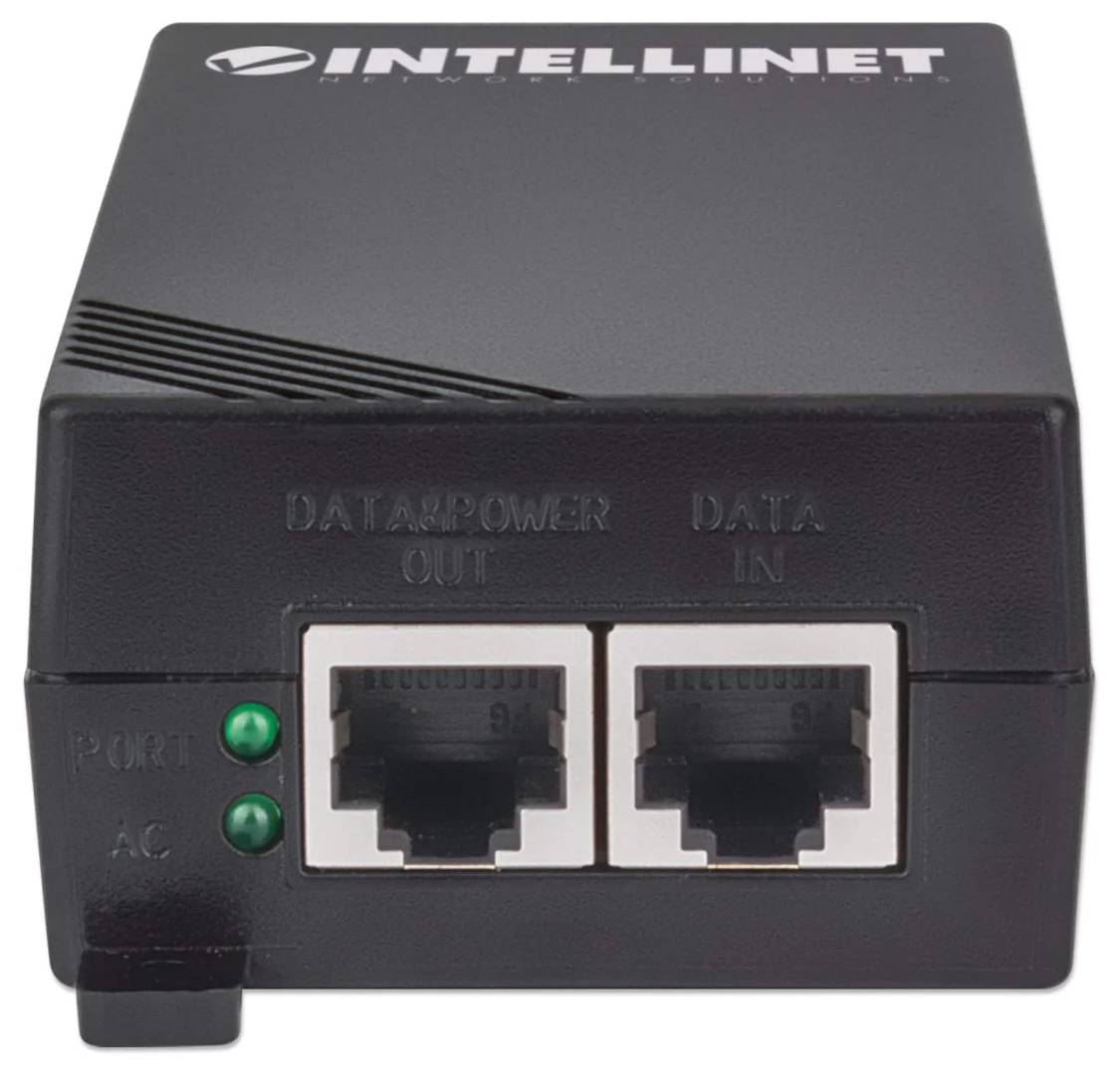

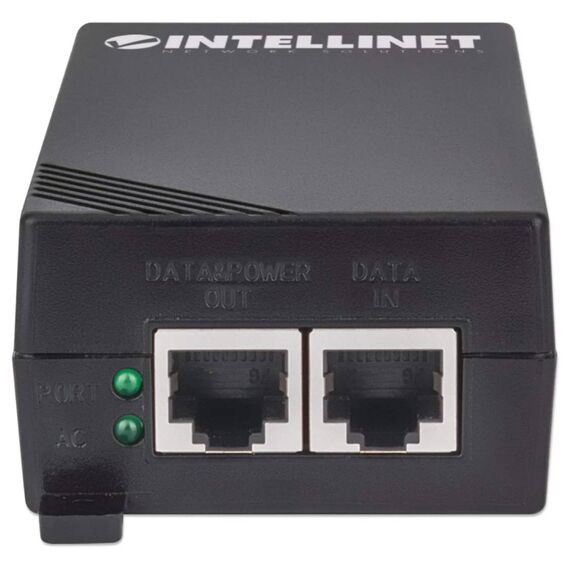

- One dual-colour LED shows power and PoE status at a glance.
What Will Not Work
- It does not power 802.3bt (60/90 W) devices.
- It does not output 12 V DC for non-PoE devices.
- It is not a switch: one data input, one data + power output.
- It is not intended for outdoor enclosures.
Key Features
PoE+ 30 W
IEEE 802.3at with backward compatibility to 802.3af.
Protection
Detection, short-circuit, overload (>0.6 A) and high-voltage protection.
Compact

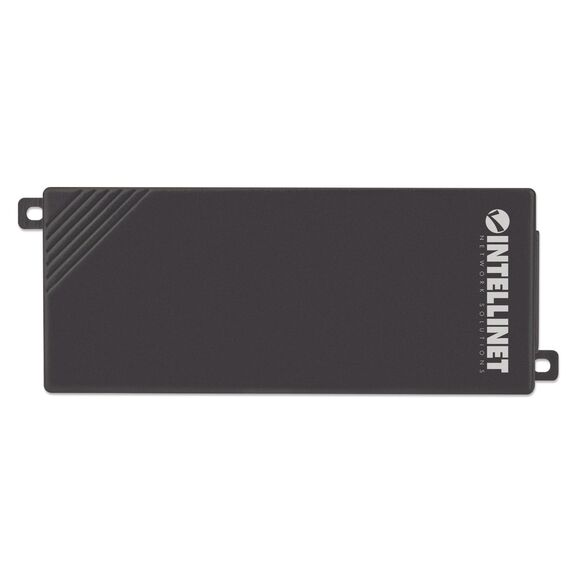

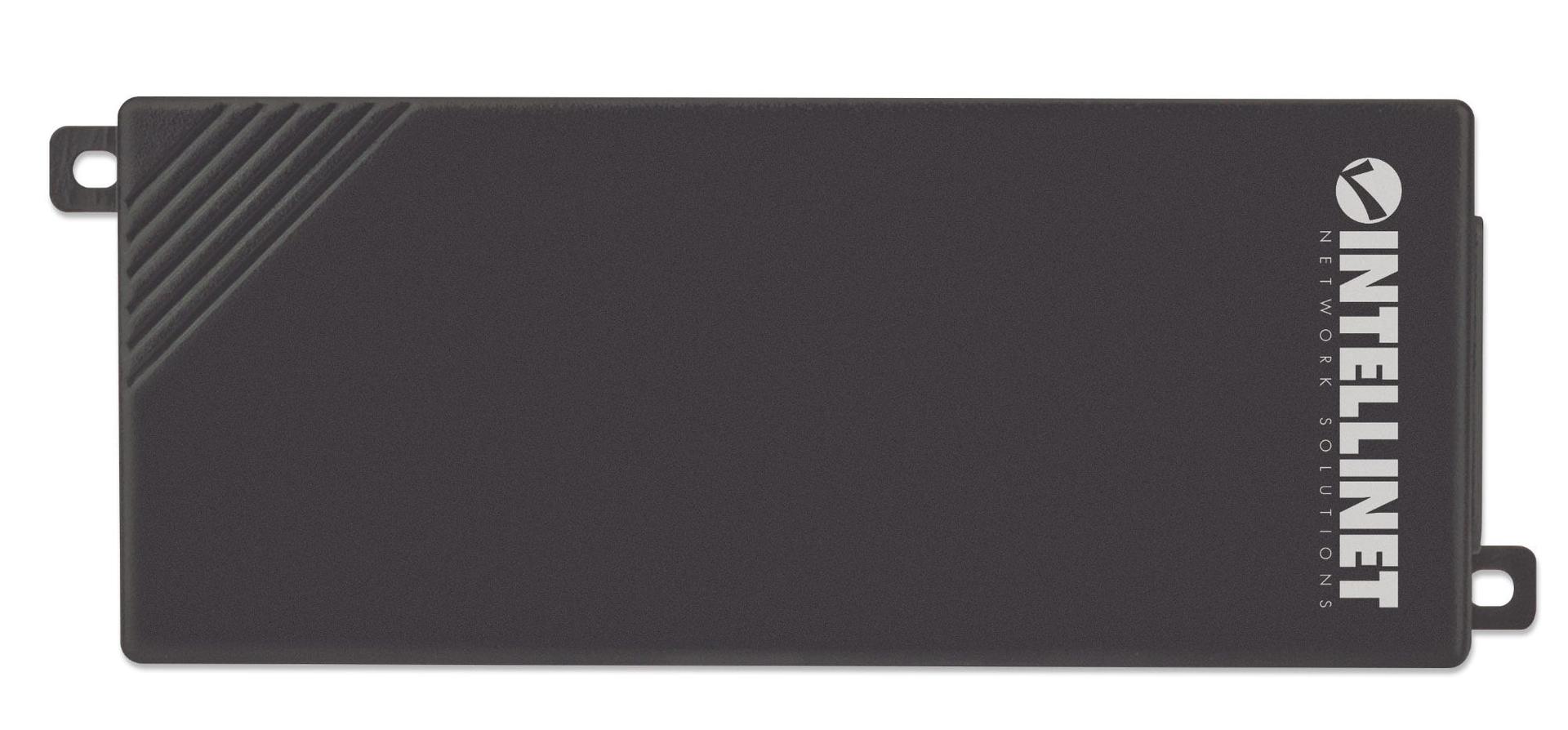

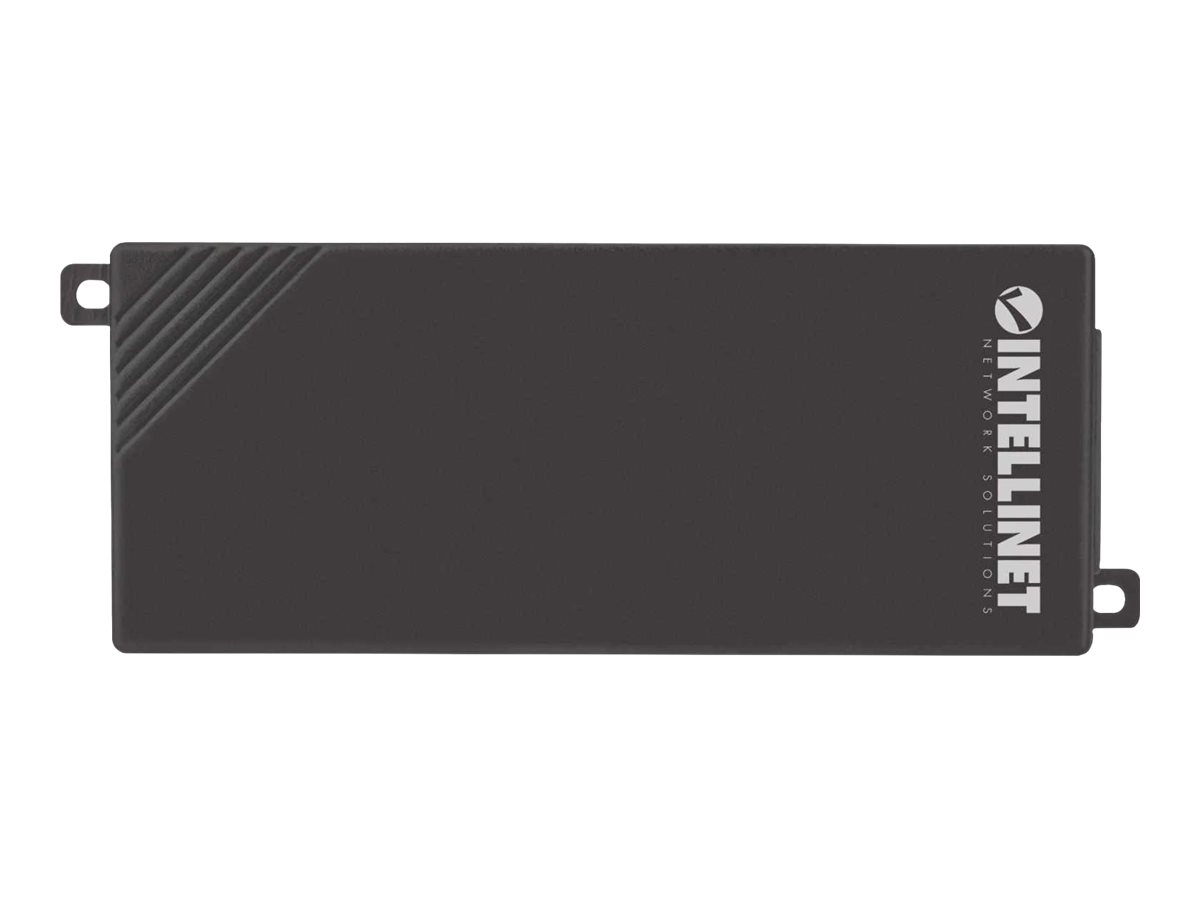

111 × 57 × 33 mm, 141 g, fanless plastic housing.
Simple status
One dual-colour LED for power and PoE.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
For a single access point or camera, a compact 30 W injector is the quickest fix on a non-PoE switch. Check that the device is 802.3af/at compliant. For devices to power, see our access points.
✓ Buy it if you need 802.3at for one device and want a small, light unit.
✕ Skip it if the device needs 802.3bt or is a passive (non-standard) PoE device.
→ Also consider the Intellinet 560566 in a metal housing for cabinets.
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
