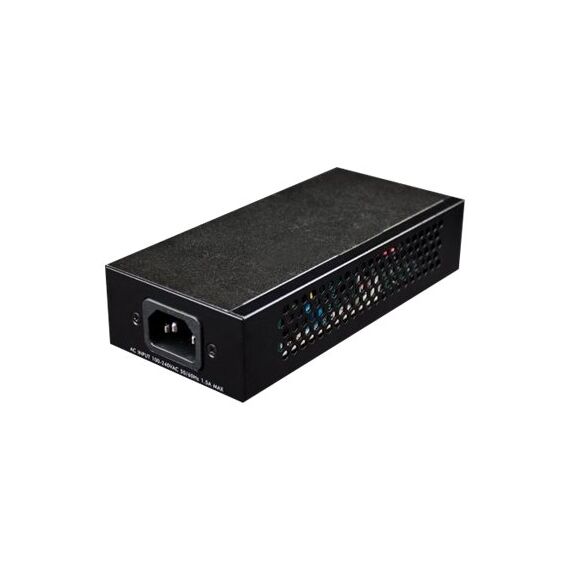

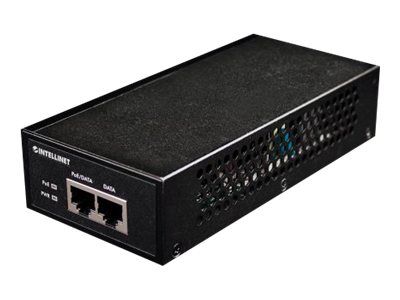

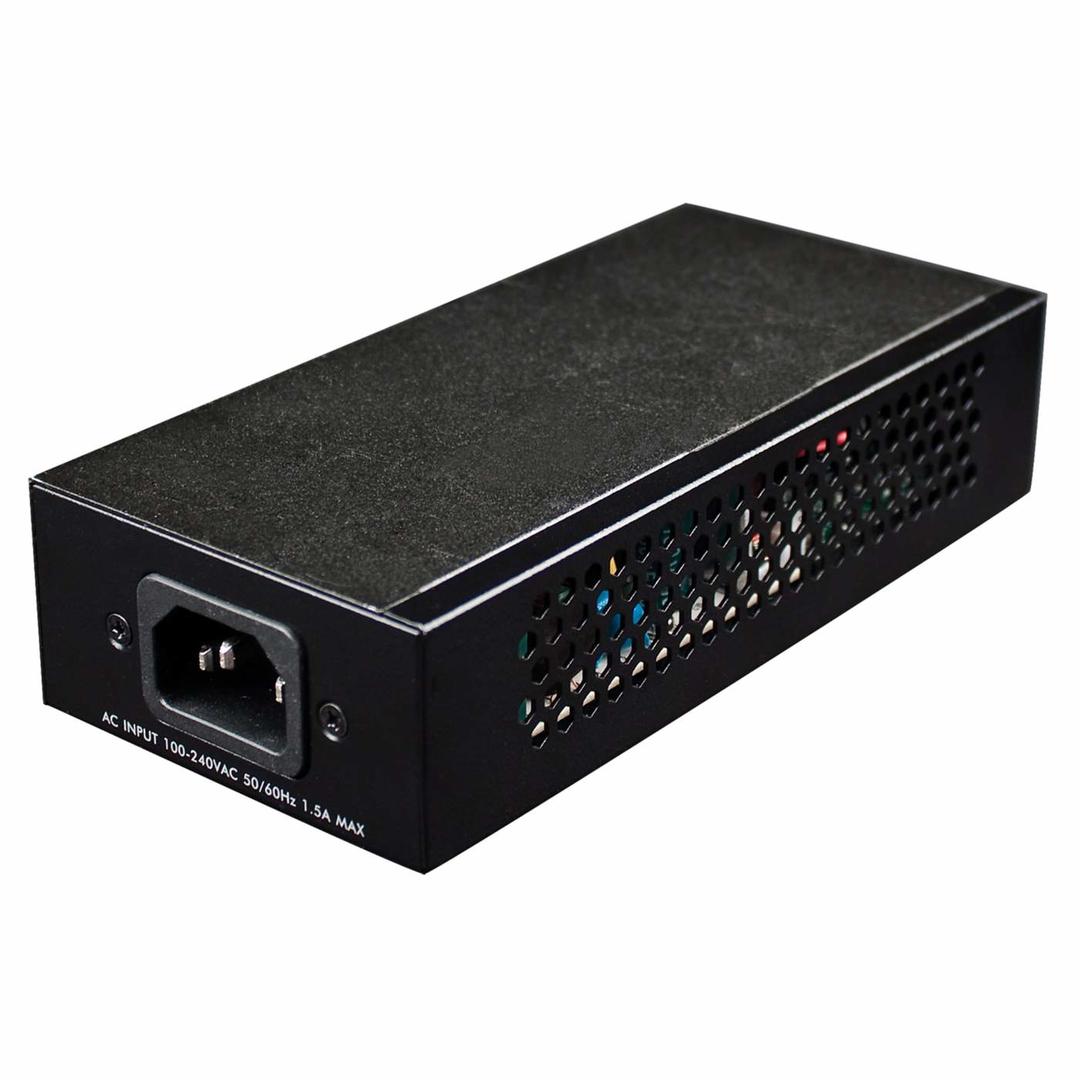

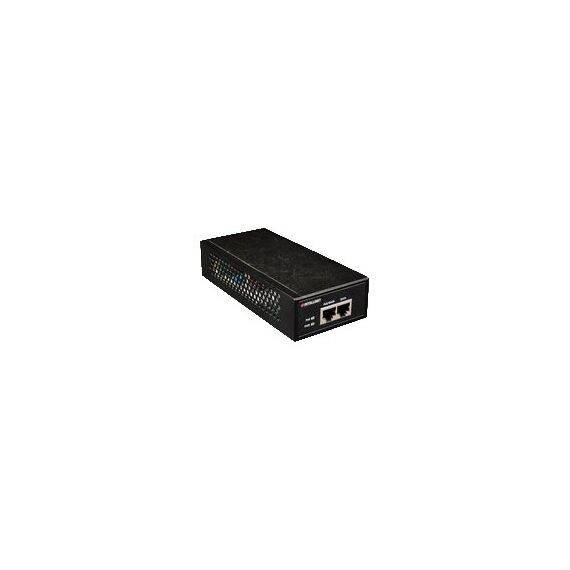

Intellinet 560566 Gigabit High-Power PoE+ Injector 30 W, IEEE 802.3at/af, 1-Port, Metal Housing, 100–240 V AC

Brand:
Intellinet

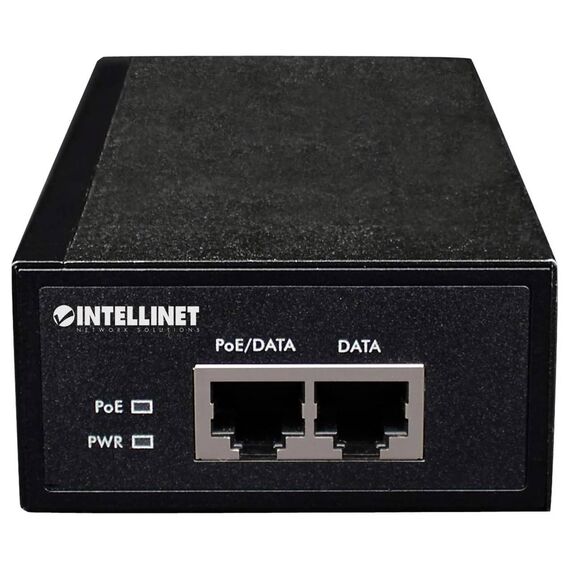

Intellinet 560566 Gigabit PoE+ Injector 30 W Metal
Intellinet 560566 Gigabit High-Power PoE+ Injector 30 W, IEEE 802.3at/af, 1-Port, Metal Housing, 100–240 V AC
€41.3 inc. VAT
Buy
560566
€34.71
€41.30 inc. VAT
Ships from EU stock: 14 item(s)
+ −
Add to wish list Ask a question
Product Code
04:167189
EAN Code
0766623560566
Manufacturer
Intellinet

Quick Specs

Type
PoE+ midspan injector, 1 port
Connectors
RJ45 data in · RJ45 data + PoE out · AC inlet
Key spec
IEEE 802.3at/af · up to 30 W
Compatibility
802.3af/at PDs (Mode B power pairs)
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

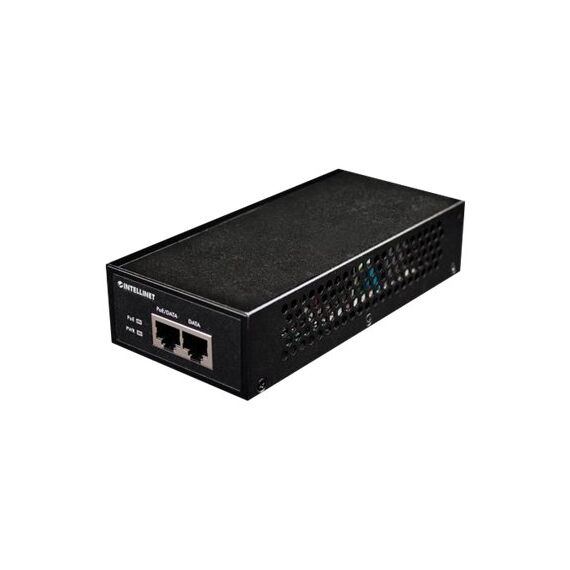

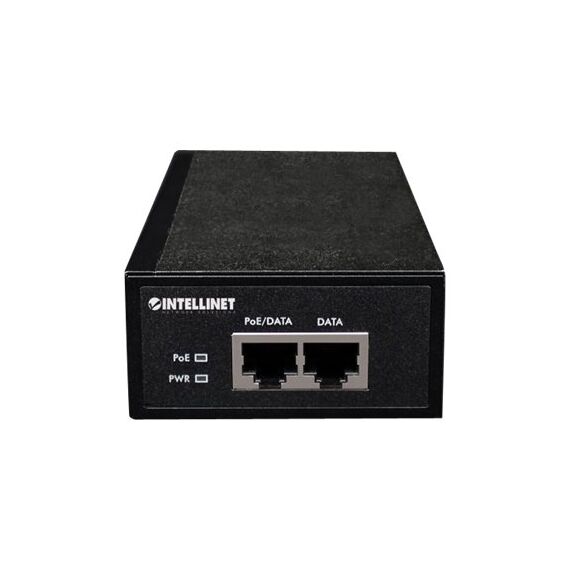

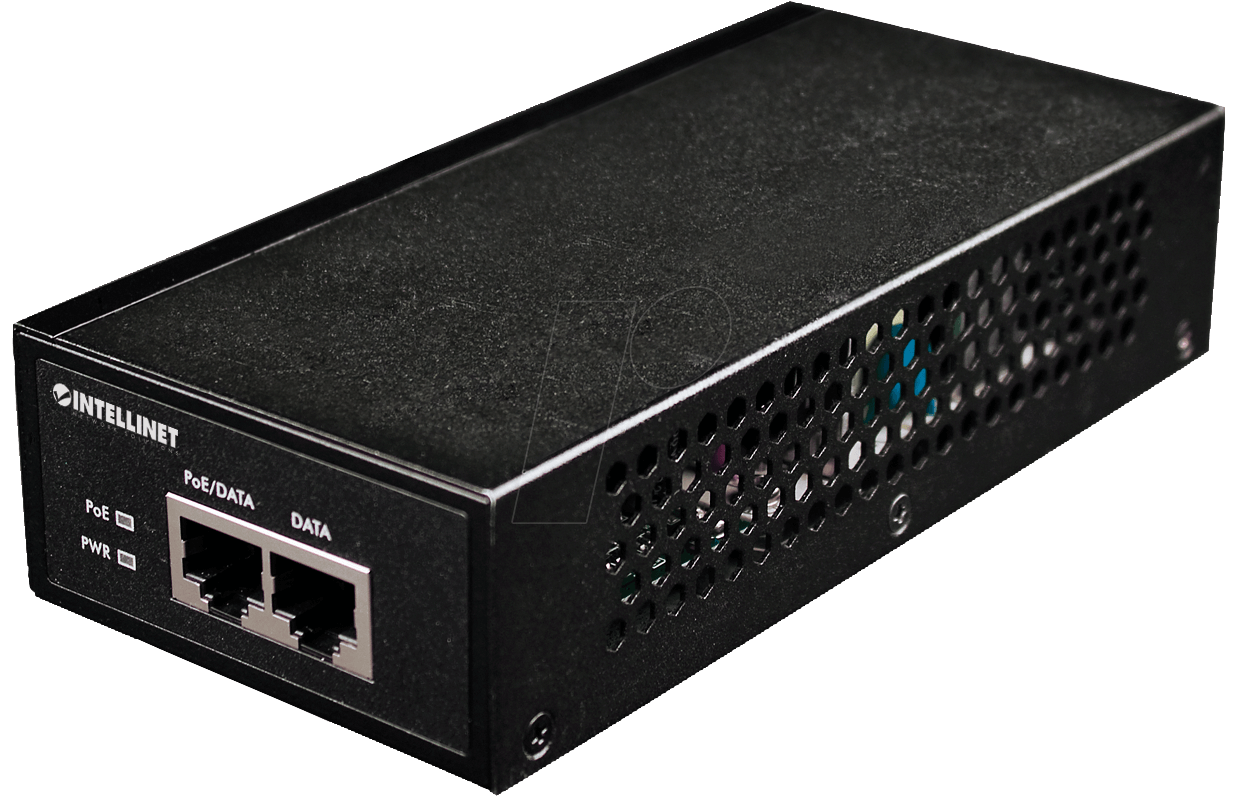

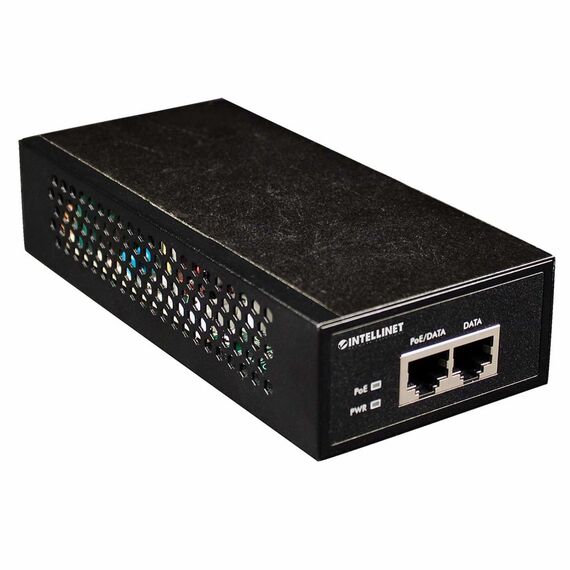

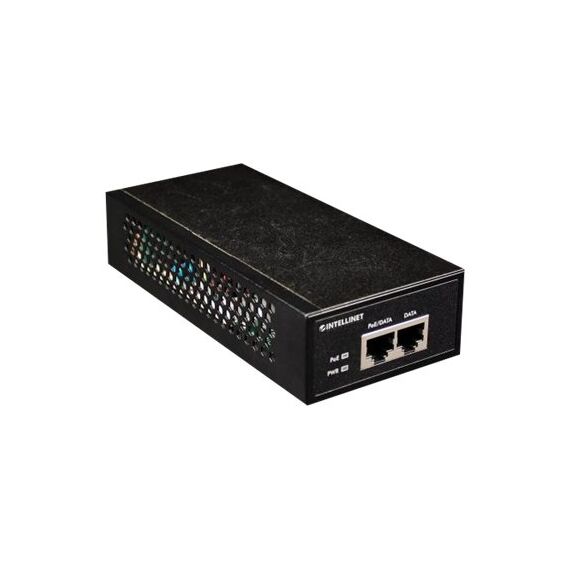

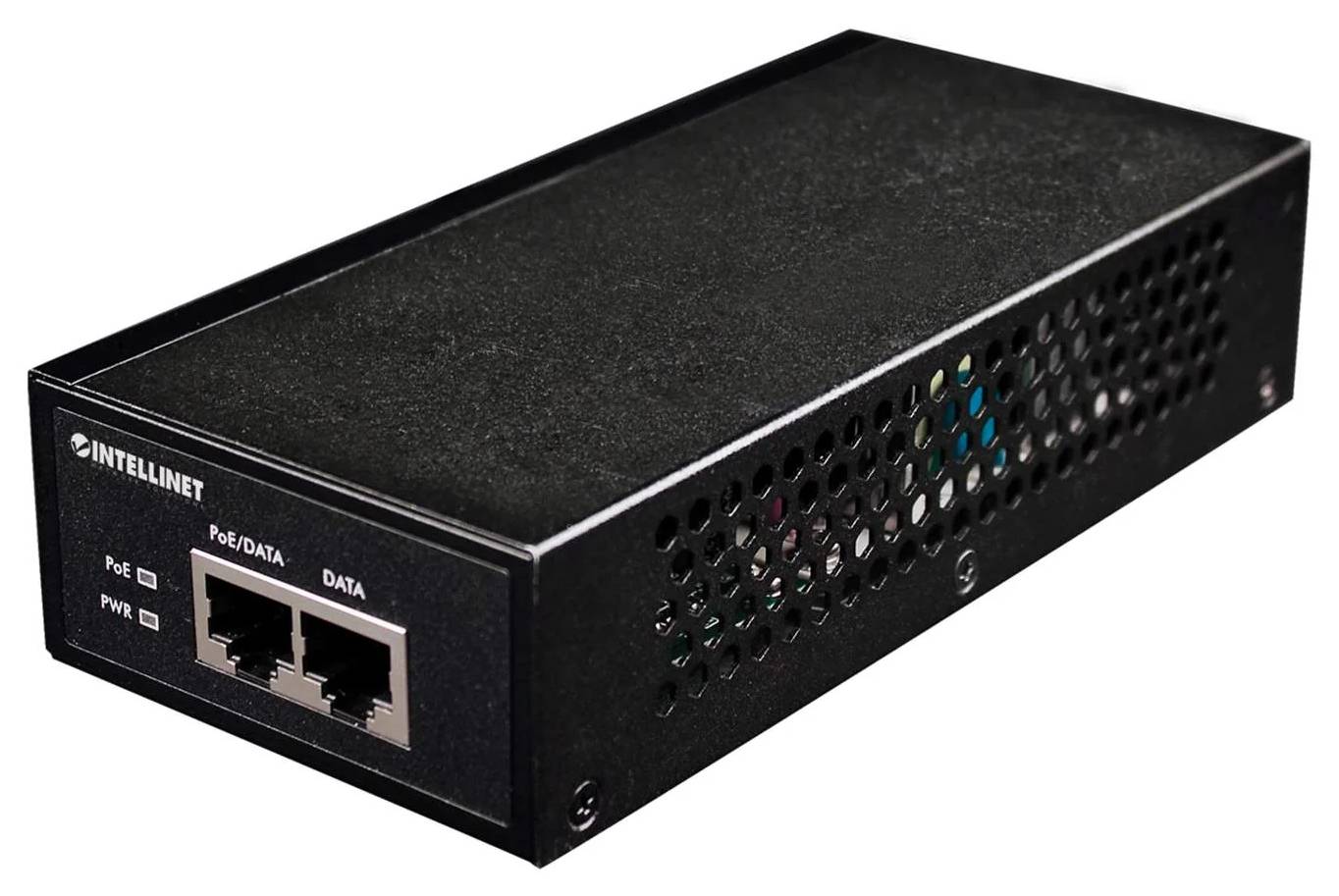

Intellinet 560566 — 30 W PoE+ in a fanless metal housing

IEEE 802.3at · 30 WGigabitMetal housingWall-mountable

The Intellinet 560566 (IPI-30G2) is a single-port Gigabit PoE+ injector that adds up to 30 W of IEEE 802.3at power to an Ethernet link. It powers one access point, IP camera or VoIP device from a switch or router without PoE, and its metal, fanless housing suits network cabinets and technical rooms.

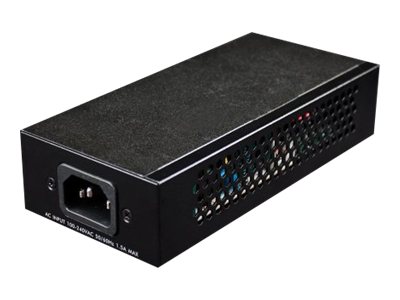

The power supply is internal and connects to the mains with a power cable. The injector detects compliant 802.3af/at devices before applying power and protects against shorts, overload above 1.8 A and over-voltage above 58 V. Data passes at 10/100/1000 Mbps.

Before you order: Power is delivered on the spare pairs (4/5 positive, 7/8 negative — Mode B). Almost all 802.3af/at devices accept this, but a device that accepts power only on Mode A pairs will not start.

What's in the Box

  • 560566 PoE+ injector
  • Power cable
  • 2 screws with drywall anchors
  • Instructions

What It Means in Practice

  • Covers most Wi-Fi 6 access points and PoE+ cameras.
  • The included screws and anchors allow fixing it to a wall or inside a cabinet.
  • A non-PoE device plugged in by mistake only receives data.
  • Metal housing and fanless design mean silent, long-life operation.

What Will Not Work

  • It does not power 802.3bt (60/90 W) devices.
  • It does not output 12 V DC for non-PoE devices.
  • It is not a switch: one data input, one data + power output.
  • Operating range is 5 °C to 45 °C — not for outdoor enclosures.

Key Features


PoE+ 30 W
IEEE 802.3at with backward compatibility to 802.3af.

Protection
Short to ground, overload (>1.8 A) and over-voltage (>58 V).

Metal and fanless
Silent operation, wall-mountable with included hardware.

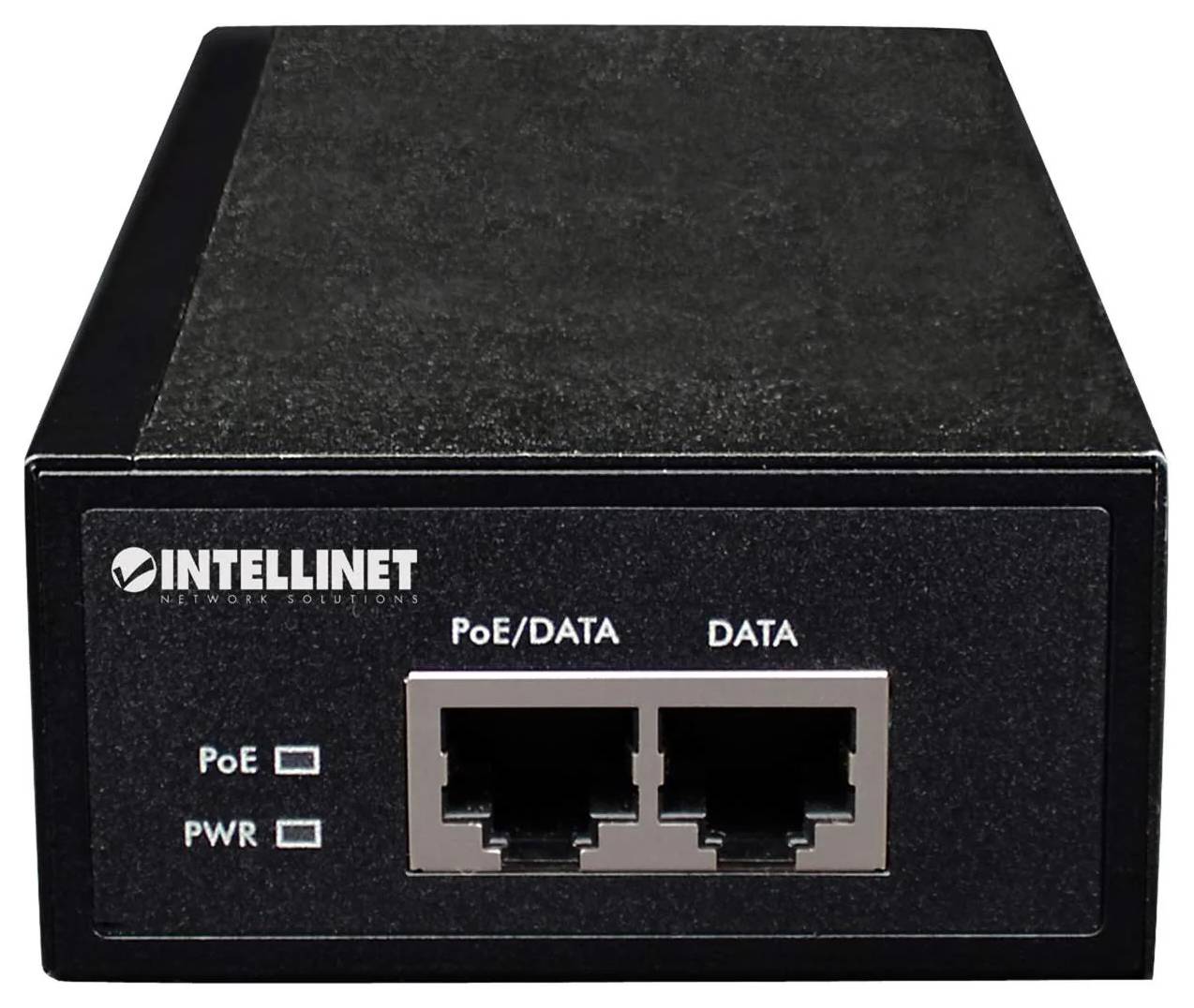

Status LEDs
Power and PoE.

Technical Specifications

Identification
Brand Intellinet
Part Number 560566
Model IPI-30G2
EAN / GTIN 0766623560566
Connectivity

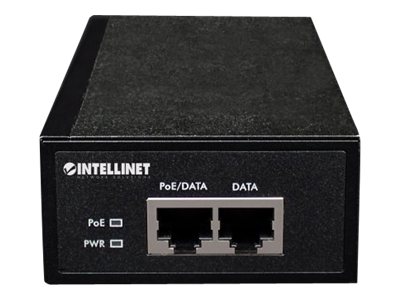

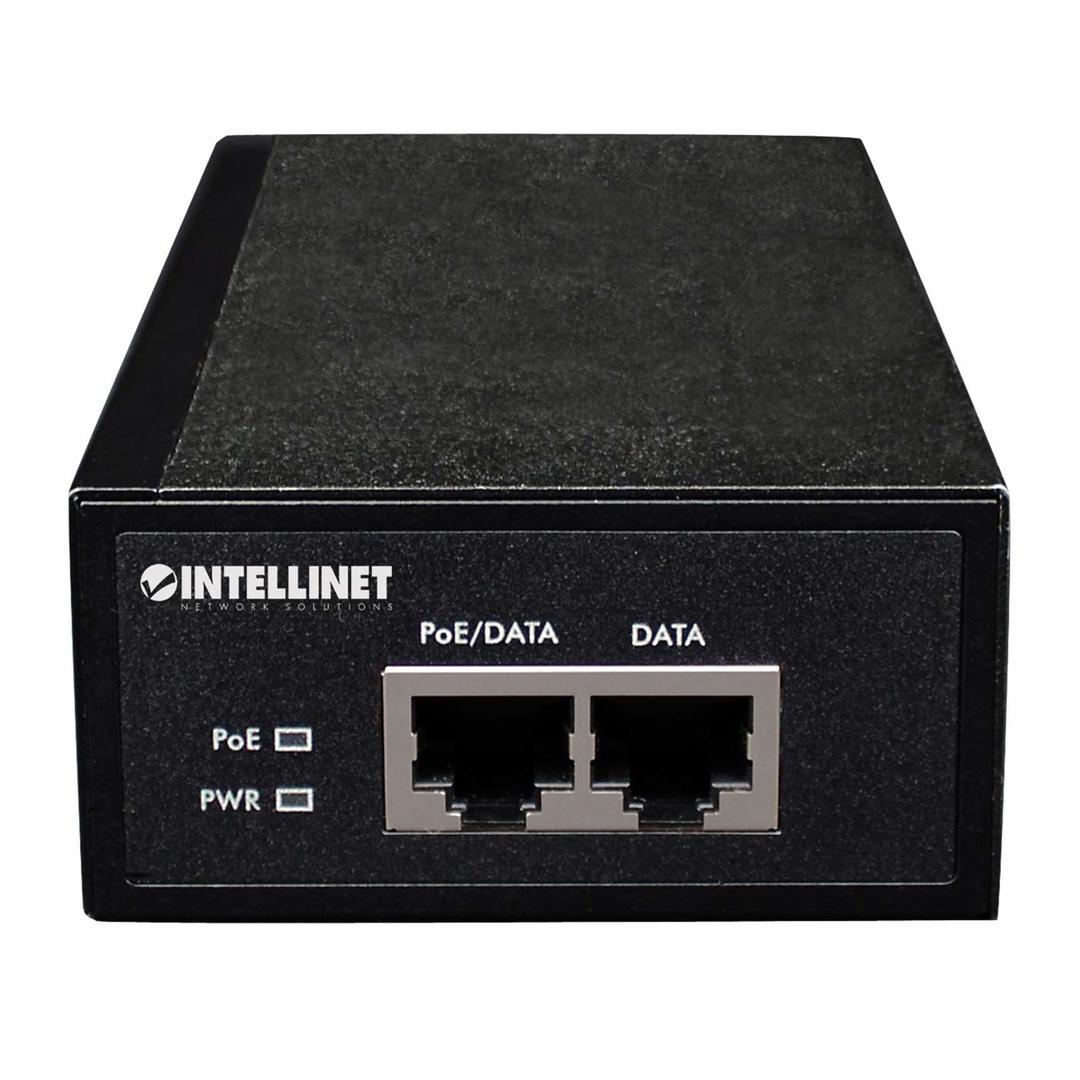

Ports 1× data in, 1× data + PoE out (RJ45)
Data rate 10/100/1000 Mbps
Standards IEEE 802.3, 802.3u, 802.3ab, 802.3af, 802.3at
PoE output Up to 30 W
Pin assignment 4/5 (+), 7/8 (-) — Mode B
Electrical

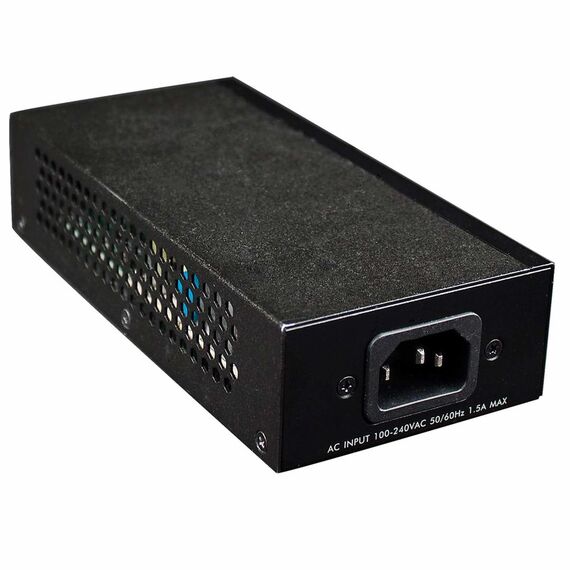

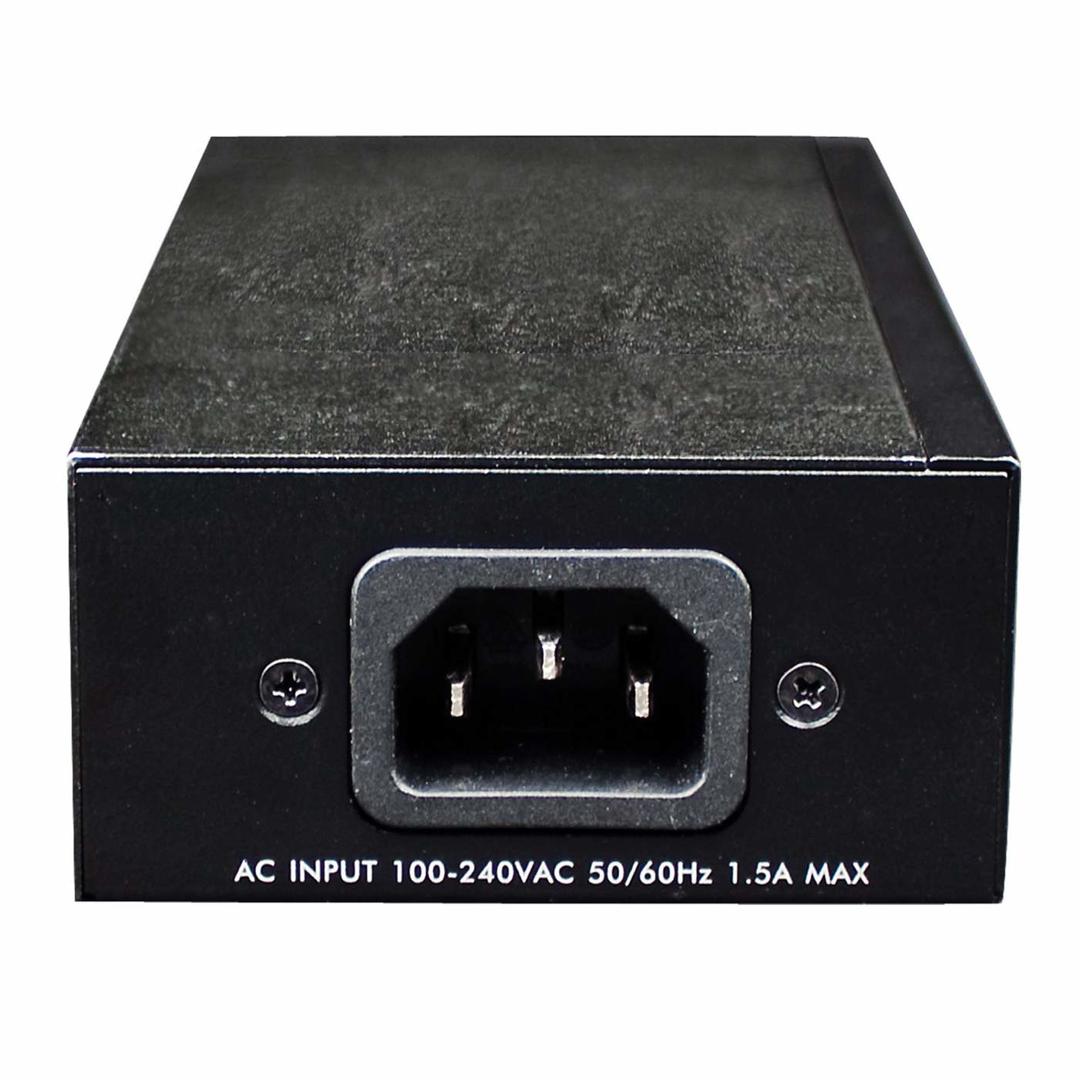

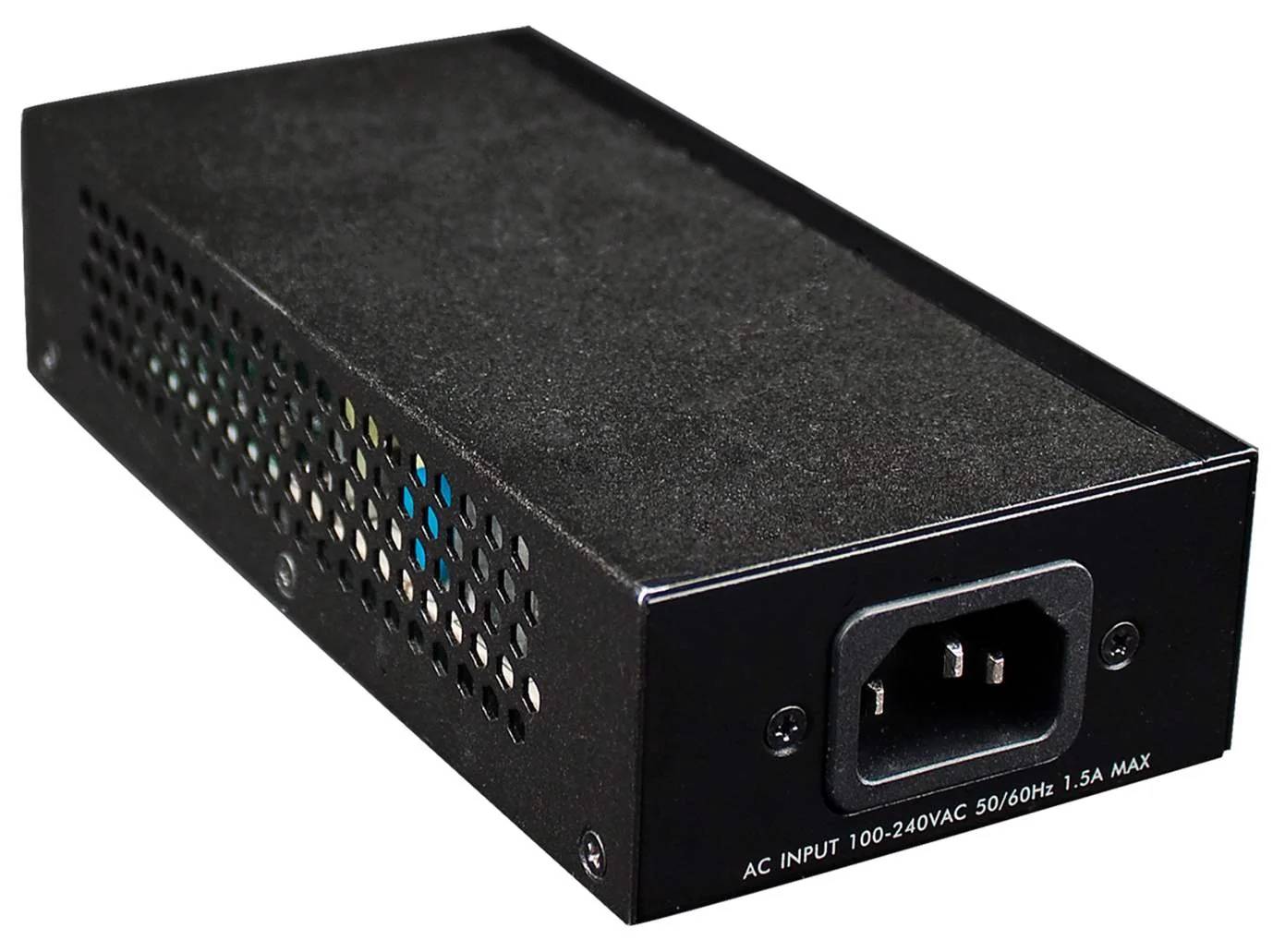

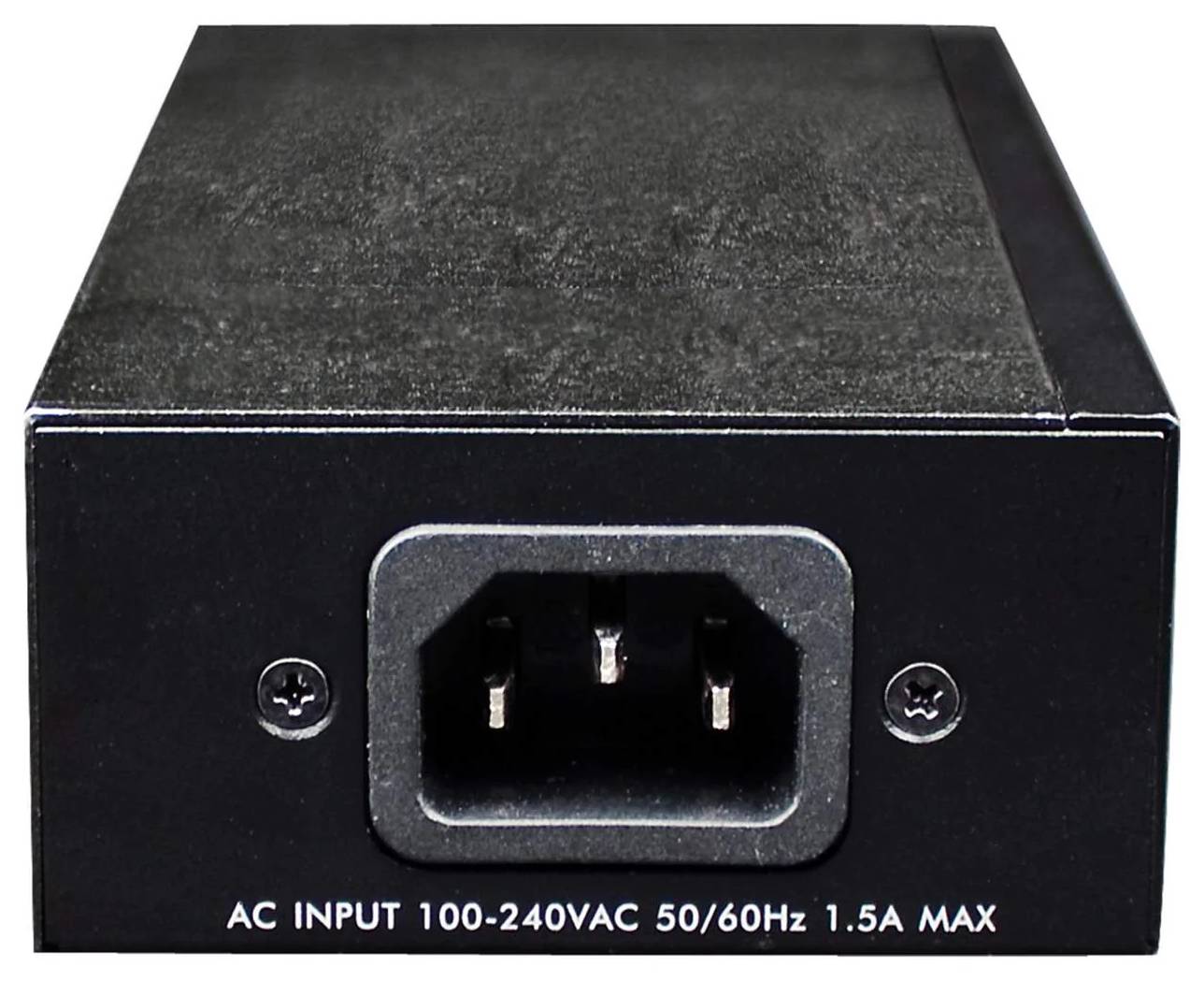

Input 100–240 V AC, internal power supply
Power consumption Max. 42 W
Protection Short to GND, overload >1.8 A, over-voltage >58 V
LEDs Power, PoE
Physical
Housing Metal, fanless
Dimensions 154 × 72 × 35 mm
Weight 0.53 kg (net)
Environment
Operating temperature 5 °C to 45 °C, 10–90% RH
Storage temperature -20 °C to 55 °C
Certifications FCC Class A, CE, RoHS, UKCA
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term 3-year Intellinet warranty per manufacturer — claims handled through Singular

Frequently Asked Questions

Can it power a Wi-Fi 6 access point?
Yes, for access points within the 802.3at (30 W) class. Check the maximum power in the access point datasheet.
Does it come with a wall mount?
Two screws with drywall anchors are included for wall or cabinet mounting.
What is the difference to the 561518?
Both are 30 W Gigabit PoE+ injectors. The 560566 has a metal housing and Mode B power pairs; the 561518 is a lighter plastic unit using Mode A pairs.
Singular Expert Insight · Buyer's Guide
For a cabinet or technical room, a metal fanless 30 W injector is the durable way to add one PoE+ device to a non-PoE switch. Check the power class of the device first. For devices to power, see our IP cameras.
✓ Buy it if you need 802.3at for one device and want a robust metal unit for a cabinet.
✕ Skip it if the device needs 802.3bt, or you need PoE on several ports — a PoE switch is more economical.
→ Also consider the Intellinet 561495 95 W PoE++ injector for high-power devices.
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
