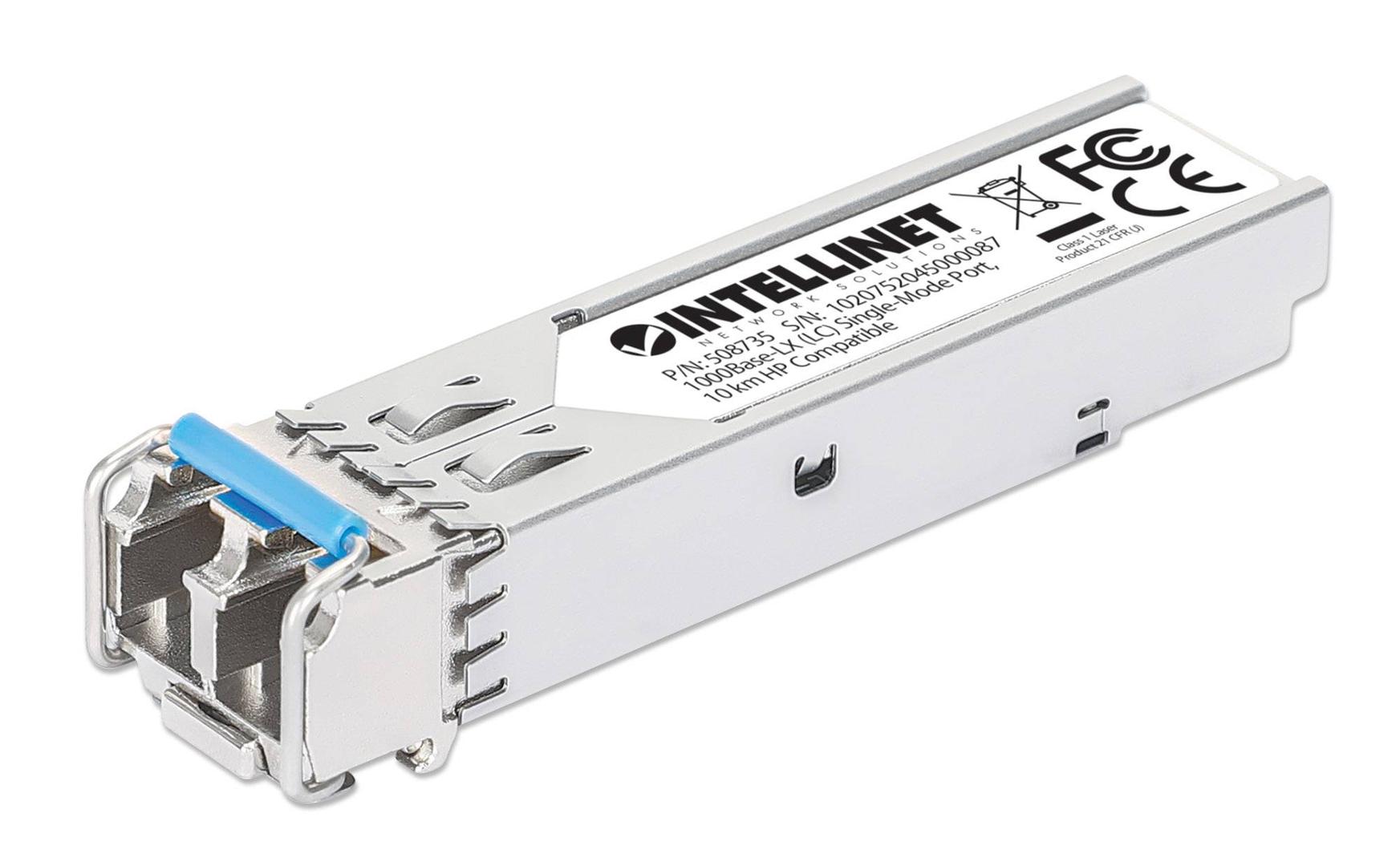

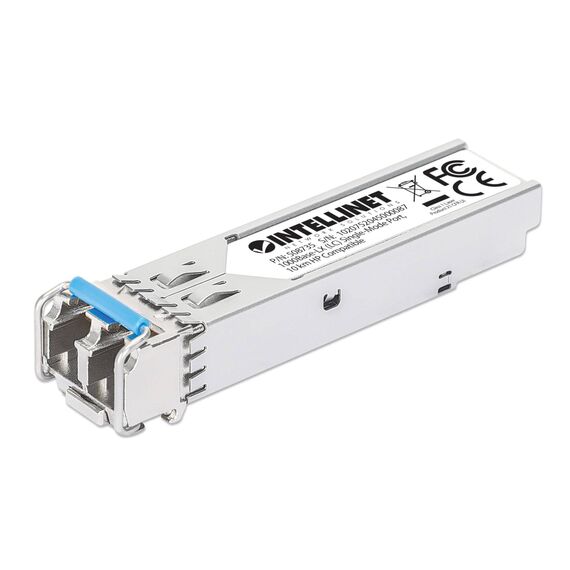

Intellinet 508735 HPE J4859 Compatible Gigabit SFP Transceiver 1000BASE-LX 1310 nm LC Single-Mode 10 km DDM
Brand:
Intellinet
Intellinet 508735 HPE J4859 Compatible Gigabit SFP Transceiver 1000BASE-LX 1310 nm LC Single-Mode 10 km DDM
€18.98 inc. VAT
508735
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Intellinet 508735 — 1G LX Single-Mode SFP, 10 km, HPE Coded
1 Gbps1310 nm · LCUp to 10 kmHPE coded
The Intellinet 508735 is a Gigabit SFP transceiver for single-mode fibre, coded for HPE: 1000BASE-LX at 1310 nm over an LC duplex connection, up to 10 km on 9/125 µm fibre, with digital diagnostics and an 11 dB power budget. It reports itself as an HPE J4859A/B/C/D, so HPE and Aruba switches that check optics accept it. In practice, single-mode optics are the choice when a link leaves the building or runs several hundred metres: the OS2 fibre used by carriers and campus backbones carries the signal for kilometres with little loss. Before you order, confirm the fibre is single-mode at both ends and note the length and the number of patch panels on the way.
Compatibility — check before buying:
It is coded for HPE J4859-series optics; Intellinet makes no Cisco or generic-MSA claim for this part. It needs single-mode fibre on two strands and an LX module at the far end. Do not confuse it with 508742, the HPE-coded multimode SX module — the two cannot share a fibre. Keep the dust cap on until you connect the fibre, and clean both connector ends before every mating — dirt is the most common cause of a link that will not come up. Not sure? Send us your device model and the cable run and we check it before you order.
Best For
✓ HPE and Aruba switches using J4859 optics
✓ Gigabit links between buildings
✓ Single-mode runs up to 10 km
✓ Links that need DDM readings
✓ Replacing a failed J4859 module
✓ Spare optics at a lower cost
Key Features
Coded for HPE J4859
Reports an HPE J4859 part number, so HPE / Aruba switches that check optics identify it as supported.
Single-mode fibre, long reach
Built for single-mode (OS1/OS2) fibre, the type used between buildings, floors and sites. It will not run over the orange or aqua multimode fibre found in many racks — the fibre type has to match at both ends.
Monitoring you can read
Digital diagnostics (DDM) let the host report temperature, laser power and received light, so a dirty connector or a failing link shows up before users call.
Hot-swappable
Modules and cables plug into a live port without shutting the switch down, so a link can be added or replaced during working hours. Seat it until it clicks and use the latch or pull tab to remove it.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
We fit the 508735 in HPE and Aruba switches that need a Gigabit single-mode link with diagnostics, at a lower cost than the HPE original and with a three-year Intellinet warranty. Order one for each end if both are HPE, and use single-mode LC duplex cords. Every order is backed by Singular’s local support in Cyprus — if a link will not come up, send us the port status and we help you find out whether it is the module, the cable or the configuration. Browse all transceivers and DAC cables or the switches they plug into.
Buyer’s Guide
Buy it if
You need a 1G single-mode link up to 10 km on an HPE / Aruba switch that takes J4859 optics.
Skip it if
Your switch is Cisco, your fibre is multimode, or the run is longer than 10 km.
Also consider
Intellinet 508742 for HPE multimode links.
Features - Intellinet - 508735
More Details
Product Code
04:457135
EAN Code
0766623508735
Manufacturer
Intellinet
