Intellinet 716185 9U 19-inch Wall Mount 2-Post Open Frame Network Rack 450 mm Black RAL 9004
Brand:
Intellinet
Intellinet 716185 9U 19-inch Wall Mount 2-Post Open Frame Network Rack 450 mm Black RAL 9004
€211.49 inc. VAT
716185
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Intellinet 716185 — 9U Wall Mount Open Frame Rack
9U / 19-inch400 mm usable depth30 kg closed-frame loadBlack RAL 9004
The Intellinet 716185 is a 9U 19-inch two-post open frame network rack designed for wall-mounted or desktop installations where quick equipment access and unrestricted airflow are more important than a lockable enclosed cabinet. Its hinged front frame swings open for easier maintenance and cable access, while the 400 mm usable installation depth accommodates compatible switches, patch panels, shelves and other standard 19-inch rack equipment.
Check before buying:
This is an open-frame rack, not a lockable cabinet. The rack supports up to 30 kg with the swing frame closed and up to 10 kg while the frame is opened. Wall-mounting hardware is not included, so appropriate fixings must be selected for the wall construction and installed load.
Best For
✓ Small network and telecom installations
✓ Patch panels and network switches
✓ Surveillance and AV rack equipment
✓ Test benches and maintenance areas
Key Features

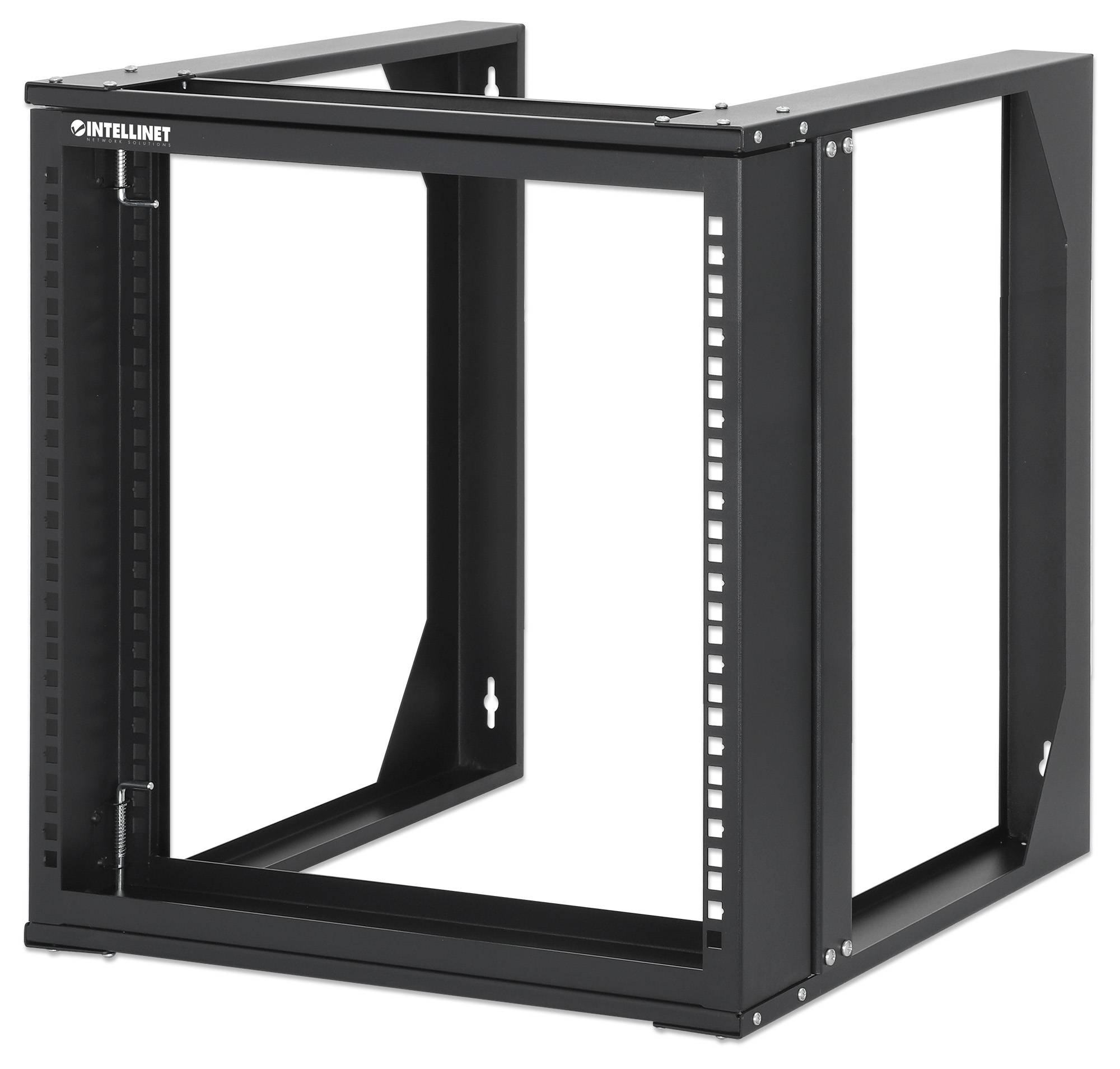

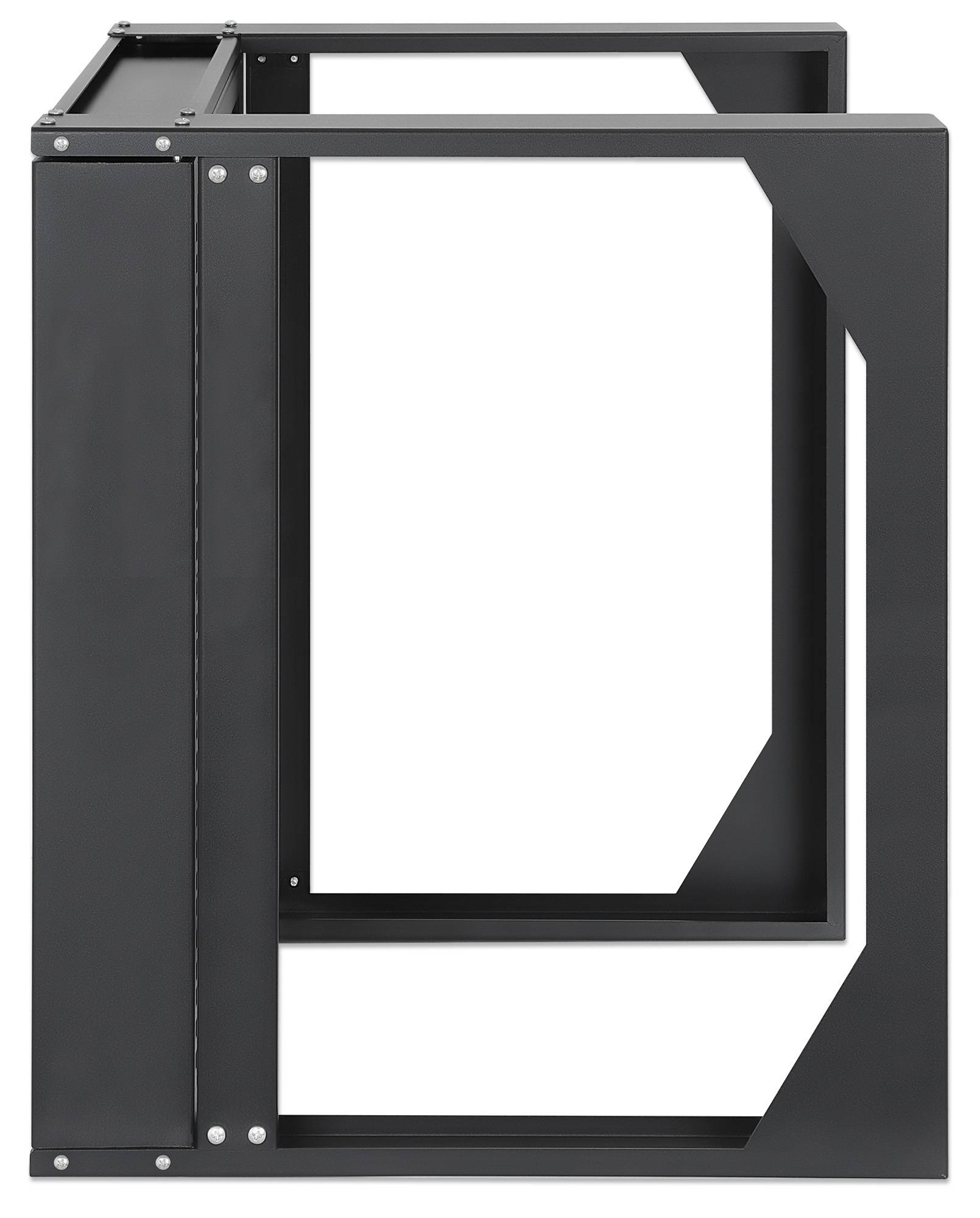

Hinged swing-frame access
The front-mounted rack frame swings away from the wall to provide easier access to rear connectors, patching and cables. The frame can be configured to swing from either the left or right side.
400 mm usable installation depth
The rack provides 400 mm of usable equipment depth, suitable for compatible shallow rack switches, patch panels, shelves and other standard 19-inch components.
Open design for airflow
With no enclosing side panels or doors, equipment remains readily accessible and natural airflow is maximised, helping heat escape without restricting cable entry.
Steel flat-pack construction
The rack is made from powder-coated cold-rolled steel and supplied flat-packed. Integrity bars add stability, while the black RAL 9004 finish suits professional network environments.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
The standout feature of this rack is the reversible hinged front frame. It gives technicians much better access to rear cabling than a fixed open rack while keeping the installation compact against a wall. The main buying checks are equipment depth and weight: usable depth is 400 mm, the static load limit is 30 kg with the frame closed, and the manufacturer limits the load to 10 kg while the frame is swung open. Because the design is fully open, it is best installed in a controlled-access environment rather than somewhere equipment needs to be physically secured.
Buyer’s Guide
Buy it if
You need a compact 9U rack with open airflow, 400 mm usable depth and rear-access convenience from a swing-out wall-mount design.
Skip it if
You need a lockable enclosure, dust protection, equipment deeper than 400 mm or a permanently loaded rack exceeding the specified 30 kg static limit.
Installation tip
Plan the hinge direction and wall fixings before assembly. Wall anchors are not included and must match both the wall structure and the combined rack-and-equipment load.
Features - Intellinet - 716185
More Details
Product Code
04:433151
EAN Code
0766623716185
Manufacturer
Intellinet
