Intellinet 545006 Cisco GLC-SX-MMD Compatible Gigabit SFP Transceiver 1000BASE-SX 850 nm LC Multimode 550 m
Brand:
Intellinet
Intellinet 545006 Cisco GLC-SX-MMD Compatible Gigabit SFP Transceiver 1000BASE-SX 850 nm LC Multimode 550 m
€22.74 inc. VAT
545006
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply

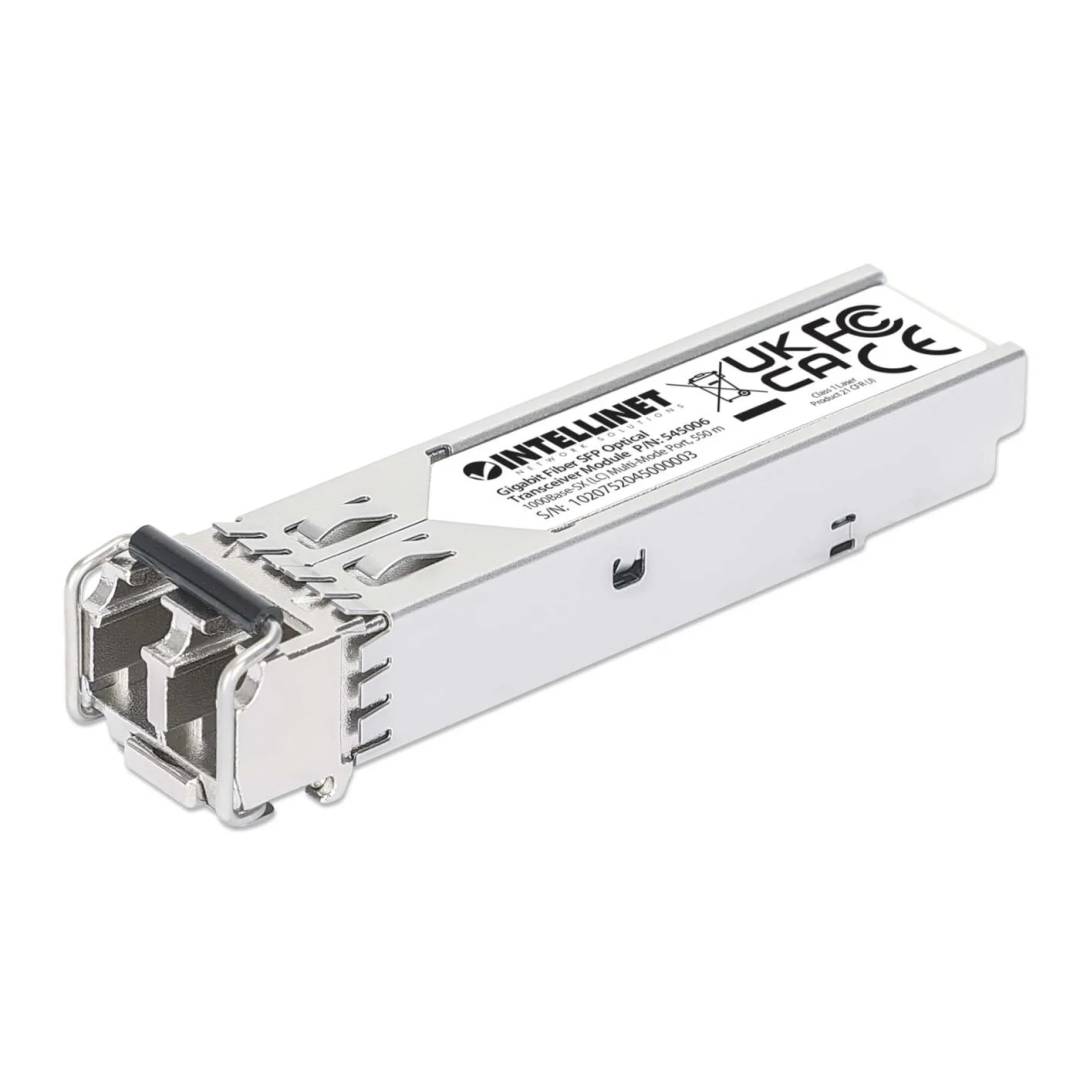

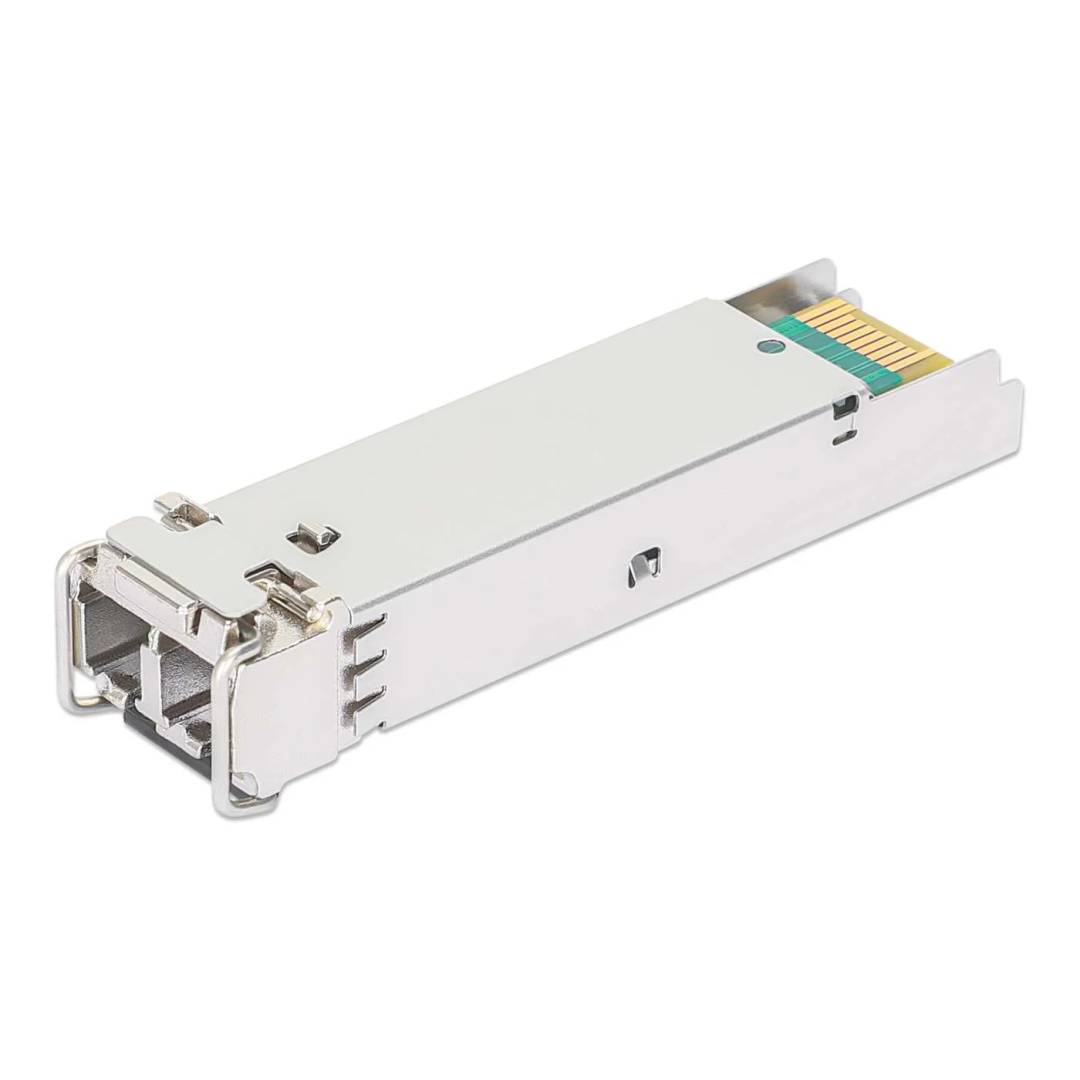

Intellinet 545006 — 1G SX Multimode SFP, Cisco / MSA Coded
1 Gbps850 nm · LCUp to 550 mCisco / MSA coded
The Intellinet 545006 is a Gigabit SFP transceiver for multimode fibre: 1000BASE-SX at 850 nm over an LC duplex connection, reaching 550 m on 50/125 µm and 220 m on 62.5/125 µm fibre. It is MSA compliant and reports the Cisco GLC-SX-MMD part number, so it suits Intellinet switches, Cisco ports and other standard SFP slots. In practice, multimode optics are the cheaper choice for links inside one building: most server rooms and floor risers already carry OM3 or OM4 fibre, and the module plus a short patch cord is all a port needs. Before you order, check the fibre grade printed on the cable jacket and the real length of the run, including patch panels.
Compatibility — check before buying:
It carries Cisco GLC-SX-MMD / MSA coding; for HPE / Aruba switches that check optics, the 508742 has the same optics with HPE coding. It needs multimode fibre and an SX module at the far end, and it is 1G only. On older 62.5/125 fibre the reach drops to 220 m. Keep the dust cap on until you connect the fibre, and clean both connector ends before every mating — dirt is the most common cause of a link that will not come up. Not sure? Send us your device model and the cable run and we check it before you order.
Best For
✓ Intellinet switches with SFP ports
✓ Cisco ports that take GLC-SX-MMD
✓ Standard MSA SFP slots
✓ Short fibre runs inside one building
✓ Server room and riser links
✓ Replacing a failed 1G SX module
Key Features
Cisco and MSA in one
Reports the Cisco GLC-SX-MMD part number and meets the SFP MSA, so it fits Cisco ports and standard SFP slots alike.
Multimode fibre, short reach
Built for the short runs inside a building or data room over OM-grade multimode fibre. Reach depends on the fibre grade — check what is actually in your walls before you plan a link.
Hot-swappable
Modules and cables plug into a live port without shutting the switch down, so a link can be added or replaced during working hours. Seat it until it clicks and use the latch or pull tab to remove it.
Plan both ends together
A link only comes up when both ends use the same standard, speed and media. Order the far-end part, the cable and any spares in one go and the link works on day one.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
The 545006 is the Intellinet SX optic we recommend for Cisco and standard SFP ports. It comes with a three-year Intellinet warranty. For HPE / Aruba switches choose the 508742; for single-mode links between buildings, ask us for an LX module. Every order is backed by Singular’s local support in Cyprus — if a link will not come up, send us the port status and we help you find out whether it is the module, the cable or the configuration. Browse all transceivers and DAC cables or the switches they plug into.
Buyer’s Guide
Buy it if
You need a 1G multimode link up to 550 m on a Cisco or standard MSA SFP port.
Skip it if
Your switch is HPE / Aruba, your fibre is single-mode, or you need DDM readings.
Also consider
Intellinet 508742 for HPE / Aruba switches.
Features - Intellinet - 545006
More Details
Product Code
04:82440
EAN Code
0766623545006
Manufacturer
Intellinet
