Intellinet 561822 5-Port Gigabit PoE+ Switch - SFP Uplink

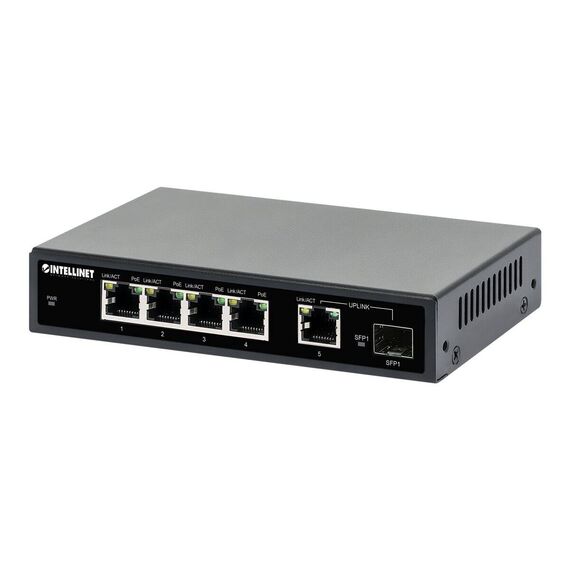

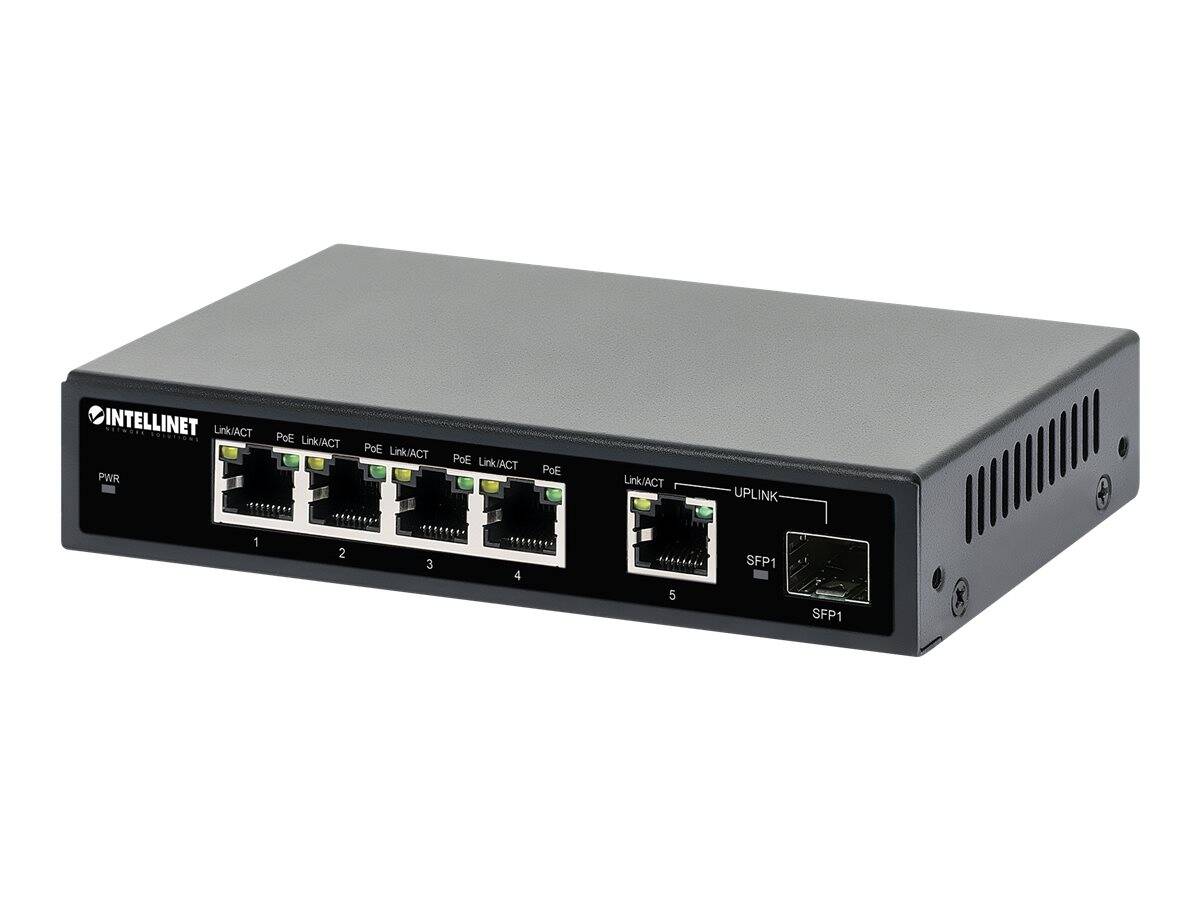

The Intellinet 561822 is a desktop 5-port Gigabit Ethernet switch with PoE+ support and a Gigabit SFP/RJ-45 uplink. It is designed for adding network connections while powering compatible devices over standard Cat5e or Cat6 cabling. With a metal, fanless housing and wall-mount option, it suits compact business and surveillance network setups.
Technical Specifications
| Specification | Detail |
|---|---|
| Product Type | Switch - 5 ports |
| Device Type | Switch - 5 ports |
| Enclosure Type | Desktop |
| Subtype | Gigabit Ethernet |
| Ports | 4 x 10/100/1000 (PoE+) + 1 x combo Gigabit SFP/RJ-45 (uplink) |
| Power over Ethernet (PoE) | PoE+ | Yes |
| PoE Budget | 91 W |
| Performance | Switching fabric bandwidth: 12 Gbps | Forwarding rate: 8.928 Mpps |
| MAC Address Table Size | 2K entries |
| Features | Flow control | auto-sensing per device | auto-negotiation | auto-uplink (auto MDI/MDI-X) | store and forward | full duplex mode | fanless | rugged | metal housing |
| Compliant Standards | IEEE 802.3 | IEEE 802.3u | IEEE 802.3ab | IEEE 802.3af | IEEE 802.3x | IEEE 802.3at |
| Status Indicators | Power | PoE | link/activity |
| Interfaces | 4 x 1000Base-T RJ-45 PoE+ - 30 W | 1 x 1000Base-T RJ-45 uplink | 1 x Gigabit LAN SFP uplink | 4 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 1 x 1000Base-T RJ-45 uplink ¦ 1 x Gigabit LAN SFP uplink |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 96 Watt |
| Miscellaneous Compliant Standards | FCC Class A certified | RoHS |
| Width | 15.3 cm |
| Depth | 8.6 cm |
| Height | 2.9 cm |
| Weight | 800 g |
| Service & Support | Limited warranty - 3 years |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 85% RH (non-condensing) |
| Min Storage Temperature | -10 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 - 90% RH (non-condensing) |
| Rack mounting | No |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity | Link | PoE | Power |
| Wall mountable | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 1 |
| Installed SFP+ modules quantity | 0 |
| Total Power over Ethernet (PoE) budget | 91 W |
| MAC address table | 2000 entries |
| Switching capacity | 12 Gbit/s |
| Forwarding rate | 8928 Mpps |
| Store-and-forward | Yes |
| Networking standards | IEEE 802.3 | IEEE 802.3ab | IEEE 802.3af | IEEE 802.3at | IEEE 802.3u | IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T | 100BASE-TX | 1000BASE-T |
| Flow control support | Yes |
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 96 W |
| Cables included | AC |
| Manual | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 20 - 85 % |
| Storage relative humidity (H-H) | 5 - 90 % |
| Fanless | Yes |
| Package weight | 925 g |
| Certification | FCC Class A | CE | RoHS | UKCA | NDAA |
| Manufacturer ID | 561822 |
| EAN/UPC | 0766623561822 |
| ITscope ID | 13971174000 |
| OpenIcecat-Sponsor | Yes |
| CNET-ID (1WorldSync) | S26844697 |
| Country of origin (ALSO DE) | CN |
| Customs tariff number (ALSO DE) | 85176200 |
| Customs tariff number (api) | 85176200 |
| Customs tariff number (api Österreich) | 85176200 |
| ETIM-7-Electrical-ID | EC000734 |
| ICECat-ID (Icecat) | 99148393 |
| UNSPSC code | 43222612 |
| cop mapid | 24449938 |
| Power | External power adapter | 96 W |
| Package Contents | <ul><li>Intellinet</li><li>External power adapter</li></ul> |
| SKU / EAN | 561822 | 0766623561822 |
SINGULAR RECOMMENDS
For who
For buyers who need a compact desktop PoE+ switch for a small network, with a Gigabit uplink and SFP option for flexible expansion.
Real reason to buy it
It combines four PoE+ Gigabit ports, a Gigabit SFP/RJ-45 uplink and a 91W PoE budget in a fanless metal desktop unit.
Know before
This is a desktop switch, not a rack-mount model. The uplink includes one SFP slot and one RJ-45 uplink, and the unit ships with an external power adapter.
