Inter-Tech Mini-ITX PSU 120 W Rev. 2, 12 V DC-DC Power Supply on 20-Pin ATX Plug, 4+4-Pin CPU, SATA and Molex
Brand:
Inter-Tech
Inter-Tech Mini-ITX PSU 120 W Rev. 2, 12 V DC-DC Power Supply on 20-Pin ATX Plug, 4+4-Pin CPU, SATA and Molex
€21.94 inc. VAT
88882193
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Inter-Tech 0-Way Schuko Mini-ITX PSU
120 W DC-DC12 V DC input20-pin ATXAdapter not incl.

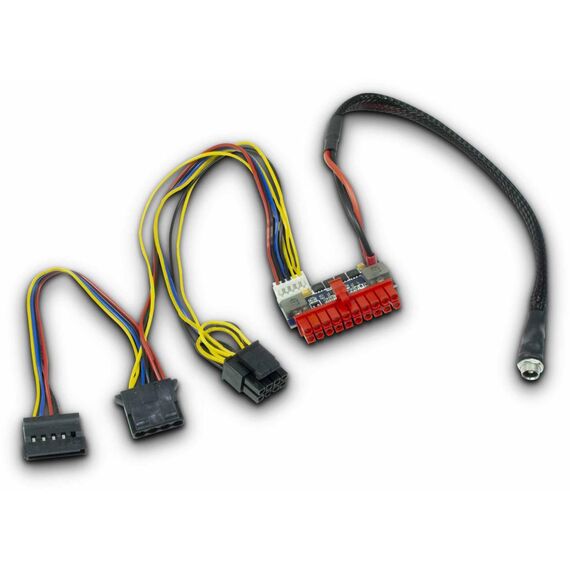

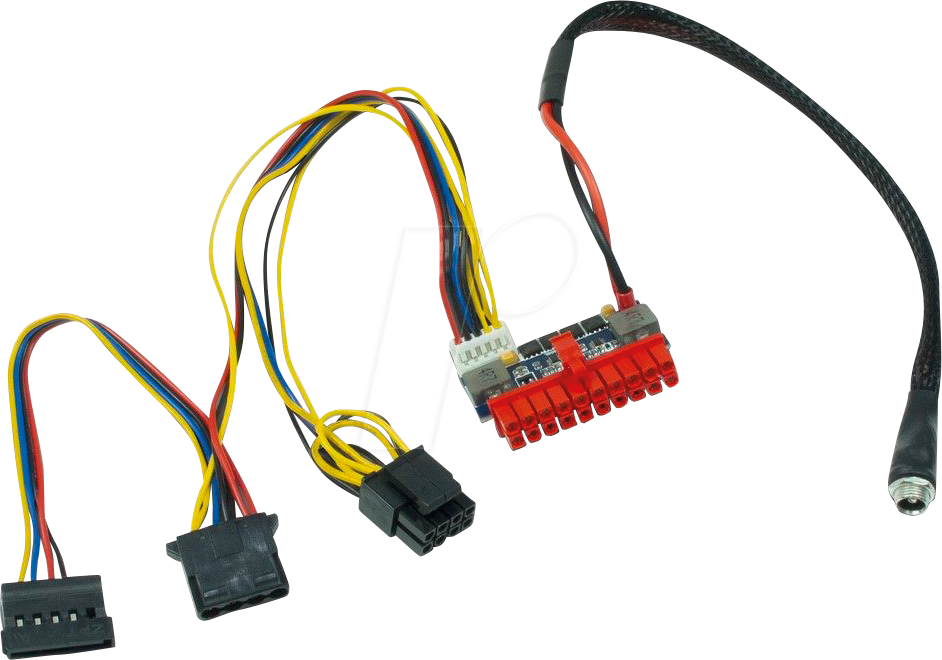

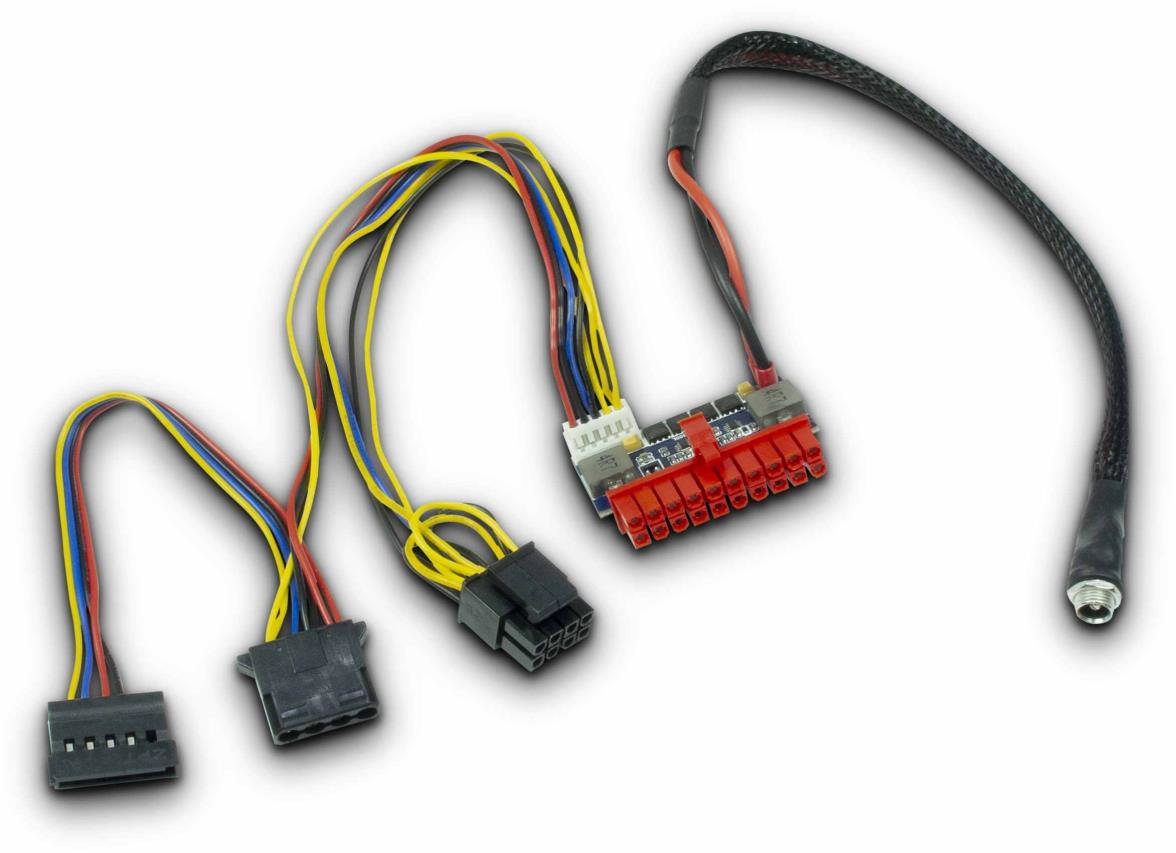

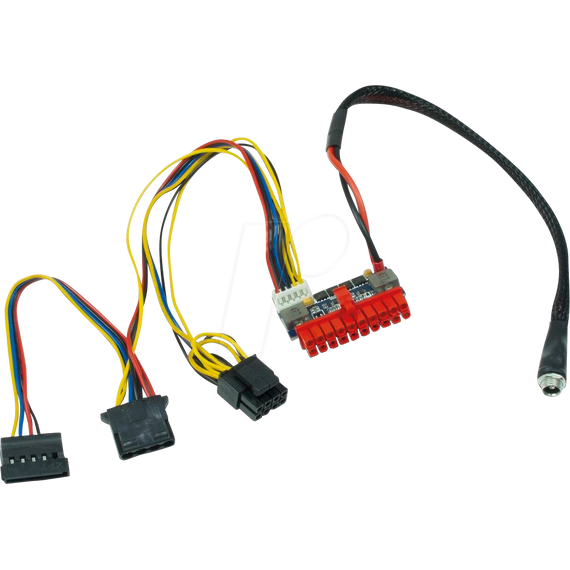

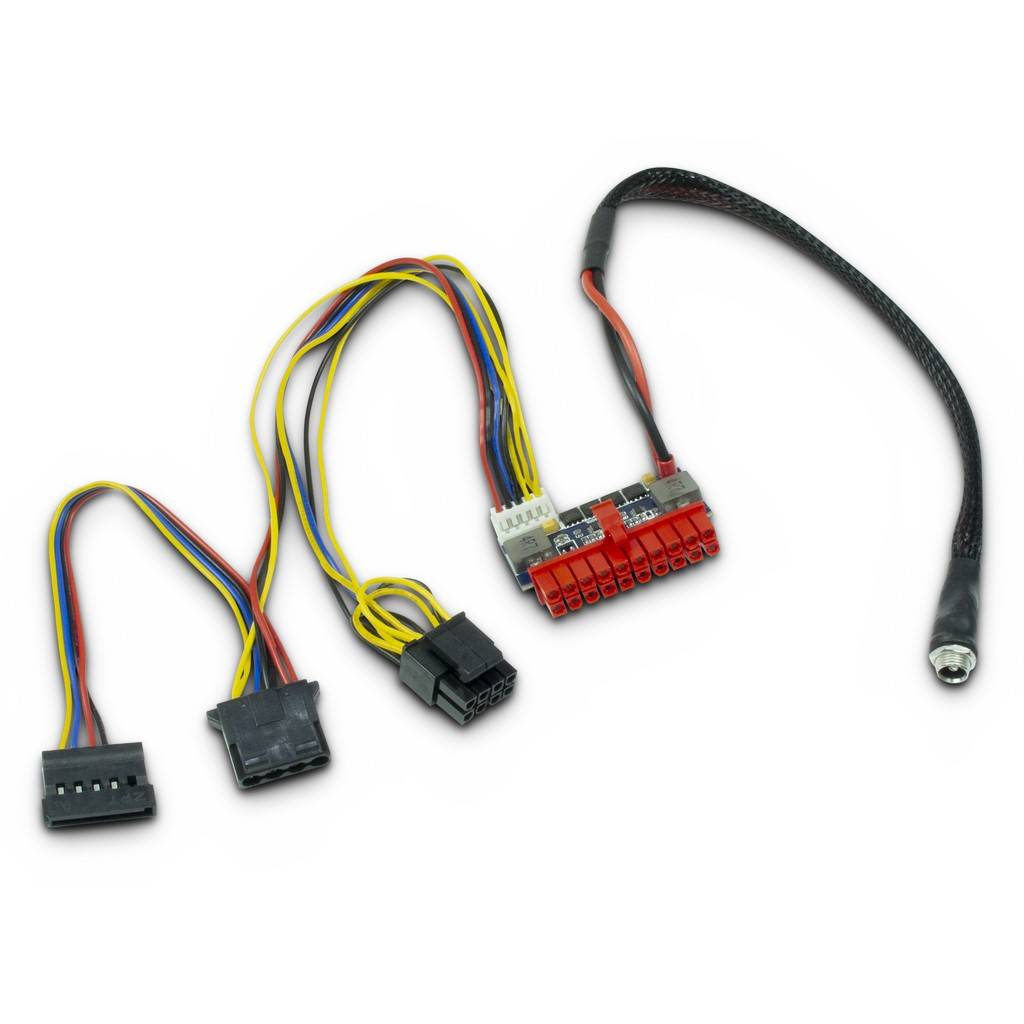

The Inter-Tech Mini-ITX PSU 120 W Rev. 2 is a DC-DC power supply that plugs straight onto the 20-pin ATX connector of a Mini-ITX mainboard and is powered by an external 12 V DC adapter — for silent, fanless small-form-factor PCs, thin clients and embedded systems.
It replaces a bulky ATX power supply with a module just 18 × 47 × 35 mm and has one 4+4-pin CPU connector, one SATA and one Molex lead for drives. Over-voltage, over-power and under-voltage protection are built in.
Before you order: the 12 V DC power adapter is NOT included. You need a separate 12 V adapter with a 5.5 × 2.5 mm barrel plug, rated for your system (60, 90 or 120 W). This is not a power strip.
What's in the Box
- 1 × Inter-Tech Mini-ITX PSU 120 W Rev. 2
- External 12 V adapter not included
What It Means in Practice
- Total 120 W is enough for low-power CPUs, an SSD and onboard graphics; size the external adapter to your real load.
- The 12 V rail is fed from the adapter, so adapter quality matters as much as the module.
- No fan: the module itself is silent.
What Will Not Work
- Graphics cards that need PCIe power connectors — there are none.
- Systems drawing more than 120 W.
- Mainboards that need a 24-pin connector without accepting 20-pin (most accept 20-pin in a 24-pin socket; check your board manual).
- Running without an external 12 V DC adapter.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
A neat way to build a silent, compact Mini-ITX system without a conventional PSU, as long as the total load stays well inside 120 W. Budget for a good 12 V adapter. See our PC power supplies for conventional units.
✓ Buy it if you are building a low-power fanless Mini-ITX PC or thin client.
✕ Skip it if your system has a dedicated graphics card or draws over 120 W.
→ Also consider a conventional SFX power supply for higher-power builds.
Not sure it fits? Send us your mainboard and CPU model and we will check it before you order.
