Inter-Tech IPC 1U Telescopic Slides 650 mm for 19-inch Rackmount Cases
1U · 26-inchRack depth 690-1000 mm30 kg loadSnap-in mounting

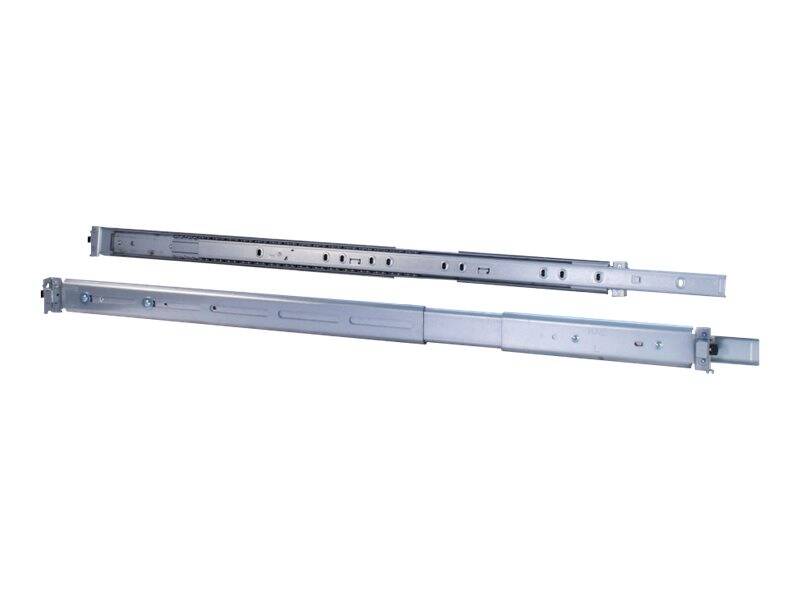

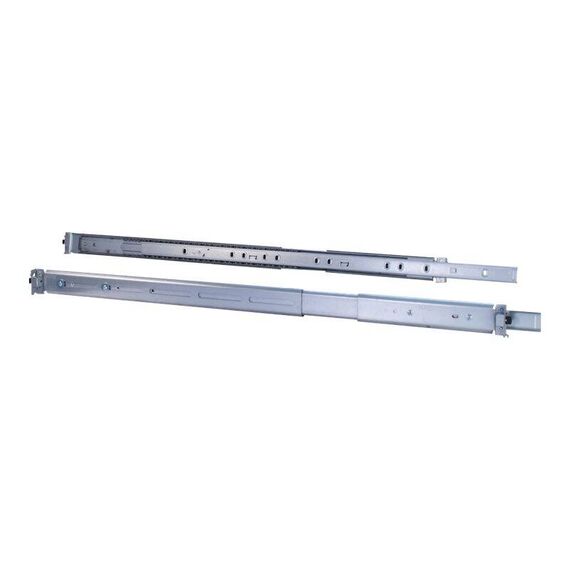

The Inter-Tech 88887219 is a set of 1U telescopic slides, 650 mm (26-inch) long, that lets a 19-inch rackmount case pull out of the rack for service, for rack mounting depths of 690-1000 mm and loads up to 30 kg. It is for system builders and IT teams installing Inter-Tech IPC and other 19-inch server or storage cases in a cabinet.
The rails attach to the sides of the case with the supplied screws and clip into the rack uprights without tools. Once installed, the case can be drawn out by up to 495 mm and released with the unlocking levers, so you can open the lid or swap components without removing the chassis.
Before you order: Inter-Tech states these slides for 19-inch cases and a rack mounting depth of 690-1000 mm between the front and rear uprights; it does not publish a list of specific compatible cases. Check that the side of your case has matching mounting holes - send us the case model and we will confirm before you order.
What's in the Box
- 1 set of 1U telescopic slides, 650 mm
- Screws for mounting the rails on the case
What It Means in Practice
- Telescopic slides let you service a racked server or storage case without unscrewing and lifting it out.
- Snap-in mounting on the rack side speeds up installation - no cage nuts are needed on the uprights for the rails.
- The rack must have front and rear uprights spaced 690-1000 mm apart for the rails to reach.
- Weigh the case fully loaded with drives and PSUs - the set is rated for 30 kg.
What Will Not Work
- They will not fit racks whose front-to-rear upright spacing is outside 690-1000 mm; the other length is the 2U 650 mm version (88887211).
- They will not fit wall cabinets or racks without rear uprights.
- They are not a shelf - the case must have side mounting holes for the inner rails.
- They are not rated above 30 kg.
Key Features
Telescopic extension
The case can be pulled out up to 495 mm for service.

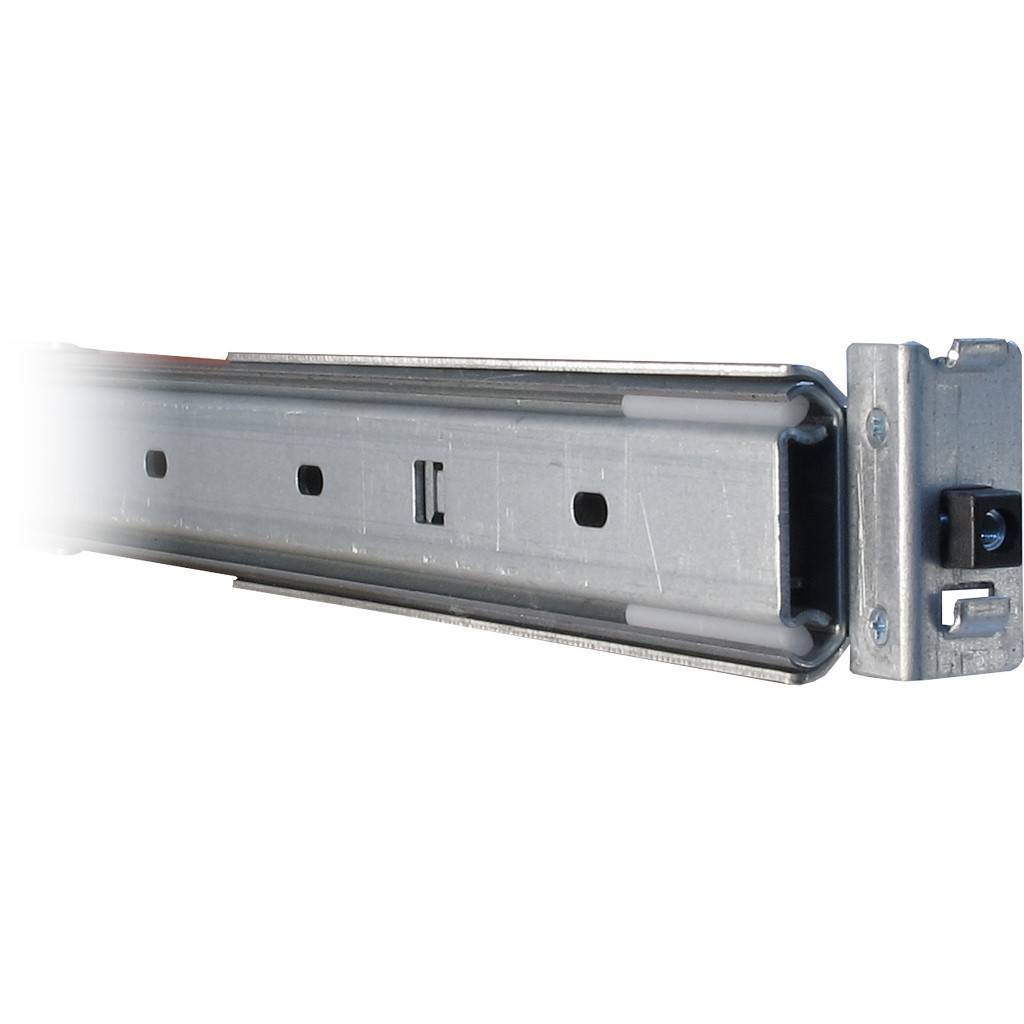

Snap-in rack mounting
Screwless mounting to the rack uprights for quick installation.
30 kg load
Rated for up to 30 kg per set.
1.5 mm steel
Grey steel rails, 650 mm long.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Telescopic slides turn a racked case from a two-person job into something you can open in place. The key measurement is the spacing between your front and rear uprights, which must fall within 690-1000 mm. For fixed shelves and cage nuts, see our rack accessories.
✓ Buy it if you are installing a 1U 19-inch case in a rack with 690-1000 mm upright spacing and want to service it without removing it.
✕ Skip it if your rack spacing is outside 690-1000 mm, or your case has no side mounting holes.
→ Also consider the 2U 650 mm version (88887211), or a 4-point fixed shelf if you do not need pull-out access.
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
Features - Inter-Tech - 88887219
Colour
grey
More Details
Product Code
04:239322
EAN Code
4260455641890
Manufacturer
Inter-Tech
