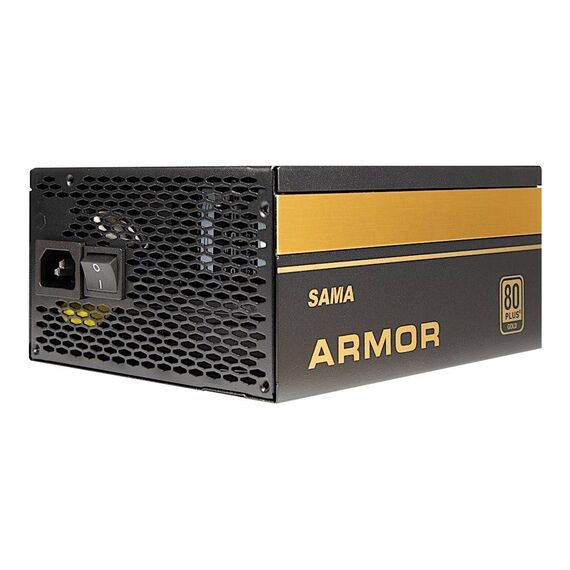

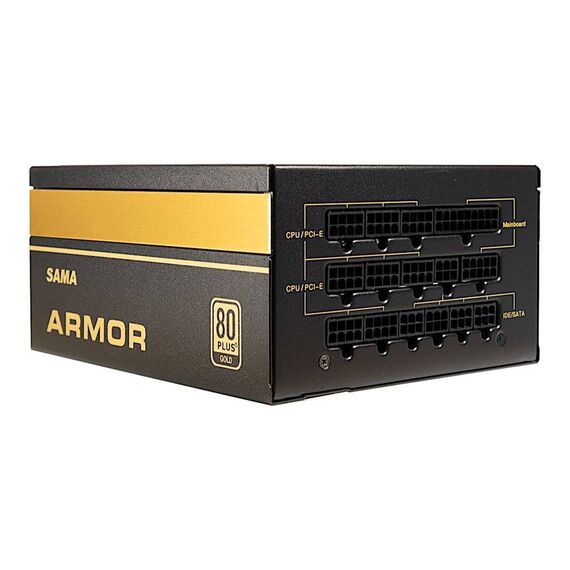

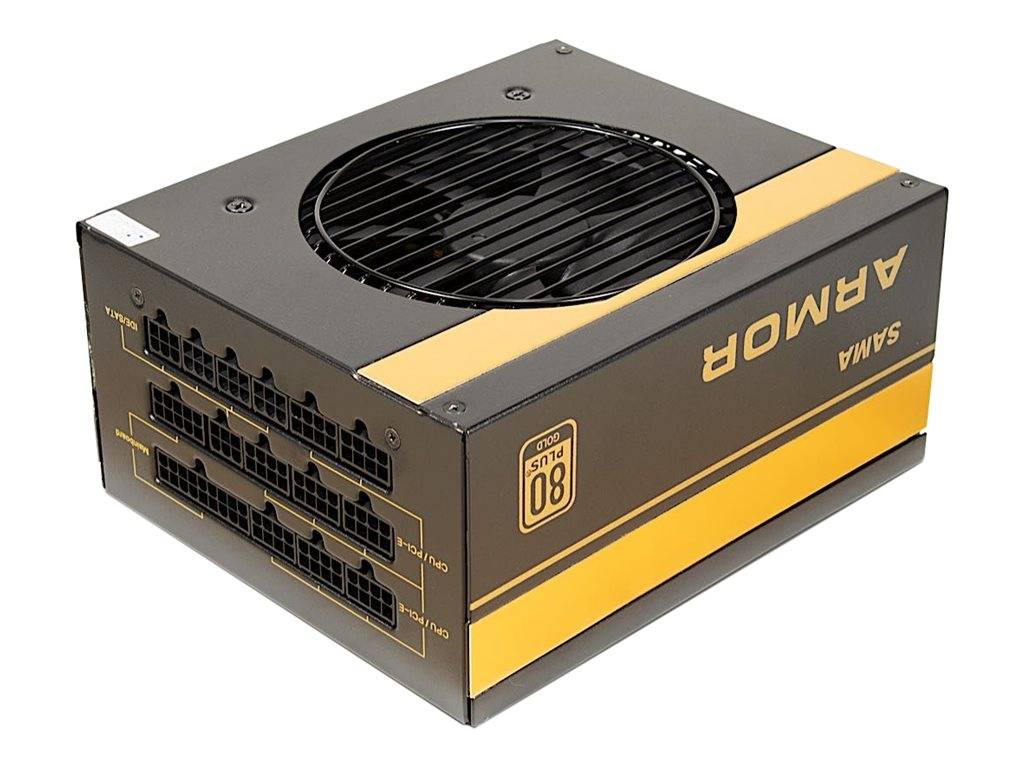

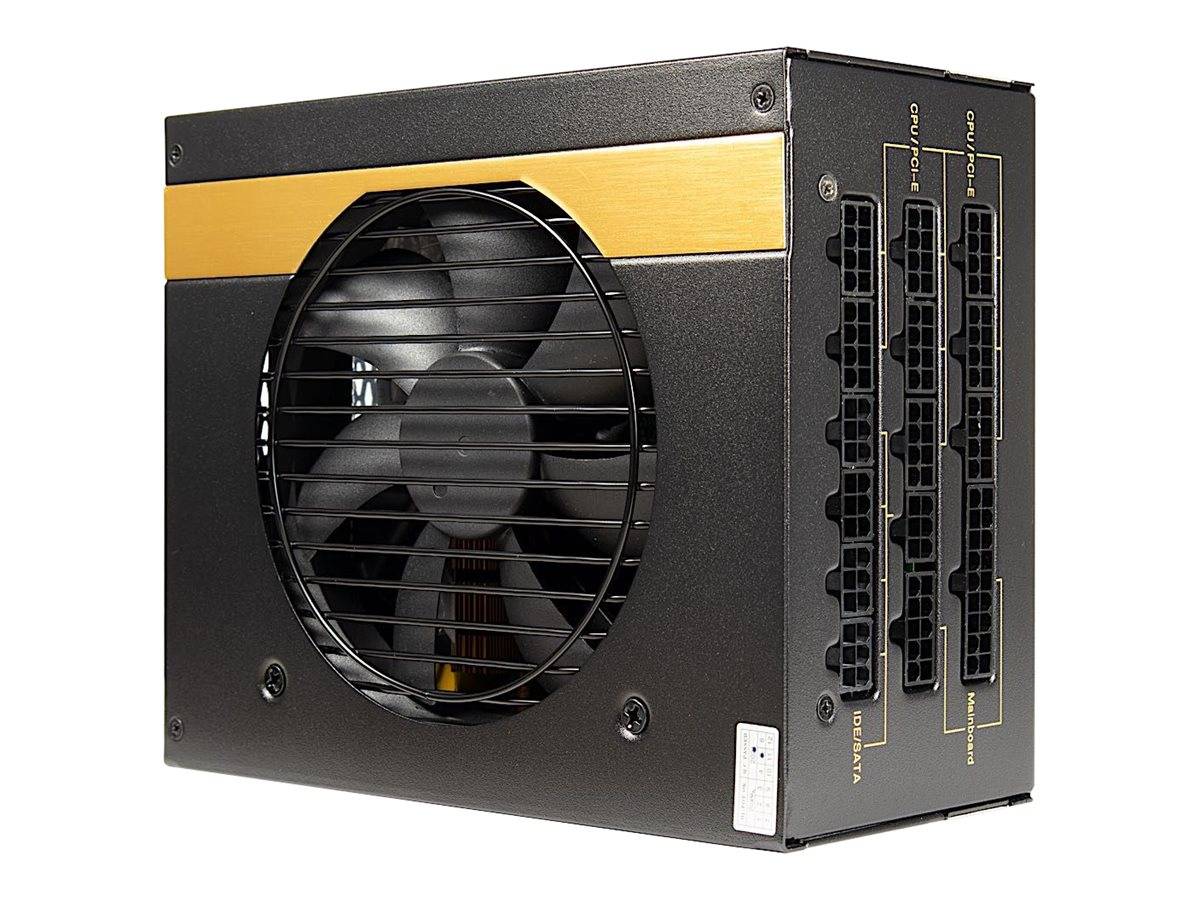

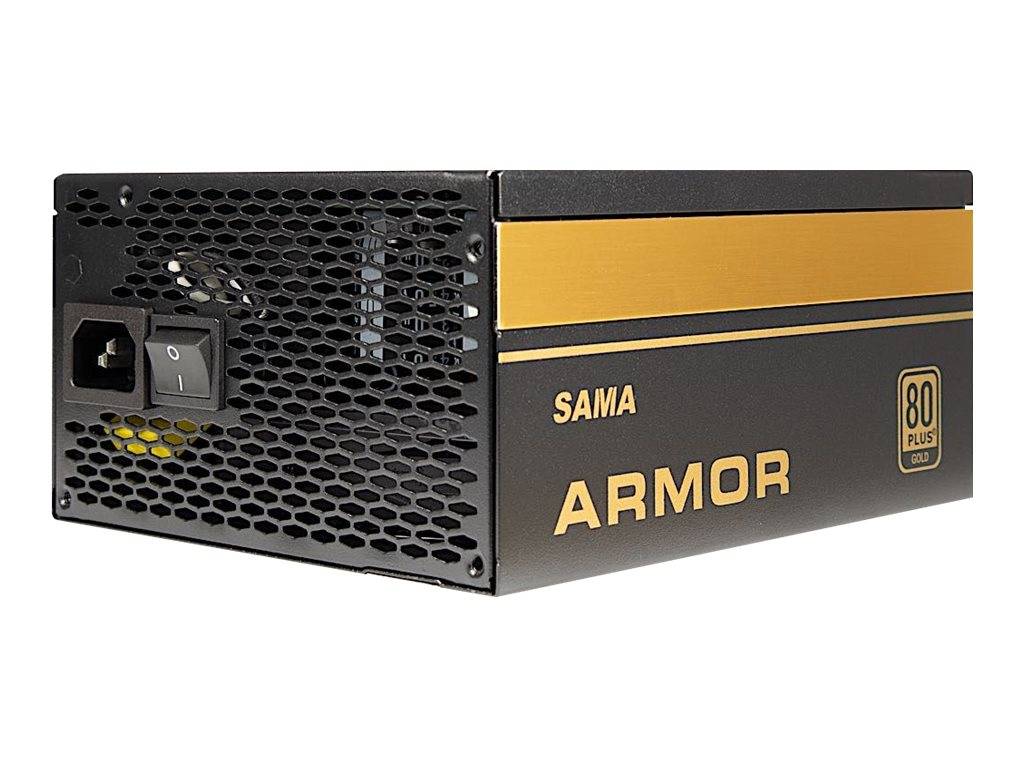

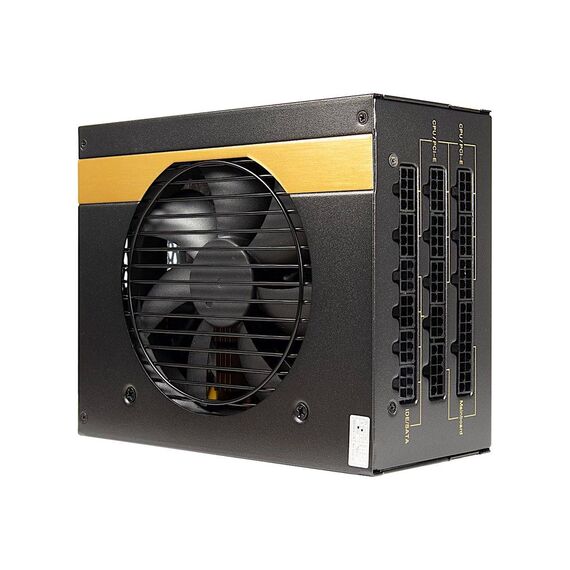

Inter-Tech SAMA FTX-850-B Armor / Power supply (internal) / ATX12V 2.4 / 80 PLUS Gold / AC 110/240 V / 850 Watt / active PFC | 88882195
Please sign in so that we can notify you about a reply
Special Features
- 80PLUS Gold with more than 90% efficiency
- +12V single-rail technology with 69A
- DC/DC technology
- Full modular cable design
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 2.4 |
| PSU Form Factor | ATX |
| Power Device | Power Device |
| Input Voltage | AC 110/240 V |
| Frequency Required | 47 - 63 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 3 x 4 PIN internal power ¦ 9 x 15 pin Serial ATA power |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 850 Watt |
| Output Current | +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 69 A ¦ -12V - 0.2 A ¦ +5VSB - 3 A |
| Efficiency | 92.41% at 20% Load, 92.49% at 50% Load, 88.63% at 100% Load |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Gold |
| Miscellaneous | Miscellaneous |

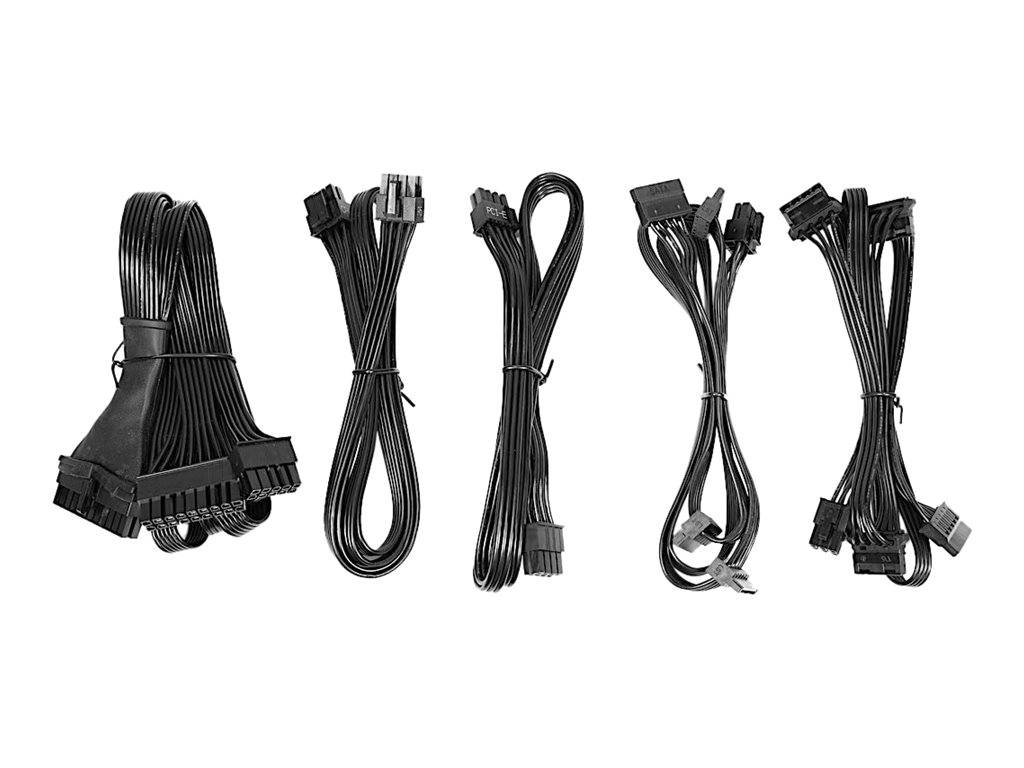

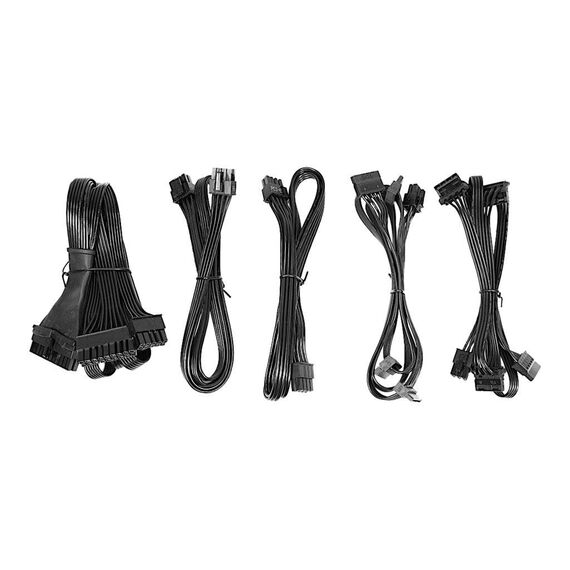

| Included Accessories | Screws, modular cables |
| Cables Included | Power cable - external |
| Cooling System | 120 mm fan |
| Features | Over current protection, over voltage protection, short-circuit protection, single 12V rail, DC-DC technology, no load operation protection, fully modular |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | Environmental Parameters |
| Sound Emission | 22 dB |
| Dimensions & Weight | Dimensions & Weight |
| Width | 15 cm |
| Depth | 18 cm |
| Height | 8.6 cm |
| Weight | 1.77 kg |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 33 cm |
| Shipping Depth | 19.5 cm |
| Shipping Height | 13 cm |
| Shipping Weight | 3.1 kg |
