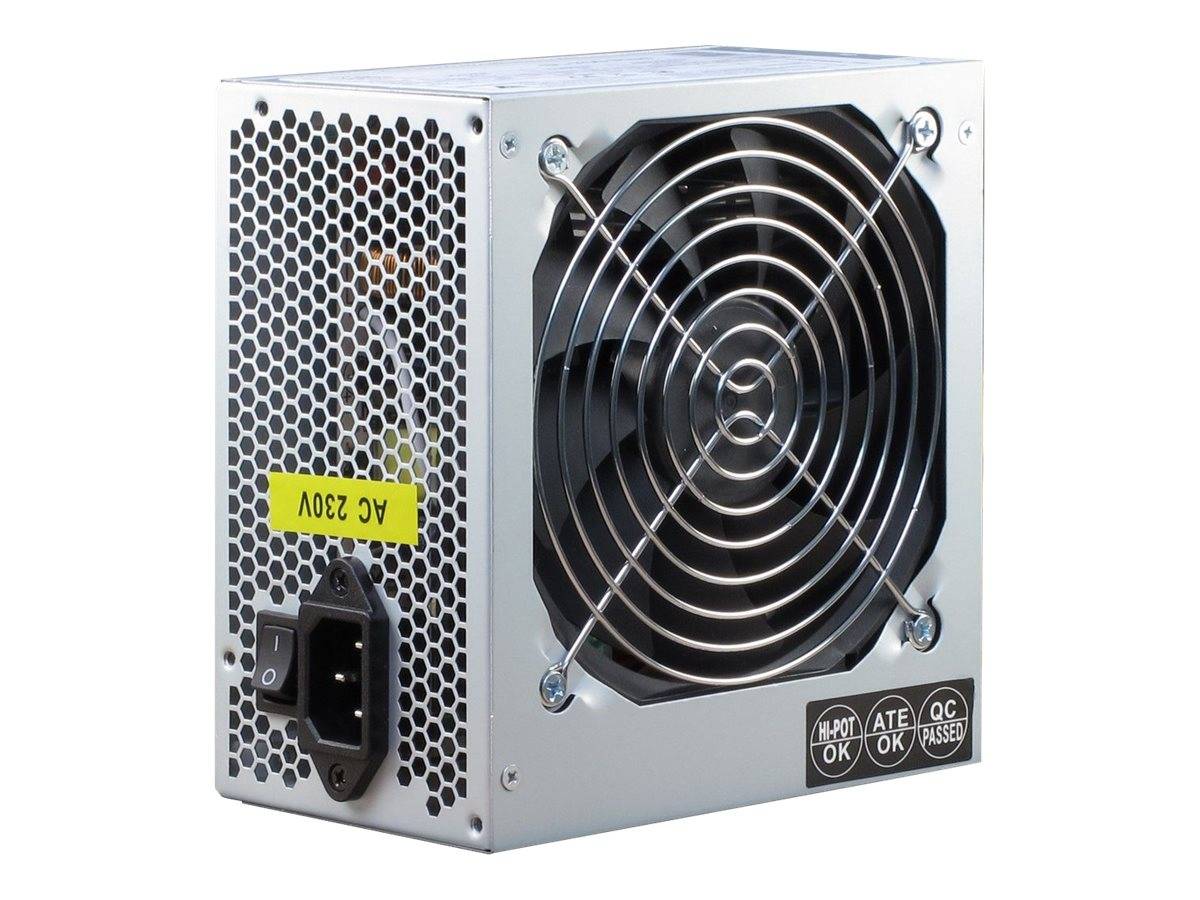

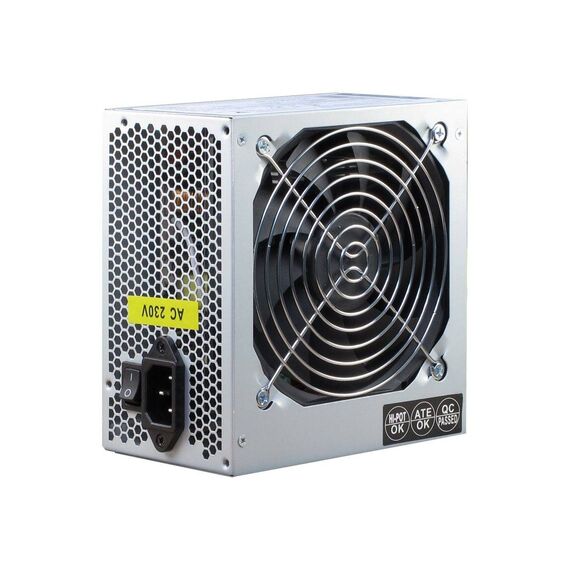

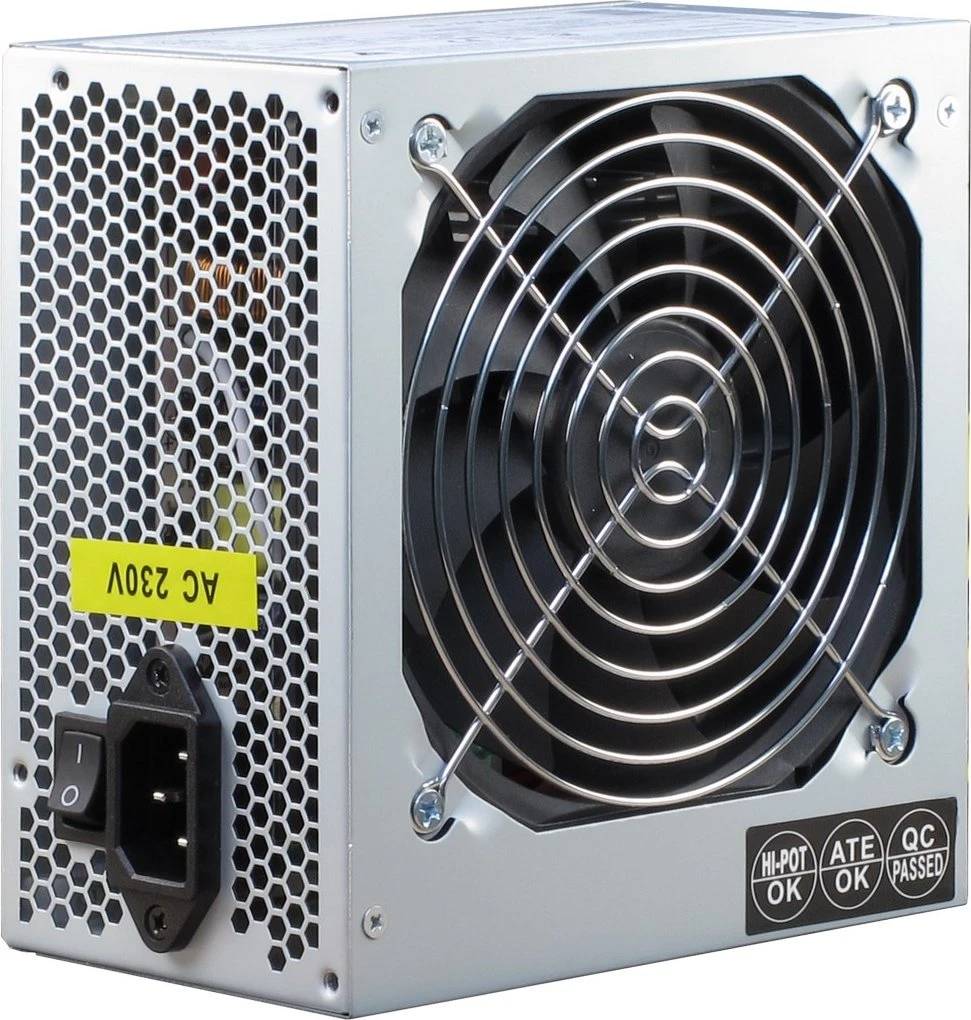

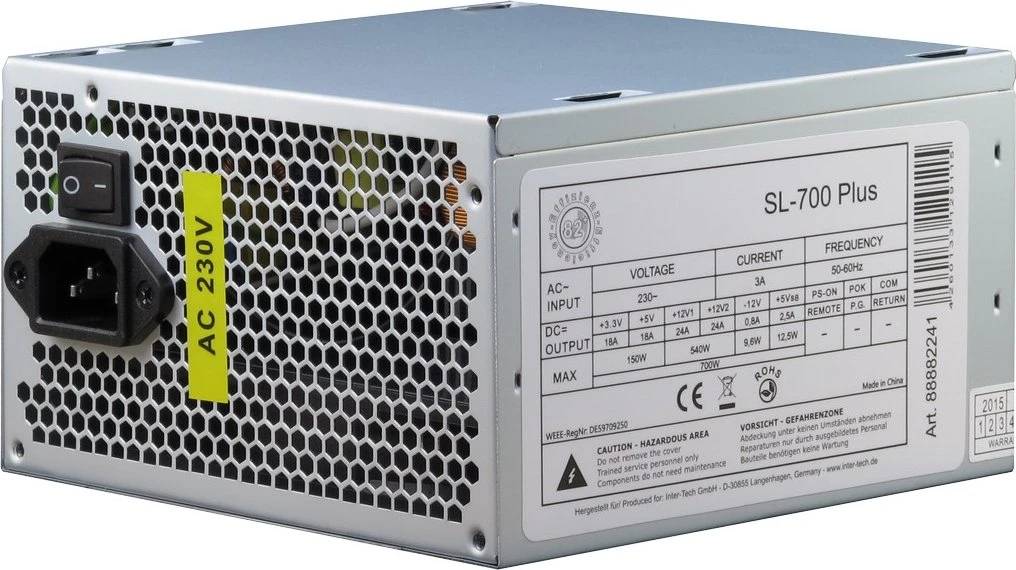

Inter-Tech SL-700 Plus / Power supply (internal) / ATX12V 2.4 / AC 230 V / 700 Watt / active PFC | 88882141
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 2.4 |
| PSU Form Factor | ATX |
| Power Device | Power Device |
| Input Voltage | AC 230 V |
| Frequency Required | 50 - 60 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin +12V with detachable 4 pin section ¦ 4 x 15 pin Serial ATA power ¦ 3 x 4 PIN internal power ¦ 1 x 4 PIN mini-power connector ¦ 2 x 8 pin PCI Express power with detachable 2 pin section |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 700 Watt |
| Output Current | +3.3V - 18 A ¦ +5V - 18 A ¦ +12V1 - 24 A ¦ +12V2 - 24 A ¦ -12V - 0.8 A ¦ +5VSB - 2.5 A |
| Efficiency | 82% |
| Miscellaneous | Miscellaneous |
| Included Accessories | Cable ties |
| Cables Included | Power cable - external |
| Cooling System | 120 mm fan |
| Features | On/off switch, over current protection, over voltage protection, short-circuit protection, non-modular |
| Compliant Standards | FCC |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | Environmental Parameters |
| Sound Emission | 19 dB |
| Dimensions & Weight | Dimensions & Weight |
| Width | 15 cm |
| Depth | 14 cm |
| Height | 8.6 cm |
| Weight | 1.07 kg |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 21.5 cm |
| Shipping Depth | 16.5 cm |
| Shipping Height | 9 cm |
| Shipping Weight | 1.36 kg |
Features - INTERTECH - 88882141
More Details
Product Code
04:185841
EAN Code
4260133129115
Manufacturer
INTERTECH
