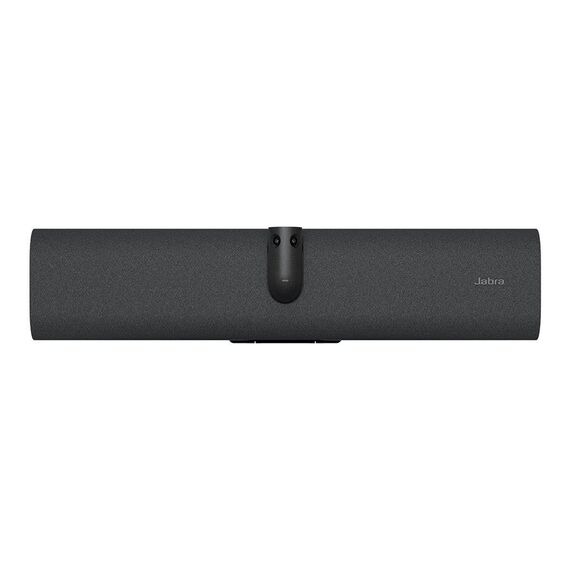

Jabra PanaCast 40 VBS Bar Only / Conference camera / Certified for Microsoft Teams Rooms | 8701-231
Brand:
Jabra
8701-231
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Product Features
- Audio quality
Equipped with a 6-microphone array that utilizes beamforming technology, the Jabra PanaCast 40 ensures audio clarity during calls, making communication effective and engaging. - Video experience
With a digital video capture resolution of 3840 x 1080 and a maximum angular field of view of 180 degrees, this device offers visual capture suitable for any conferencing scenario. - Connectivity options
Featuring multiple connection types including SuperSpeed USB 3.0, HDMI, and RJ-45, it is designed to integrate smoothly into various setups, ensuring compatibility with various devices. - User-friendly features
With capabilities like intelligent zoom and automatic speaker tracking, the PanaCast 40 adjusts to the room's environment, enhancing user interaction and maintaining engagement during presentations. - Durable design
Constructed to operate within a temperature range from 5°C to 35°C and a humidity from 15% to 80%, this device ensures reliable performance under varied environmental conditions.
Special Features
- 6-microphone array with beamforming technology for clear audio
- 180° field of view and 3840 x 1080 video resolution for immersive meetings
- Supports both wired and wireless connectivity options
- Built-in camera and speaker for streamlined conferencing
- Features intelligent zoom and automatic speaker tracking
Product Specification
| Device Type | Conference camera |
| Network Protocols | HTTPS, IPv4, IPv6 |
| Dimensions & Weight Details | Video bar - Width 53 cm Depth 6 cm Height 10.5 cm Weight 1.8 kg |
| Built-in Devices | Microphone array, camera, speaker |
| Localisation | EMEA |
| Video Input | Video Input |
| Type | Digital video camera (colour) - desktop / wall mountable |
| Interface Type | SuperSpeed USB 3.0 |
| Digital Video Capture Resolution | 3840 x 1080 |
| Video Modes | 4K |
| Digital Zoom | 4 |
| Camera Mechanical Design | Pan / tilt / zoom |
| Features | 180° field of view (horizontal), 54° field of view (vertical), 2 x 8 megapixels sensors, dual cameras, Intelligent-Zoom, Manual Pan-Tilt-Zoom, LED indicator, Live Streaming, people counting, automatic speaker tracking, firmware upgradable, security slot (Kensington security lock compatible), 4.5 m microphone pickup range |
| Angular Field Of View (max, degree) | 180 |
| Audio Input | Audio Input |
| Type | 6-microphone array - integrated |
| Microphone Operation Mode | Beamforming |
| Frequency Response | 100 - 16000 Hz |
| Audio Output | Audio Output |
| Type | Speaker(s) |
| Frequency Response | 80 - 20000 Hz |
| Networking | Networking |
| Connectivity Technology | Wired, wireless |
| Data Link Protocol | Bluetooth 5.2, Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol | HTTPs, DHCP, IPv4, IPv6 |
| Features | Automatic Media-Dependent Interface Crossover (MDIX), cable management, content sharing, security slot (Kensington security lock compatible), static IP mode, Simple Certificate Enrollment Protocol (SCEP), BYOD mode, proximity sensor |
| Compliant Standards | Bluetooth 5.2 |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 - HDMI input 1 x SuperSpeed USB 3.0 - 4 pin USB Type A 1 x audio - headphones/microphone - mini-phone 3.5 mm 1 x USB-C - 24 pin USB-C 1 x network - RJ-45 |
| Miscellaneous | Miscellaneous |
| Cables Included | 1 x USB-C to USB-C cable - 3 m 1 x RJ-45 cable - 4.57 m 1 x HDMI cable - 1.83 m |
| Included Accessories | Wall mount, cable cover, privacy cover with sensor |
| Software Certification | Certified for Microsoft Teams Rooms |
| Compliant Standards | IPv4, IPv6 |
| Power | Power |
| Power Device | Power supply - external |
| Voltage Required | AC 100-240 V |
| Software / System Requirements | Software / System Requirements |
| OS Required | Android 13 |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 58.9 cm |
| Shipping Depth | 21 cm |
| Shipping Height | 11 cm |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 15 - 80% |
Features - Jabra - 8701-231
More Details
Product Code
CP24541
EAN Code
5706991034004
Manufacturer
Jabra
