kabelmeister SK1436-S020 Y Power Cable, C14 to 2 × C13, 2 m, Black, 10 A Total

Brand:
KABELMEISTER
kabelmeister SK1436-S020 Black C14 to Dual C13 Y Power Cable 2m
kabelmeister SK1436-S020 Y Power Cable, C14 to 2 × C13, 2 m, Black, 10 A Total
€18.11 inc. VAT
Buy
SK1436-S020
€15.22
€18.11 inc. VAT
Ships from EU stock: 5 item(s)
+ −
Add to wish list Ask a question
Product Code
04:480639
EAN Code
4066857000477
Manufacturer
KABELMEISTER

Quick Specs

Connections
C14 male → 2 × C13 female
Nominal length
2 m
Cable sections
1.00 / 0.75 mm²
Combined maximum
10 A / 250 V
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Two IEC outputs with one shared current limit

C14 → 2 × C132 m10 A total

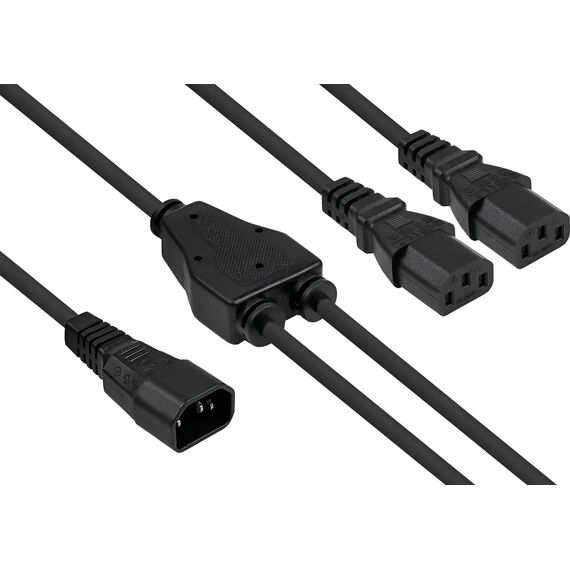

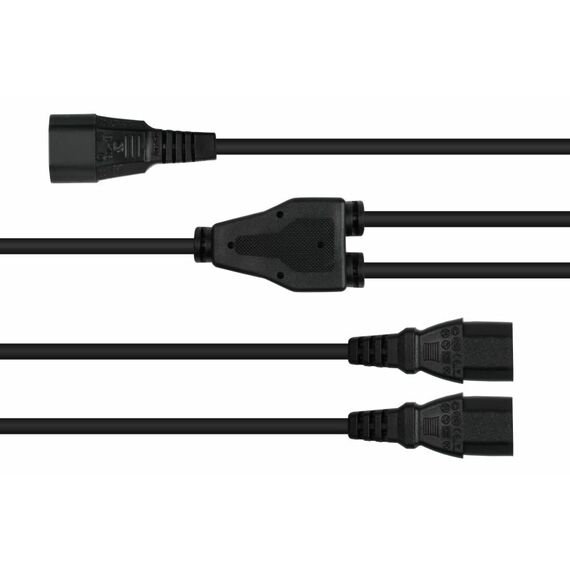

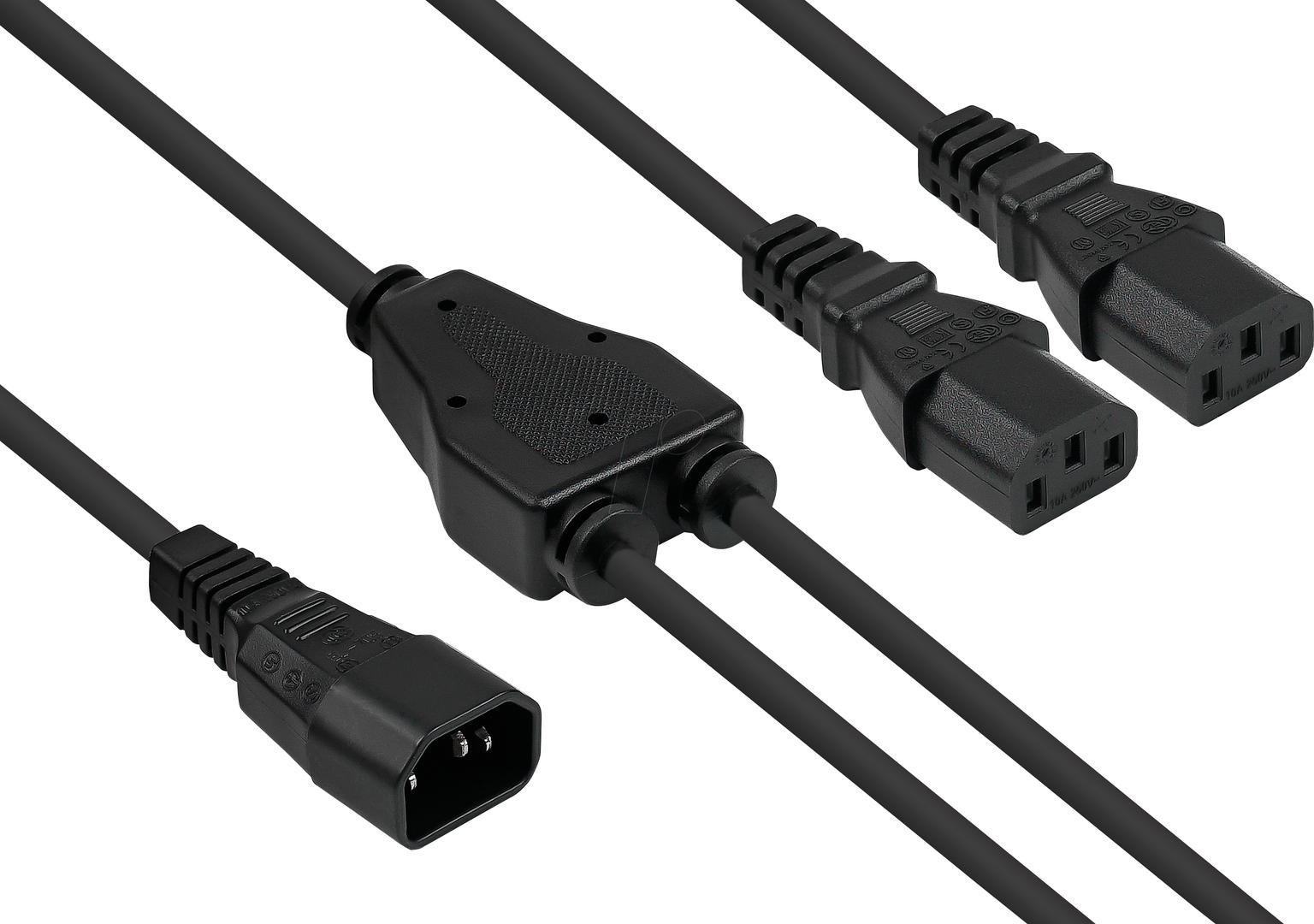

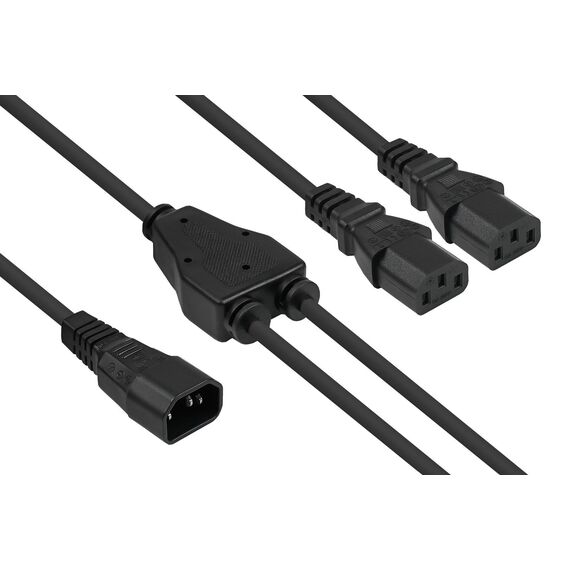

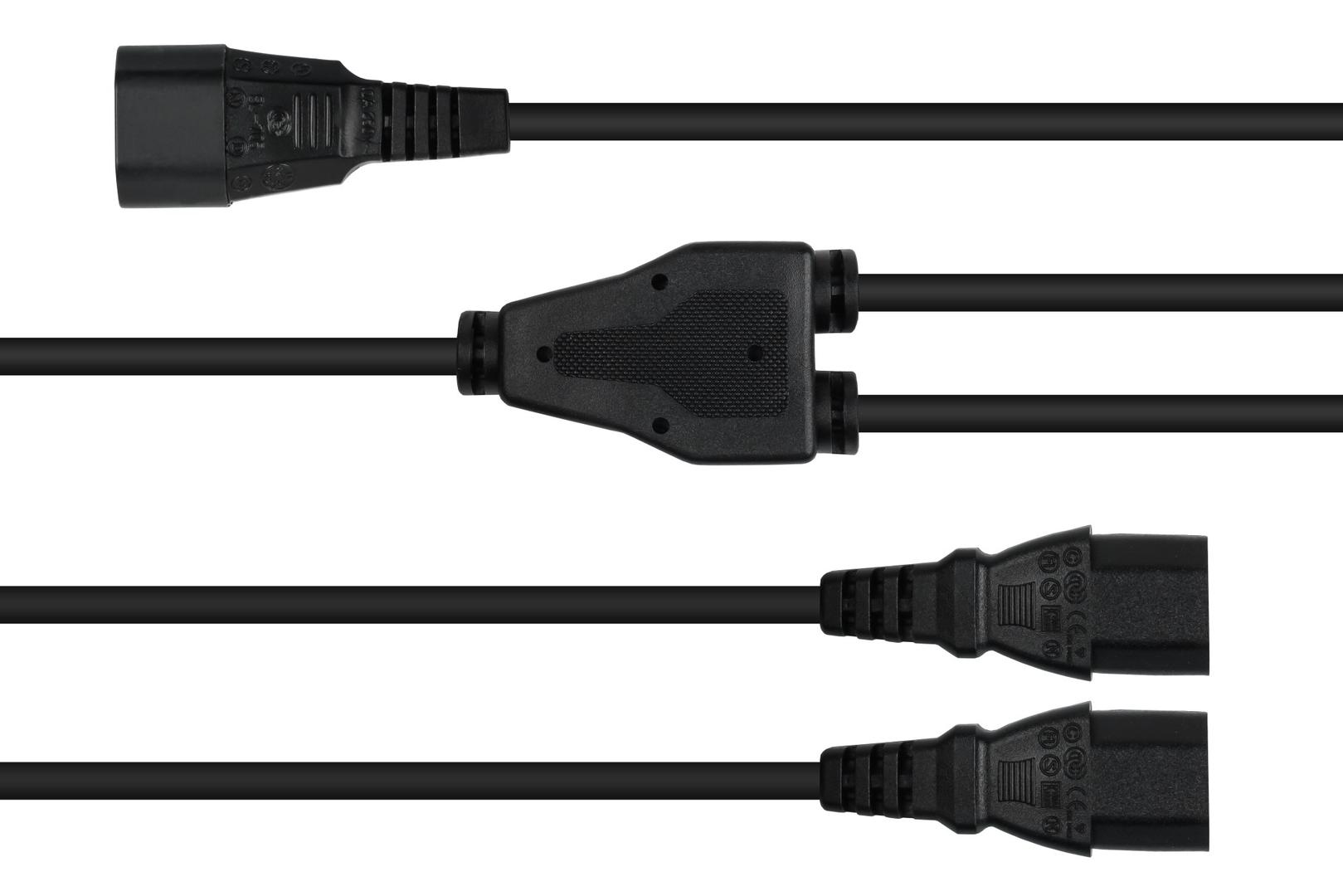

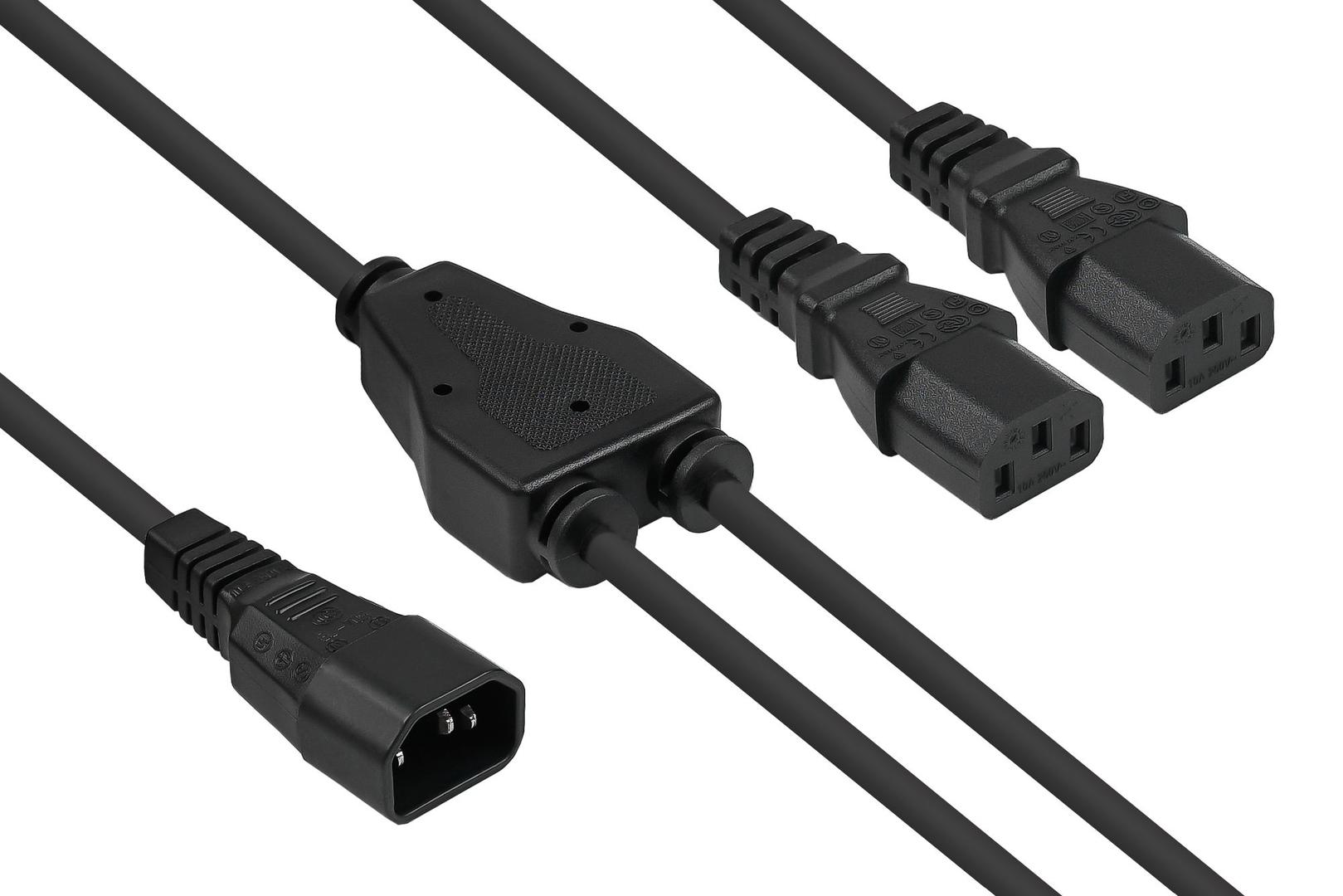

The kabelmeister SK1436-S020 splits one straight IEC C14 male connection into two straight C13 female connections. Its black copper H05-VV-F cable has a 1.2 m trunk and two branches of approximately 0.8 m each. The combined load must stay within 10 A / 250 V.

Key Features


Defined Y layout
A 1.2 m input section and approximately 0.8 m output branches give a nominal 2 m route to either device.

Different sections by cable segment
Copper conductors are 1.00 mm² before the split and 0.75 mm² after it, with PVC insulation and jacket.

Protected connection points

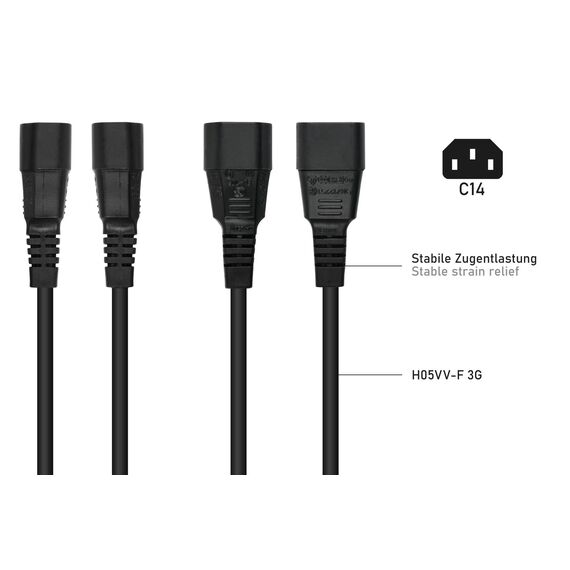

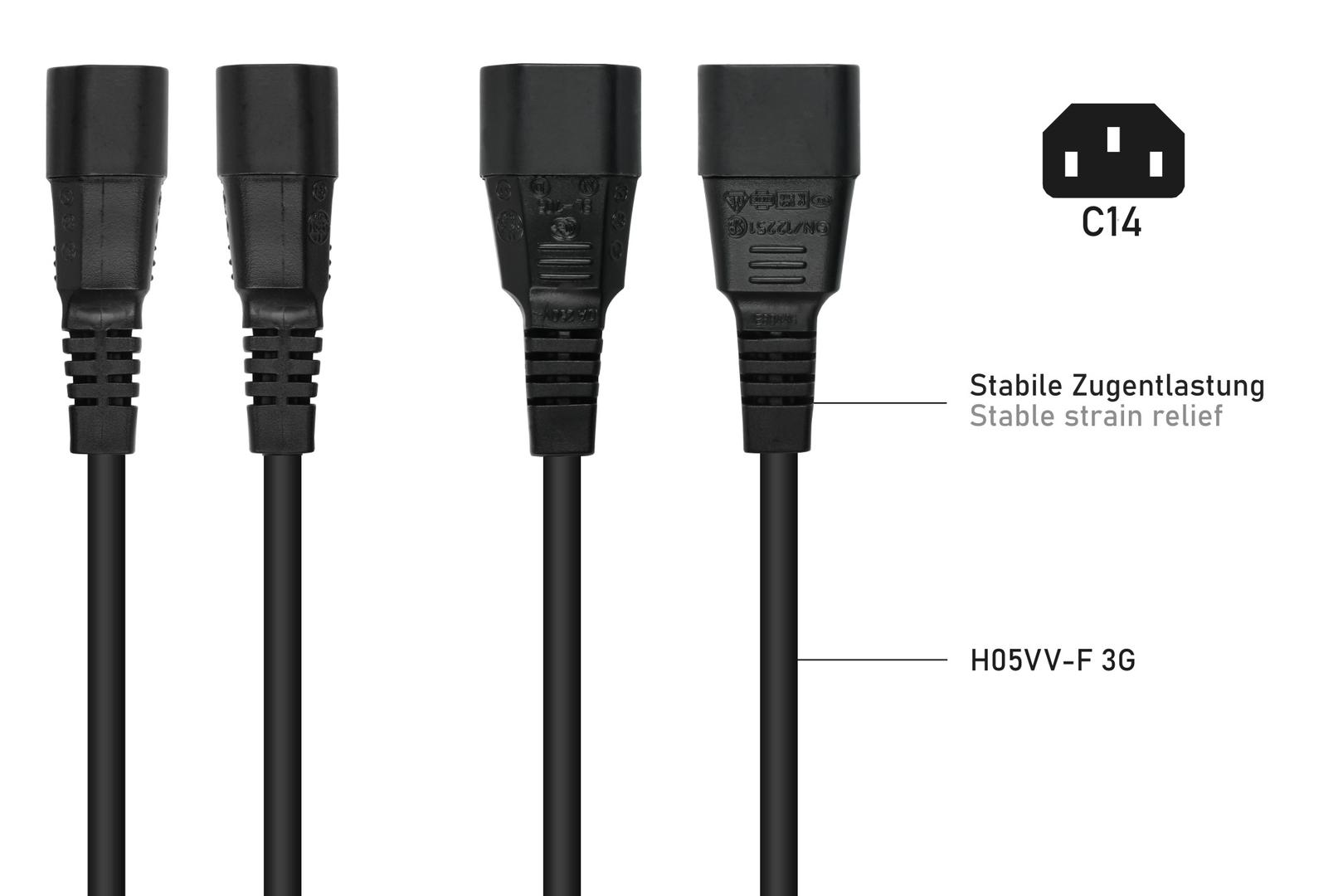

Connector strain relief supports the cable ends. Check the source connection and both equipment inlets before ordering.

Technical Specifications

Brand / model kabelmeister SK1436-S020
EAN 4066857000477
Input IEC 60320 C14 male, straight
Outputs 2 × IEC 60320 C13 female, straight
Cable type / cores H05-VV-F (3G) / 3
Conductor material Copper
Cross-section before Y split 1.00 mm²
Cross-section after Y split 0.75 mm²
Maximum per C13 output 10 A / 250 V
Maximum combined load 10 A / 250 V
Insulation / jacket PVC / PVC
Colour / nominal length Black / 2 m

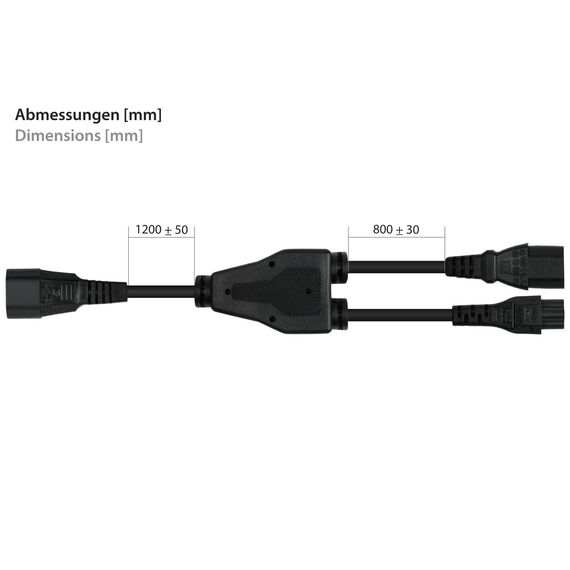

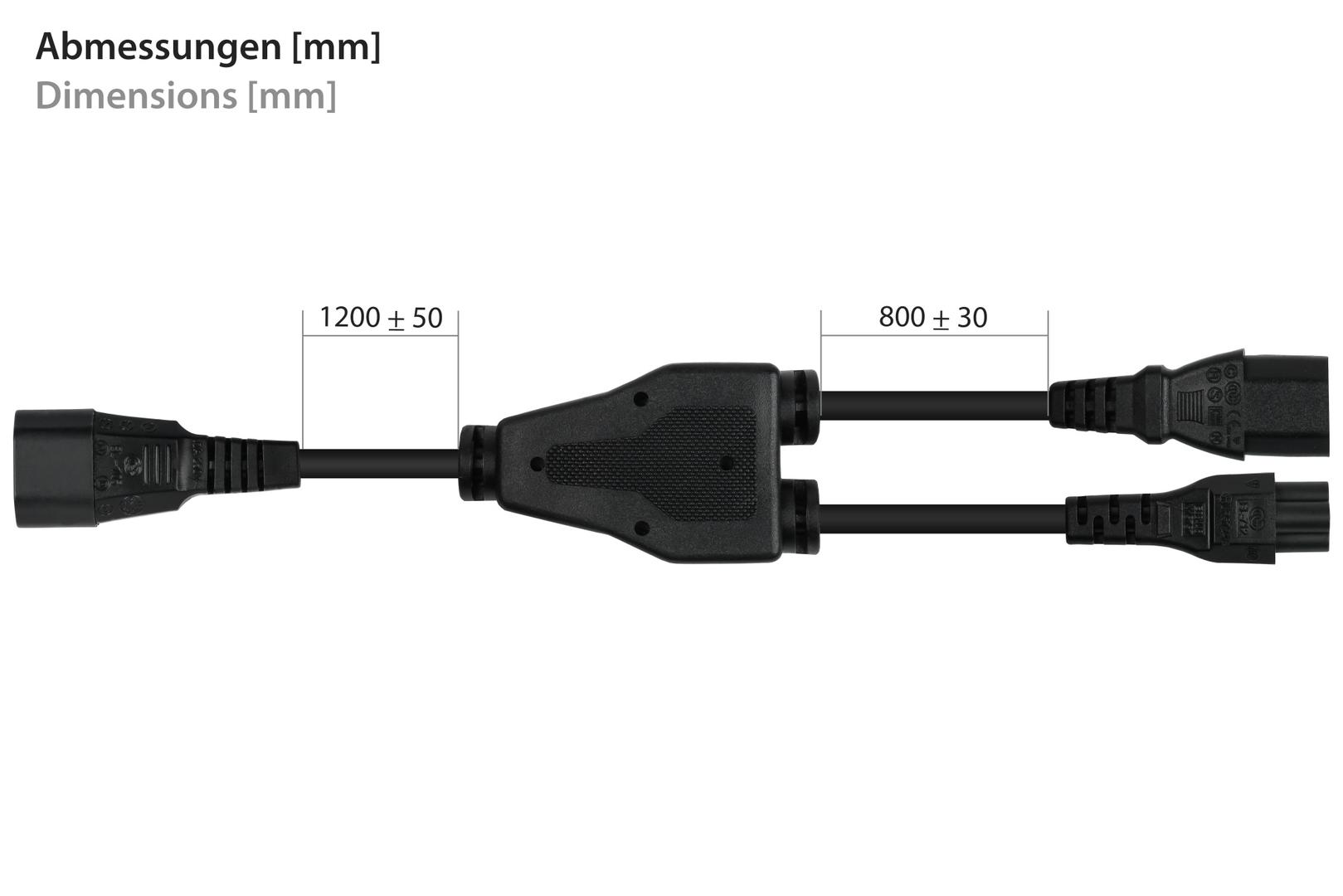

C14 to Y split 1.2 m / 120 cm
Each Y branch to C13 Approx. 0.8 m / 80 cm

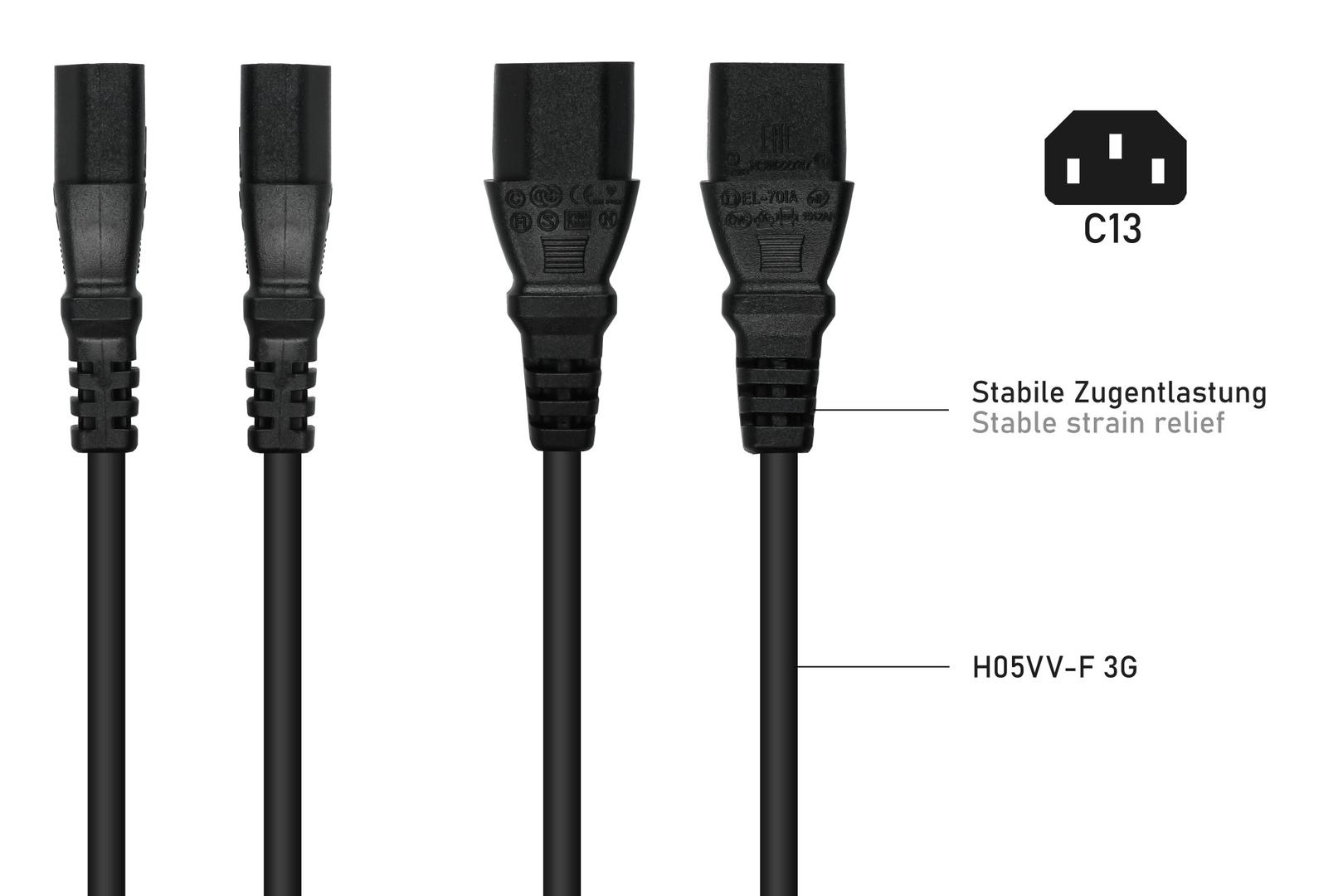

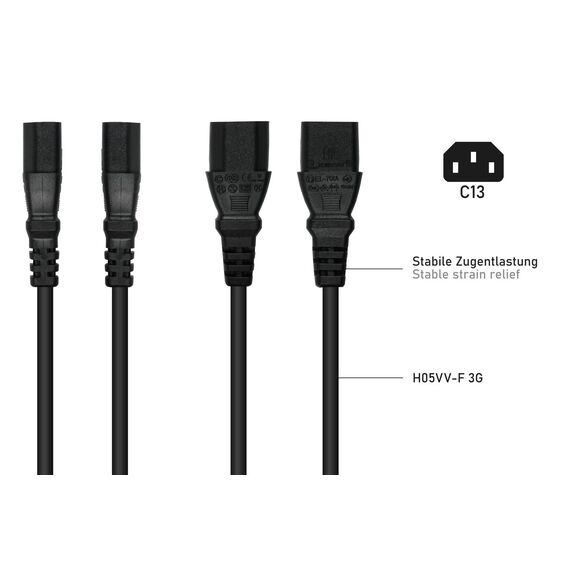

Connector protection Strain relief
Cable material testing Manufacturer specifies VDE-tested H05-VV-F cable material

Frequently Asked Questions

Can the two outputs supply 20 A in total?
No. Although each C13 output is rated up to 10 A / 250 V, the maximum combined cable load is also 10 A / 250 V.
Are the two branches each 2 m long?
No. The nominal 2 m route consists of a 1.2 m trunk plus an approximately 0.8 m branch.
Singular Expert Insight
Add the requirements of both connected devices before selecting a Y cable. The upstream connector, source and combined current limit must all suit the application. Check your IEC source and equipment connections

Buyer’s Guide

Buy it if

You need two C13 outputs from a matching C14 supply connection within the combined rating.

Skip it if

You need a household wall plug or independent 10 A supplies for both devices.

Also consider

Check branch reach, source rating and total connected load.
