Kingston Server Premier 24GB (1x24GB) DDR5-5600 CL46 Registered ECC
24GB (1x24GB)DDR5-5600 CL46Registered ECCDDR5 RDIMM

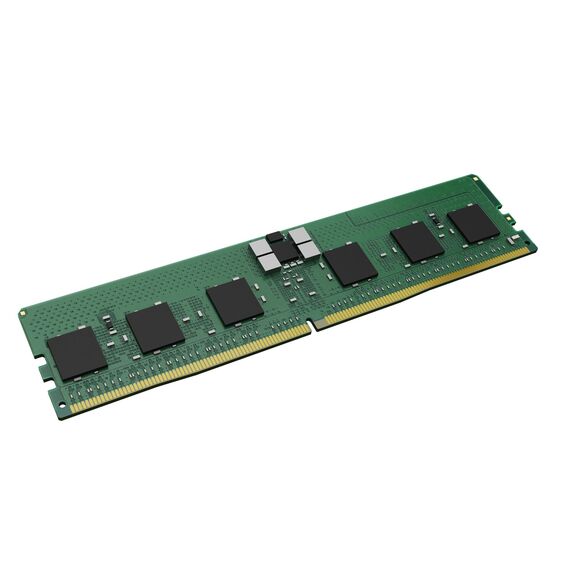

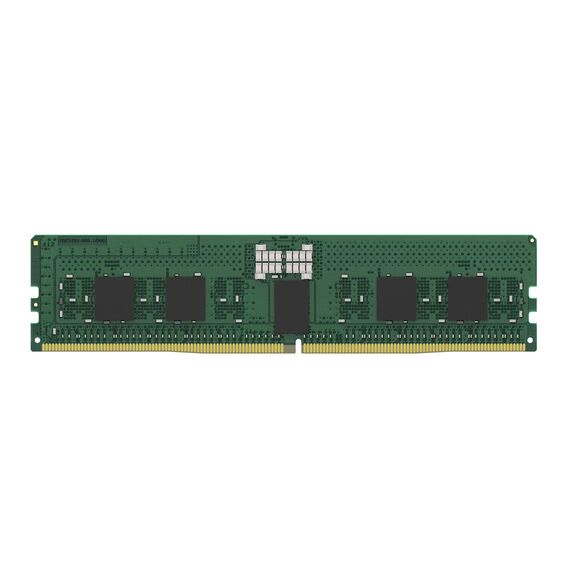

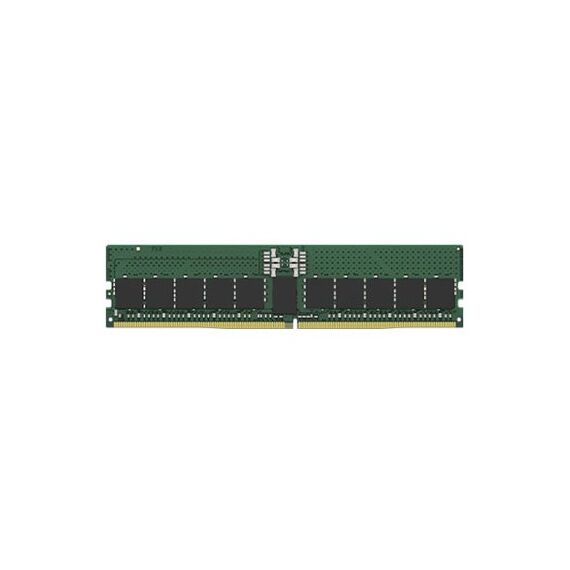

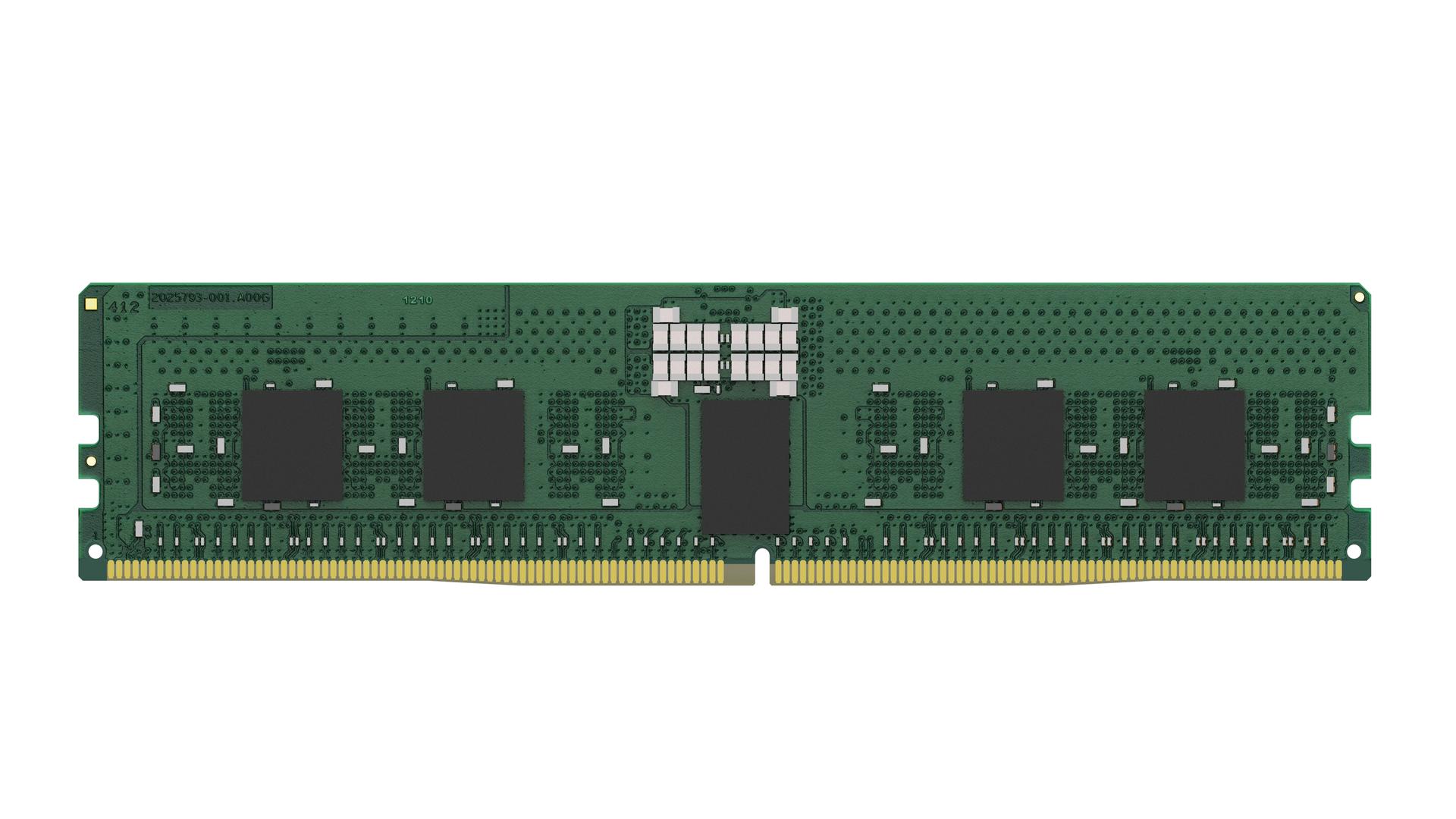

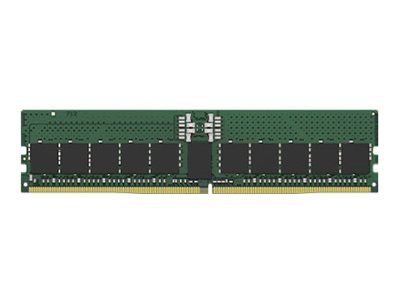

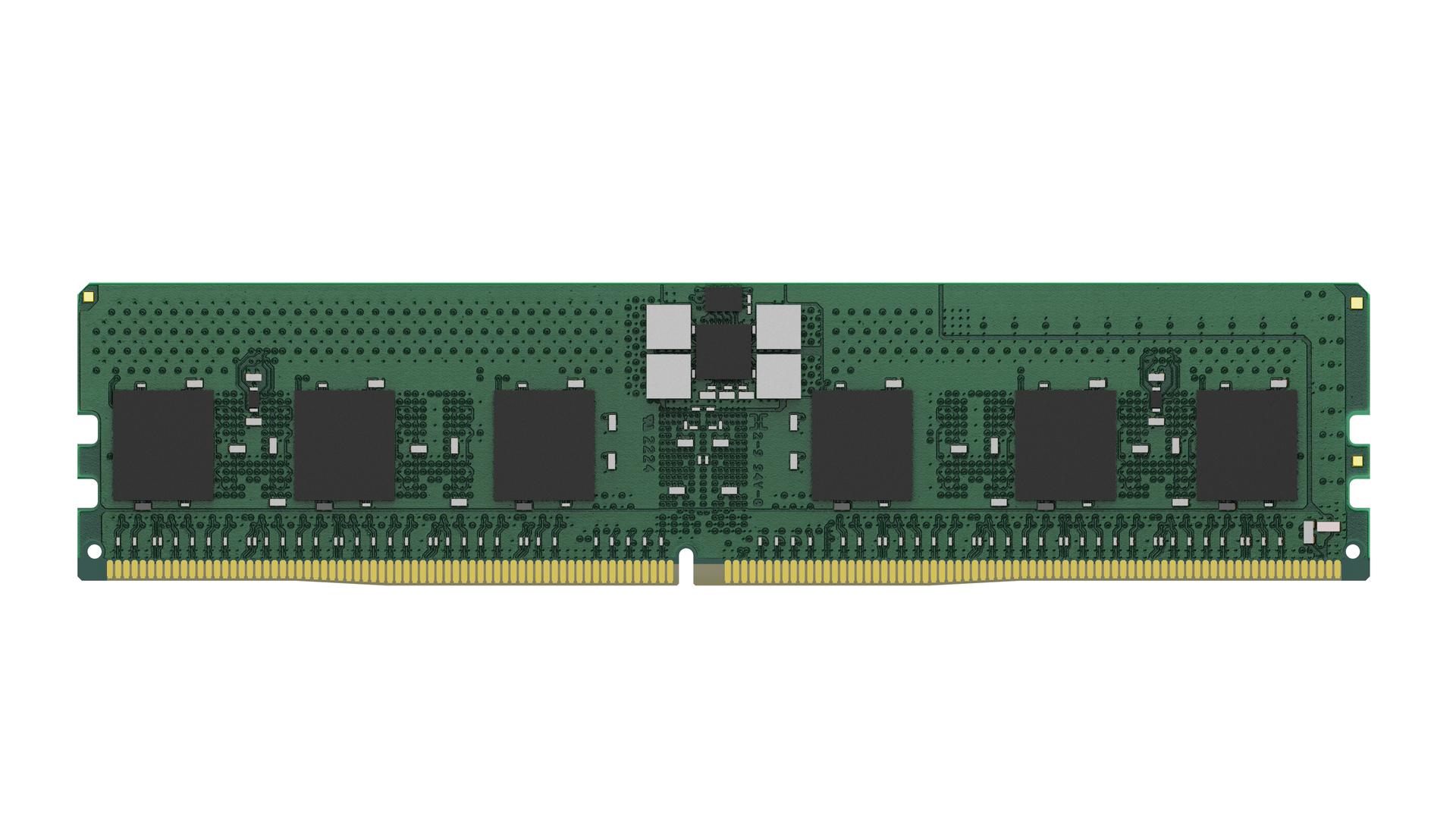

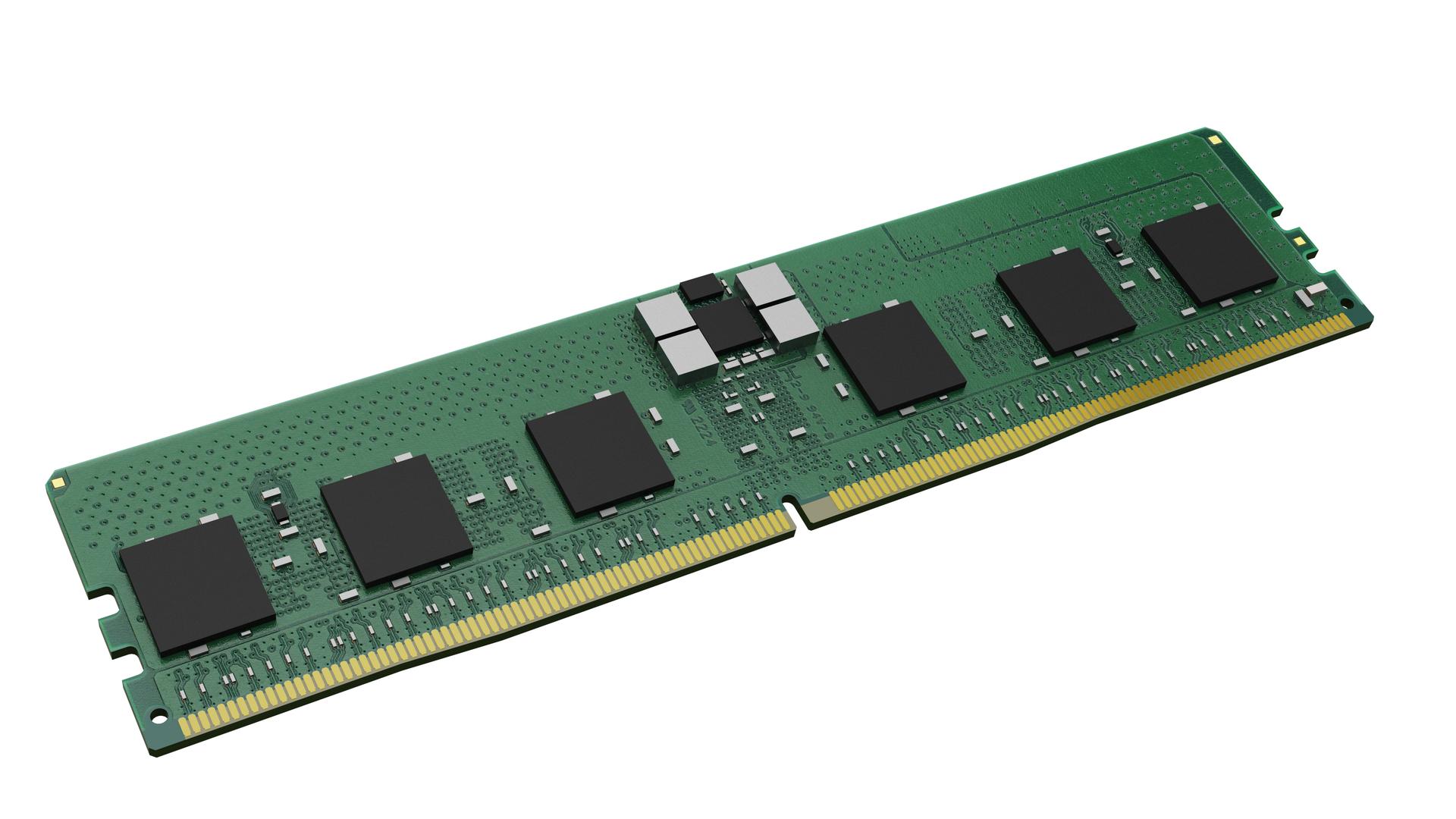

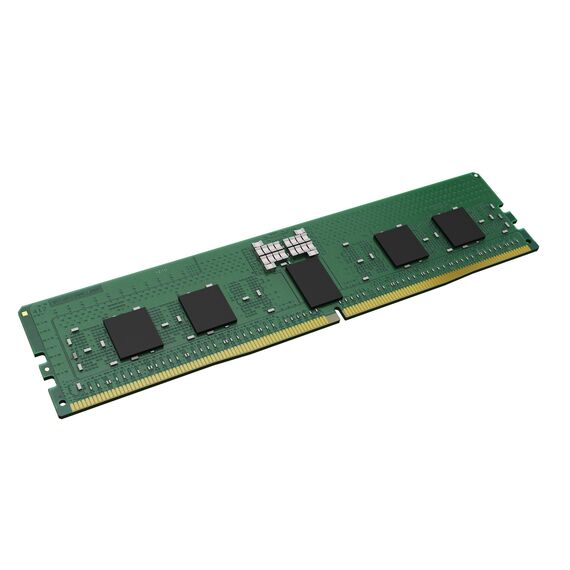

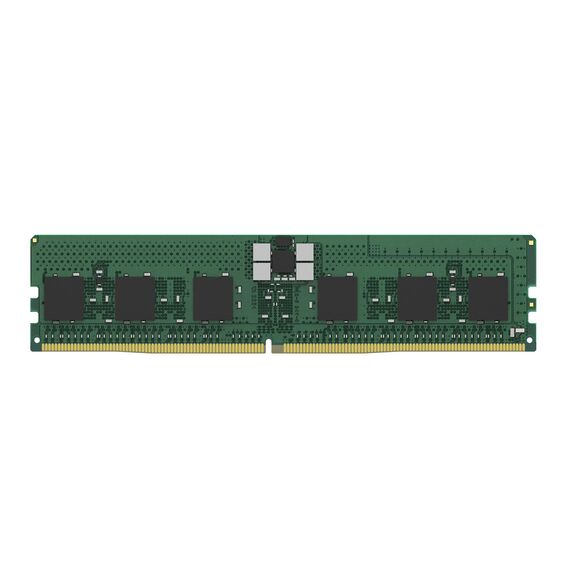

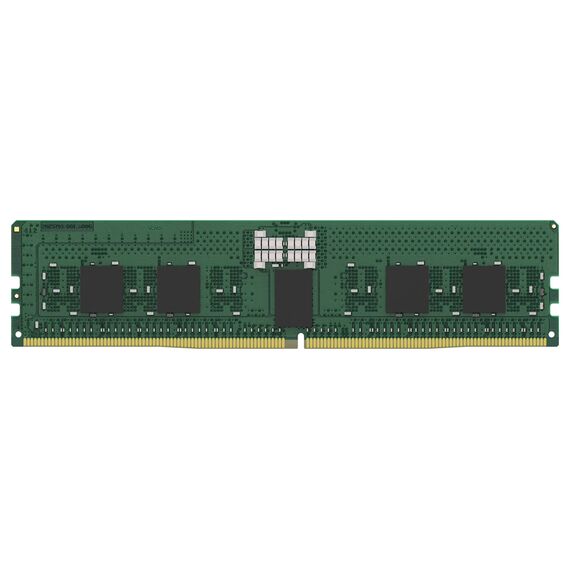

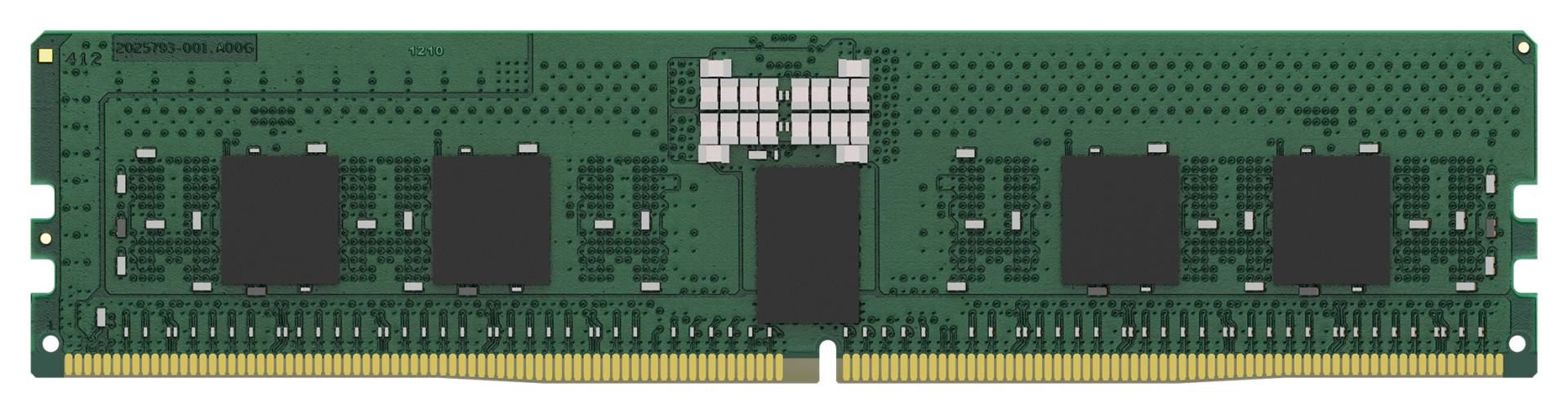

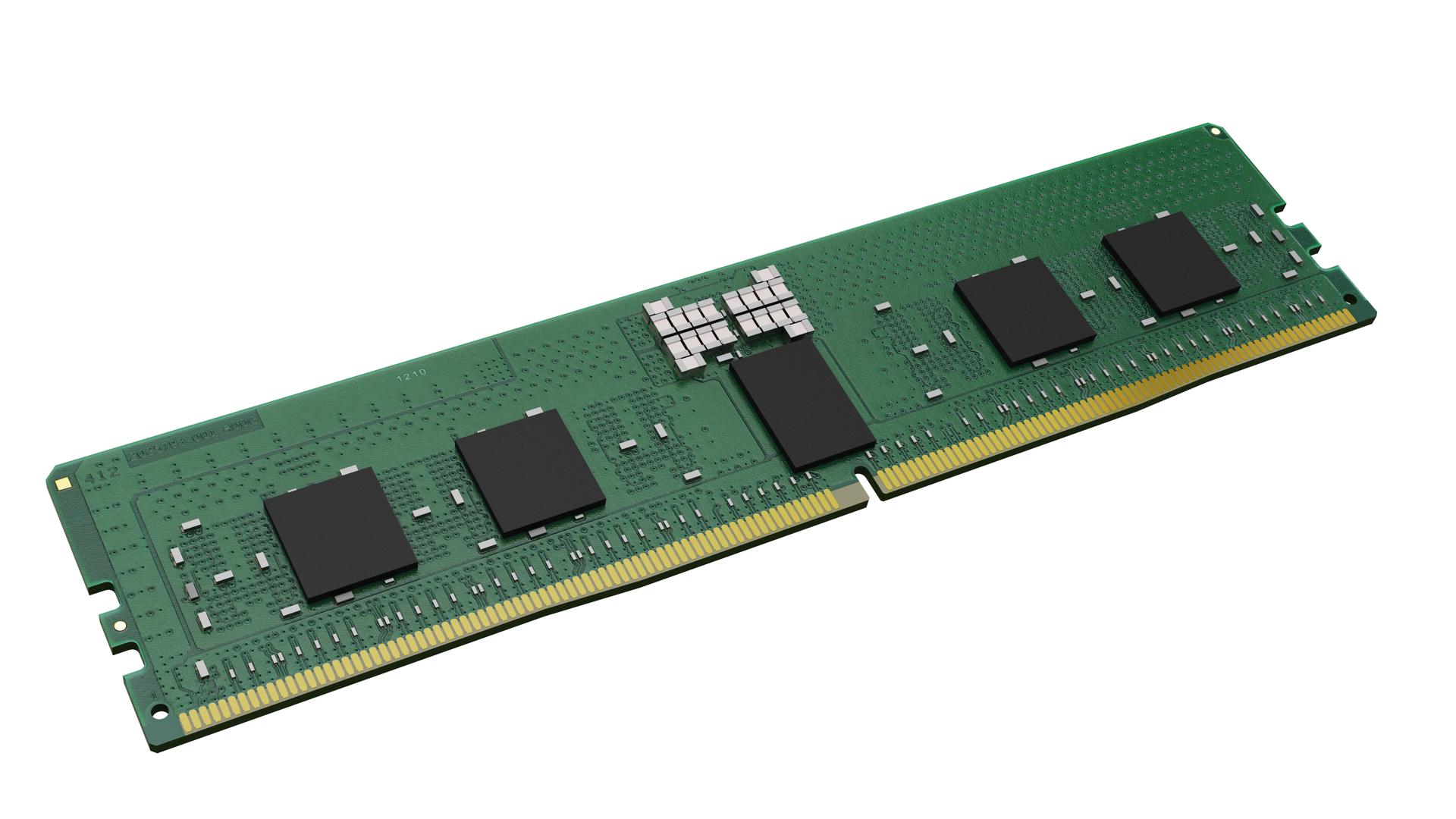

The Kingston Server Premier KSM56R46BS8PMI-24HMI is a 24GB (1x24GB) DDR5-5600 CL46 server RDIMM memory module for servers and workstations that take DDR5 registered ECC memory. It is a single 24GB module.
It runs at its rated setting, stored in its SPD (DDR5-5600 CL46-45-45, 1.1V (JEDEC)), with no BIOS changes. It is a JEDEC-standard Server Premier part built with SK hynix M-die DRAM, so it behaves like the reference modules server vendors qualify.
Before you order: RDIMM works only in boards and servers that support registered DDR5 (Xeon, EPYC, Threadripper PRO-class platforms). It will not work in desktop PCs that use unbuffered DDR5, and it should not be mixed with UDIMMs or with RDIMMs of a different rank or capacity in the same system.
What's in the Box
- 1 x 24GB DDR5 RDIMM module
- Anti-static packaging
- No heat spreader, screws or software — standard server DIMM
What It Means in Practice
- 24GB per module lets you fill every memory channel without jumping to 32GB modules — useful on platforms with 8 or 12 channels where balanced population matters for bandwidth.
- For best performance install the same module in every channel of each CPU; uneven population reduces memory bandwidth.
- Single-rank (1Rx8) modules generally allow the highest supported memory speed on each platform.
- Registered ECC corrects single-bit errors at system level and is what servers expect for 24/7 operation.
- Server vendors (Dell, HPE, Lenovo) often warn on non-branded memory; Kingston Server Premier is JEDEC-standard but check your vendor’s policy.
What Will Not Work
- Desktop PCs and gaming motherboards — they need unbuffered (UDIMM) DDR5.
- DDR4 servers — DDR5 RDIMMs have a different key and do not fit.
- Systems that require LRDIMM or 3DS RDIMM only, or vendor-locked memory.
- Mixing with existing RDIMMs of a different capacity or rank in the same channel set — the system may refuse to boot or drop speed.
Key Features
Registered ECC
A registering clock driver and x80 ECC organisation (two x40 sub-channels) provide system-level error correction on top of DDR5 on-die ECC.
SK hynix M-die
Built with SK hynix 24Gbit M-die DRAM, with Renesas RCD and an on-module PMIC — the component list is fixed for this part number.
1Rx8, 24GB
Ten 3Gx8 DRAM chips in a single rank, which is the configuration platforms run at their highest rated speed.
Server reliability features
Supports hPPR/sPPR post-package repair and on-module temperature sensing, rated 0 to +95°C operating.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
In servers the rule is uniformity: same capacity, rank and speed in every channel. This 24GB single-rank module is ideal for balanced population on many-channel platforms or for extending a system that already runs 24GB modules. Browse our memory range for other server and desktop memory.
✓ Buy it if your server or workstation takes DDR5 RDIMM and you need 24GB 1Rx8 modules, especially to match existing ones.
✕ Skip it if you are building a new system from scratch — consider the current 32GB replacement.
→ Also consider Kingston Server Premier 32GB DDR5-5600 RDIMM (KSM56R46BD8-32MH).
Not sure it fits? Send us your server or motherboard model and the modules already installed, and we will check compatibility before you order.
