Kingston Server Premier 32GB DDR5-5600 ECC Registered DIMM, CL46

Brand:
Kingston
Kingston Server Premier 32GB DDR5-5600 ECC DIMM
Kingston Server Premier 32GB DDR5-5600 ECC Registered DIMM, CL46
€1729.99 inc. VAT
Buy
KSM56R46BD8-32MH
€1,453.77
€1,729.99 inc. VAT
Ships from EU stock: 6 item(s)
+ −
Add to wish list Ask a question
Product Code
03:280512
EAN Code
0740617360325
Manufacturer
Kingston

Quick Specs

Memory capacity
32 GB
Memory type
DDR5 SDRAM
Memory speed
5600 MT/s
Buffered memory
Registered / buffered
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Singular Selected

Kingston Server Premier 32GB DDR5-5600 ECC Registered DIMM

32 GB DDR5 SDRAM 5600 MT/s Registered / buffered

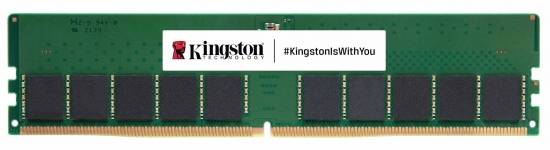

The Kingston Server Premier KSM56R46BD8-32MH is a 32GB DDR5-5600 registered ECC memory module for server platforms that support registered ECC DIMMs. Its 2Rx8 organisation and CL46 timing identify the module's specific configuration for compatibility checks and system planning.

What It Means in Practice

  • The 32GB capacity is for this individual module; total installed memory depends on the number of compatible modules in the server.
  • The 288-pin DIMM format and registered ECC design are key fit checks: the server must support registered ECC DIMMs, not just DDR5 memory.

What Will Not Work

  • Designed for compatible server platforms with registered ECC memory support; compatibility with a specific server is not established by the provided information.
Best For
✓ For server owners or system builders who need a 32GB DDR5 module
✓ Have confirmed their platform supports registered ECC memory

Key Features


Registered ECC memory
A server-memory configuration intended for platforms that support registered ECC DIMMs.

DDR5-5600
The module is specified for a data rate of 5600 MT/s.

2Rx8 organisation
Dual-rank x8 organisation is specified for checking the module against server requirements.

CL46 timing
CAS latency is specified as CL46, with JEDEC timing of 46-45-45.

Technical Specifications

Product family Kingston Server Premier
Product type Server memory module
Memory capacity 32 GB
Memory type DDR5 SDRAM
Memory speed 5600 MT/s
CAS latency CL46
JEDEC timing 46-45-45
ECC ECC
Buffered memory Registered / buffered
Module type DIMM
Pin count 288-pin
Rank 2Rx8 / dual rank
Data organisation x80 ECC | x40, 2 independent I/O subchannels
Module organisation 4G x 80-bit
DRAM density 16 Gbit
DRAM manufacturer Micron
DRAM die revision H
DRAM components Twenty 2G x 8-bit FBGA components
On-die ECC Present | Yes
Internal banks 32
SPD interface I3C/I2C sideband access
Operating voltage VDD 1.1 V | VDDQ 1.1 V | 1.1 V VDD and VDDQ
VPP voltage 1.8 V typical
VDDSPD voltage 1.8-2.0 V
Power supply specification VDD 1.1 V typical | VDDQ 1.1 V typical | VPP 1.8 V typical | VDDSPD 1.8-2.0 V | VDD=1.1V typical | VDDQ=1.1V typical | VPP=1.8V typical | VDDSPD=1.8-2.0V
Post-package repair Hard and soft post-package repair | Hard/soft post-package repair
Contact material Gold contact fingers
Module height 31.25 mm (1.23 in) | 1.23 in (31.25 mm)
Compliance RoHS compliant | Halogen-free | RoHS compliant and halogen-free
UL rating 94V-0
Effective frequency 5600 MT/s
Storage temperature -55°C to +100°C
Operating temperature 0°C to +95°C
Product name Kingston Server Premier 32GB DDR5-5600 ECC Registered DIMM CL46
Manufacturer Kingston Technology
Manufacturer part number KSM56R46BD8-32MH
EAN / UPC 0740617360325
Data organization x80 ECC | x40, 2 independent I/O subchannels
Module organization 4G x 80-bit
SKU / EAN KSM56R46BD8-32MH | 0740617360325

Frequently Asked Questions

Will this work in any system with a DDR5 DIMM slot?
Not necessarily. Kingston positions it for compatible server platforms with registered ECC memory support. Check the specific server’s memory requirements before ordering.
Singular Expert Insight
It combines a defined server-memory configuration-DDR5-5600, registered ECC, 2Rx8 and CL46-in one 32GB DIMM, making the specific module details clear for platform matching.

Buyer’s Guide

Buy it if
For server owners or system builders who need a 32GB DDR5 module and have confirmed their platform supports registered ECC memory.
Skip it if
This is registered/buffered ECC server memory, not a universal DDR5 DIMM. Confirm that your server supports registered ECC memory and this module configuration before purchasing.
