Kioxia CM7-R 1.92TB Enterprise SSD, 2.5-inch U.3 PCIe 5.0 NVMe, 1 DWPD, SIE (KCMYXRUG1T92)

Brand:
KIOXIA

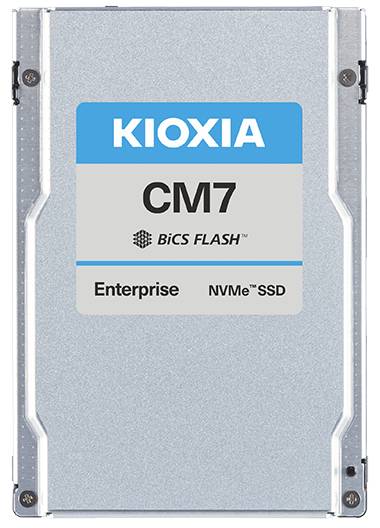

Kioxia CM7-R Enterprise SSD - Representative CM7 Series Image
Kioxia CM7-R 1.92TB Enterprise SSD, 2.5-inch U.3 PCIe 5.0 NVMe, 1 DWPD, SIE (KCMYXRUG1T92)
€2704.85 inc. VAT
Buy
KCMYXRUG1T92
€2,272.98 €2,525.53
€2,704.85 inc. VAT
Ships from EU stock: 1 item(s)
+ −
Add to wish list Ask a question
Product Code
04:458508
EAN Code
4582563857537
Manufacturer
KIOXIA

Quick Specs

Capacity
1.92TB / 1,920GB
Interface
U.3, PCIe 5.0 NVMe 2.0
Form factor
2.5-inch, 15mm
Endurance / security
1 DWPD / SIE
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Enterprise reads with a clear platform requirement

Read-intensivePower-loss protectionSIE variant

The Kioxia CM7-R KCMYXRUG1T92 is a 1.92TB enterprise NVMe SSD for read-intensive server storage. Its 15mm U.3 enclosure combines PCIe 5.0 bandwidth, power-loss protection and 1 DWPD endurance. This is the SIE variant: choose it for supported sanitization workflows and check your server's NVMe backplane and firmware before ordering.

Compatibility — check before buying:
Requires a compatible NVMe U.3 host/backplane and clearance for a 15mm drive. A 2.5-inch SATA/SAS bay alone does not establish compatibility. Dual-port operation needs host support.

Key Features


Performance for this capacity
At 1.92TB, Kioxia specifies up to 14,000MB/s sequential read, 3,500MB/s sequential write and 2,000,000 / 155,000 random read/write IOPS. These sustained figures use a single x4 port and specified block sizes; actual results depend on the host and workload.

Protection during power interruption
Power-loss protection and end-to-end data protection support enterprise data integrity. They complement a correctly configured storage system and backup plan.

SIE with precise expectations
Sanitize Instant Erase identifies this security variant. SED and FIPS-certified SED models have different part numbers; do not select this SKU when those certifications are required.

Technical Specifications

Identity and platform
Manufacturer / series Kioxia / CM7-R
Manufacturer SKU KCMYXRUG1T92
EAN 4582563857537
Capacity 1,920GB / 1.92TB, decimal; formatted capacity is lower
Workload Read-intensive enterprise storage, 24/7 operation
Form factor / connector 2.5-inch, 15mm; U.3 / SFF-TA-1001 conformant
Interface / protocol PCIe 5.0 / NVMe 2.0
Port configuration Single x4 or dual x2; maximum aggregate interface speed 128GT/s
Flash / controller 112-layer BiCS FLASH 3D TLC; proprietary Kioxia controller and firmware
OCP support Datacenter NVMe SSD specification v2.0, partial support
Security variant SIE (Sanitize Instant Erase); separate from SED and FIPS SED models
Data protection Power-loss protection; end-to-end data protection
Performance and endurance
Sequential read / write Up to 14,000 / 3,500MB/s, sustained, 128KiB blocks, single x4 port
Random read / write Up to 2,000,000 / 155,000 IOPS, sustained, 4KiB blocks, single x4 port
Performance conditions Manufacturer maximum figures; host, drivers, operating system and workload affect actual performance
Endurance 1 DWPD under manufacturer's specified workload and lifetime conditions; actual endurance varies
MTTF 2,500,000 hours, statistical reliability measure, not an individual lifespan guarantee
Power and physical characteristics
Supply voltage 12V ±10%; 3.3V ±15%
Power consumption Active: 22W typical; ready: 5W typical
Dimensions 100.45mm maximum length × 69.85 ±0.25mm width × 15.0mm (+0/-0.5mm) height
Weight 130g maximum
Environment and warranty reference
Operating temperature 0–76°C, composite SMART temperature, not ambient temperature
Non-operating temperature -40–85°C
Operating relative humidity 5–95%
Operating vibration 21.27m/s² (2.17Grms), 5–800Hz
Operating shock 9.8km/s² (1000G), 0.5ms
Manufacturer warranty reference Product brief lists 5 years; confirm supplied-unit and seller warranty terms separately

Frequently Asked Questions

Will it fit a normal laptop SATA bay?
Do not assume compatibility. This is a 15mm enterprise U.3 NVMe drive; verify the connector, NVMe support and physical clearance of the intended server.
Is this the FIPS-certified CM7-R?
No. KCMYXRUG1T92 is the SIE variant. Kioxia lists separate SED and FIPS SED model numbers.
Does dual-port mode guarantee the quoted speed?
The quoted performance figures are specified for single-port x4 operation. Dual x2 requires a supporting host and should be evaluated for the intended availability and workload requirements.
Singular Expert Insight
Choose this drive around the server platform and write budget. Its 1 DWPD rating suits read-intensive enterprise workloads, while U.3 compatibility, airflow and the 15mm enclosure need checking before deployment. Ask Singular to verify your server platform

Buyer’s Guide

Buy it if

You need a 1.92TB read-intensive enterprise SSD for a validated U.3 NVMe server, with SIE sanitization and power-loss protection.

Skip it if

Your host only supports SATA/SAS, needs a thinner drive, or requires SED/FIPS security or higher write endurance.

Also consider

Ask Singular to check the server backplane, drive qualification and endurance requirements before choosing an alternative capacity or security variant.
