LANCOM YS-7154CF-F2B Managed L2/L3 Switch | 48x SFP28 6x QSFP28

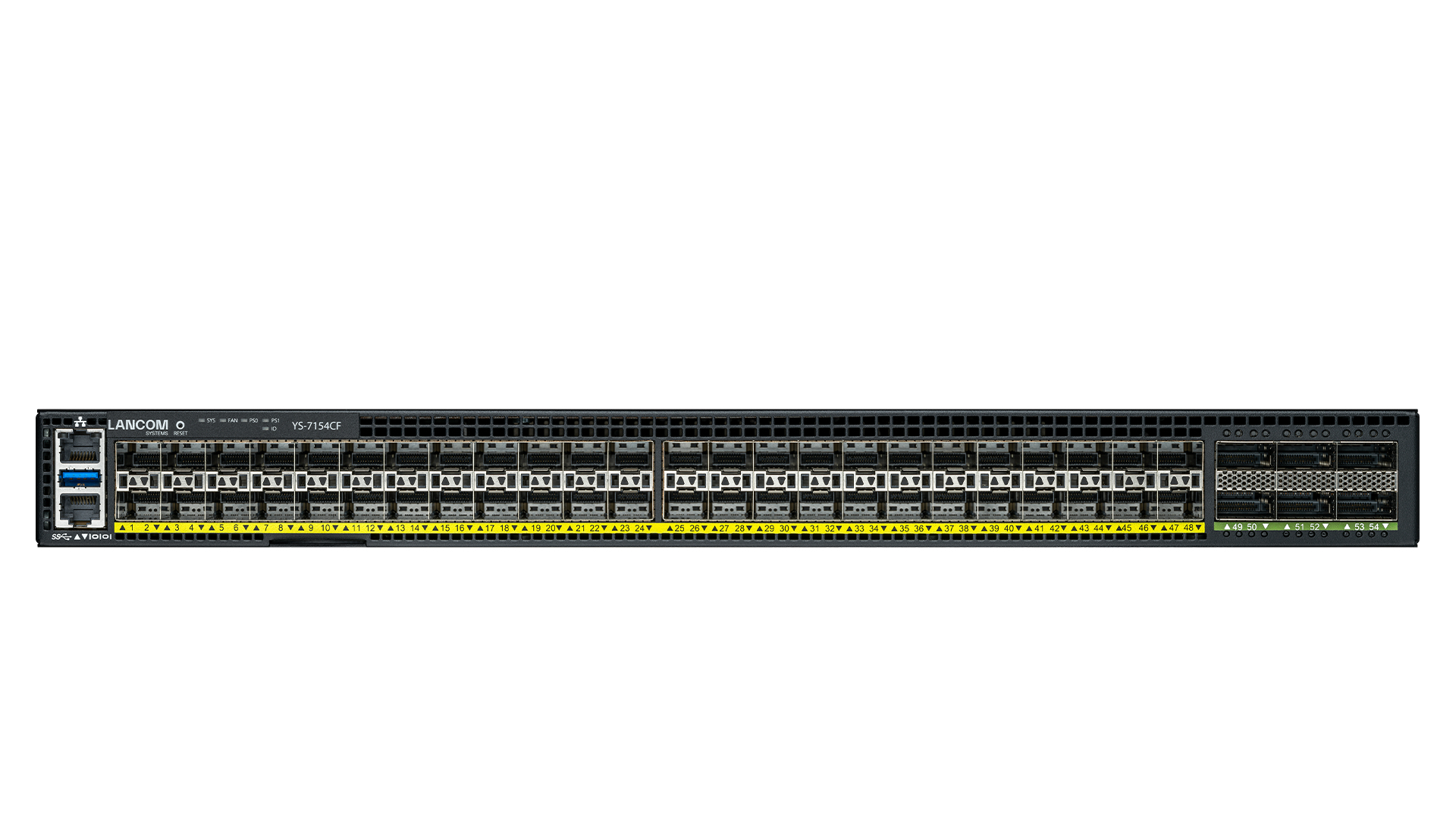

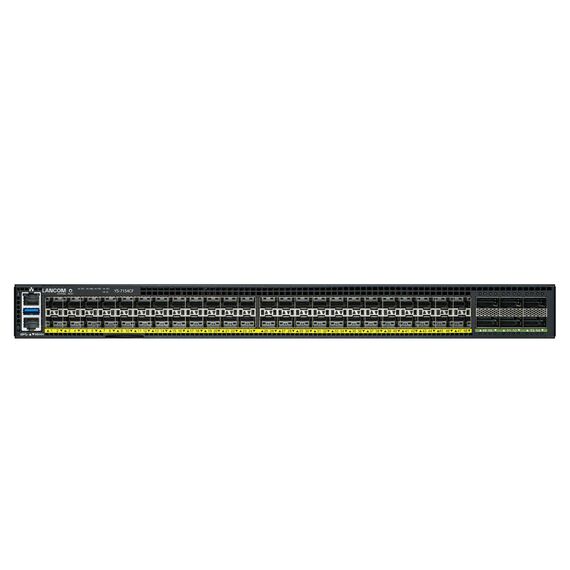

The LANCOM YS-7154CF-F2B is a managed L2/L3 fibre aggregation switch for campus networks. It combines 48x SFP28 and 6x QSFP28 ports with web-based management, SNMP support and 1U rack mounting, making it suitable for high-density fibre uplinks and mixed 1G-100G environments.
Technical Specifications
| Specification | Detail |
|---|---|
| Switch Type | Managed |
| Switch Layer | L2/L3 |
| SFP28 Ports | 48 |
| QSFP28 Ports | 6 |
| Throughput | 2000 Gbit/s |
| MAC Address Table | 32000 entries |
| Static Routes | 16000 |
| VLAN Support | Yes |
| VLANs | 4093 |
| Virtual LAN Features | Private VLAN |
| Link Aggregation | Yes |
| Port Mirroring | Yes |
| QoS Support | Yes |
| Traffic Classification | Yes |
| ARP Inspection | Yes |
| GVRP | Yes |
| IGMP Snooping | Yes |
| IGMP Entries | 2800 |
| IGMP Proxy | Yes |
| MLD Snooping | Yes |
| Broadcast Storm Control | Yes |
| Rate Limiting | Yes |
| Spanning Tree Protocol | Yes |
| IP Routing | Yes |
| Routing Protocols | BGP4 | OSPFv2 | OSPFv3 |
| DHCP Features | DHCP client | DHCP relay | DHCP server |
| ACL | Yes |
| Management | Web-based management | SNMP |
| Security | SNMP | SNMPv2 |
| SSH/SSL Support | Yes |
| Password Protection | Yes |
| Authentication | RADIUS | TACACS+ |
| Firmware Upgradeable | Yes |
| Console Port | RJ-45 |
| Built-in Processor | Yes |
| Processor Frequency | 1600 MHz |
| Memory Type | DDR4-SDRAM |
| Internal Memory | 8192 MB |
| Packet Buffer Memory | 32 MB |
| Jumbo Frames Support | Yes |
| Jumbo Frames | 12288 |
| Store-and-forward | Yes |
| 10G Support | Yes |
| Full Duplex | Yes |
| Power Source | AC |
| Power Supply Included | Yes |
| AC Input Voltage | 100 - 240 V |
| AC Input Frequency | 50/60 Hz |
| Power Connector | AC-in jack |
| Power | 220 W |
| Noise Level | 65 dB |
| Heat Dissipation | 750 BTU/h |
| Rack Mounting | Yes |
| Form Factor | 1U |
| Product Colour | Black |
| LED Indicators | Yes |
| Number of Fans | 5 fan(s) |
| Width | 440 mm |
| Depth | 440 mm |
| Height | 43.8 mm |
| Weight | 8.7 kg |
| Operating Temperature | 0 - 40 °C |
| Operating Relative Humidity | 10 - 90 % |
| SKU / EAN | 61907 | 4044144619076 |
SINGULAR RECOMMENDS
For who
For network teams building a high-density fibre aggregation layer in campus or mixed-speed environments, with managed L2/L3 control and rack-mounted installation.
Real reason to buy it
The main draw is the port mix: 48x SFP28 and 6x QSFP28 in a managed 1U switch, giving a practical fibre aggregation platform with broad configuration options.
Know before
This is a fibre switch with no copper RJ-45 access ports listed. It needs AC power and includes a power supply; quoted noise level is 65 dB and maximum power consumption is 220 W.
